Physical Propertie
| Order Code | L (nH) | Tol.L | Test Condition L | Qmin (%) | Test Condition Q | RDc max. (mΩ) | lR (A) | fres (GHz) |
| INF-3168-17.5nH | 17.5 | ±5% | 150 MHz | 100 | 150 MHz | 4.5 | 4 | 2.2 |
| INF-3168-17.5nH | 17.5 | ±2% | 150 MHz | 100 | 150 MHz | 4.5 | 4 | 2.2 |
| INF-3168-22nH | 22 | ±5% | 150 MHz | 102 | 150 MHz | 5.2 | 4 | 2.1 |
| INF-3168-22nH | 22 | ±2% | 150 MHz | 102 | 150 MHz | 5.2 | 4 | 2.1 |
| INF-3168-28nH | 28 | ±5% | 150 MHz | 105 | 150 MHz | 6 | 4 | 1.8 |
| INF-3168-28nH | 28 | ±2% | 150 MHz | 105 | 150 MHz | 6 | 4 | 1.8 |
| INF-3168-35.5nH | 35.5 | ±5% | 150 MHz | 112 | 150 MHz | 6.8 | 4 | 1.5 |
| INF-3168-35.5nH | 35.5 | ±2% | 150 MHz | 112 | 150 MHz | 6.8 | 4 | 1.5 |
| INF-3168-43nH | 43 | ±5% | 150 MHz | 106 | 150 MHz | 7.9 | 4 | 1.2 |
| INF-3168-43nH | 43 | ±2% | 150 MHz | 106 | 150 MHz | 7.9 | 4 | 1.2 |

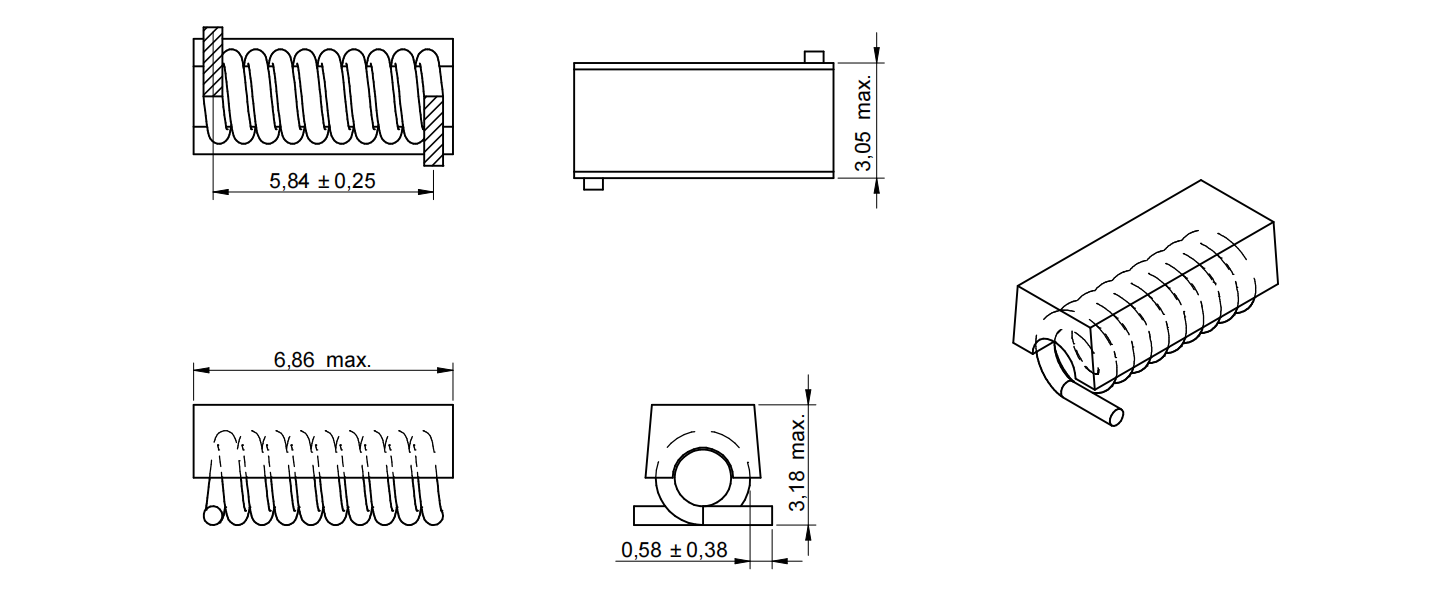

Technical Specifications
