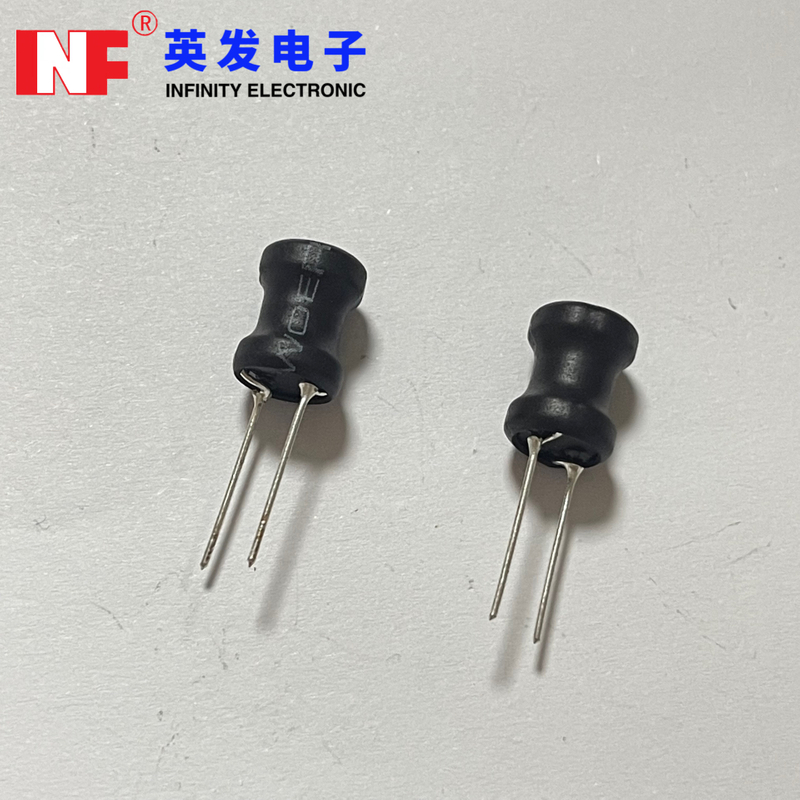

DR Radial Leaded Wire Wound Inductor 8095 Filter Choke


Characteristics:
  • Radial through-hole inductor
  • High saturation core material
  • Small size
  • Maximum current up to 8.5 A
  • Custom design on request

Options:
  • Radial through-hole, high saturation core, small size
  • Max current 8.5A, custom designs available
  • For signal filtering, small/medium voltage switching PSUs & EMI filters

Common Applications:
  • Signal filtering
  • Switches, switching power supply for small and medium voltage
  • Power supply filter
  • EMI filter
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • DR8095

Previous:
Next:
DR Radial Leaded Wire Wound Inductor 8095 Filter Choke
Product Description
Download


Physical Propertie

Order Code

L(μH)

lR(A)

lSAT,10%(A)

RDC max.(Ω)

fres(MHz)
INF-8095-1μH 1 6.9 15 0.0135 195
INF-8095-2.2μH 2.2 5.3 10 0.018 120
INF-8095-3.3μH 3.3 5 8.5 0.024 95
INF-8095-4.7μH 4.7 4.5 7.2 0.03 70
INF-8095-6.8μH 6.8 3.9 6 0.032 36
INF-8095-10μH 10 3.5 4.9 0.043 18
INF-8095-15μH 15 3.2 4 0.048 16
INF-8095-18μH 18 3.1 3.7 0.053 15
INF-8095-20μH 20 3.1 3.5 0.054 15
INF-8095-22μH 22 3 3.3 0.055 13
INF-8095-33μH 33 2.5 2.7 0.066 11
INF-8095-39μH 39 2.2 2.5 0.1 10
INF-8095-47μH 47 2 2.3 0.12 9.1
INF-8095-56μH 56 1.9 2.1 0.13 8.2
INF-8095-68μH 68 1.8 1.9 0.16 6.7
INF-8095-82μH 82 1.6 1.7 0.19 6.2
INF-8095-100μH 100 1.3 1.6 0.22 6.1
INF-8095-120μH 120 1.3 1.4 0.28 5.4
INF-8095-150μH 150 1.1 1.1 0.35 4.5
INF-8095-180μH 180 1 1 0.43 3.8
INF-8095-220μH 220 1 1 0.45 3.8
INF-8095-330μH 330 0.82 0.88 0.7 3.1
INF-8095-470μH 470 0.66 0.73 0.97 2.4
INF-8095-560μH 560 0.61 0.7 1.22 2.3
INF-8095-680μH 680 0.52 0.61 1.37 2.1
INF-8095-820μH 820 0.51 0.55 1.7 2
INF-8095-900μH 900 0.5 0.52 2.02 1.8
INF-8095-1000μH 1000 0.44 0.51 2.15 1.6
INF-8095-1200μH 1200 0.42 0.42 2.39 1.5
INF-8095-1500μH 1500 0.37 0.42 3 1.3
INF-8095-1800μH 1800 0.32 0.39 4.51 1.3
INF-8095-2200μH 2200 0.29 0.35 4.73 1.1
INF-8095-3300μH 3300 0.24 0.29 6.7 0.98
INF-8095-3900μH 3900 0.22 0.27 8.05 0.88
INF-8095-4700μH 4700 0.21 0.24 9.5 0.83
INF-8095-7000μH 7000 0.17 0.18 16 0.71
INF-8095-10000μH 10000 0.13 0.16 24 0.52
INF-8095-22000μH 22000 0.09 0.11 55 0.38
INF-8095-36000μH 36000 0.07 0.08 94 0.25
INF-8095-47000μH 47000 0.06 0.07 112 0.22

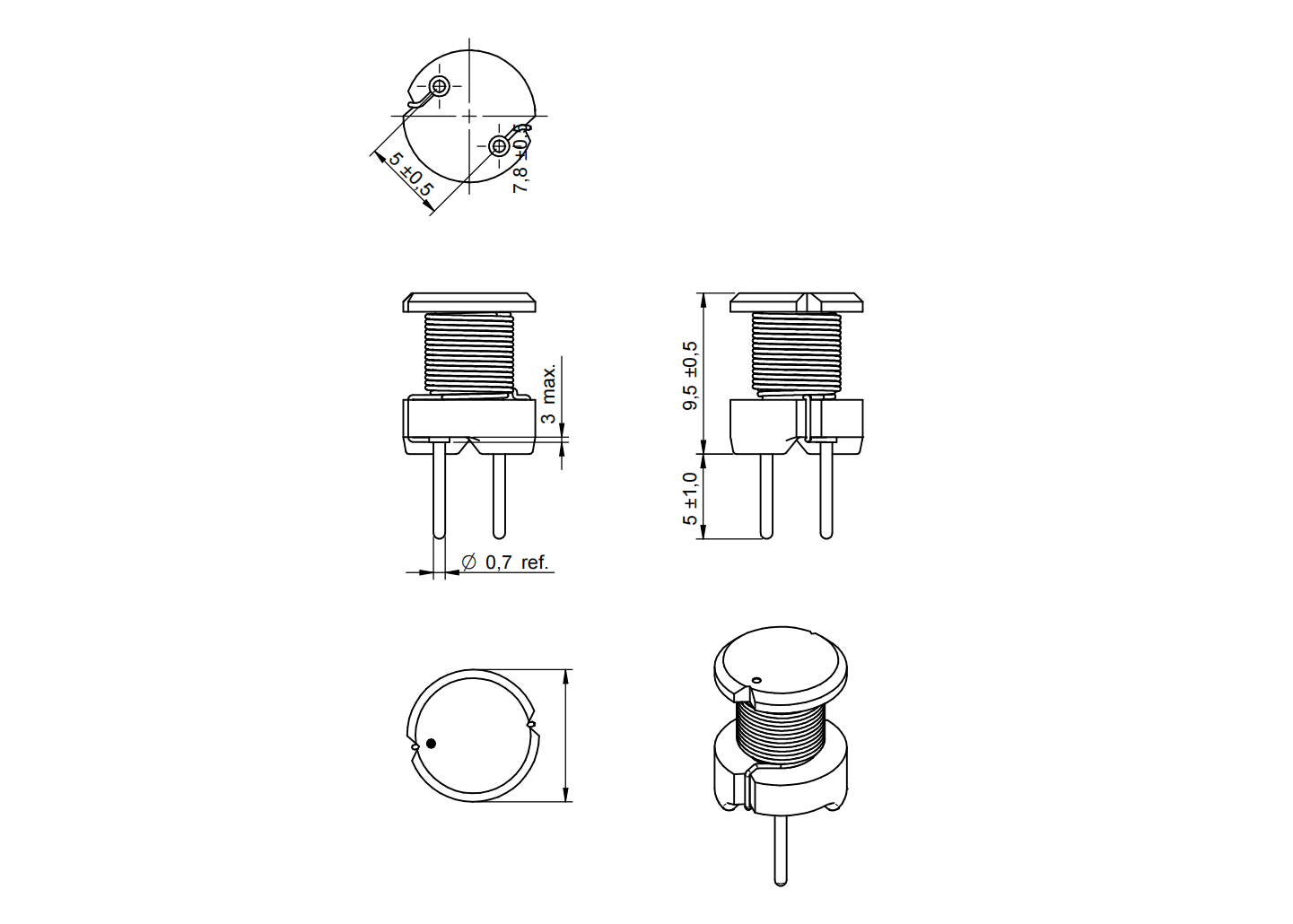

Technical Specifications

屏幕截图 2025-12-04 135001
