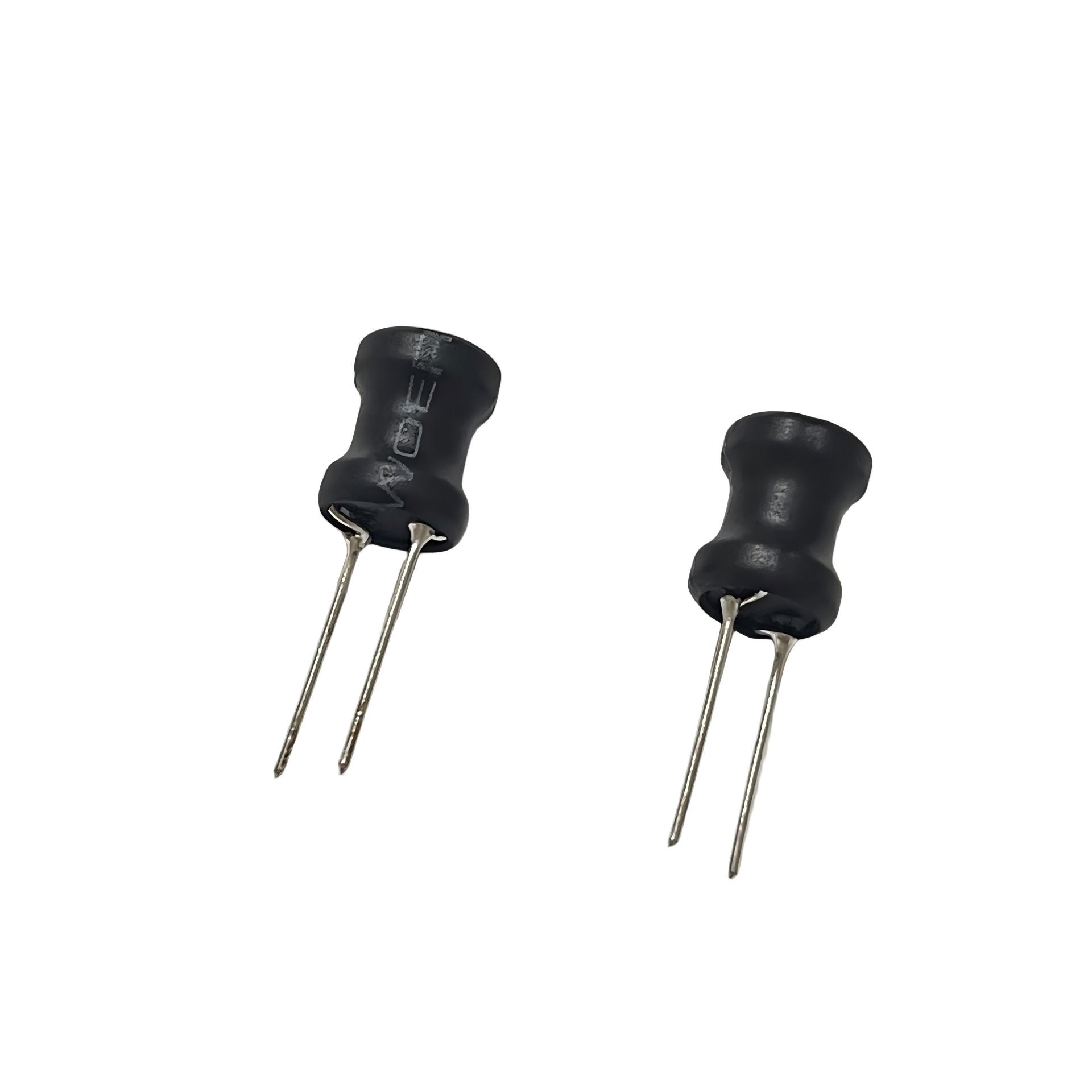

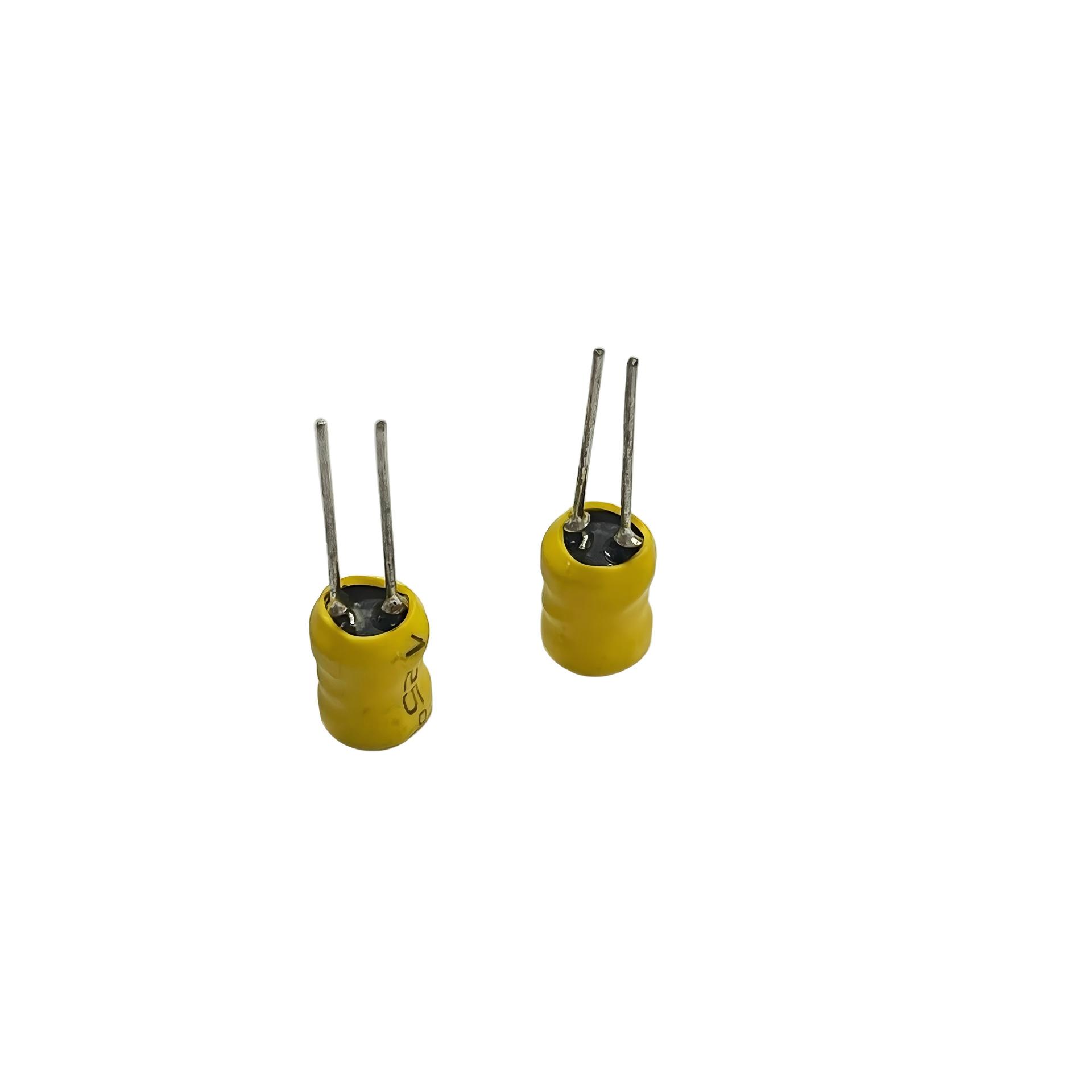

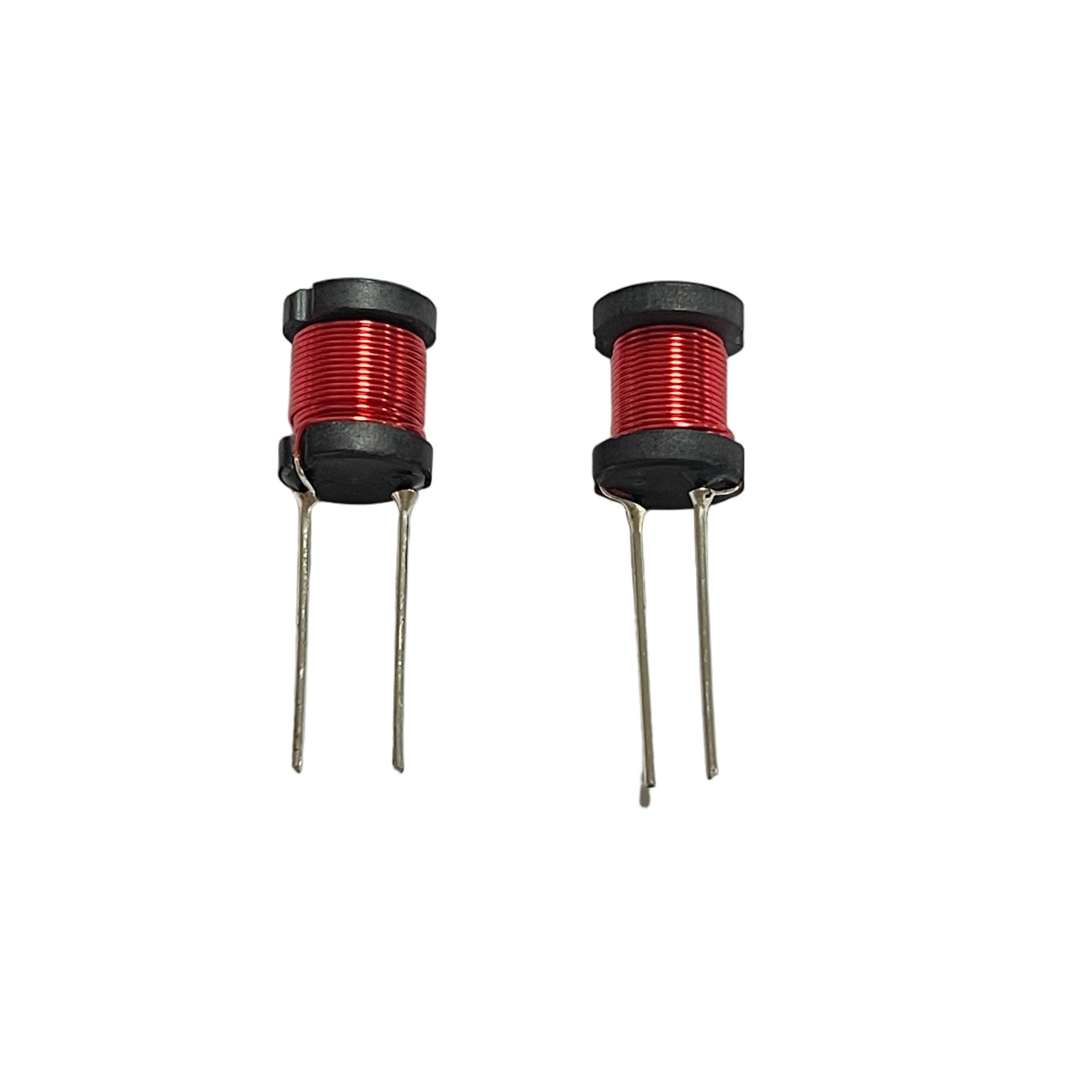

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

DR Radial Leaded Wire Wound Inductor

Quantity:
Color:	yellow/black/red
Availability:





Inquiry Add to Basket

Previous:

Next:

DR Radial Leaded Wire Wound Inductor

Product Description

Download

0406

0608

0707

0807

0810

1010

1213

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	RDC max(Ω)	Rated Current Max(mA)
INF-IND-0608-T-4.7μH	Datasheet	4.7	20	7.96	0.02	3000
INF-IND-0608-T-10μH	Datasheet	10	30	2.52	0.039	2000
INF-IND-0608-T-22μH	Datasheet	22	30	2.52	0.062	1400
INF-IND-0608-T-33μH	Datasheet	33	30	2.52	0.1	1100
INF-IND-0608-T-47μH	Datasheet	47	30	2.52	0.15	950
INF-IND-0608-T-100μH	Datasheet	100	20	0.796	0.35	650
INF-IND-0608-T-220μH	Datasheet	220	20	0.796	0.9	440
INF-IND-0608-T-470μH	Datasheet	470	20	0.796	1.8	300
INF-IND-0608-T-2200μH	Datasheet	2200	70	0.252	6.8	140
INF-IND-0608-T-3300μH	Datasheet	3300	70	0.252	10.5	115
INF-IND-0608-T-4700μH	Datasheet	4700	70	0.252	13.6	95
INF-IND-0608-T-8200μH	Datasheet	8200	70	0.252	25.2	70
INF-IND-0608-T-10000μH	Datasheet	10000	70	0.0796	29.5	65
INF-IND-0608-T-22000μH	Datasheet	22000	50	0.0796	80	45
INF-IND-0608-T-33000μH	Datasheet	33000	50	0.0796	98.5	35
INF-IND-0608-T-47000μH	Datasheet	47000	50	0.0796	160	30

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	SRF Min.(MHz)	RDC max(Ω)	Rated Current Max(mA)
INF-IND-0406-T-1.2μH	Datasheet	1.2	100	7.96	120	0.058	1950
INF-IND-0406-T-3.3μH	Datasheet	3.3	100	7.96	75	0.13	1500
INF-IND-0406-T-47μH	Datasheet	47	70	2.52	7.8	0.76	550
INF-IND-0406-T-100μH	Datasheet	100	45	0.796	6	1	400
INF-IND-0406-T-150μH	Datasheet	150	65	0.796	4.2	1.3	350
INF-IND-0406-T-330μH	Datasheet	330	50	0.796	2.2	2.2	250
INF-IND-0406-T-470μH	Datasheet	470	50	0.796	1.7	3.6	200
INF-IND-0406-T-680μH	Datasheet	680	50	0.796	1.3	4.6	170
INF-IND-0406-T-1000μH	Datasheet	1000	90	0.252	1	6.7	150
INF-IND-0406-T-1500μH	Datasheet	1500	80	0.252	0.8	13	120
INF-IND-0406-T-2200μH	Datasheet	2200	80	0.252	0.8	17	100

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	SRF Min.(MHz)	RDC max(Ω)	Rated Current Max(mA)
INF-IND-0810-T-3.3μH	Datasheet	3.3	30	7.96	65	0.012	5000
INF-IND-0810-T-10μH	Datasheet	10	50	2.52	17	0.025	3200
INF-IND-0810-T-12μH	Datasheet	12	50	2.52	15	0.027	3000
INF-IND-0810-T-15μH	Datasheet	15	50	2.52	13	0.033	2800
INF-IND-0810-T-18μH	Datasheet	18	50	2.52	12	0.039	2600
INF-IND-0810-T-56μH	Datasheet	56	40	2.52	6.4	0.15	1300
INF-IND-0810-T-120μH	Datasheet	120	30	0.796	4.2	0.22	800
INF-IND-0810-T-180μH	Datasheet	180	30	0.796	3.5	0.28	650
INF-IND-0810-T-270μH	Datasheet	270	20	0.796	2.9	0.4	550
INF-IND-0810-T-330μH	Datasheet	330	20	0.796	2.6	0.47	500
INF-IND-0810-T-470μH	Datasheet	470	20	0.796	2.2	0.8	420
INF-IND-0810-T-560μH	Datasheet	560	20	0.796	2	1	380
INF-IND-0810-T-680μH	Datasheet	680	20	0.796	1.8	1.2	350
INF-IND-0810-T-820μH	Datasheet	820	20	0.796	1.7	1.5	310

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	SRF Min.(MHz)	RDC max(Ω)	Rated Current Max(A)	Temperature Rise Current Max(A)
INF-IND-0707-T-10μH	Datasheet	10	20	2.52	19	0.043	2.1	1.9
INF-IND-0707-T-15μH	Datasheet	15	20	2.52	15	0.056	1.7	1.6
INF-IND-0707-T-330μH	Datasheet	330	20	0.796	2.5	1.1	0.36	0.37

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	SRF Min.(MHz)	RDC max(Ω)	Rated Current Max(A)	Temperature Rise Current Max(A)
INF-IND-0807-T-3.3μH	Datasheet	3.3	10	7.96	38	0.013	3.8	3.4
INF-IND-0807-T-10μH	Datasheet	10	20	2.52	19	0.031	2.5	2.2
INF-IND-0807-T-15μH	Datasheet	15	20	2.52	15	0.042	2	1.9
INF-IND-0807-T-22μH	Datasheet	22	20	2.52	12	0.07	1.6	1.5
INF-IND-0807-T-470μH	Datasheet	470	10	0.796	2.3	1	0.34	0.39
INF-IND-0807-T-680μH	Datasheet	680	10	0.796	1.9	1.5	0.28	0.32

Order Code	Downloads	L@1kHz(μH)	Q Min.	Q Test Freq.(MHz)	SRF Min.(MHz)	RDC max(Ω)	Rated Current Max(A)	Temperature Rise Current Max(A)
INF-IND-1010-T-10μH	Datasheet	10	20	2.52	16	0.025	5	3.7
INF-IND-1010-T-15μH	Datasheet	15	20	2.52	12	0.029	4.2	3.4
INF-IND-1010-T-22μH	Datasheet	22	20	2.52	9.5	0.04	3.4	2.9
INF-IND-1010-T-33μH	Datasheet	33	30	2.52	7	0.062	2.8	2.3
INF-IND-1010-T-47μH	Datasheet	47	30	2.52	5.8	0.075	2.3	2.1
INF-IND-1010-T-100μH	Datasheet	100	20	0.796	3.8	0.16	1.6	1.4
INF-IND-1010-T-220μH	Datasheet	220	20	0.796	2.5	0.33	1.1	1
INF-IND-1010-T-330μH	Datasheet	330	20	0.796	2	0.52	0.88	0.82
INF-IND-1010-T-3300μH	Datasheet	3300	30	0.252	0.64	4.9	0.28	0.26
INF-IND-1010-T-4700μH	Datasheet	4700	30	0.252	0.54	7.6	0.24	0.21
INF-IND-1010-T-6800μH	Datasheet	6800	30	0.252	0.45	9.8	0.2	0.18
INF-IND-1010-T-10000μH	Datasheet	10000	30	0.0796	0.38	18	0.17	0.14
INF-IND-1010-T-15000μH	Datasheet	15000	50	0.0796	0.29	24	0.13	0.12

Order Code	Downloads	L@1kHz(μH)	RDC max(Ω)	Saturation Current Max(A)	Temperature Rise Current Max(A)
INF-IND-1213-T-10μH	Datasheet	10	0.023	8	5.1
INF-IND-1213-T-15μH	Datasheet	15	0.028	6.5	4.5
INF-IND-1213-T-22μH	Datasheet	22	0.035	5.5	4.2
INF-IND-1213-T-33μH	Datasheet	33	0.043	4.5	3.7
INF-IND-1213-T-220μH	Datasheet	220	0.2	1.7	1.7
INF-IND-1213-T-330μH	Datasheet	330	0.3	1.4	1.4
INF-IND-1213-T-470μH	Datasheet	470	0.43	1.1	1.1
INF-IND-1213-T-3300μH	Datasheet	3300	3.1	0.43	0.44
INF-IND-1213-T-4700μH	Datasheet	4700	4.4	0.36	0.37
INF-IND-1213-T-6800μH	Datasheet	6800	6.5	0.3	0.3

Typical Applications

TV and Audio equipment

Telecommunication devices

Personal computers

Switching power supplies

Other noise filters

DR Radial Leaded Wire Wound Inductor（0406）.pdf

DR Radial Leaded Wire Wound Inductor（0608）.pdf

DR Radial Leaded Wire Wound Inductor（0707）.pdf

DR Radial Leaded Wire Wound Inductor（0807）.pdf

DR Radial Leaded Wire Wound Inductor（0810）.pdf

DR Radial Leaded Wire Wound Inductor（1010）.pdf

DR Radial Leaded Wire Wound Inductor（1010）.pdf

DR Radial Leaded Wire Wound Inductor（1213）.pdf

Product Description

Download

Related Products

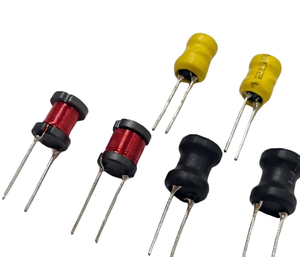

DRC-V Radial Leaded Wire Wound Inductor

DRC-V Radial Leaded Wire Wound Inductor

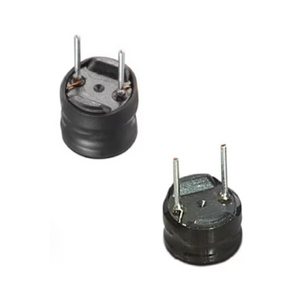

DR Radial Leaded Wire Wound Drum Inductors

DR Series Radial Leaded Wire wound Drum Inductors

DR Core Series Through Hole Radial UL Tube Power Chockes, Wire-wound Construction,Large Current Leaded Power Inductors

DR Core Series Through Hole Radial UL Tube Power Chokes, Wire-Wound Construction, Large Current Leaded Power Inductors

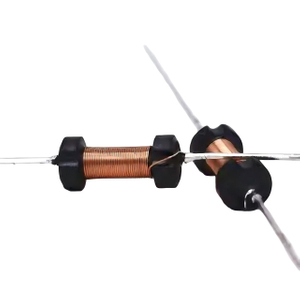

DRWW Coil Cores Fixed Axial Power Inductors Filter Choke
