DR Radial Leaded Wire Wound Drum Inductors

DR Series Radial Leaded Wire wound Drum Inductors

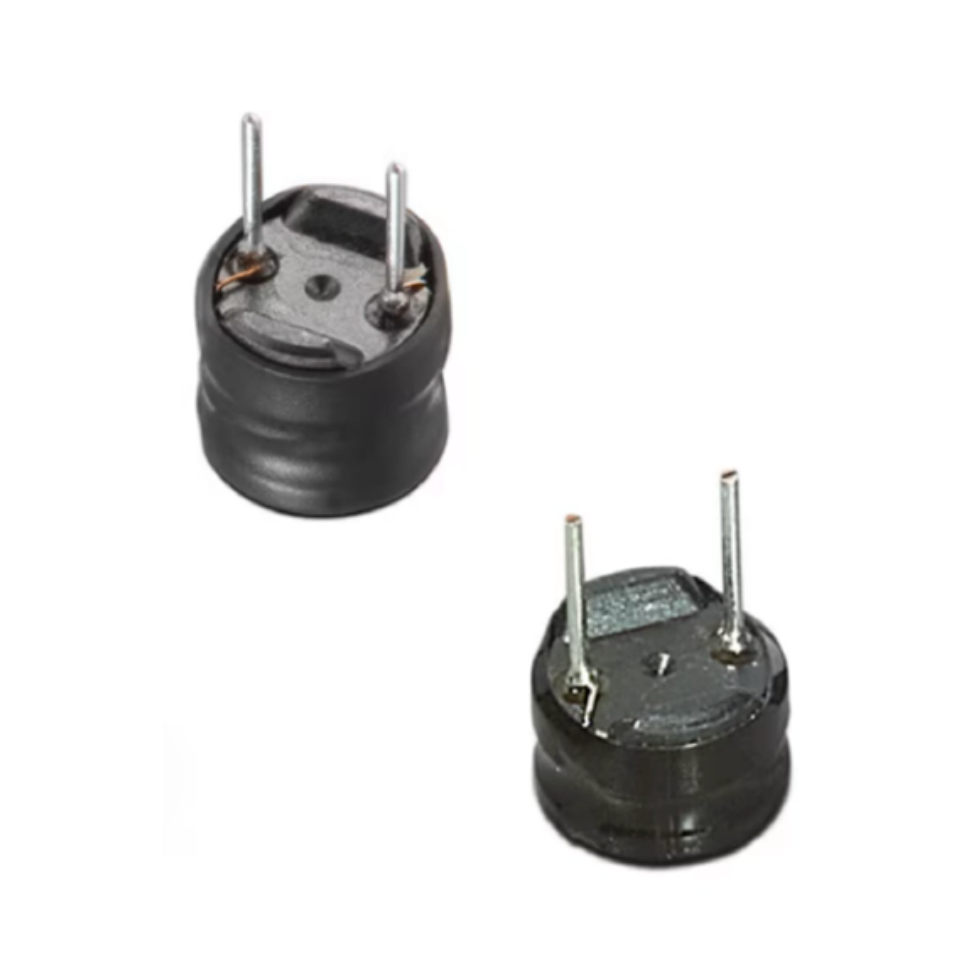

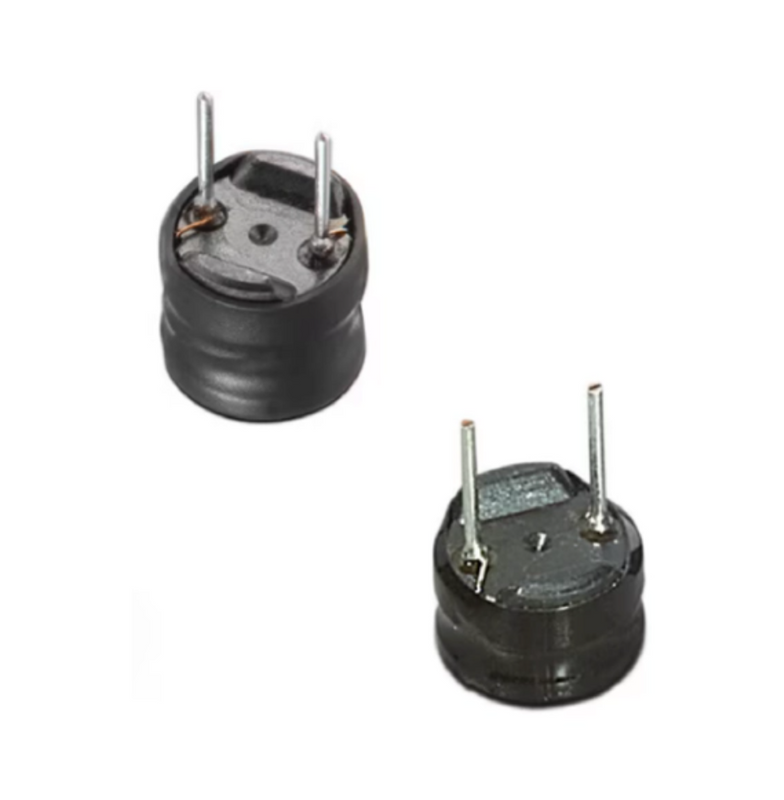

DR Series drum core inductors are radial leaded wire-wound components designed for high efficiency power applications. With low core loss, high saturation current, and excellent stability, they are ideal for switching power supplies, DC-DC converters, EMI suppression, and industrial electronics.

Quantity:
Color:	yellow/black/red
Availability:





Inquiry Add to Basket

DR Series Radial Leaded Wirewound Drum Inductors

Product Description

Download

1014

1016

1018

5075

6065

8012

8055

8075

8095

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-1014-THT-68μH	Datasheet	68	2.9	3.5	0.08	6
INF-IND-1014-THT-100μH	Datasheet	100	2.4	2.8	0.125	4.5
INF-IND-1014-THT-150μH	Datasheet	150	2	2.4	0.18	3.5
INF-IND-1014-THT-220μH	Datasheet	220	1.6	1.75	0.26	2.3
INF-IND-1014-THT-330μH	Datasheet	330	1.4	1.6	0.33	2.2
INF-IND-1014-THT-470μH	Datasheet	470	1.15	1.3	0.52	1.8
INF-IND-1014-THT-560μH	Datasheet	560	1	1.1	0.65	1.6
INF-IND-1014-THT-680μH	Datasheet	680	0.9	1	0.79	1.5
INF-IND-1014-THT-1000μH	Datasheet	1000	0.8	0.9	1.15	1.1
INF-IND-1014-THT-1200μH	Datasheet	1200	0.7	0.75	1.4	1
INF-IND-1014-THT-1500μH	Datasheet	1500	0.68	0.74	1.8	1
INF-IND-1014-THT-2200μH	Datasheet	2200	0.48	0.62	2.5	0.83
INF-IND-1014-THT-3300μH	Datasheet	3300	0.36	0.49	4	0.7
INF-IND-1014-THT-5600μH	Datasheet	5600	0.32	0.38	5.8	0.54
INF-IND-1014-THT-8200μH	Datasheet	8200	0.3	0.3	9	0.44

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-1016-THT-100μH	Datasheet	100	2.45	2.75	0.1	4
INF-IND-1016-THT-220μH	Datasheet	220	1.65	1.9	0.22	2.5
INF-IND-1016-THT-330μH	Datasheet	330	1.35	1.55	0.32	2
INF-IND-1016-THT-470μH	Datasheet	470	1.1	1.3	0.46	1.6
INF-IND-1016-THT-680μH	Datasheet	680	0.9	1.1	0.67	1.3
INF-IND-1016-THT-1000μH	Datasheet	1000	0.75	0.9	0.98	1
INF-IND-1016-THT-2200μH	Datasheet	2200	0.5	0.61	2.1	0.65
INF-IND-1016-THT-3300μH	Datasheet	3300	0.4	0.5	3.2	0.5
INF-IND-1016-THT-4700μH	Datasheet	4700	0.34	0.42	4.6	0.41
INF-IND-1016-THT-6800μH	Datasheet	6800	0.28	0.35	6.6	0.33
INF-IND-1016-THT-10000μH	Datasheet	10000	0.23	0.29	9.7	0.26

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-1018-THT-100μH	Datasheet	100	2.6	3.1	0.09	3.6
INF-IND-1018-THT-220μH	Datasheet	220	1.75	2.1	0.2	2.4
INF-IND-1018-THT-330μH	Datasheet	330	1.4	1.75	0.29	1.9
INF-IND-1018-THT-470μH	Datasheet	470	1.2	1.5	0.41	1.6
INF-IND-1018-THT-680μH	Datasheet	680	1	1.2	0.59	1.3
INF-IND-1018-THT-1000μH	Datasheet	1000	0.8	1	0.86	1.1
INF-IND-1018-THT-2200μH	Datasheet	2200	0.54	0.7	1.9	0.72
INF-IND-1018-THT-3300μH	Datasheet	3300	0.43	0.55	2.8	0.58
INF-IND-1018-THT-4700μH	Datasheet	4700	0.36	0.47	4	0.48
INF-IND-1018-THT-6800μH	Datasheet	6800	0.3	0.39	5.75	0.4
INF-IND-1018-THT-10000μH	Datasheet	10000	0.25	0.32	8.5	0.32

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-5075-THT-1μH	Datasheet	1	8.5	8.5	0.015	140
INF-IND-5075-THT-2.2μH	Datasheet	2.2	6.3	5.7	0.02	65
INF-IND-5075-THT-3.3μH	Datasheet	3.3	4.7	4.6	0.025	48
INF-IND-5075-THT-4.7μH	Datasheet	4.7	4.2	3.7	0.03	40
INF-IND-5075-THT-6.8μH	Datasheet	6.8	3.3	3	0.034	32
INF-IND-5075-THT-10μH	Datasheet	10	2.5	2.6	0.08	28
INF-IND-5075-THT-22μH	Datasheet	22	1.8	1.7	0.13	15
INF-IND-5075-THT-33μH	Datasheet	33	1.4	1.4	0.22	14
INF-IND-5075-THT-47μH	Datasheet	47	1.18	1.2	0.34	10.6
INF-IND-5075-THT-68μH	Datasheet	68	0.8	1	0.4	7.5
INF-IND-5075-THT-82μH	Datasheet	82	0.8	0.9	0.47	7.2
INF-IND-5075-THT-100μH	Datasheet	100	0.8	0.8	0.65	7.1
INF-IND-5075-THT-220μH	Datasheet	220	0.5	0.57	1.2	4.8
INF-IND-5075-THT-470μH	Datasheet	470	0.35	0.4	2.4	3.4
INF-IND-5075-THT-680μH	Datasheet	680	0.25	0.3	3.7	2.4
INF-IND-5075-THT-1000μH	Datasheet	1000	0.25	0.27	6	2.3
INF-IND-5075-THT-1500μH	Datasheet	1500	0.19	0.22	8	1.8
INF-IND-5075-THT-2200μH	Datasheet	2200	0.16	0.18	15	1.2

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-6065-THT-6.8μH	Datasheet	6.8	2.2	3.1	0.035	40
INF-IND-6065-THT-10μH	Datasheet	10	1.85	2.5	0.05	28
INF-IND-6065-THT-47μH	Datasheet	47	1.45	1.1	0.16	10.2
INF-IND-6065-THT-68μH	Datasheet	68	1.4	1	0.28	9.4
INF-IND-6065-THT-220μH	Datasheet	220	0.6	0.55	0.8	5.5

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-8012-THT-10μH	Datasheet	10	4.7	5.4	0.02	20
INF-IND-8012-THT-100μH	Datasheet	100	1.8	1.5	0.16	4.8
INF-IND-8012-THT-220μH	Datasheet	220	1.2	1.2	0.29	3.4
INF-IND-8012-THT-330μH	Datasheet	330	1.1	1	0.47	2.6
INF-IND-8012-THT-390μH	Datasheet	390	1	0.91	0.52	2.4
INF-IND-8012-THT-560μH	Datasheet	560	0.81	0.75	0.85	1.9
INF-IND-8012-THT-820μH	Datasheet	820	0.7	0.6	1.2	1.5
INF-IND-8012-THT-1000μH	Datasheet	1000	0.6	0.55	1.55	1.4
INF-IND-8012-THT-1500μH	Datasheet	1500	0.5	0.43	2.1	1.37
INF-IND-8012-THT-2200μH	Datasheet	2200	0.4	0.4	2.9	0.95
INF-IND-8012-THT-3900μH	Datasheet	3900	0.28	0.28	4.8	0.78
INF-IND-8012-THT-4700μH	Datasheet	4700	0.23	0.26	7	0.65
INF-IND-8012-THT-10000μH	Datasheet	10000	0.18	0.18	16.6	0.45
INF-IND-8012-THT-68000μH	Datasheet	68000	0.05	0.07	106	0.16

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-8055-THT-100μH	Datasheet	100	1.1	1.2	1	9.4
INF-IND-8055-THT-220μH	Datasheet	220	0.66	0.88	1.5	6
INF-IND-8055-THT-330μH	Datasheet	330	0.5	0.77	2	5.1
INF-IND-8055-THT-470μH	Datasheet	470	0.44	0.58	3	4.3
INF-IND-8055-THT-680μH	Datasheet	680	0.33	0.51	4	3.3
INF-IND-8055-THT-1000μH	Datasheet	1000	0.29	0.41	6	2.7
INF-IND-8055-THT-2200μH	Datasheet	2200	0.21	0.28	11	1.9
INF-IND-8055-THT-4700μH	Datasheet	4700	0.15	0.19	25	1.3

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-8075-THT-1.5μH	Datasheet	1.5	7	11.5	0.01	100
INF-IND-8075-THT-10μH	Datasheet	10	4	4.7	0.033	27
INF-IND-8075-THT-47μH	Datasheet	47	1.8	2.1	0.14	11
INF-IND-8075-THT-120μH	Datasheet	120	1	1.3	0.38	6.5
INF-IND-8075-THT-220μH	Datasheet	220	0.75	1.2	0.7	4.8
INF-IND-8075-THT-330μH	Datasheet	330	0.6	1	1.2	3.9
INF-IND-8075-THT-470μH	Datasheet	470	0.45	0.9	1.7	2.8
INF-IND-8075-THT-680μH	Datasheet	680	0.42	0.75	2.2	2.3
INF-IND-8075-THT-1000μH	Datasheet	1000	0.33	0.6	3.4	2.2
INF-IND-8075-THT-1500μH	Datasheet	1500	0.29	0.5	4.7	1.75
INF-IND-8075-THT-3900μH	Datasheet	3900	0.18	0.23	12	1.1
INF-IND-8075-THT-4700μH	Datasheet	4700	0.2	0.21	15	1
INF-IND-8075-THT-15000μH	Datasheet	15000	0.1	0.21	60	0.6

Order Code	Downloads	L@1kHz(μH)	lR(A)	lSAT,10%(A)	RDC max.(Ω)	fres(MHz)
INF-IND-8095-THT-1μH	Datasheet	1	6.9	15	0.0135	195
INF-IND-8095-THT-2.2μH	Datasheet	2.2	5.3	10	0.018	120
INF-IND-8095-THT-3.3μH	Datasheet	3.3	5	8.5	0.024	95
INF-IND-8095-THT-4.7μH	Datasheet	4.7	4.5	7.2	0.03	70
INF-IND-8095-THT-6.8μH	Datasheet	6.8	3.9	6	0.032	36
INF-IND-8095-THT-10μH	Datasheet	10	3.5	4.9	0.043	18
INF-IND-8095-THT-15μH	Datasheet	15	3.2	4	0.048	16
INF-IND-8095-THT-18μH	Datasheet	18	3.1	3.7	0.053	15
INF-IND-8095-THT-20μH	Datasheet	20	3.1	3.5	0.054	15
INF-IND-8095-THT-22μH	Datasheet	22	3	3.3	0.055	13
INF-IND-8095-THT-33μH	Datasheet	33	2.5	2.7	0.066	11
INF-IND-8095-THT-39μH	Datasheet	39	2.2	2.5	0.1	10
INF-IND-8095-THT-47μH	Datasheet	47	2	2.3	0.12	9.1
INF-IND-8095-THT-56μH	Datasheet	56	1.9	2.1	0.13	8.2
INF-IND-8095-THT-68μH	Datasheet	68	1.8	1.9	0.16	6.7
INF-IND-8095-THT-82μH	Datasheet	82	1.6	1.7	0.19	6.2
INF-IND-8095-THT-100μH	Datasheet	100	1.3	1.6	0.22	6.1
INF-IND-8095-THT-120μH	Datasheet	120	1.3	1.4	0.28	5.4
INF-IND-8095-THT-150μH	Datasheet	150	1.1	1.1	0.35	4.5
INF-IND-8095-THT-180μH	Datasheet	180	1	1	0.43	3.8
INF-IND-8095-THT-220μH	Datasheet	220	1	1	0.45	3.8
INF-IND-8095-THT-330μH	Datasheet	330	0.82	0.88	0.7	3.1
INF-IND-8095-THT-470μH	Datasheet	470	0.66	0.73	0.97	2.4
INF-IND-8095-THT-560μH	Datasheet	560	0.61	0.7	1.22	2.3
INF-IND-8095-THT-680μH	Datasheet	680	0.52	0.61	1.37	2.1
INF-IND-8095-THT-820μH	Datasheet	820	0.51	0.55	1.7	2
INF-IND-8095-THT-900μH	Datasheet	900	0.5	0.52	2.02	1.8
INF-IND-8095-THT-1000μH	Datasheet	1000	0.44	0.51	2.15	1.6
INF-IND-8095-THT-1200μH	Datasheet	1200	0.42	0.42	2.39	1.5
INF-IND-8095-THT-1500μH	Datasheet	1500	0.37	0.42	3	1.3
INF-IND-8095-THT-1800μH	Datasheet	1800	0.32	0.39	4.51	1.3
INF-IND-8095-THT-2200μH	Datasheet	2200	0.29	0.35	4.73	1.1
INF-IND-8095-THT-3300μH	Datasheet	3300	0.24	0.29	6.7	0.98
INF-IND-8095-THT-3900μH	Datasheet	3900	0.22	0.27	8.05	0.88
INF-IND-8095-THT-4700μH	Datasheet	4700	0.21	0.24	9.5	0.83
INF-IND-8095-THT-7000μH	Datasheet	7000	0.17	0.18	16	0.71
INF-IND-8095-THT-10000μH	Datasheet	10000	0.13	0.16	24	0.52
INF-IND-8095-THT-22000μH	Datasheet	22000	0.09	0.11	55	0.38
INF-IND-8095-THT-36000μH	Datasheet	36000	0.07	0.08	94	0.25
INF-IND-8095-THT-47000μH	Datasheet	47000	0.06	0.07	112	0.22
