EE55 High Frequency Transformer Offline Flyback Transformers（Vertical）

EE Series High Frequency Transformer

Characteristics:

·Compact and low profile

·For SMD assembly

·Frequency up to 1 MHz

·Primary current rating to 40 A

·Operating temperature: -40 °C to
+130 °C

Options:

·Packaging:Bulk is Standard
·Tolerance:25% is Standard
·Custom design available

Common Applications:

·AC-DC / DC-DC current detection

·Switch mode power supply

·Overload sensing

·Load drop/shutdown detection

·Metering

·Load measurements
·High frequency current sensing

Quantity:
Availability:





Inquiry

Model:
EE Series
Brand:
INF

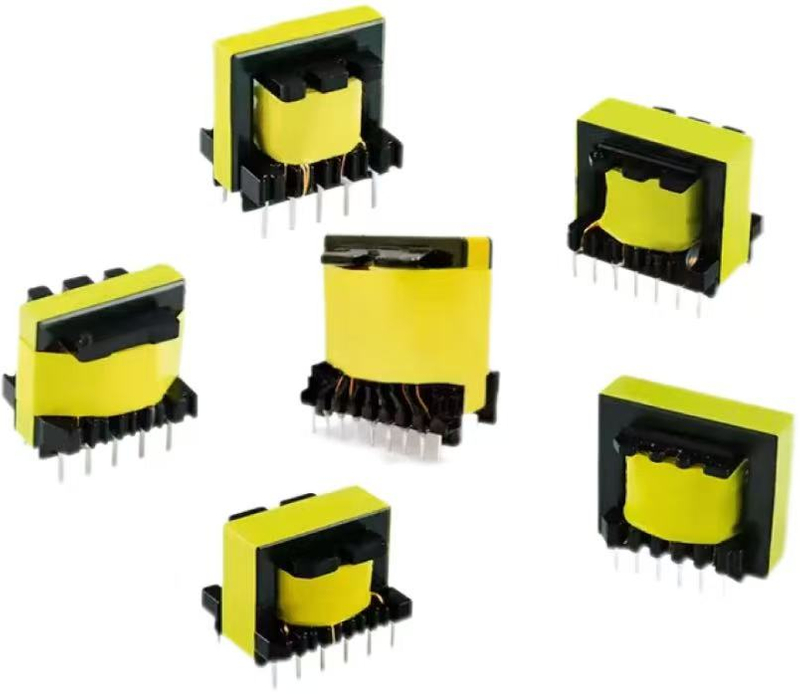

EE Series High Frequency Transformer

Product Description

Download

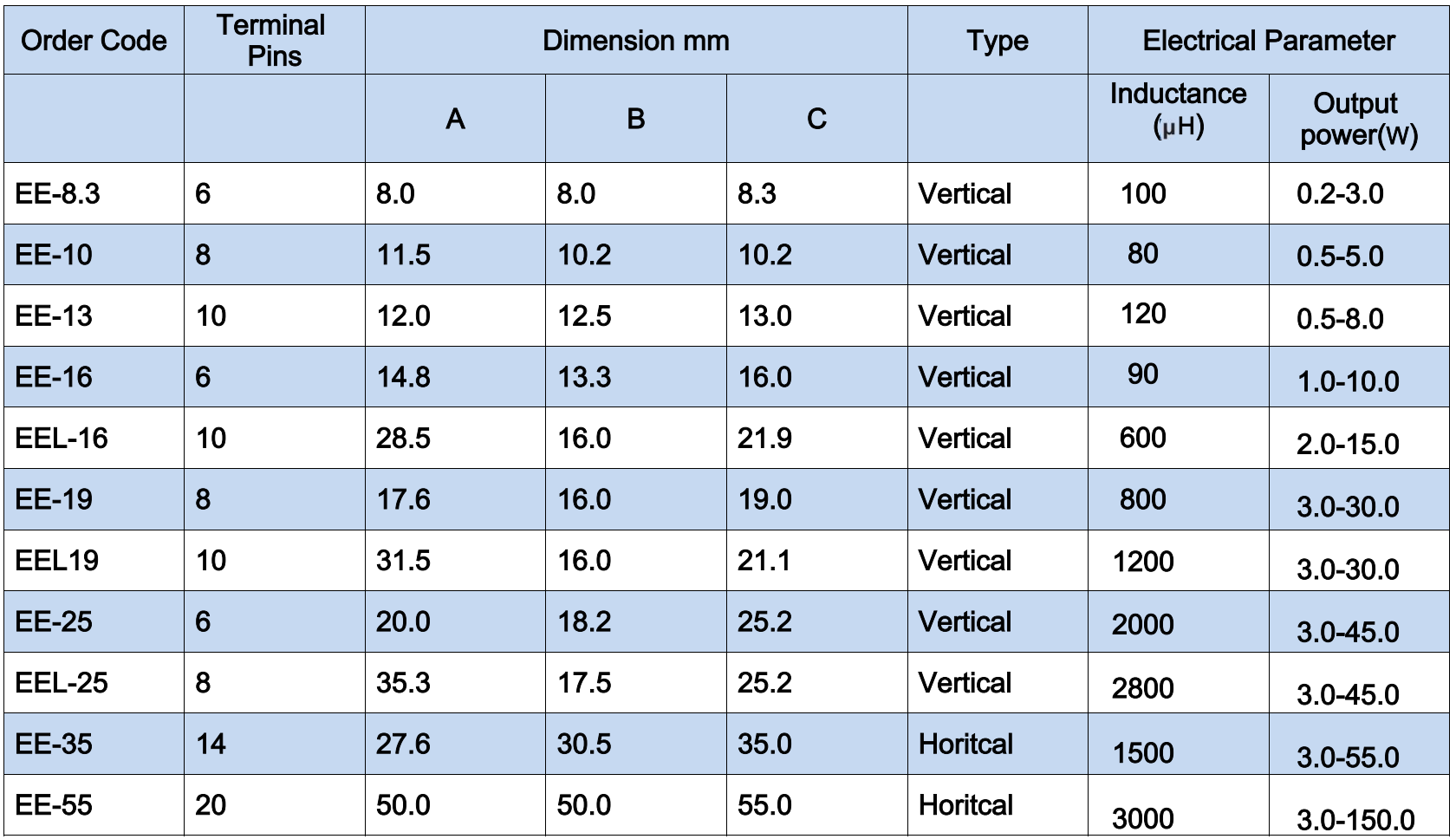

Physical Properties

a0814063860a1af1f2ac8807de123b75

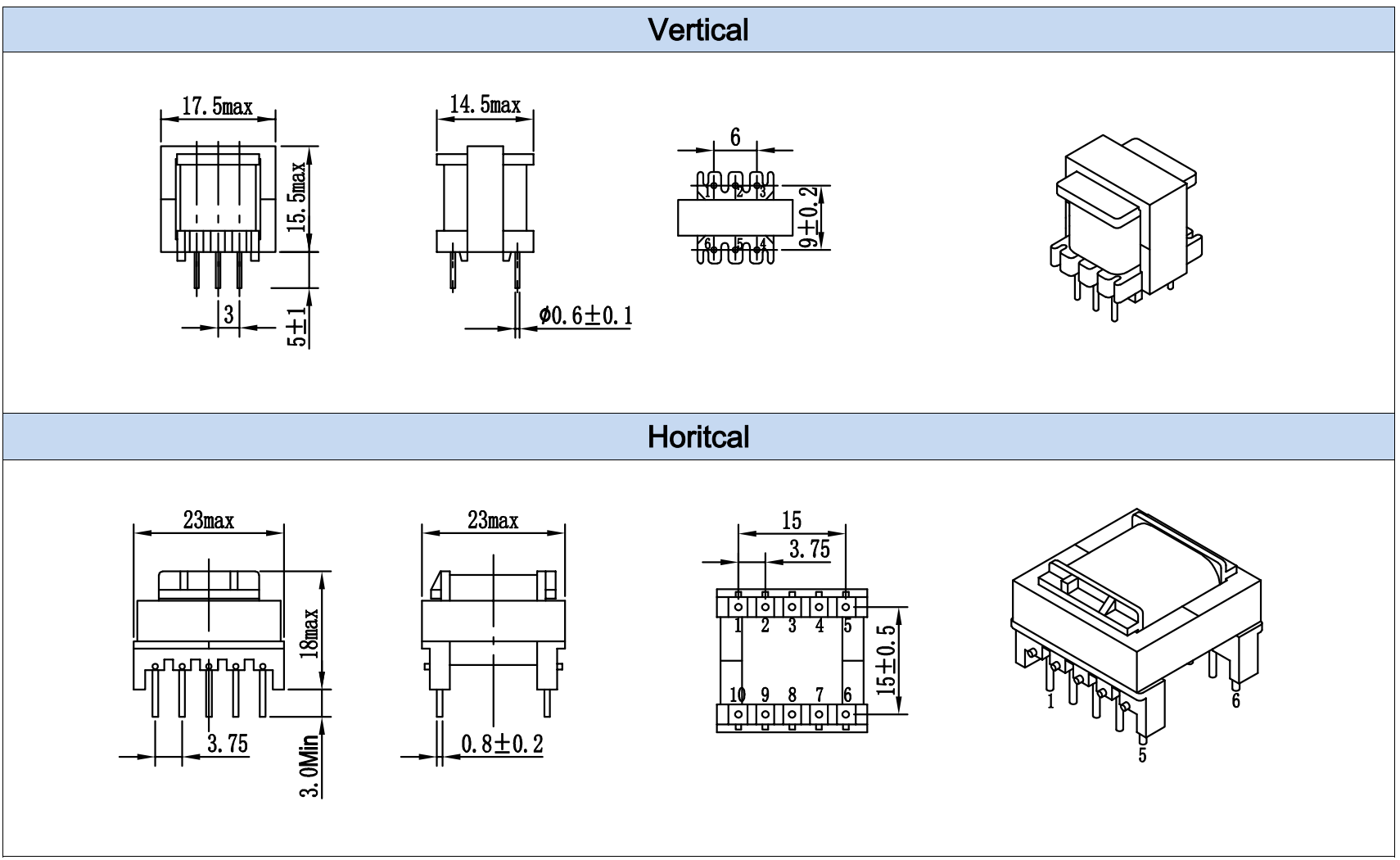

Technical Specifications

0cd4553fdcd75e699e759ccaf8e7e83f

EE Series High Frequency Transformer 水印 .pdf
