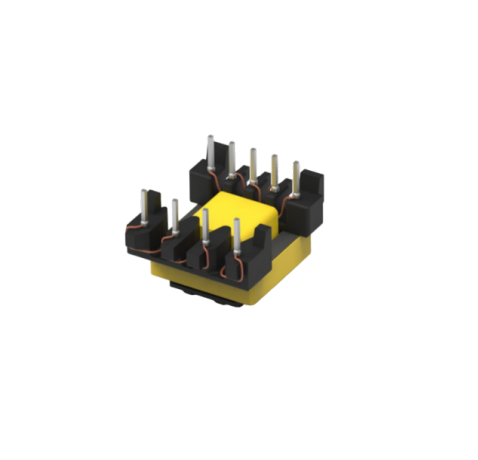

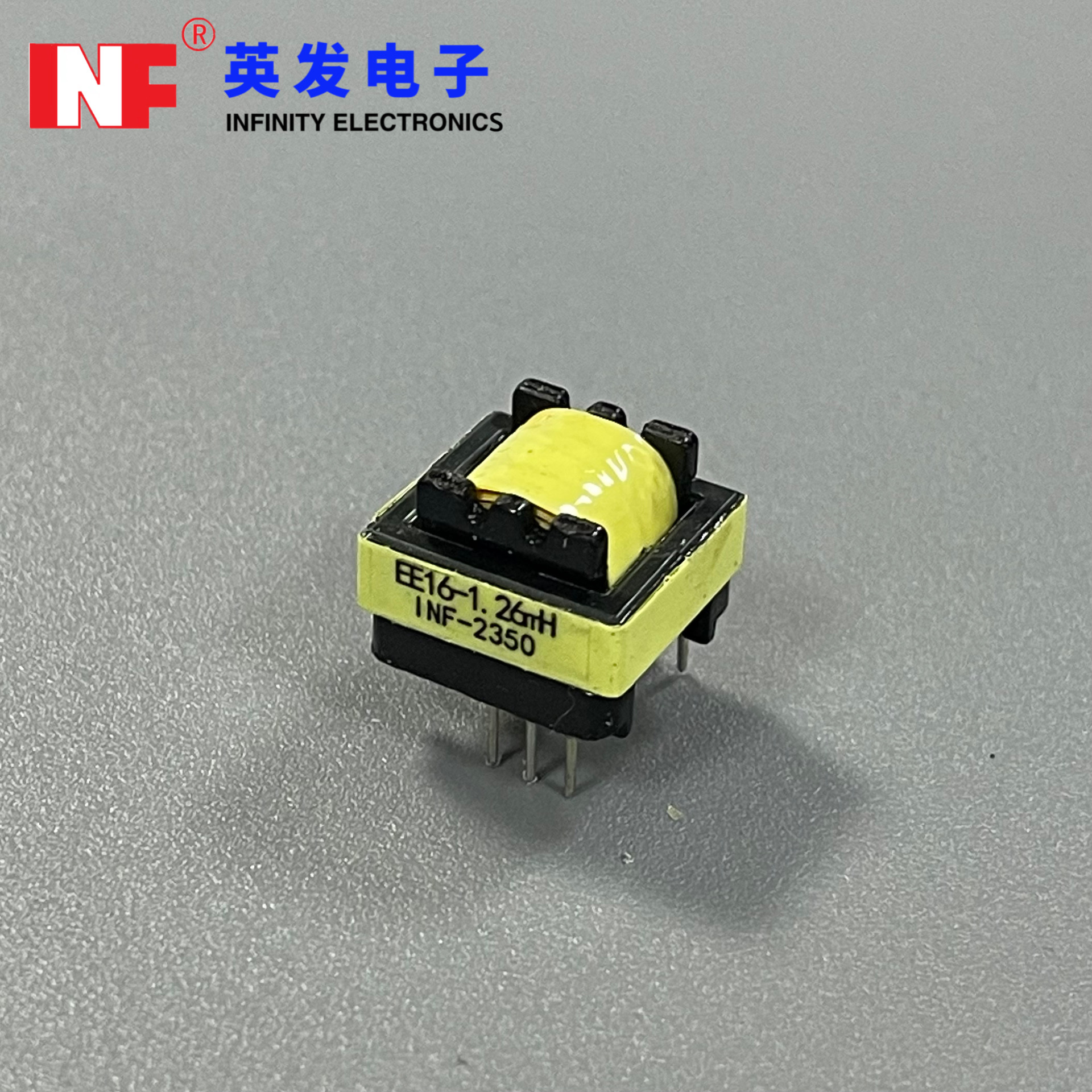

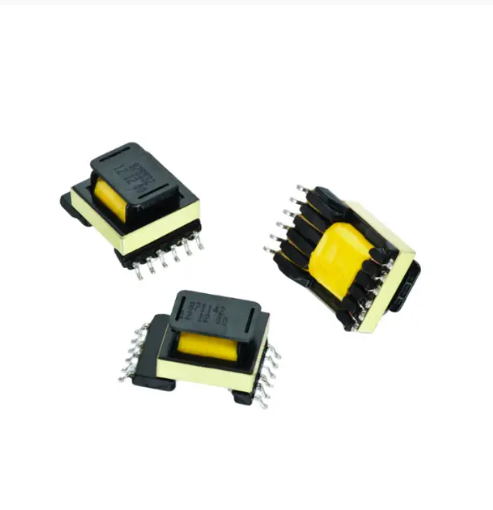

EE16/8/5 Offline Transformers
INF
FAQ:
Q: How do the products perform?
A: Our products are made from high-quality raw materials and manufactured with exceptional production processes, offering performance comparable to international brands. The EE16 transformer is designed to handle medium to high loads and operate reliably in various industrial environments.
Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 27 years and is recognized for providing high-quality products and excellent customer service. We have established long-term partnerships with clients in multiple industries, and every Chinese household uses appliances powered by Infinity inductors.
Q: What is your after-sales policy?
A: We implement strict quality control from raw materials to finished products to ensure that each product meets the required quality standards. If a customer receives a product with quality issues, we will provide a replacement to ensure
customer satisfaction.
Q: Do the products meet any certifications or standards?
A: Yes, our products comply with several industry certifications and standards, including UL, REACH, ROHS, etc.
EE16/8/5 Offline Transformers Offline Flyback Transformers
This product features a simplified design-in process, requires fewer external components, occupies small board space, and offers low cost. It needs no optocoupler, provides reliable long-term voltage regulation with no aging, uses universal external components across various output voltages, and has an isolation voltage up to 2.5 kV. It is mainly used in isolated power design, sensor interfaces, isolated telecom converters, and Power over Ethernet applications.

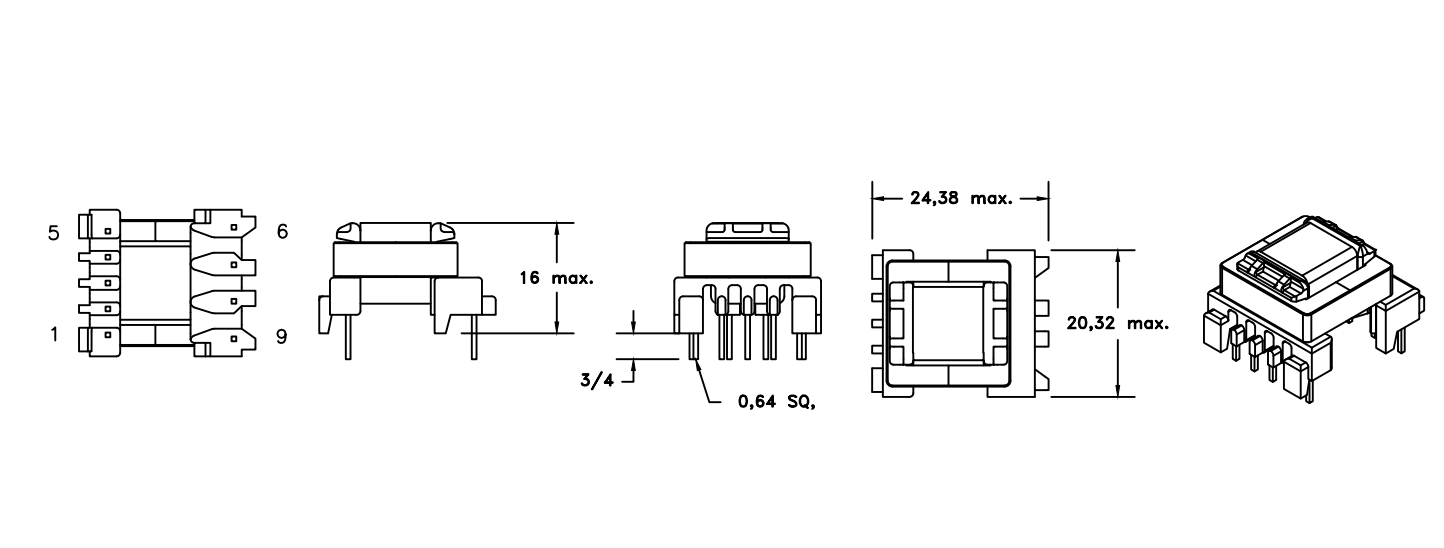

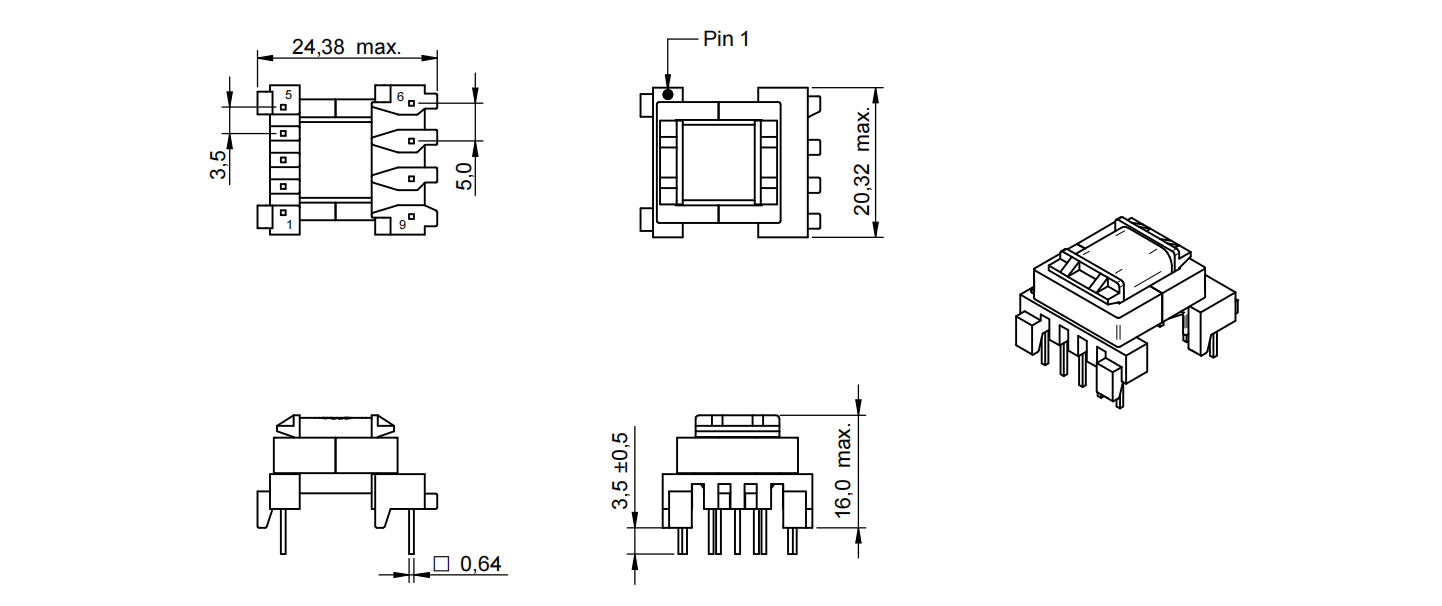

Physical Properties
| Order Code | VIN | Vout1 (V) | lout1 (A) | Vaux (V) | L (μH) | n | lSAT (A) | Ls (μH) | VT (V(AC)) |
| INF-EE16/8/5-1500μH | 120-375V(DC) | 30 | 0.3 | 15 | 1500 | 4.5:10.5 | 0.65 | 35 | 4500 |

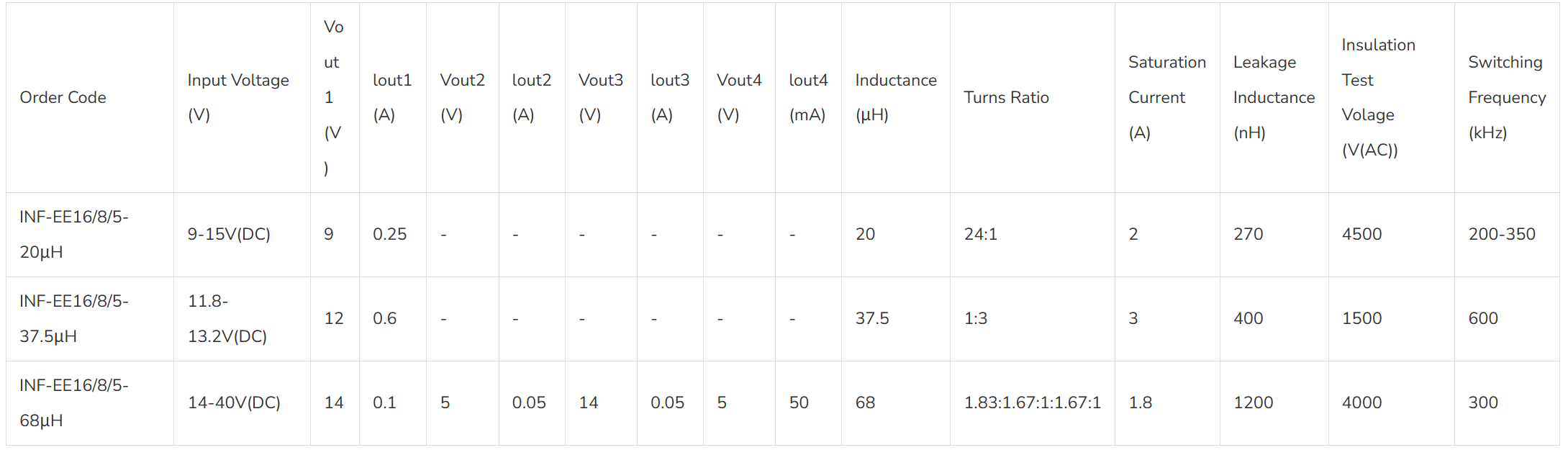

Technical Specifications
EE16/8/5 Offline Transformers Isolated Buck Transformer
This product is suitable for industrial programmable logic controllers (PLCs), building automation and process control, isolated interface power for RS-422, RS-485, CAN, I2C, LAN, motor drive control, inverters and industrial automation, isolated low-power drivers & regulators, smart e-meters, as well as bias power supplies for gate drives and op-amps. It features Flyback™ topology, operates at -40°C to +125°C, and offers excellent leakage inductance and interwinding capacitance performance.

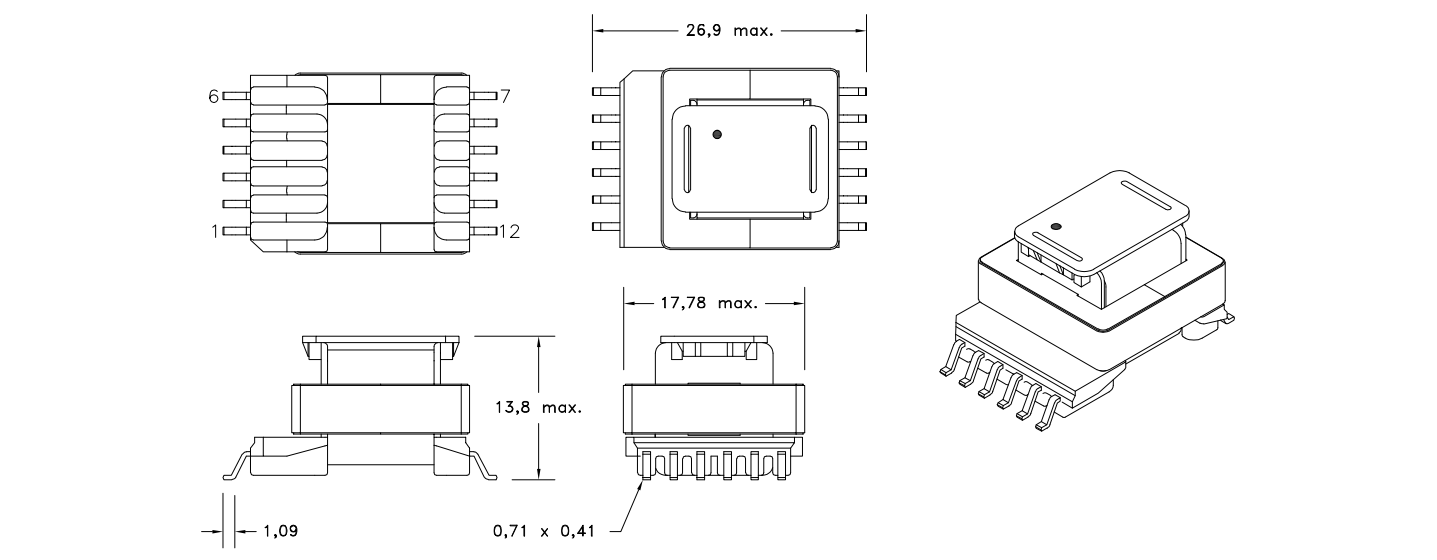

Physical Properties

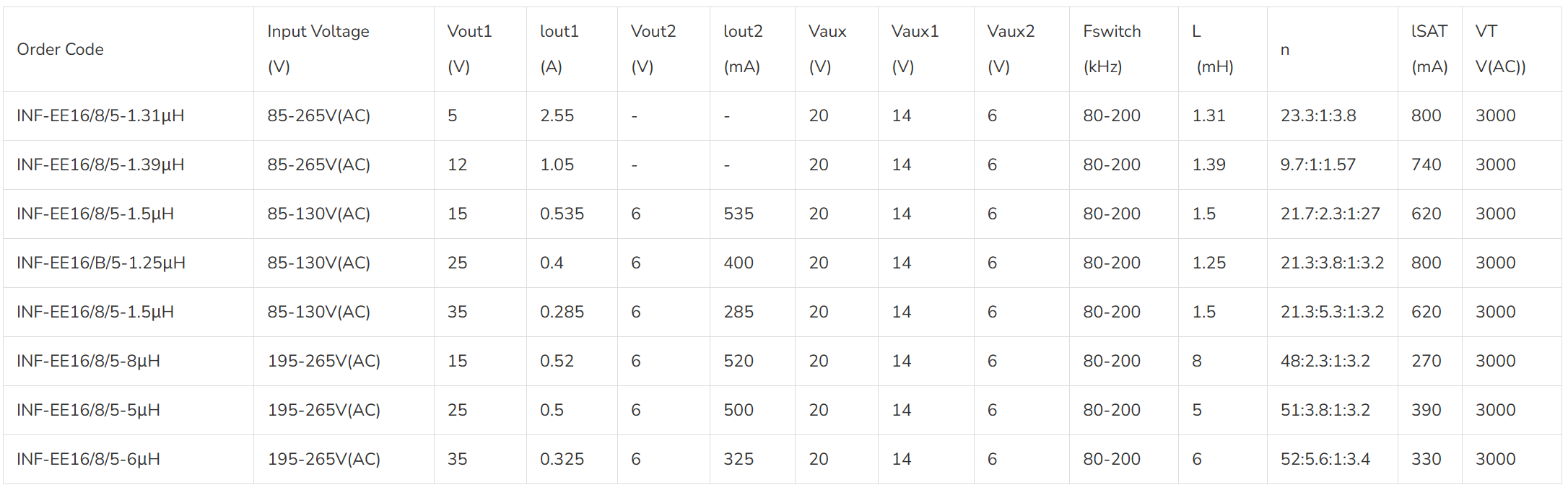

Technical Specifications
EE16/8/5 Offline Transformers
This product operates over a 45 kHz–200 kHz switching frequency range and features a compact PCB footprint with extended pins and reinforced insulation. It is UL-compliant and supports a wide operating temperature range from −40 °C to +125 °C. Typical applications include SMPS designs up to 15.5 W, auxiliary power supplies, and universal-input SMPS operating from 50 VAC to 265 VAC.

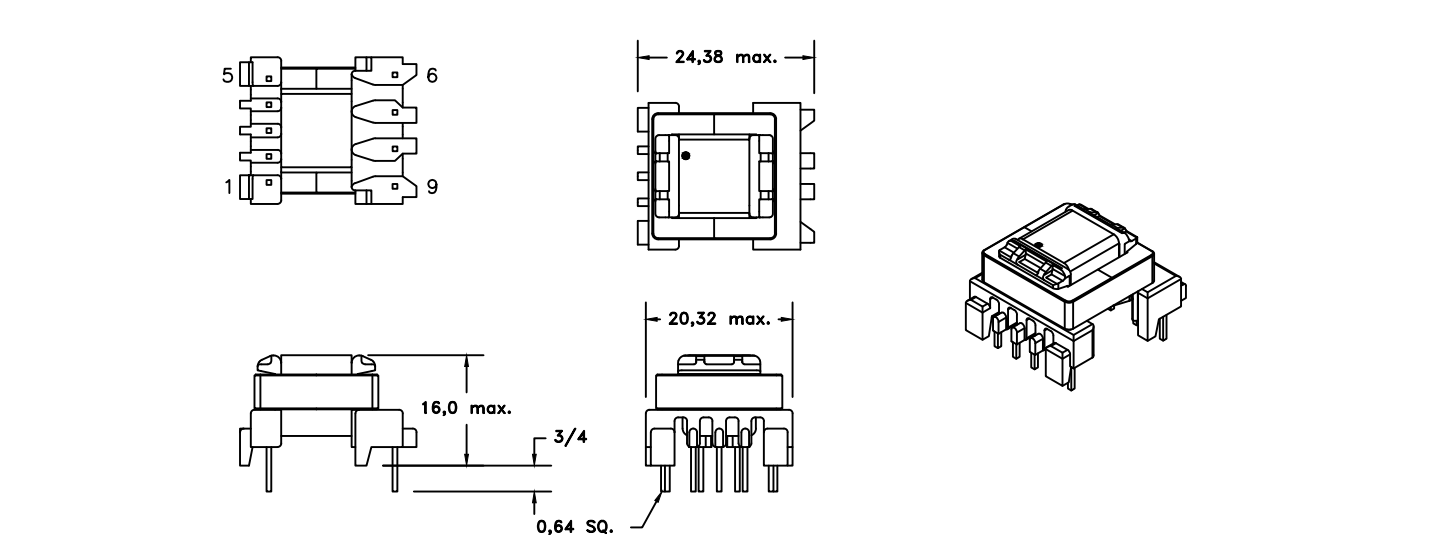

Physical Properties
Technical Specifications
EE16/8/5 Offline Transformers Offline Flyback Transformers
This product supports a universal 85–265 VAC offline input, delivers 2–35 W output power, operates from –40 °C to +125 °C, and provides insulation test voltage up to 4500 VAC, making it suitable for offline SMPS and auxiliary power supply applications.
Physical Properties

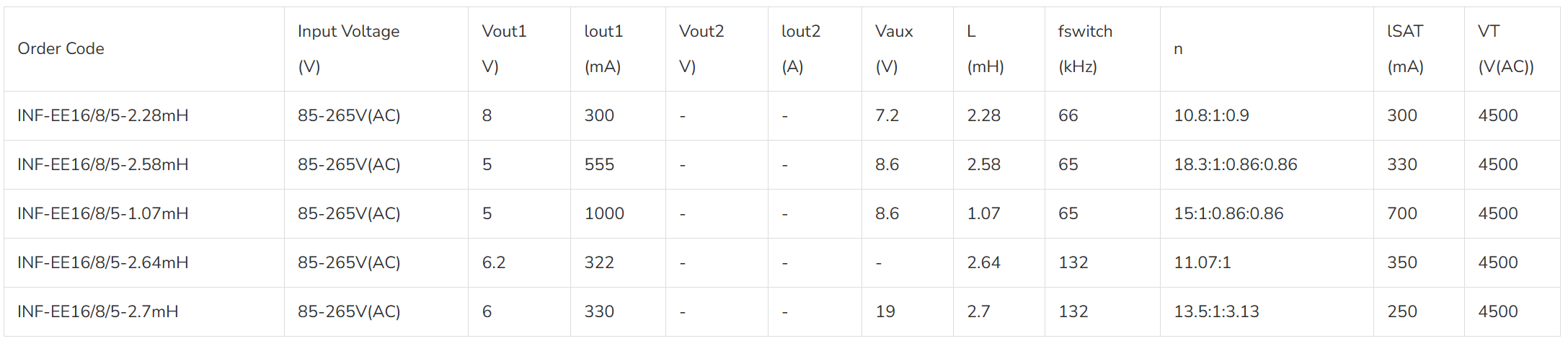

Technical Specifications
