EE20/10/6
INF

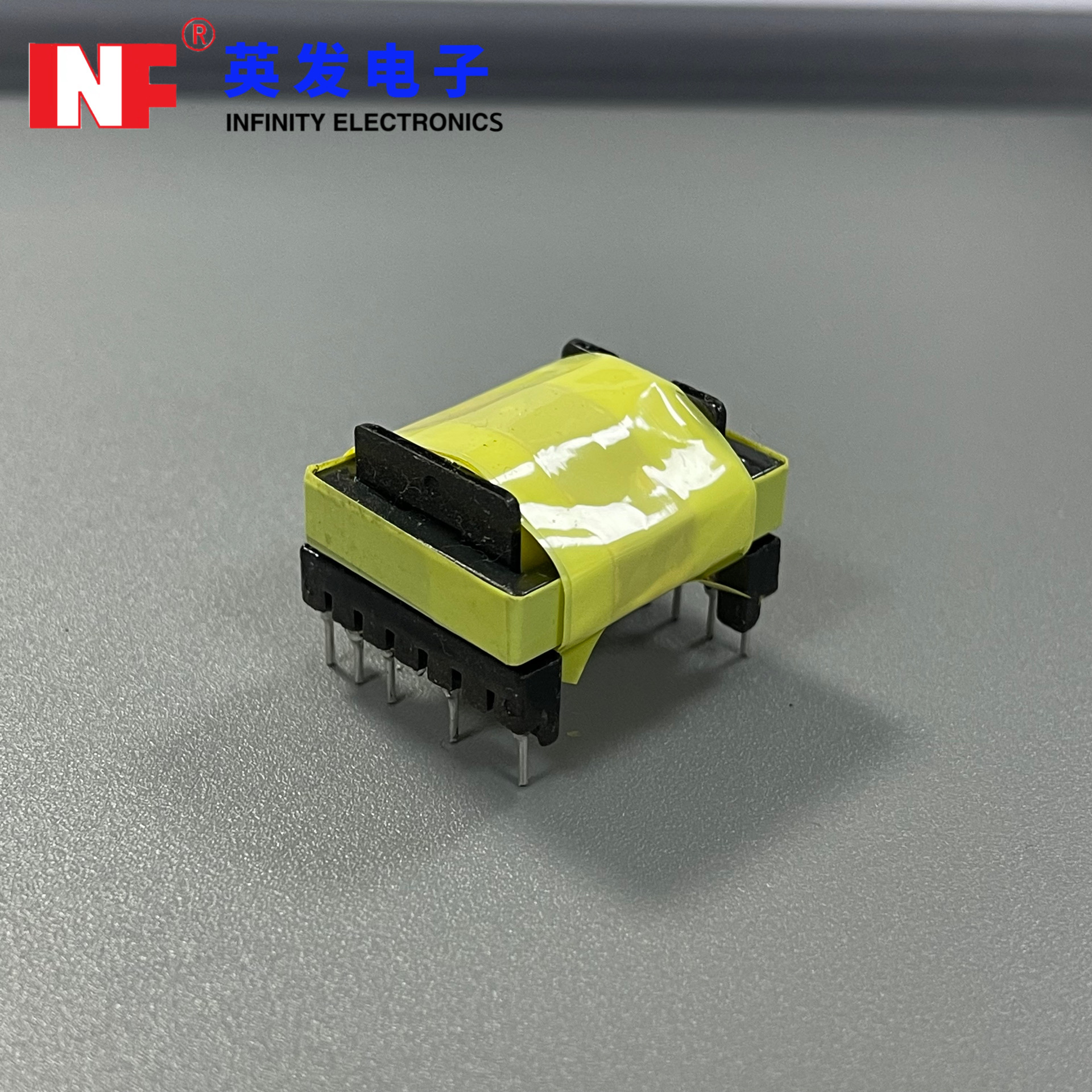

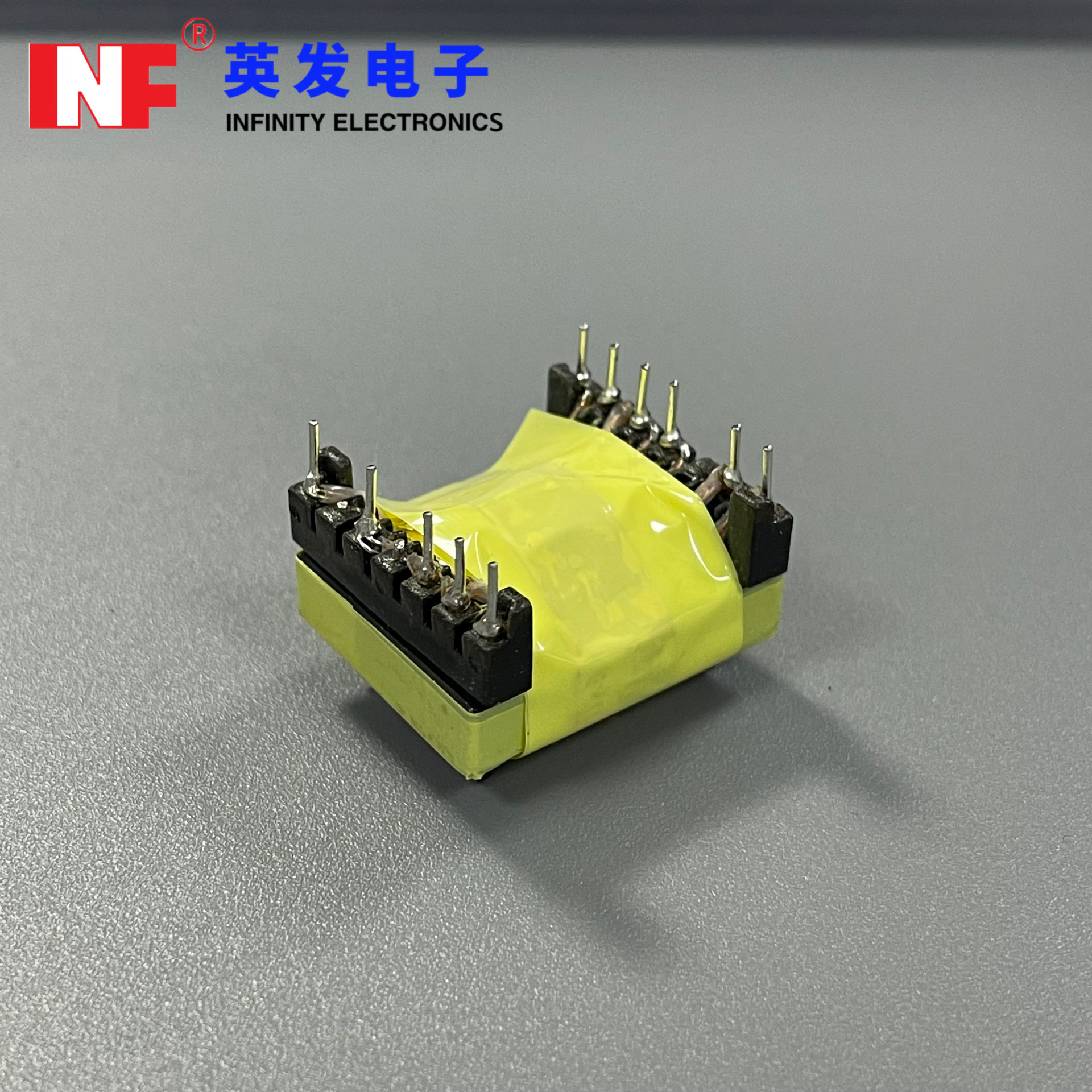

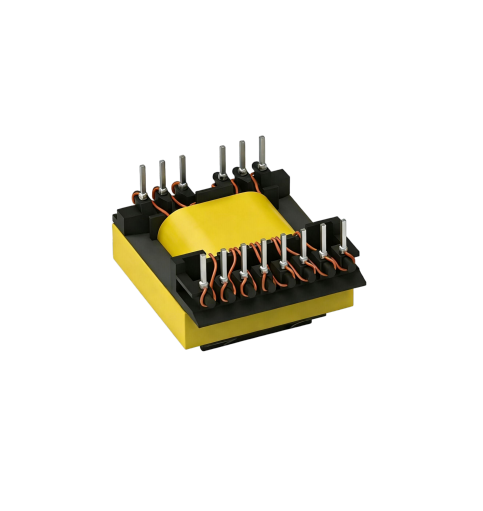

EE20/10/6 Offline Transformers Offline Flyback Transformers
This product supports universal offline input voltage of 85–265VAC, with output power ranging from 2W to 35W, operating temperature from -40°C to +125°C, and insulation test voltage up to 4500VAC. It is mainly used in offline SMPS and auxiliary power supply applications.

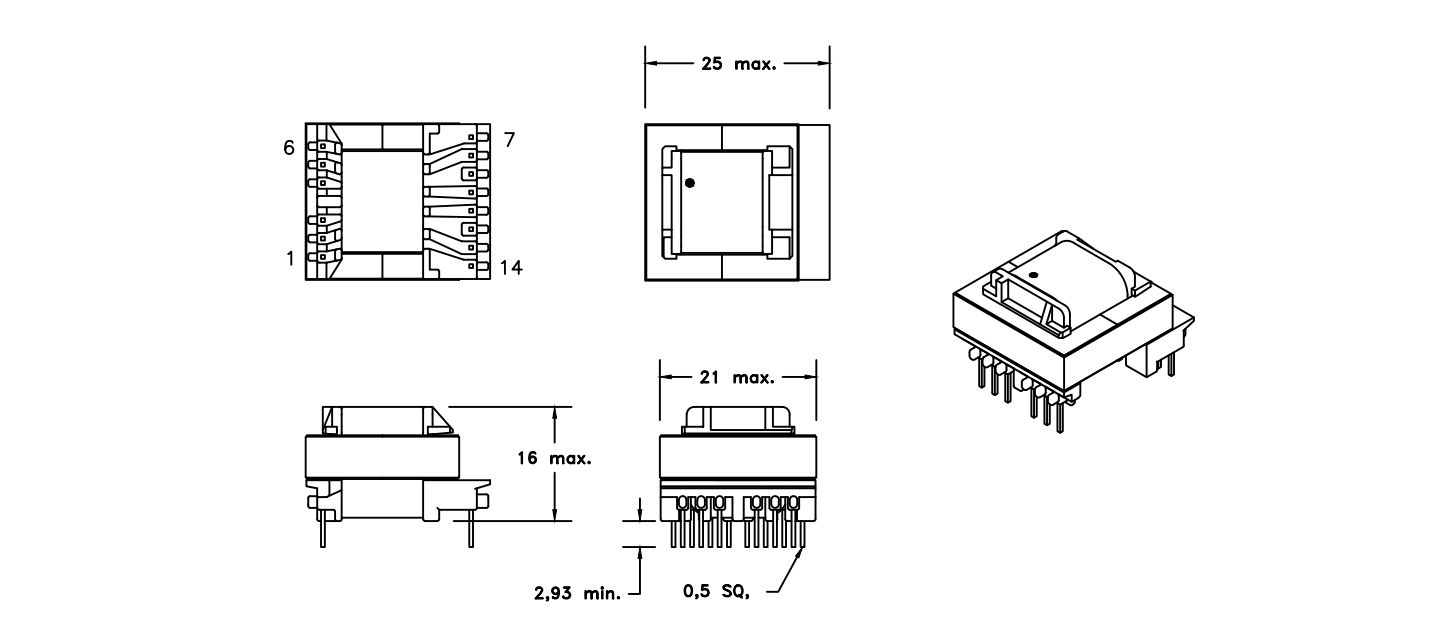

Physical Properties

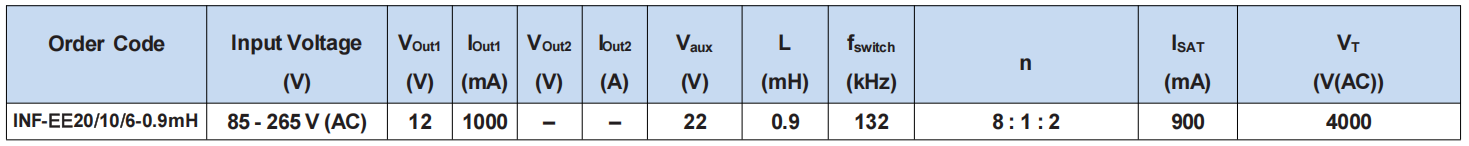

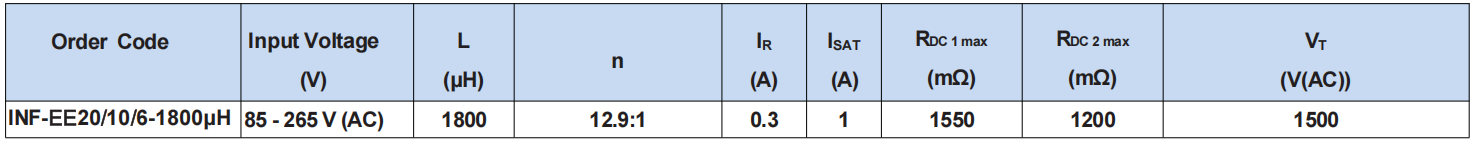

Technical Specifications
EE20/10/6 Offline Transformers Offline Flyback Transformers
85–265VAC/120–375VDC input | -40°C to +125°C | 2–5kVAC isolation | Multiple outputs | Fixed/quasi-resonant modes | Reinforced insulation (most). Applications: offline SMPS, auxiliary power, home appliances, consumer electronics.

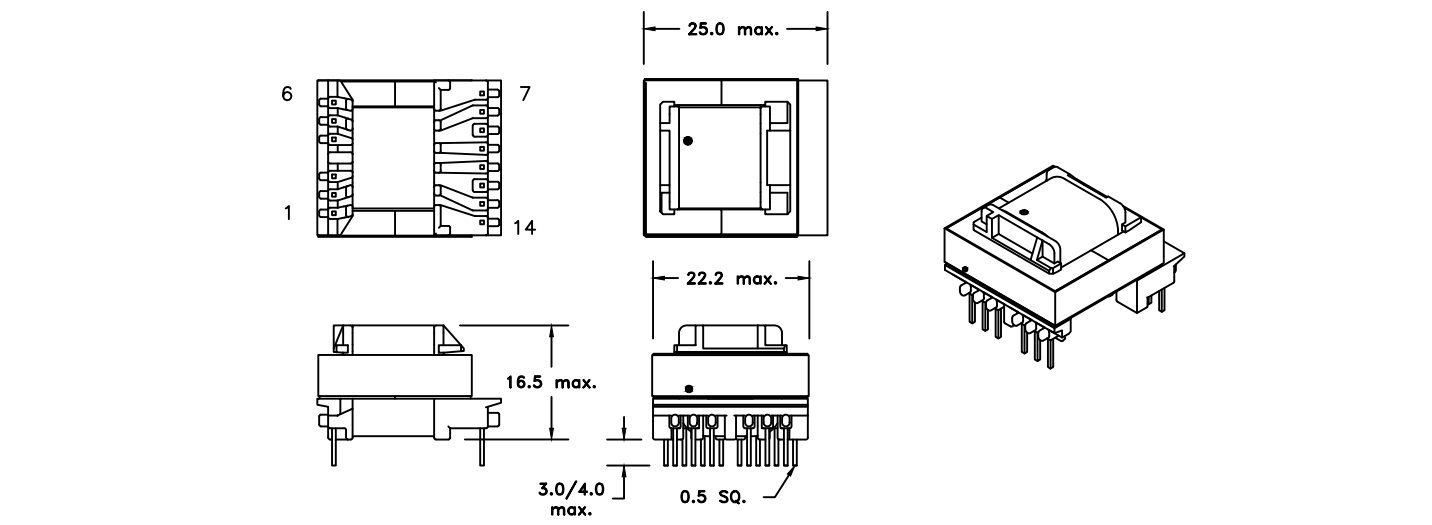

Physical Properties

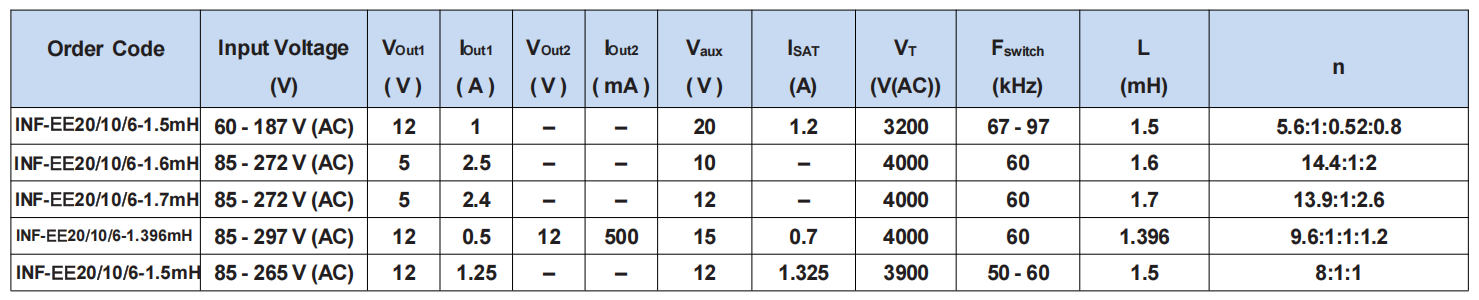

Technical Specifications
EE20/10/6 Offline Transformers Offline Flyback Transformers
This product supports a wide input range of 85–265VAC / 120–375VDC, features a compact, space-saving design with low leakage inductance, and offers multiple output configurations. It operates reliably from -40°C to +125°C, provides 2–5kVAC isolation, and is compatible with both fixed-frequency and quasi-resonant modes. Most models meet reinforced insulation standards, making it suitable for industrial and process control equipment, factory automation systems, USB charging and auxiliary power supplies, utility metering, security and access control systems, auxiliary power for garage door openers, and various household appliances.

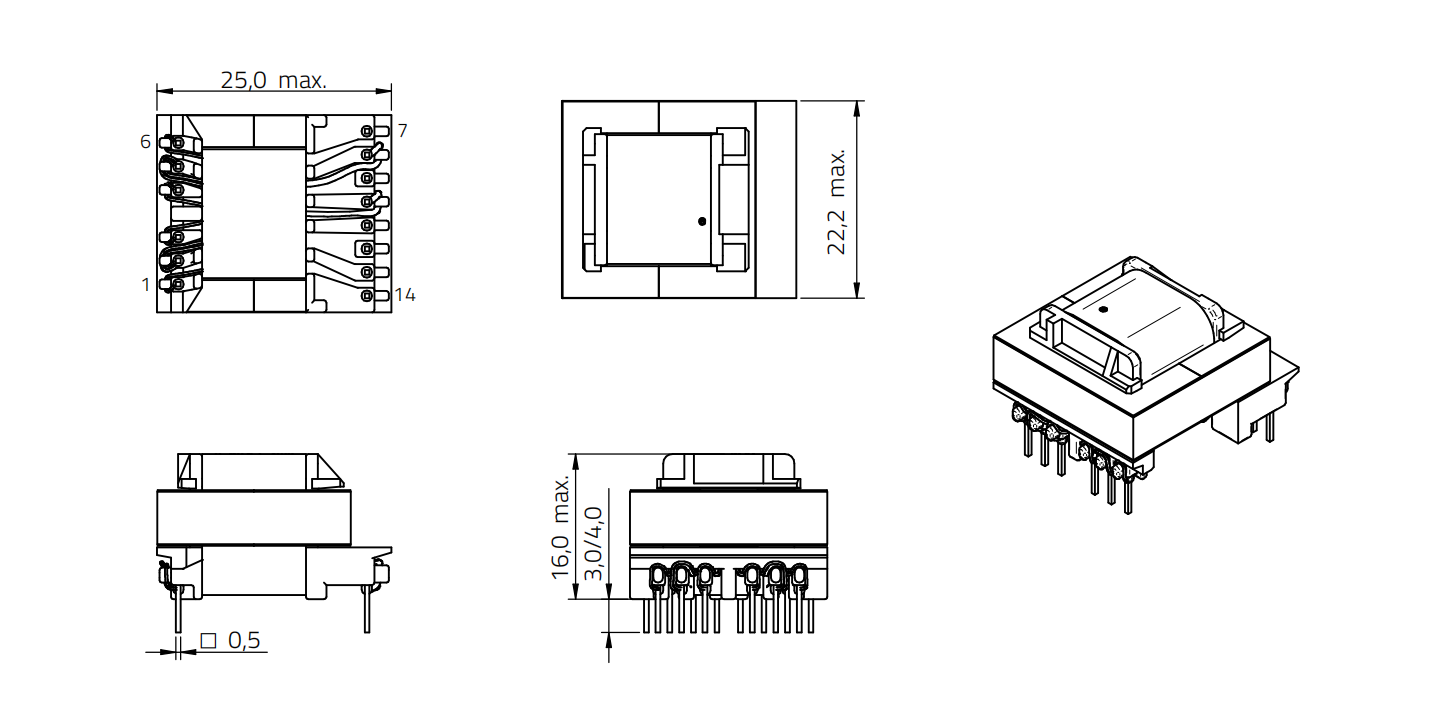

Physical Properties

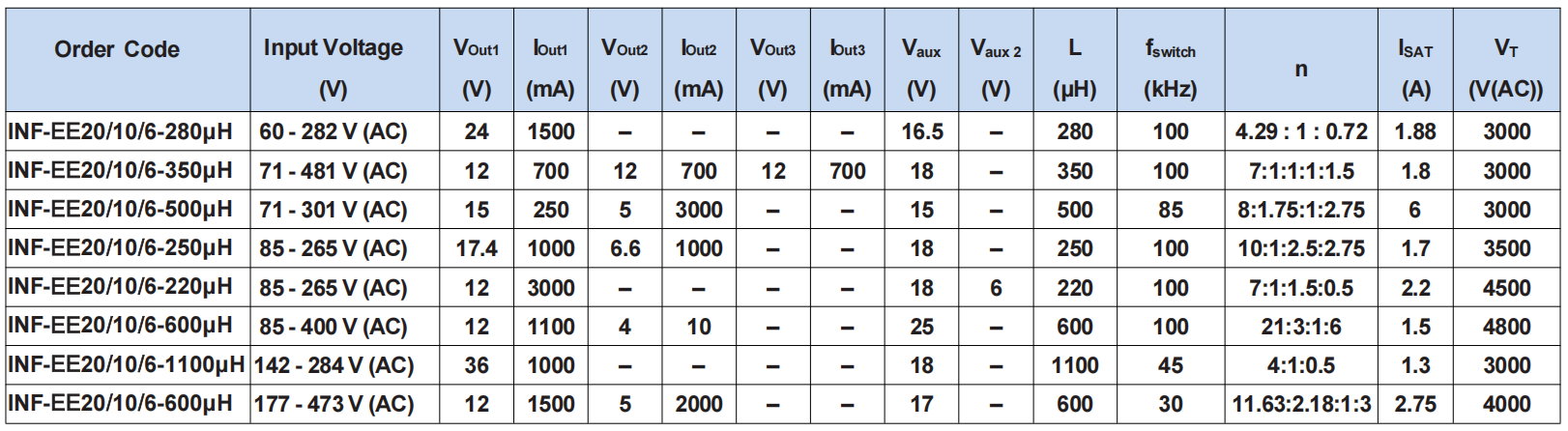

Technical Specifications
EE20/10/6 Offline Transformers Offline Flyback Transformers
This product features high efficiency and excellent EMC performance, with a low profile of just 13.1mm and a small footprint. It is mains voltage compatible, offers 1.5kVAC isolation, and operates reliably from -40°C to 125°C. It is specifically designed for active PFC, 75W–250W SMPS, and DCM-mode lighting applications.

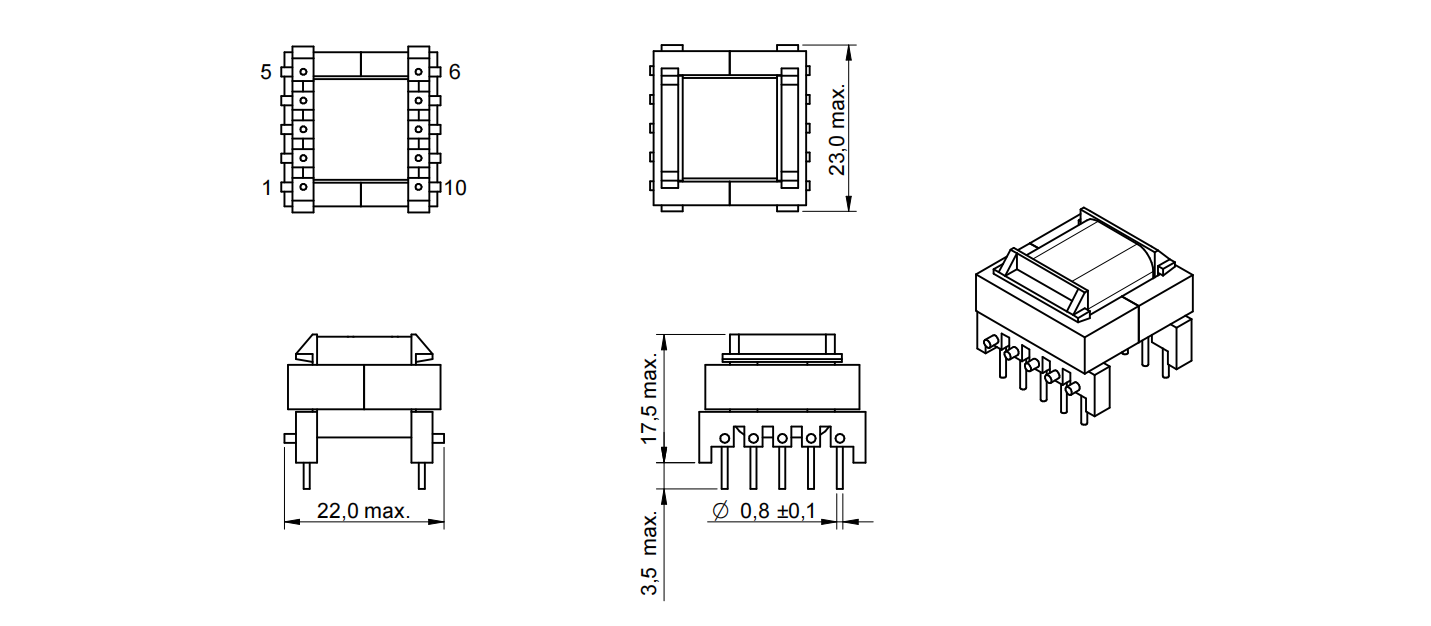

Physical Properties
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
