EE35/18/10
INF

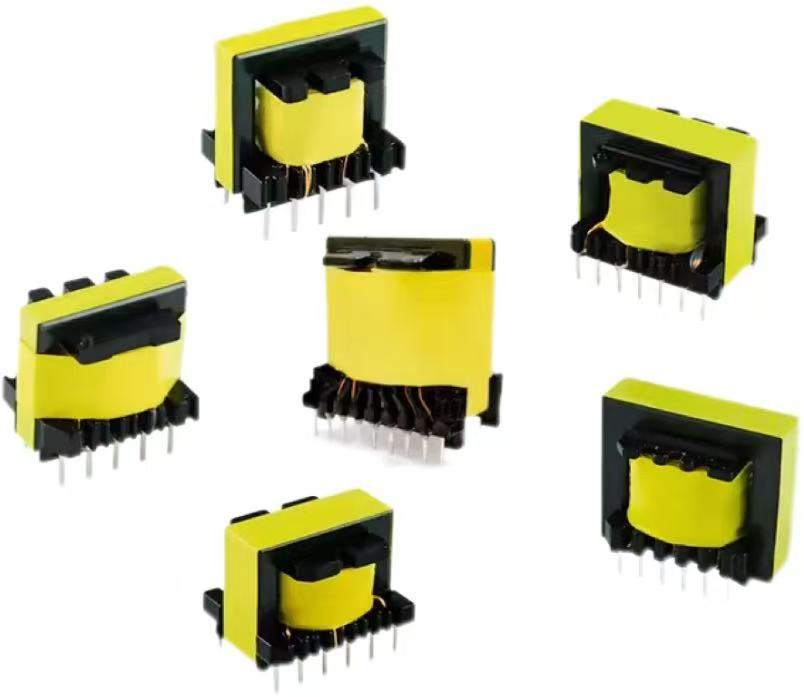

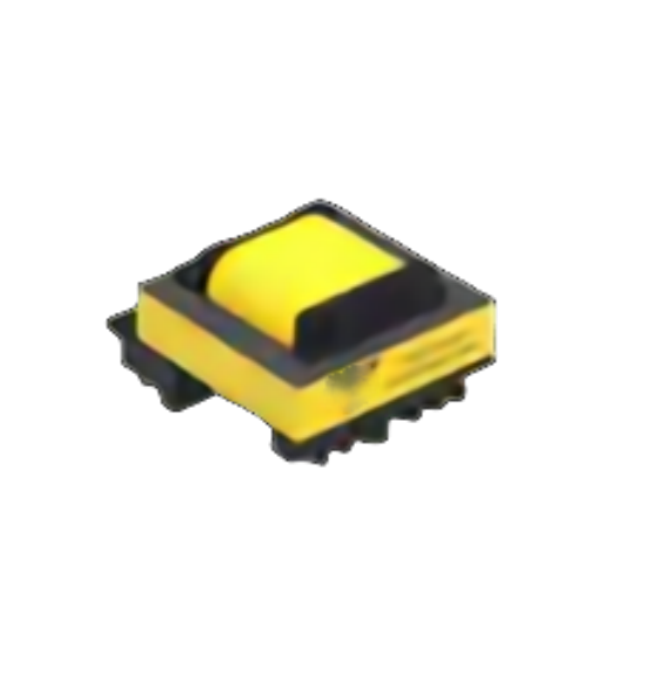

The EE35/18/10 offline flyback transformer is a high-performance magnetic component designed for medium to high power switch mode power supply (SMPS) systems. Utilizing a robust EE35 ferrite core structure, it enables efficient energy transfer under high-frequency switching conditions, making it suitable for demanding AC-DC power conversion applications.
This transformer is engineered for offline operation with wide input voltage compatibility and provides reliable electrical isolation between primary and secondary circuits. It is widely used in industrial and consumer power systems where efficiency, stability, and compact structure are critical.
High power capability suitable for 50W–150W applications
Wide switching frequency range (typically 20kHz–300kHz)
Optimized winding structure to reduce leakage inductance and EMI
High efficiency with low core and copper losses
Reinforced insulation design for safety compliance
Excellent thermal performance under continuous operation
Flexible customization for different output requirements
Widely used in medium to high power electronic systems, including:
AC-DC switching power supplies
Industrial control power modules
LED drivers and lighting systems
Communication and networking equipment
Power adapters and battery chargers
Smart home and IoT devices

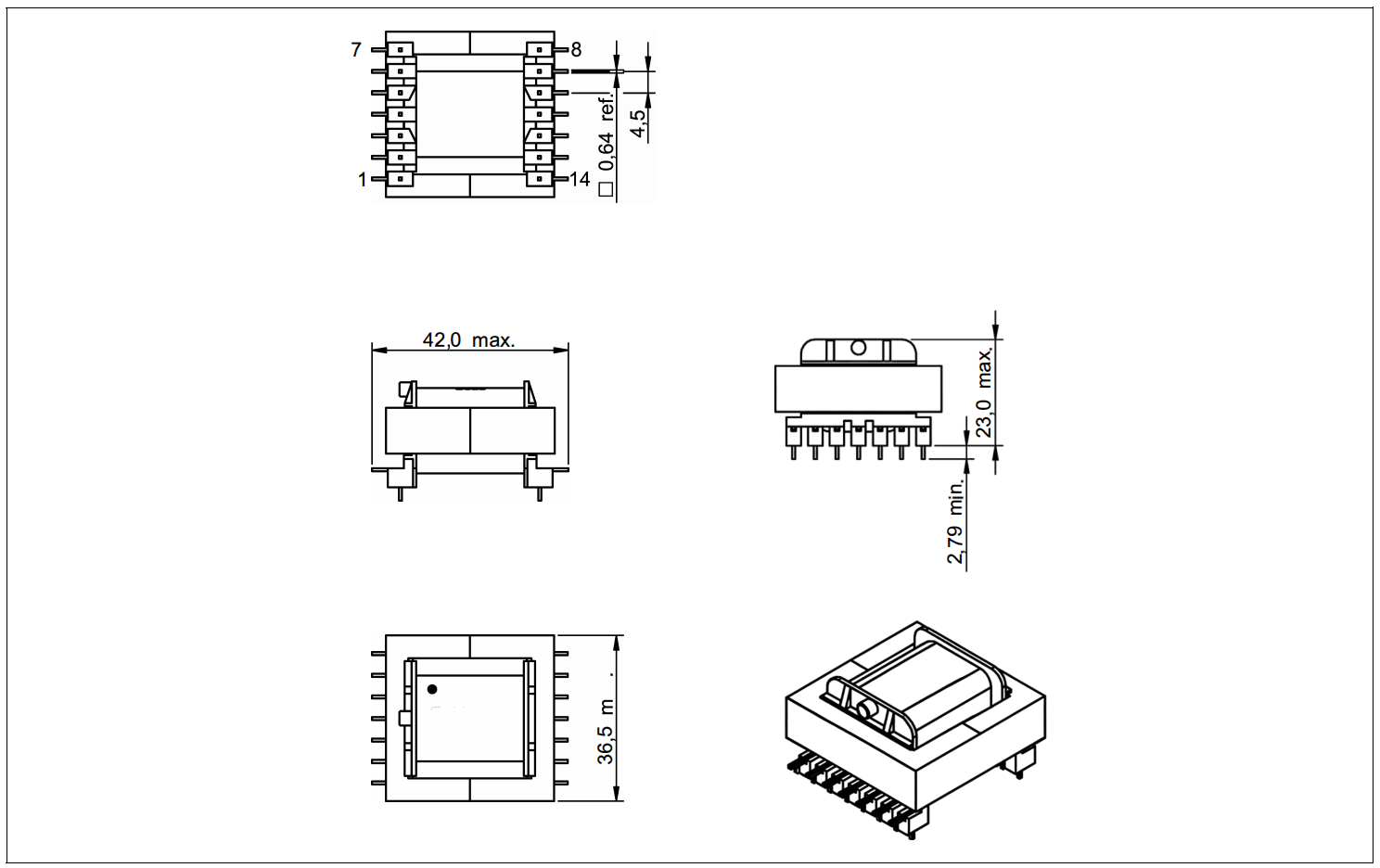

Physical Properties

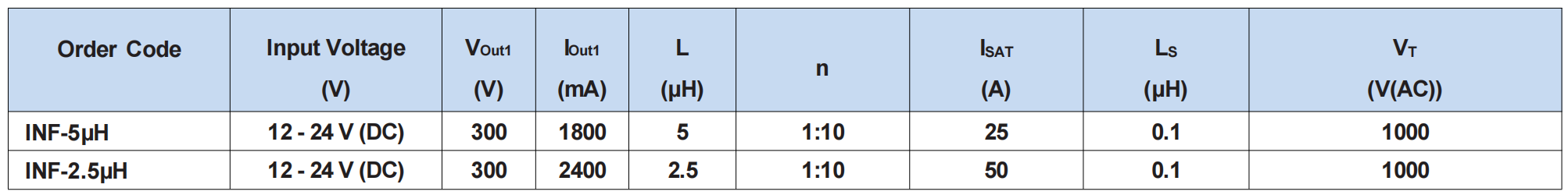

Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
