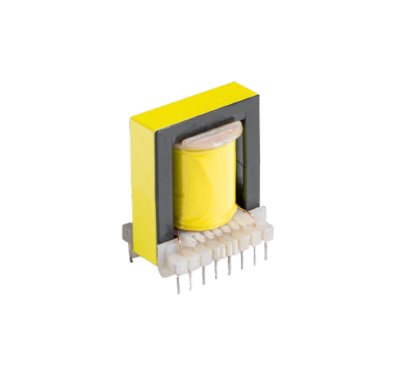

EER35 (8+8) High Frequency Transformer for Multi-Winding SMPS & High Current Power Conversion Systems

EER35 (8+8) is a high-frequency transformer designed for medium-to-high power applications with a power range of 50W to 150W. It adopts an 8+8 dual-side pin configuration, delivering excellent power handling capability and flexible multi-winding design, making it ideal for complex power supply systems requiring multiple isolated outputs.

Quantity:
Availability:





Inquiry

EER35(8+8) High Frequency Transformers EER35 (8+8) Offline Flyback Transformer

Product Description

Download

Customization & Procurement

The EER35 (8+8) transformer is widely used in systems requiring multi-output and high-current capability:

Switching mode power supplies (SMPS)
Multi-output DC-DC converters
Industrial control power systems
Communication and server power modules
LED drivers and embedded power solutions

FAQ：
Q：Do you accept small-batch customized orders (e.g., 50-100 units)? What is the delivery cycle?
A：We accept small-batch customized orders, with a minimum order quantity as low as 50 units. The delivery cycle for such orders is usually 1-2 weeks (depending on product complexity). During production, the "lean CELL production unit" is used to quickly switch production lines, ensuring efficient delivery of small-batch orders to meet your R&D prototyping and small-batch trial production needs.

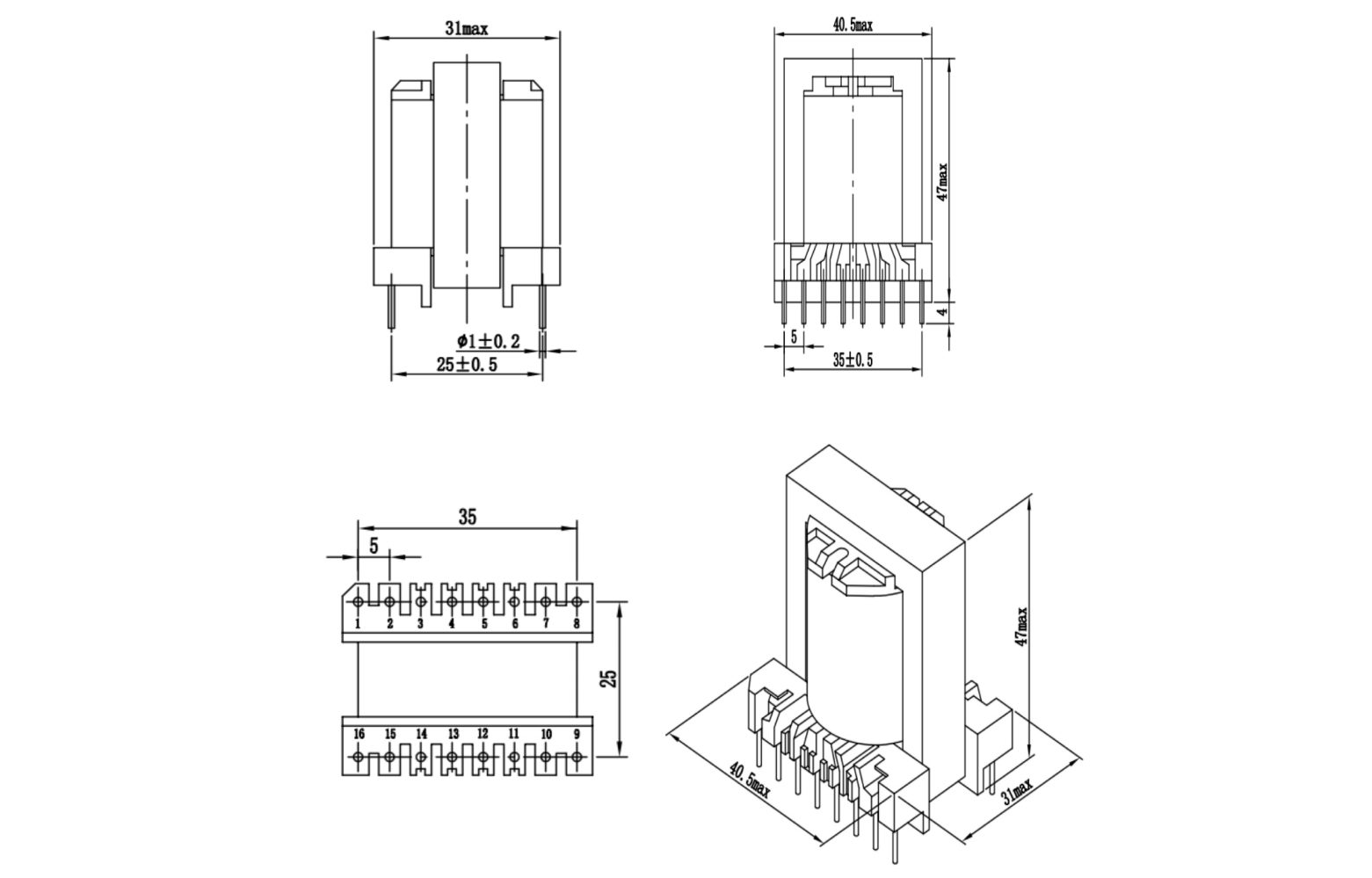

Technical Specifications

屏幕截图 2025-10-23 171902

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
