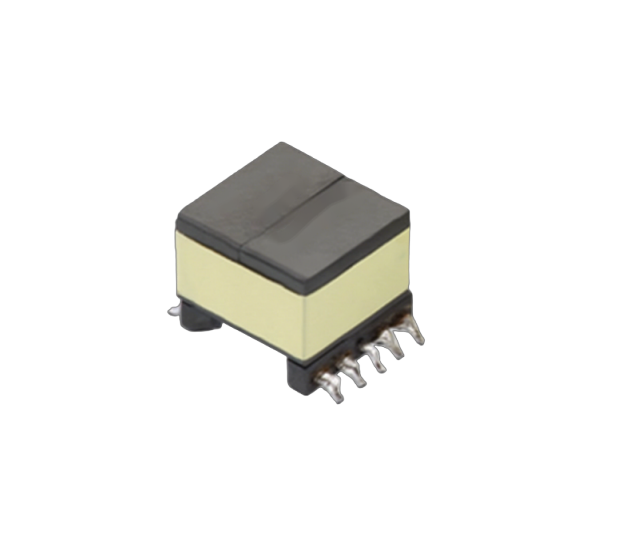

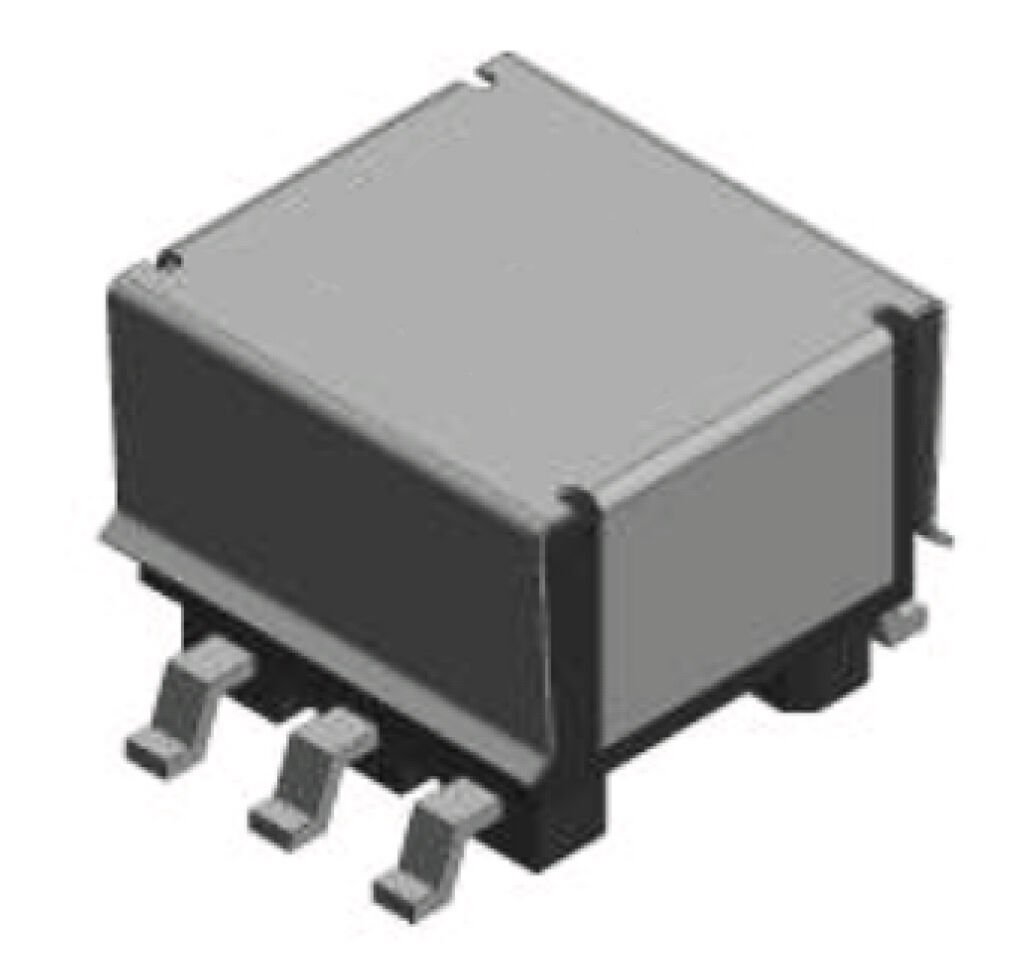

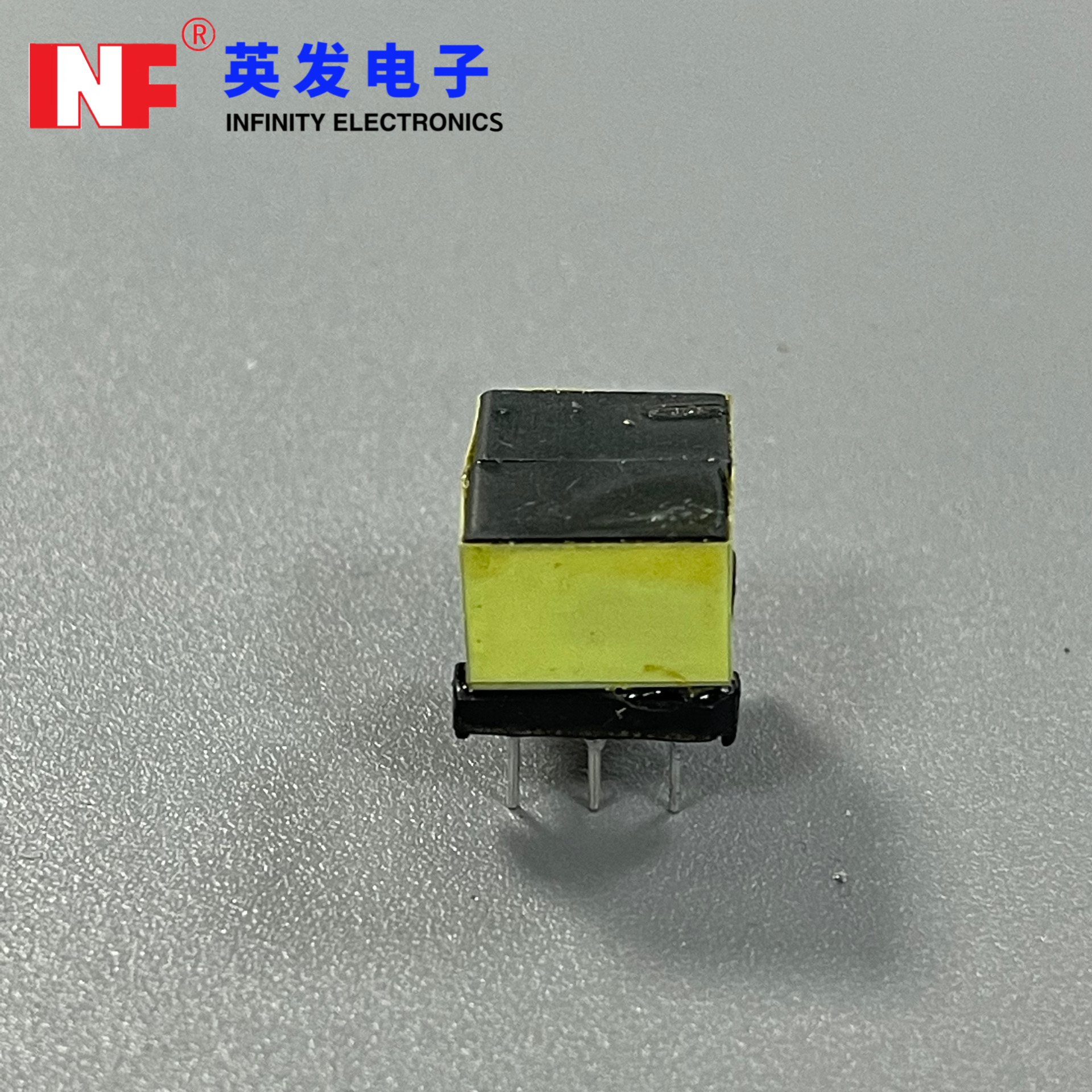

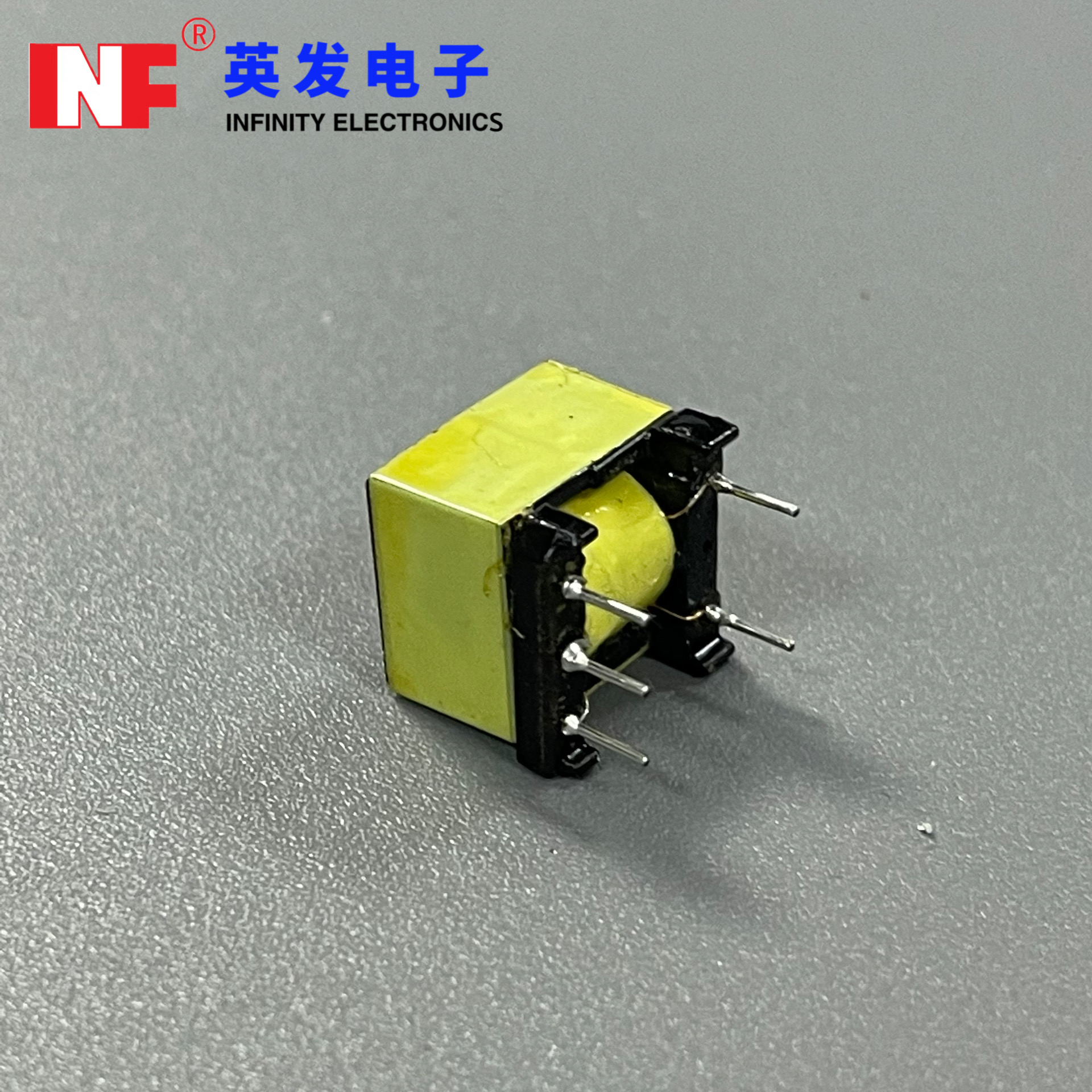

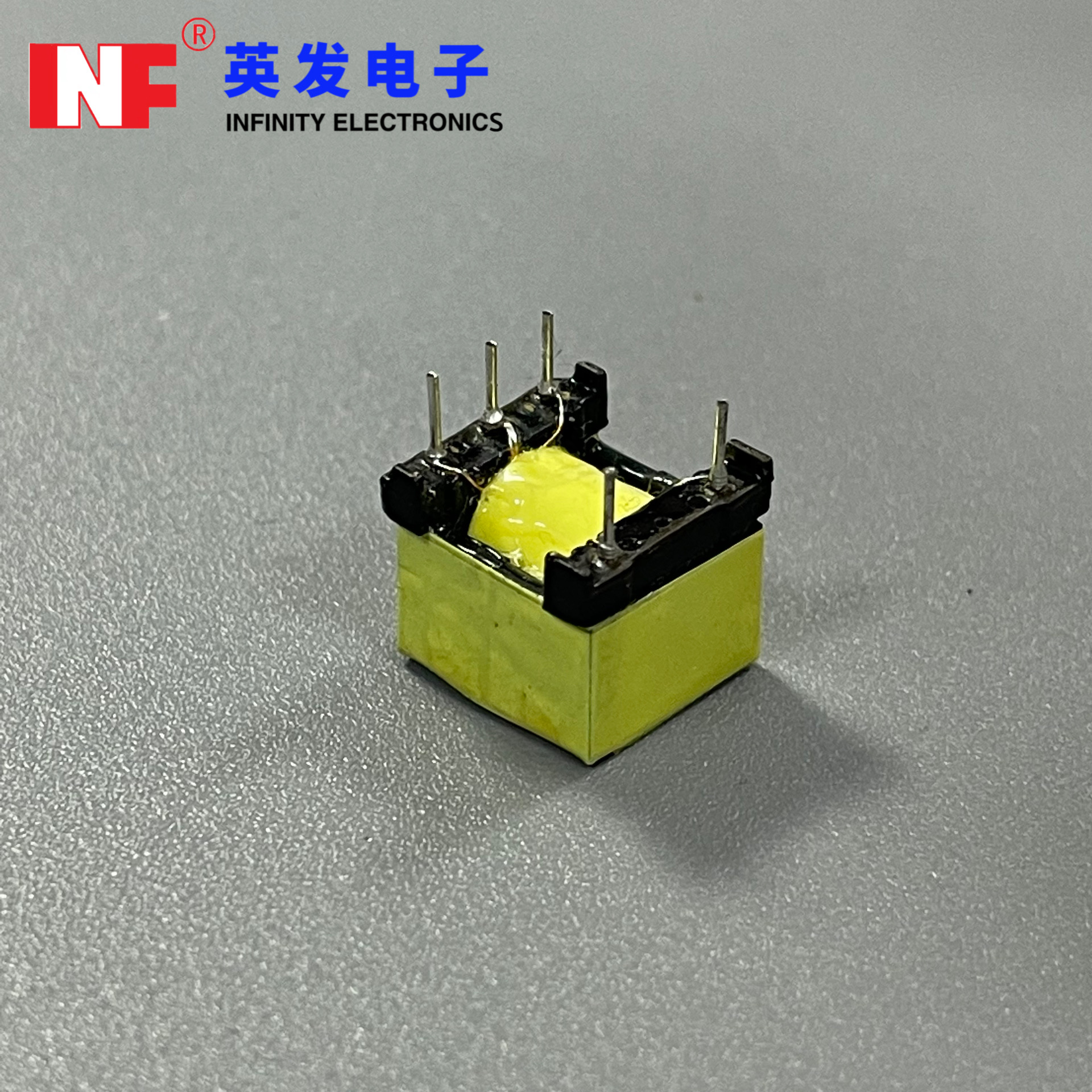

EP10 Flyback Transformer

The EP10 series flyback transformer is optimized for simplified isolated power supply design. Through its integrated architecture and optocoupler-free feedback scheme, it delivers a one-stop solution that balances cost, space, and reliability. Power supply designs with different output voltages can be realized simply by replacing the transformer and a small number of feedback components, which significantly shortens product development cycles while ensuring long-term stable voltage control performance.

Quantity:
Availability:





Inquiry

EP10 Flyback Transformer High Efficiency EP10 Flyback Transformer RoHS compliant EP10 flyback transformer

Product Description

Download

Feature	Technical Details & Value
Optocoupler-Free Feedback	Eliminates optocouplers from the BOM, reducing component count, solder joints, and long-term aging risks while simplifying the feedback loop.
Compact Footprint	Tight package dimensions minimize PCB real estate, enabling high-density board layouts for space-constrained applications.
Standardized Platform	A unified external circuit framework supports multiple output voltage variants, lowering design reuse costs and accelerating time-to-market.
Aging-Resistant Performance	Specialized core and winding materials prevent performance degradation over the product lifecycle, ensuring consistent output stability.
Robust Voltage Control	Built-in regulation mechanisms maintain precise output voltage across wide temperature and input voltage ranges, enhancing system reliability.

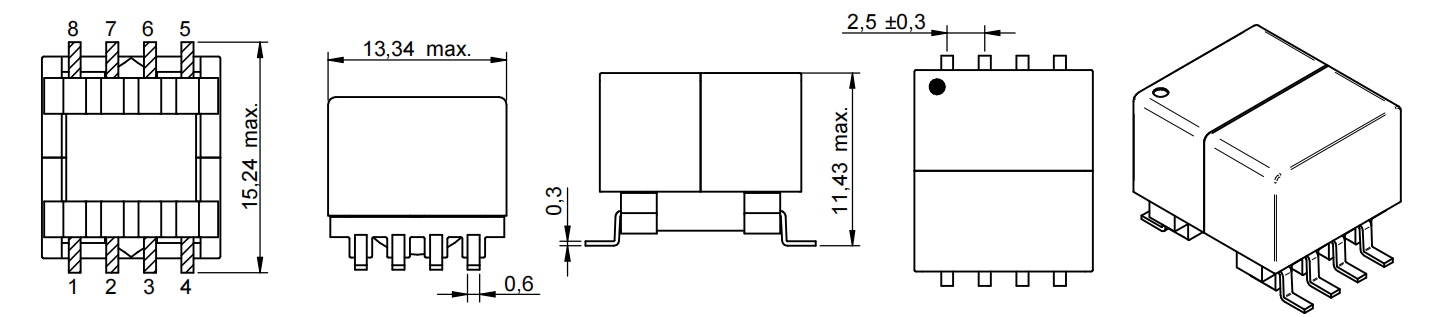

Physical Properties

Order Code	VIN	Vout1 (V)	lout1 (A)	Vout2 (V)	lout2 (A)	Vout3 (V)	lout3 (A)	Vout4 (V)	lout4 (A)	Vaux (V)	L (μH)	n	ISAT (A)	Ls (μH)	VT (V(AC))
INF-EP10-25μH	9-30V(DC)	5	2	-	-	-	-	-	-	5	25	3:1:1	2.6	0.43	1500
INF-EP10-25μH	9-30V(DC)	5	2	-	-	-	-	-	-	5	25	3:1:1	2.5	0.25	1500
INF-EP10-100μH	9-36V(DC)	12	1	-	-	-	-	-	-	8	100	3:1:0.667	1.65	3	1500
INF-EP10-100μH	9-36V(DC)	24	0.5	-	-	-	-	-	-	8	100	1:1:0.333	2.1	3	1500
INF-EP10-7μH	10-40V(DC)	5	3	-	-	-	-	-	-	10	7	2:12	11.2	0.8	1500
INF-EP10-24μH	12-30V(DC)	3.3	1.3	-	-	-	-	-	-	5	24	4:1:1	2.1	0.5	1500
INF-EP10-63μH	12-30V(DC)	5	1	-5	1	-	-	-	-	5	63	3:1:1:1	1.45	0.6	1500
INF-EP10-25μH	18-30V(DC)	12	0.8	-	-	-	-	-	-	12	25	2:1:1	2.8	0.5	1500
INF-EP10-25μH	18-30V(DC)	12	0.8	-	-	-	-	-	-	6	25	1:1:0.5	2.8	0.5	1500
INF-EP10-50μH	36V(DC)	12	1	-	-	-	-	-	-	8	50	3:1:0.67	2.8	2	1500
INF-EP10-100μH	36V(DC)	24	0.5	-	-	-	-	-	-	8	100	2:1:0.33	1.9	3	1500
INF-EP10-50μH	36V(DC)	5	3	-	-	-	-	-	-	10	50	5:1:2	2.25	1.5	1500
INF-EP10-50μH	36V(DC)	5	3	-	-	-	-	-	-	10	50	4:1:1.5	2.4	1.5	1500
INF-EP10-15μH	36V(DC)	5	3	-	-	-	-	-	-	10	15	2:1:2	5.8	0.65	1500
