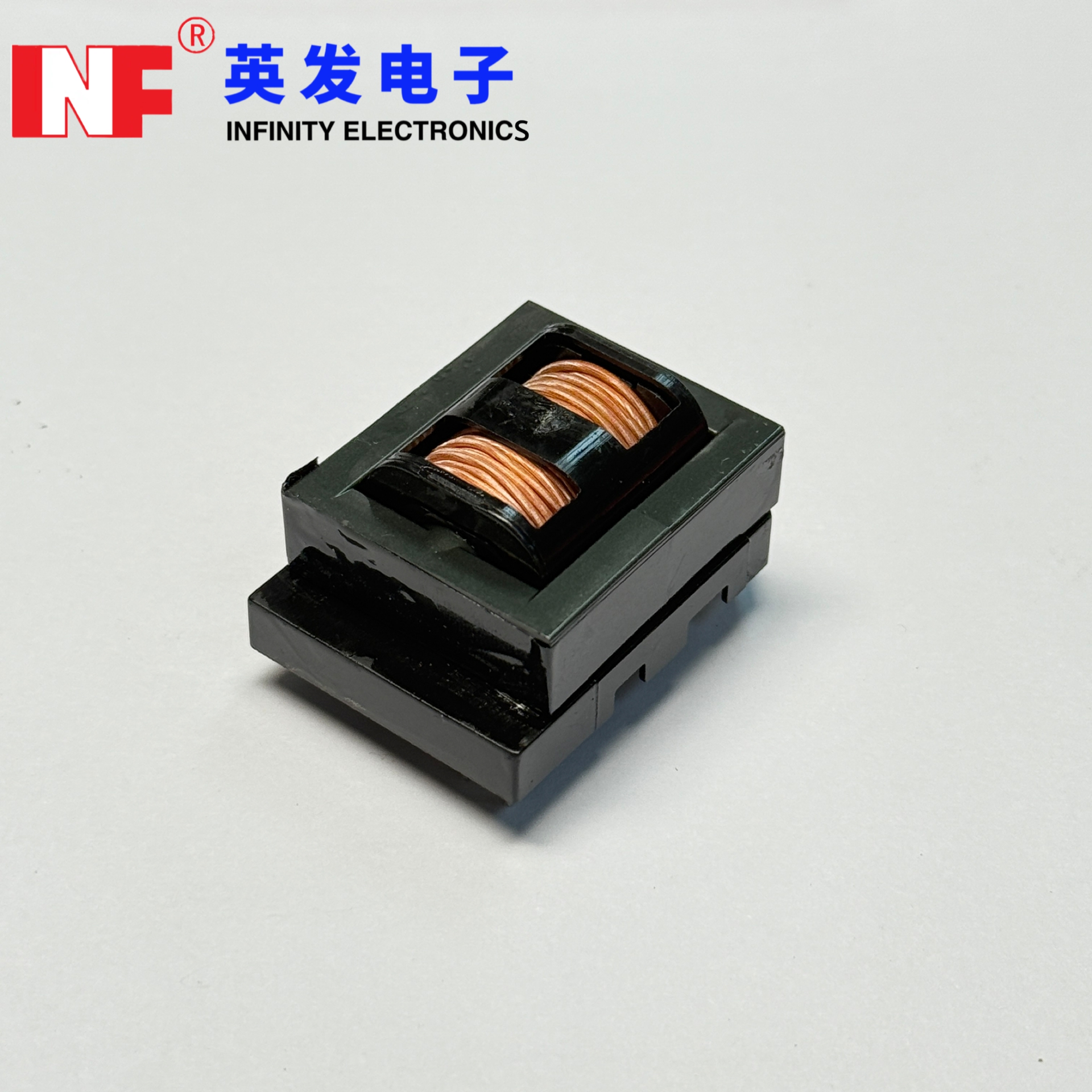

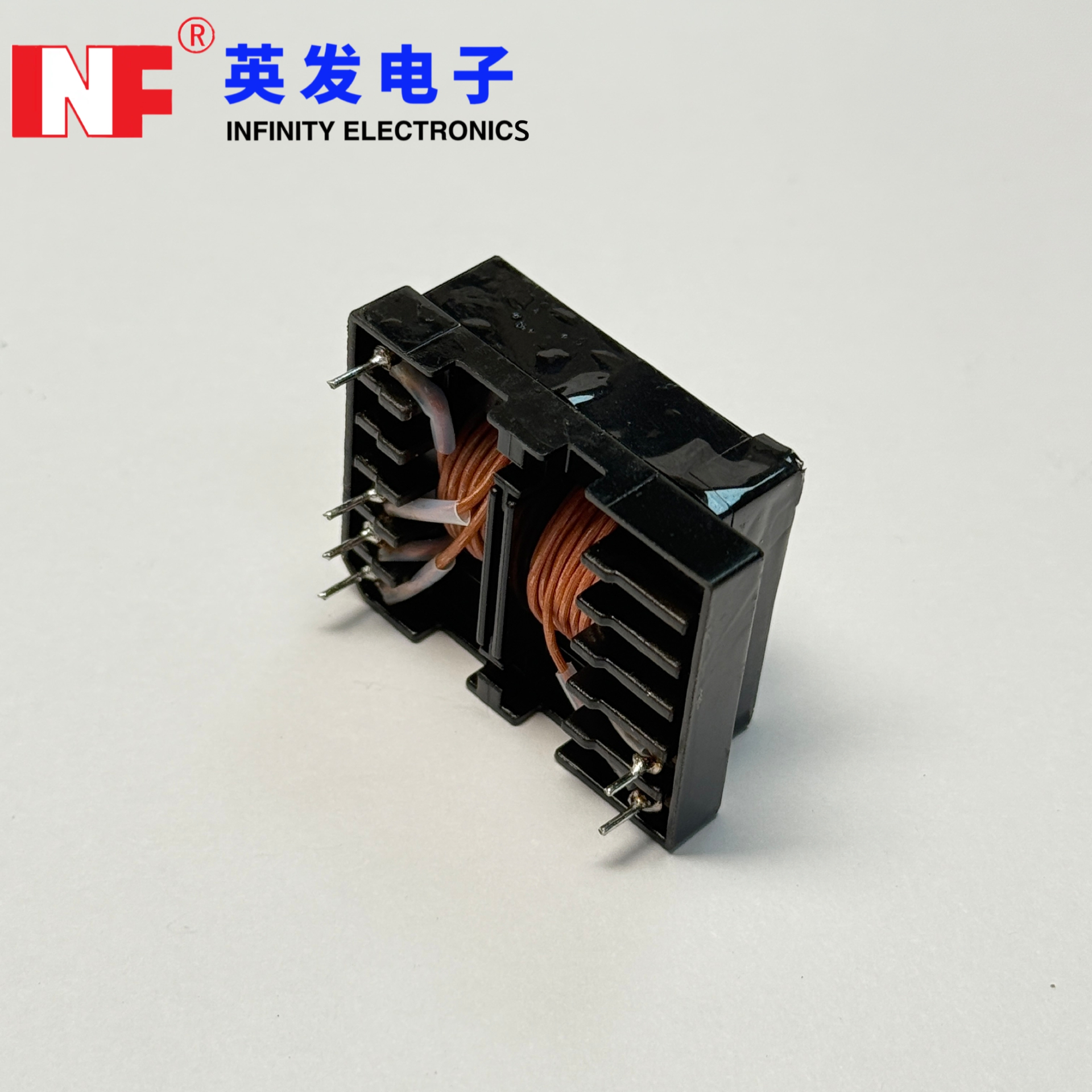

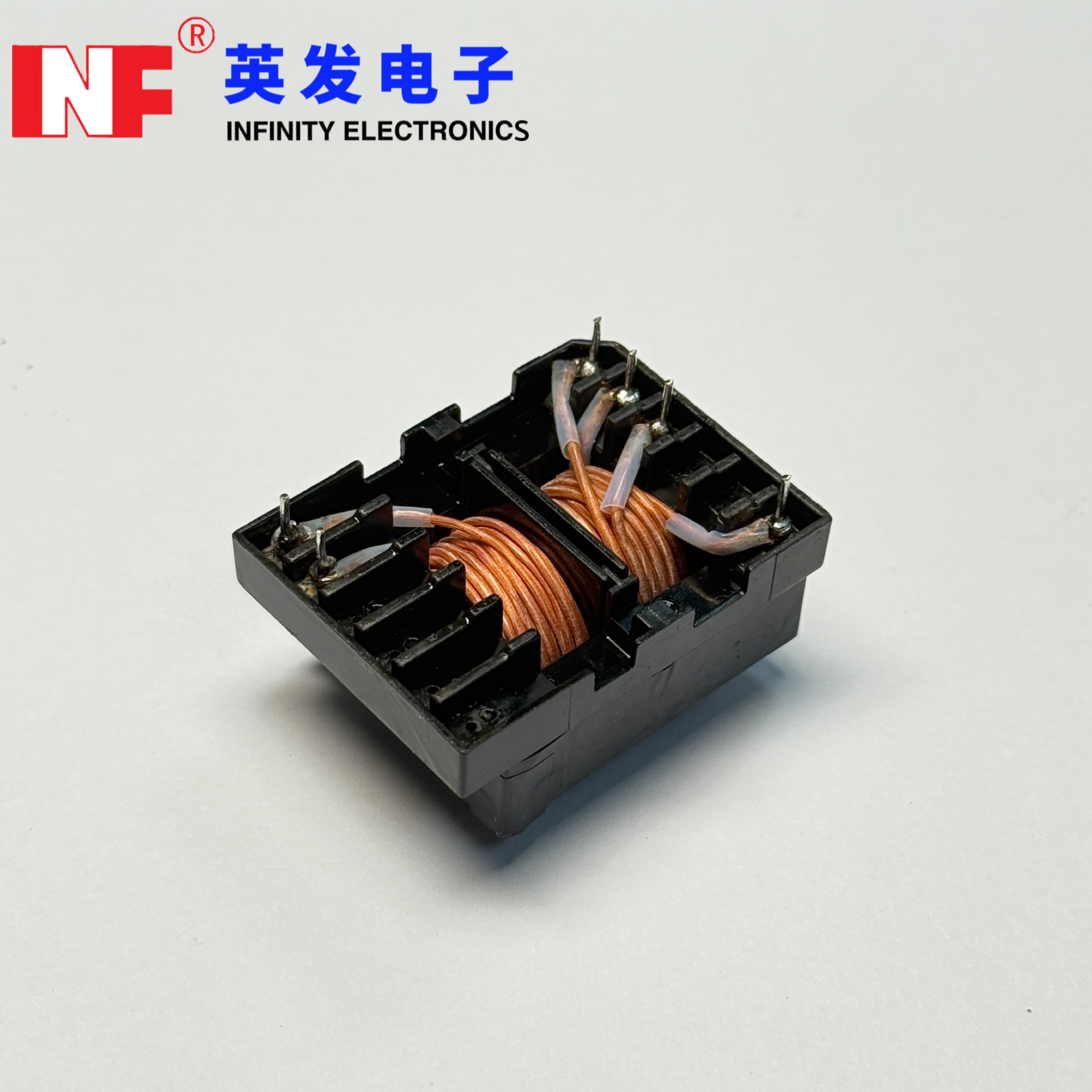

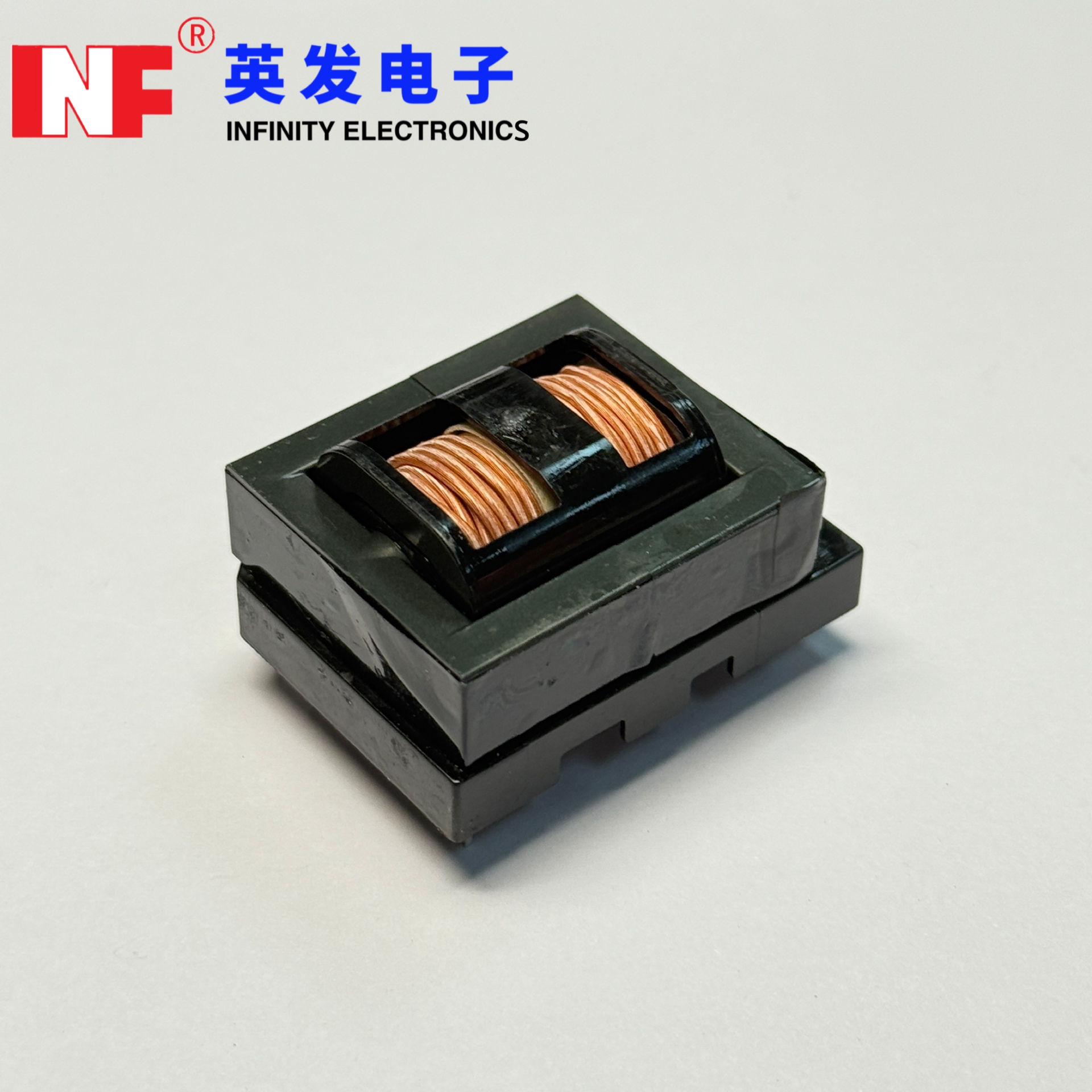

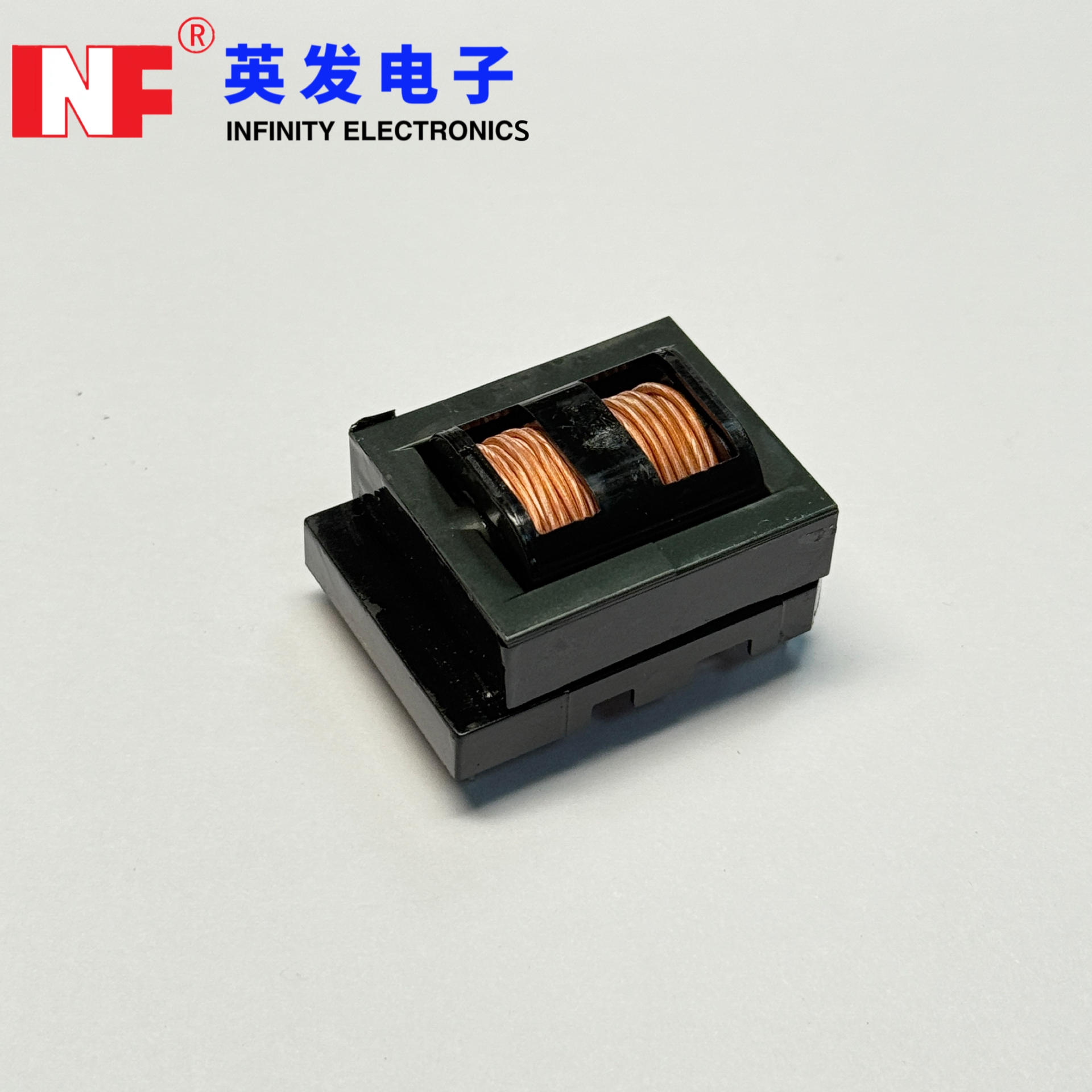

ETD34 Power Transformer 6+6 Pin for SMPS Applications

Characteristics:

· Transformer engineered for high- efficiency power supplies
· Input voltage range: 360–400 V(DC)
· Output voltage options: 12 V, 24V or 48 V
· Switching frequency: 70–120 kHz
· Output power range: 150–250 W
· Insulation test voltage: 4 kV (AC)
· Utilizes litz wire to minimize eddy current losses
· Predefined leakage inductance, eliminating the need for an additional resonant inductor

Options:

·Packaging:Bulk isStandard
·Tolerance: 25% is Standard

Common Applications:

·Power supply for PC, Notebook etc., LED lighting, other power supplies
·High efficient resonant converters

FAQ：

Q：Do you accept small-batch customized orders (e.g., 50-100 units)? What is the delivery cycle?
A：We accept small-batch customized orders, with a minimum order quantity as low as 50 units. The delivery cycle for such orders is usually 1-2 weeks (depending on product complexity). During production, the "lean CELL production unit" is used to quickly switch production lines, ensuring efficient delivery of small-batch orders to meet your R&D prototyping and small-batch trial production needs.

Quantity:
Availability:





Inquiry Add to Basket

ETD34(6+6) ETD34 (6+6) pin LLC resonant transformer ETD34 6+6 pinout high frequency transformer ETD34 (6+6) magnetic core transformer for LLC converter 6+6 pin ETD34 power transformer ETD34 transformer with 6+6 pin configuration

Product Description

Download

Product Highlights

High Frequency Transformer Performance

The ETD34 series operates efficiently in high-frequency applications, ranging from 20kHz to 1MHz, making it ideal for switching power transformers and high-frequency power systems.
Its design ensures low core loss, high power conversion efficiency, and consistent performance across a wide frequency range.

Ultra-Low Loss Ferrite Core

The ultra-low loss ferrite core used in the ETD34 series ensures minimal energy dissipation, allowing for high efficiency in power conversion systems.
The ferrite material’s high magnetic permeability and low core losses reduce heat generation, improving overall system reliability and performance.

Power Transformer and Current Transformer Capabilities

The ETD34 series excels in power transformer applications, providing efficient energy conversion for DC-DC converters, industrial power systems, and power supplies.
As a current transformer, it accurately measures current and ensures stable operation in systems that require precise current monitoring.

Reliable Operation in High-Frequency Environments

The ETD34 transformer is engineered for stable performance in high-frequency environments, making it ideal for use in applications requiring low loss, high precision, and reliable operation under fast switching conditions.
Its robust insulation design ensures safety and performance in both low-voltage and high-voltage systems.

Typical Application Scenarios

Power Supplies and Converters

The ETD34 series is used in high-efficiency DC-DC converters and AC-DC power supplies, ensuring reliable energy conversion and voltage regulation.
Its low loss characteristics make it a critical component for energy-efficient power systems in industrial and communication applications.

Industrial Power Systems

The ETD34 series is ideal for industrial power systems, including motor control and automation applications. It provides stable and efficient power conversion, with minimal energy loss and heat generation.
Its current transformer functionality makes it suitable for precise current measurement in industrial energy monitoring systems.

Communication Systems and Data Centers

The ETD34 series is employed in communication systems to ensure clean, efficient power delivery. Its high-frequency performance and low loss help maintain stable operation in communication base stations, routers, and other critical infrastructure.
In data centers, it provides high-efficiency power conversion, ensuring that servers and networking equipment receive consistent, reliable power.

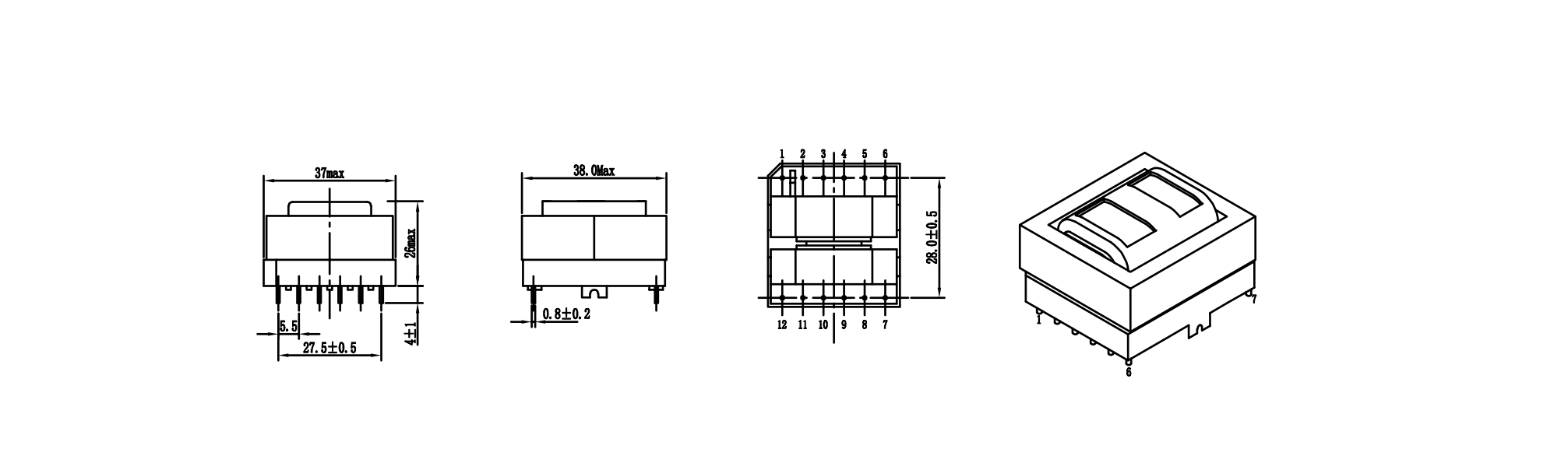

Physical Propertie

Order Code	V_IN	V_out1 (V)	l_out1 (A)	V_aux (V)	L (μH)	f_switch (kHz)	n	L_S (μH)	l_SAT (A)	R_{DC 1} (mΩ)	R_{DC 2} (mΩ)	R_{DC 3} (mΩ)	R_{DC 4} (mΩ)
INF-ETD34-600μH	360-400V(DC)	12	12.5	18	600	70-120	35:2:2:3	100	2	260	3.1	3.1	144
INF-ETD34-600μH	360-400V(DC)	24	6.2	18	600	70-120	35:4:4:3	100	2	260	8	8	144
INF-ETD34-600μH	360-400V(DC)	48	3.1	18	600	70-120	35:8:8:3	100	2	260	26.5	26.5	145
