Power over Ethernet Plus Transformer EPW15

Power over Ethernet Plus Transformer EPW15

As a key element in isolated DC-DC conversion for Power over Ethernet Plus, the EPW15 transformer enables compact and efficient power delivery over data lines. Its design supports forward or flyback topologies at switching frequencies up to 400 kHz, meeting the rigorous 30W power objectives set by the IEEE802.3at standard.

This makes it an ideal, ready-to-integrate solution for powering a wide array of PoE+ Powered Devices (PDs), including equipment in industrial automation and intelligent lighting networks, where combining data and power on a single Ethernet cable simplifies installation and reduces costs.

Quantity:
Availability:





Inquiry

Product Description

Download

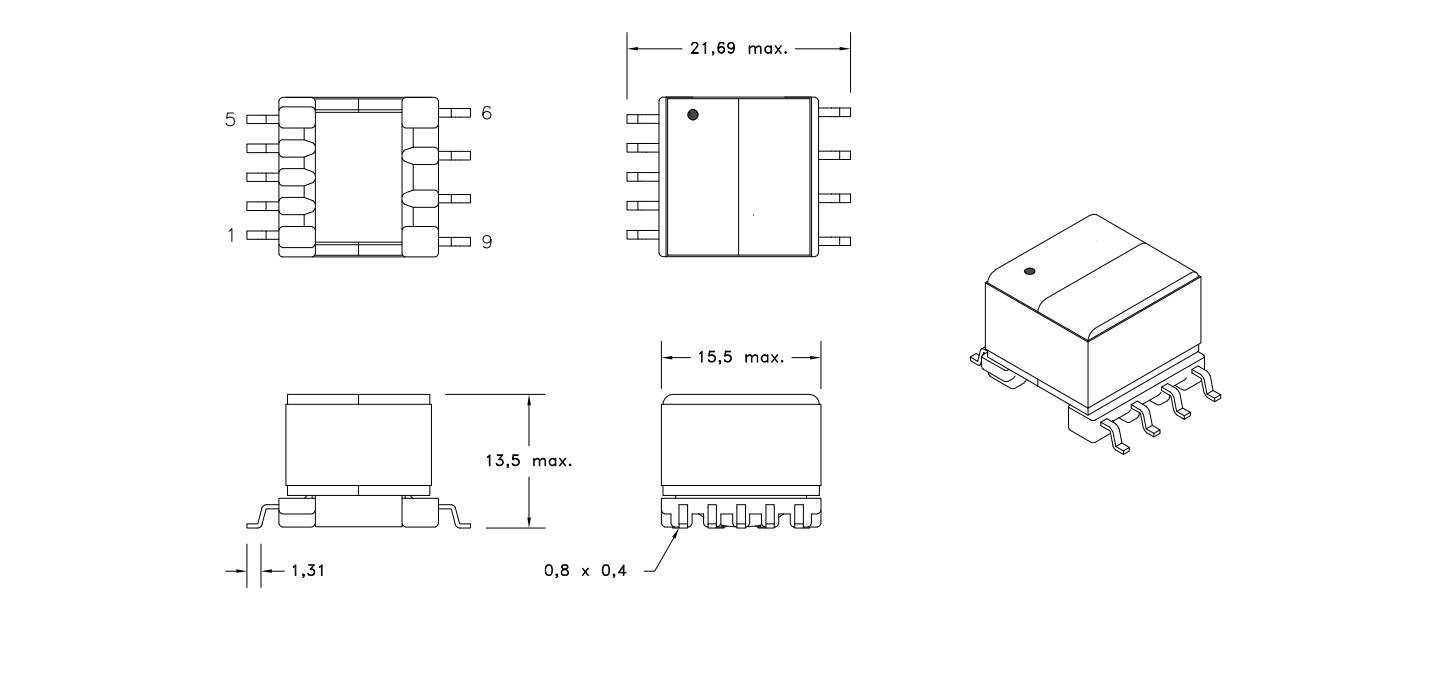

Physical Propertie

Order Code	V_IN	V_out1 (V)	l_out1 (A)	V_out2 (V)	l_out2 (A)	V_out3 (V)	l_out3 (A)	L (μH)	n	V_T (V(AC))	V_aux (V)	R_DC1 (Ω)	R_DC2 (Ω)	R_DC3 (Ω)
INF-EPW15-54μH	36-57V(DC)	3.3	8	-	-	-	-	54	8:1:3.67	1500	12	0.12	0.01	0.125
INF-EPW15-48μH	36-57V(DC)	5	6	-	-	-	-	48	5:1:2.2	1500	12	0.065	0.01	0.14
INF-EPW15-41μH	36-57V(DC)	12	3	-	-	-	-	41	2.67:1:1	1500	12	0.05	0.02	0.089

Technical Specifications

屏幕截图 2025-10-24 143307

PoE+ Power over Ethernet Plus Transformer （EPW15）.pdf

Product Description

Download

Related Products

Power over Ethernet Plus Transformer EFD20

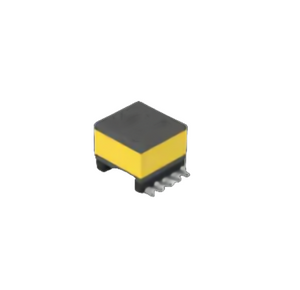

Power over Ethernet Plus Transformer EP13
