Type XXL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

Type XXL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

Characteristics

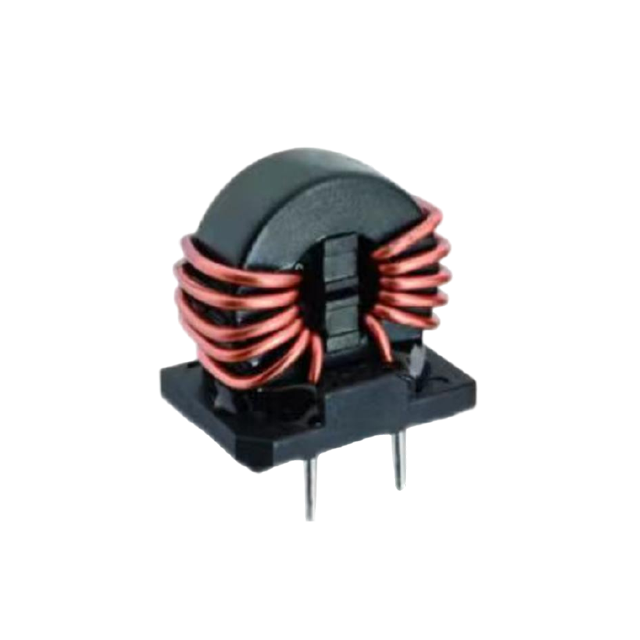

This series features a nanocrystalline core with very high permeability, providing excellent magnetic performance. The plastic housing and winding spacer ensure enhanced insulation and reliable operation. It delivers stable inductance up to 150 °C, supports high current capability, and provides effective wideband noise suppression in a compact design.

The components operate over a frequency range of 1 kHz to 300 MHz and a temperature range from –55 °C to +125 °C. They are rated UL 94 V‑0 for flammability and comply with climatic category 55/125/21, ensuring robust performance in demanding environments.

Quantity:
Availability:





Inquiry Add to Basket

Type XXL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes Nanocrystalline Common Mode Choke nanocrystalline core common mode choke common mode choke nanocrystalline nanocrystalline EMI filter choke nanocrystalline EMI choke

Product Description

Download

Common Applications

Power electronics and switching power supplies (SMPS)
Power line input and output EMI filtering
Common-mode noise suppression in AC/DC power lines
RF and electromagnetic interference suppression in motor drives and industrial equipment
EMI filtering in inverters, converters, and industrial control systems

FAQ：

Q：Do you accept small-batch customized orders (e.g., 50-100 units)? What is the delivery cycle?

A：We accept small-batch customized orders, with a minimum order quantity as low as 50 units. The delivery cycle for such orders is usually 1-2 weeks (depending on product complexity). During production, the "lean CELL production unit" is used to quickly switch production lines, ensuring efficient delivery of small-batch orders to meet your R&D prototyping and small-batch trial production needs.

Physical Propertie

Order Code	lR (A)	L (mH)	RDC max. (mΩ)	VR (V(AC))	VT (V(AC))
INF-Type XXL-35mH	5	35	90	300	2100
INF-Type XXL-20mH	6	20	45	300	2100
INF-Type XXL-14mH	8	14	27	300	2100
INF-Type XXL-9mH	13	9	15	300	2100
INF-Type XXL-7mH	15	7	9.5	300	2100
INF-Type XXL-5mH	21	5	6.5	300	2100
INF-Type XXL-3mH	26	3	4.5	300	2100
INF-Type XXL-1.5mH	38	1.5	2.3	300	2100

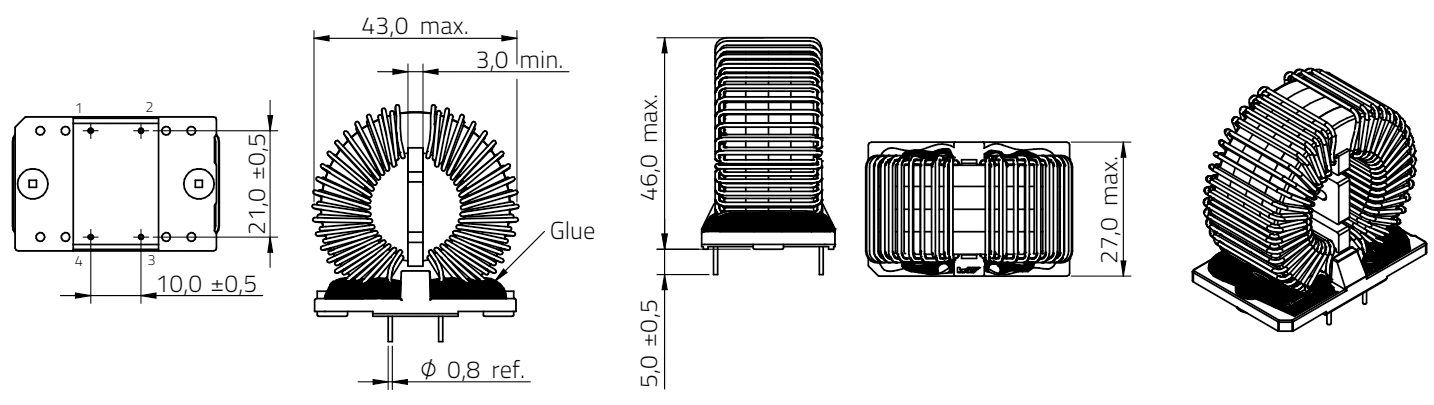

Technical Specifications

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
