INF designs and manufactures nanocrystalline power-line common mode chokes that deliver high impedance and broadband EMI attenuation on AC or DC inputs. Compared with ferrite, nanocrystalline cores achieve target impedance with fewer turns, enabling smaller parts and lower copper loss. As a B2B manufacturer, we support ODM/OEM customization, engineering assistance, and free samples for fast evaluation.
High initial permeability and elevated saturation flux density provide strong common-mode impedance from kHz into the high‑MHz range. Stable inductance over temperature and load preserves EMI margins. Low DCR options help control temperature rise in dense SMPS and industrial power systems.
Configurations include toroidal chokes (bare or cased) and framed options to match electrical targets and PCB constraints. Plastic cases, winding spacers, and defined pin-outs support creepage, clearance, and safe assembly.
| Format | Mounting | Highlights |
|---|---|---|

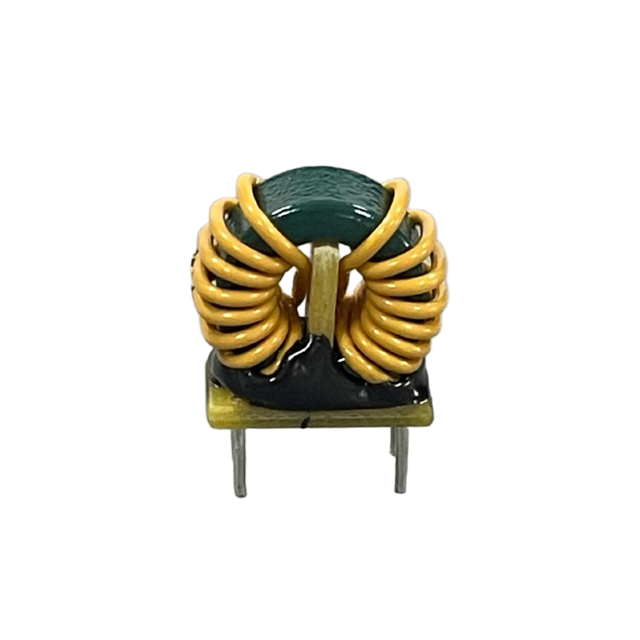

| Toroidal (bare/taped) | Through-hole | High impedance with fewer turns, compact footprint, low stray fields |

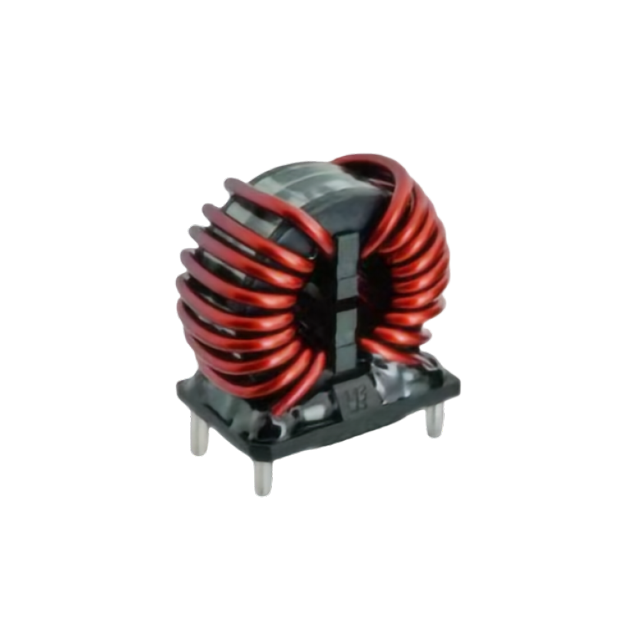

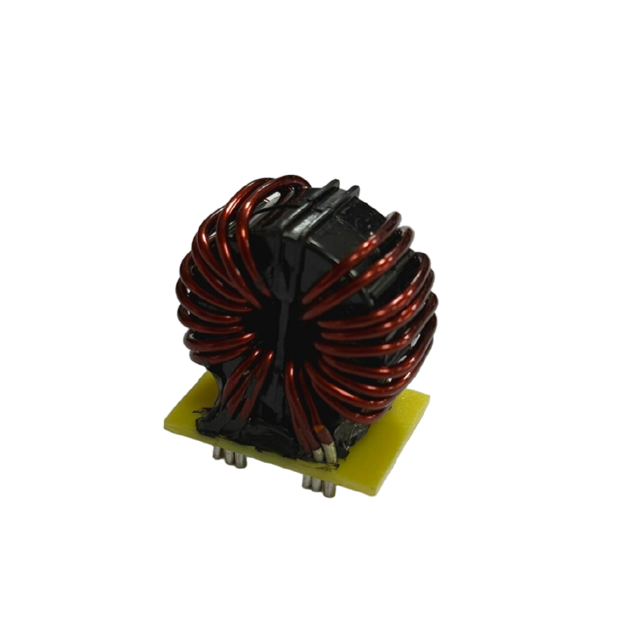

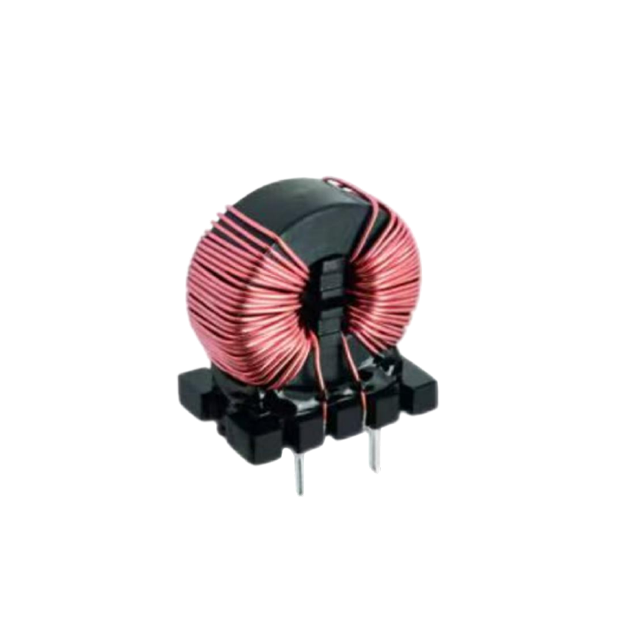

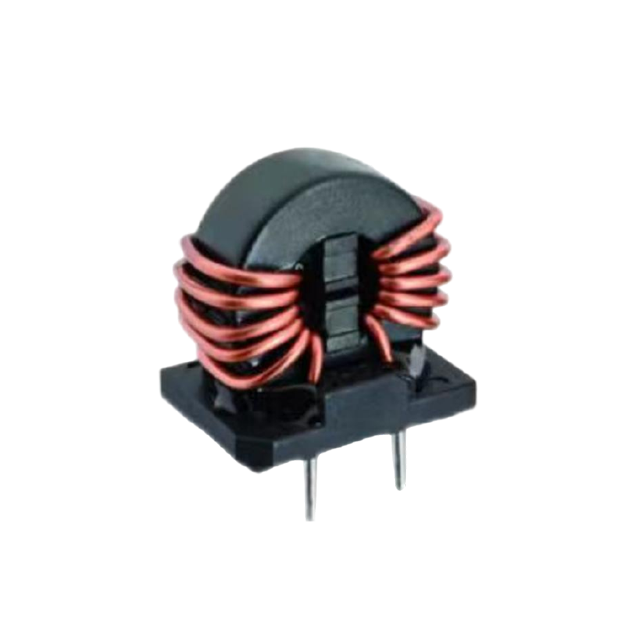

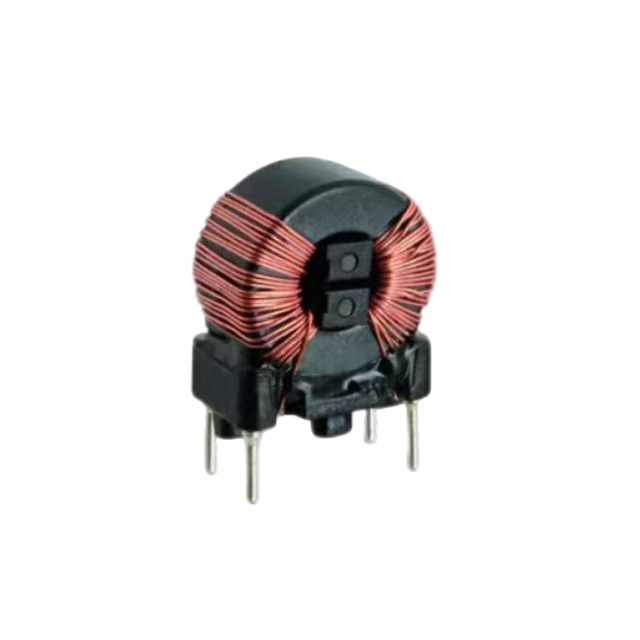

| Toroidal in plastic case | Through-hole | Improved creepage/clearance, easier handling, defined pin layout |
| ET/UU framed choke | Through-hole | Flexible window for inductance/current trade-offs; nanocrystalline or ferrite by need |
These chokes mitigate emissions from fast switching edges, parasitics, and long cable runs. Typical uses include telecom and networking gear, industrial control, computing, medical devices, security electronics, new energy systems, UPS/inverters, and automotive electronics.
Routers, 5G base stations, and access points benefit from broadband attenuation in compact footprints, helping meet tight EMC limits and high-density layouts.
Motor drives, PV inverters, and on-board power electronics require stable filtering under vibration and temperature extremes. AEC-Q200 capable development and PPAP support are available on request for automotive programs.
| Factor | What It Affects | Guidance |
|---|---|---|
| Impedance vs frequency | EMI at problem bands | Set targets from pre‑compliance scans; nanocrystalline supports broad peaks |
| DCR | Loss and temperature rise | Optimize turns, wire gauge, and core size |
| Leakage inductance | Differential‑mode behavior | Control to avoid unwanted resonances |
| Isolation and case | Safety and layout | Select cases and spacers for required creepage/clearance |
INF operates under ISO9001 with builds available to meet UL, CE, and RoHS requirements. We provide ODM/OEM services, magnetic modeling, drawings, and rapid prototypes. Automotive documentation and reliability testing are available as needed.
Ready to qualify a Common Mode Power Line Choke Nanocrystalline for your next project? Share EMI plots, target impedance, current profile, temperature range, and mechanical limits. As a manufacturer and supplier, INF will recommend a tailored design and provide free samples to speed evaluation.
