| Quantity: | |
|---|---|
·Power electronics
·Power line input and output filters
·Filtering for non-grounded devices
·Motor radio interference suppression
·Common-mode noise suppression
Payment is made via T/T within 60 days after invoice issuance upon receipt of goods, in accordance with standard enterprise procurement practices for global passive electronic components, with no quality deposit required.
Trade terms: FOB Shanghai / Nanjing / Hong Kong, T/T Advance accepted.

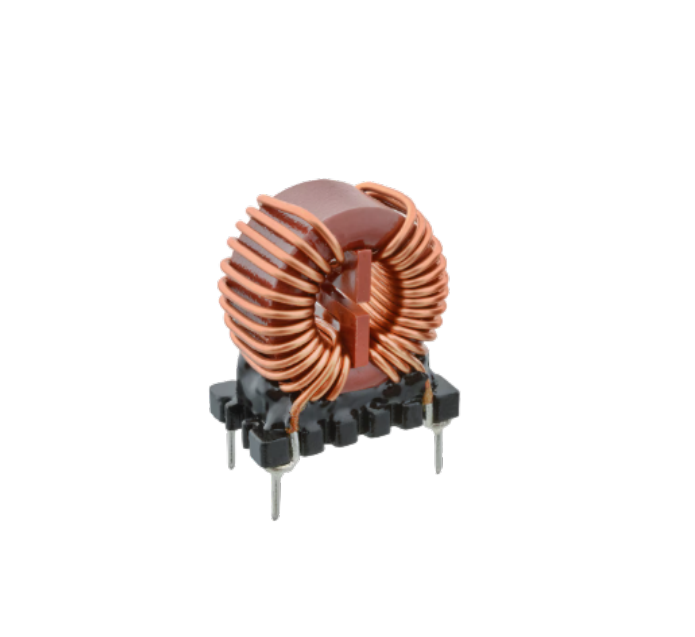

Q: What makes the Type XL choke ideal for broadband filtering?
A: Its low-capacitance winding technology is specifically engineered to deliver robust broadband performance, with excellent attenuation of asymmetric interference and low-frequency noise that can degrade system performance.

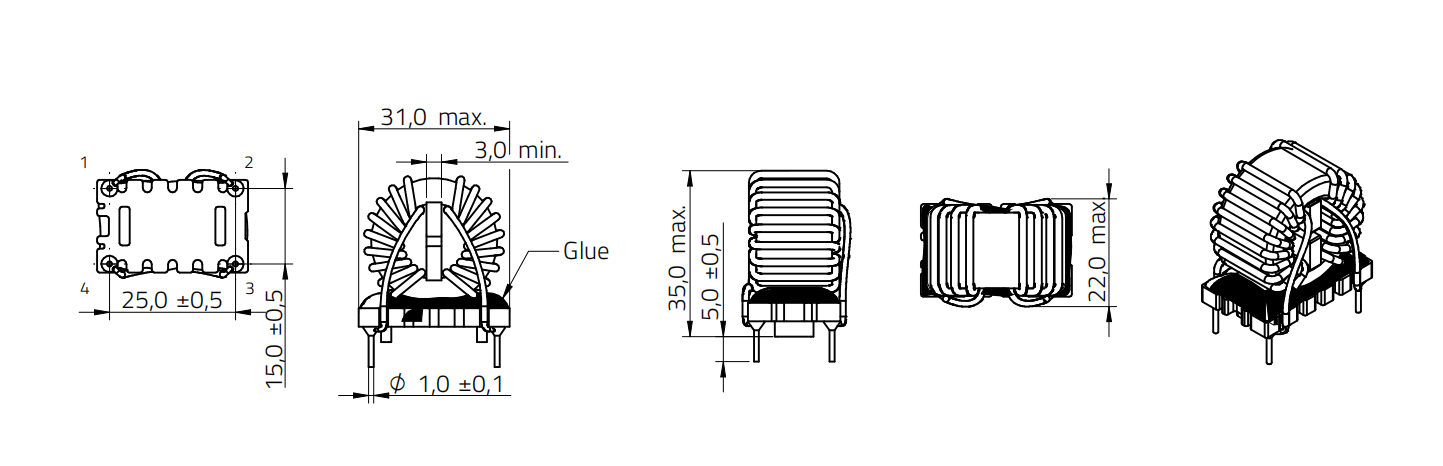

Physical Properties
| Order Code | IR (A) | L (mH) | RDC max. (mΩ) | VR (V(AC)) | VT (V(AC)) |
| INF-Type XL-1mH | 12 | 1 | 9 | 250 | 1500 |
| INF-Type XL-20mH | 3 | 20 | 160 | 250 | 1500 |
| INF-Type XL-10mH | 4.5 | 10 | 70 | 250 | 1500 |
| NF-Type XL-33mH | 3 | 33 | 210 | 250 | 1500 |
| INF-Type XL-3.3mH | 6 | 3.3 | 25 | 250 | 1500 |
| INF-Type XL-5mH | 6 | 5 | 45 | 250 | 1500 |
| INF-Type XL-2.2mH | 8 | 2.2 | 14 | 250 | 1500 |
Technical Specifications
