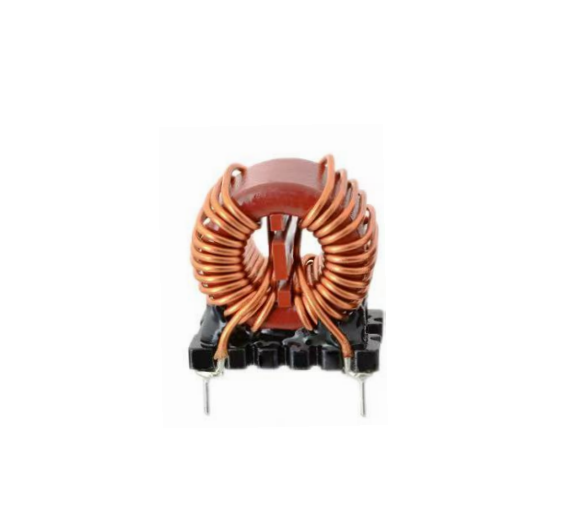

Broadband EMI Suppression: Low-capacitance winding delivers superior broadband filtering, with strong attenuation of low-frequency asymmetrical interference for enhanced signal integrity.
High-Current Compact Design: Delivers impressive rated current capability in a space-efficient form factor, ideal for high-density PCB layouts and space-constrained applications.
Wide Temperature Resilience: Operates reliably from -40°C to +125°C, ensuring consistent performance across diverse environmental conditions.
Safety & Compliance: UL 94 V-0 flammability rating and climatic category 40/125/21 classification meet stringent global safety and environmental standards.
Versatile Application: Ideal for power electronics, power line filters, non-grounded devices, and motor/common-mode noise suppression.
Payment is made via T/T within 60 days after invoice issuance upon receipt of goods, in accordance with standard enterprise procurement practices for global passive electronic components, with no quality deposit required.
Trade Terms: FOB Shanghai / Nanjing / Hong Kong, T/T Advance accepted.

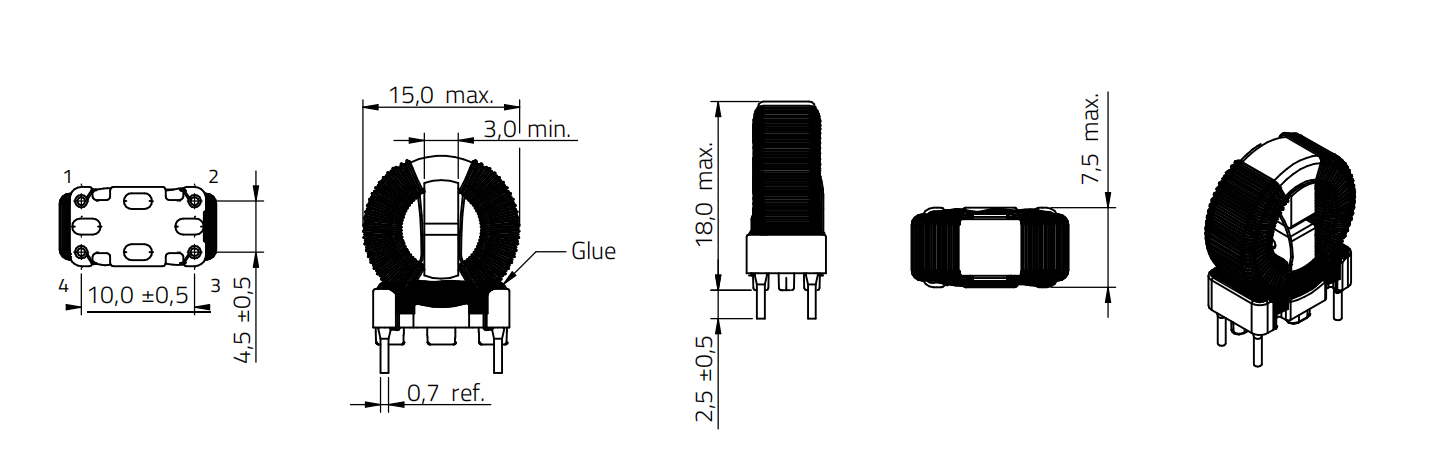

Physical Properties
| Order Code | IR (A) | L (mH) | RDC max. (mΩ) | VR (V(AC)) | VT (V(AC)) |
| INF-Type XS-39mH | 0.3 | 39 | 3000 | 250 | 1500 |
| INF-Type XS-10mH | 0.7 | 10 | 350 | 250 | 1500 |
| INF-Type XS-20mH | 0.5 | 20 | 1000 | 250 | 1500 |
| INF-Type XS-5mH | 1 | 5 | 220 | 250 | 1500 |
| INF-Type XS-1mH | 2 | 1 | 45 | 250 | 1500 |
| INF-Type XS-4mH | 1.5 | 4 | 140 | 250 | 1500 |
Technical Specifications
