EE16/8/5 Offline Transformers 2

EE16/8/5 Offline Transformers Offline Flyback Transformers

Physical Properties

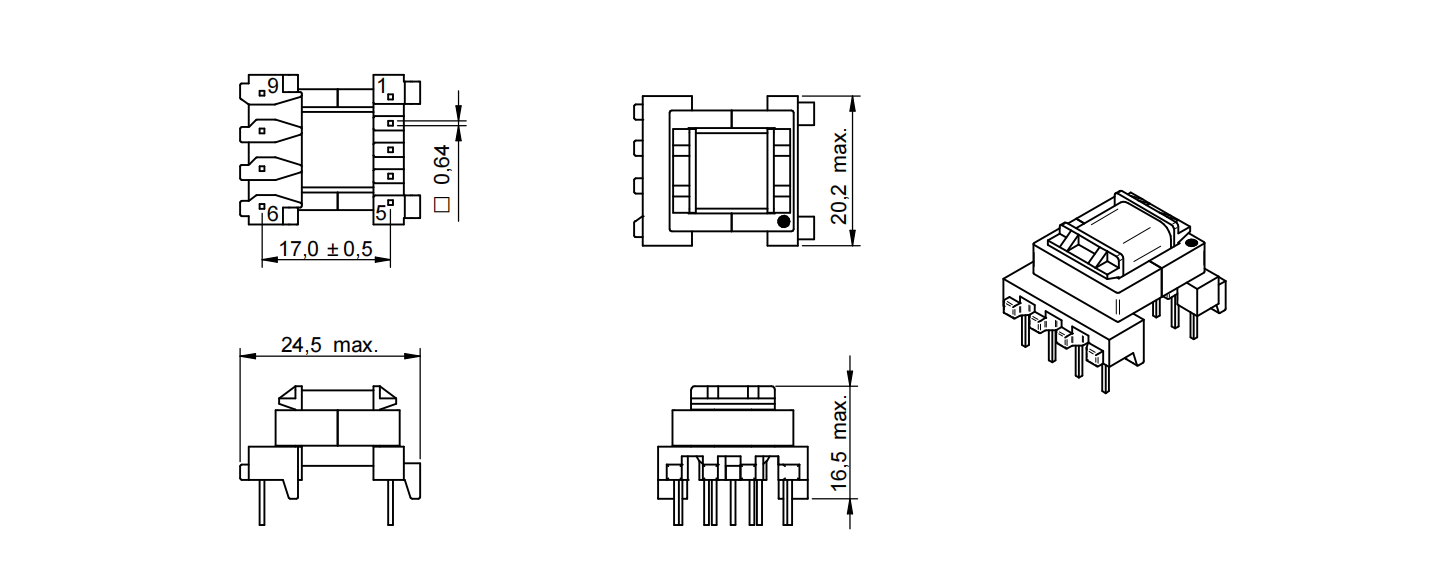

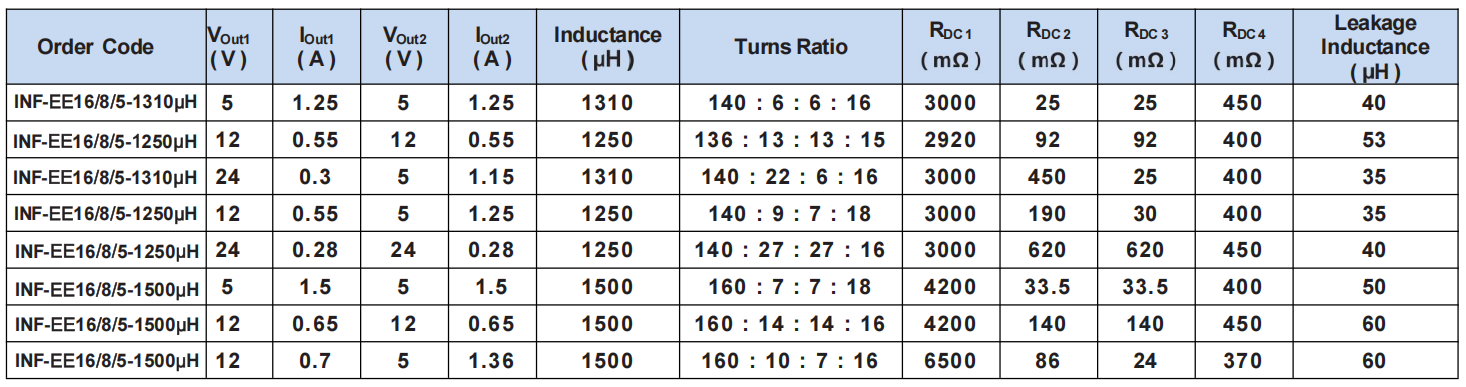

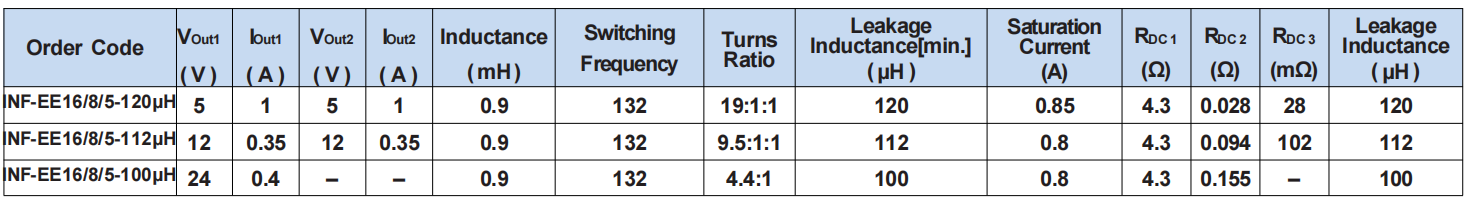

Technical Specifications

EE16/8/5 Unit Offline Transformers

This product features a universal nominal input voltage of 85–265 VAC (120–375 VDC), a compact design with low leakage inductance, and support for multiple output configurations. It operates reliably over a wide temperature range from –40 °C to +125 °C and provides high isolation voltage from 2 kVAC up to 5 kVAC, with most models meeting reinforced insulation requirements. The design supports fixed-frequency or quasi-resonant operation modes, making it well suited for a wide range of applications including industrial and process controls, factory automation, utility metering, USB chargers, security systems, garage door opener auxiliary supplies, and general home appliances.

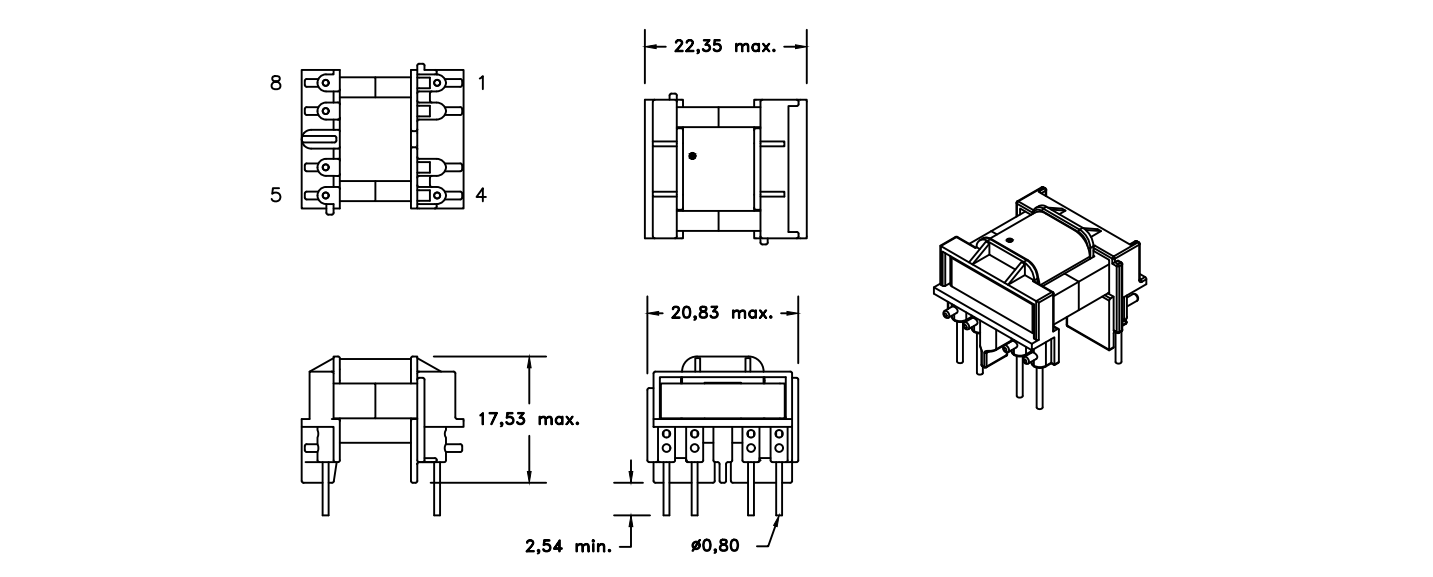

Physical Properties

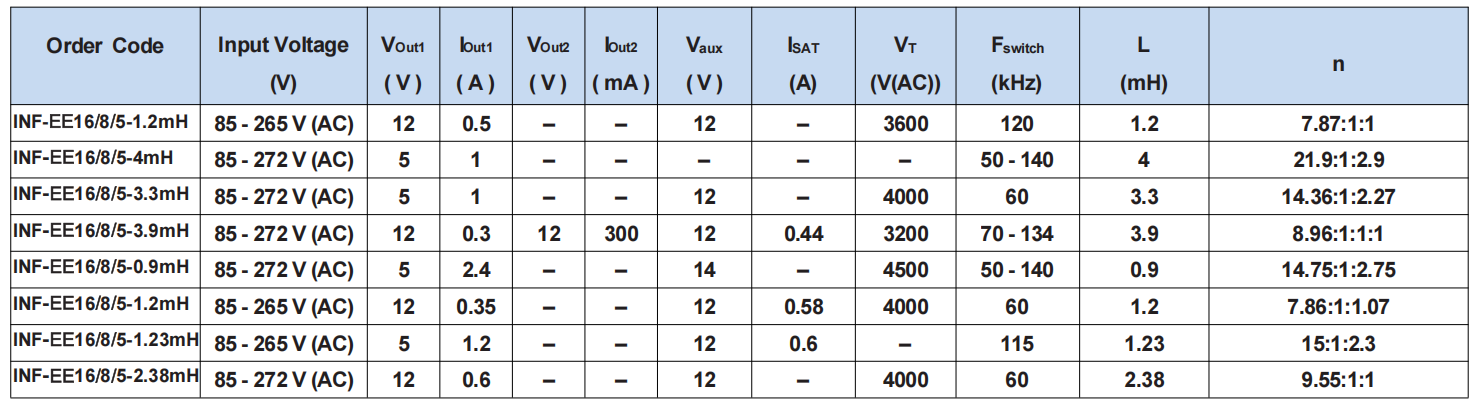

Technical Specifications

EE16/8/5 Offline Transformers Universal Offline Standard

This product has an input voltage range of 85–265VAC (125–375VDC), an output power of 12–16W, creepage and clearance distances greater than 6.5mm, and an insulation test voltage of 4.2kV (AC). It supports surface-mount (SMT) assembly and is mainly used in switch-mode power supplies (SMPS) up to 16W and auxiliary power supplies. It is compatible with various low-power AC/DC ICs such as LT3798/3799, UCC28610, VIPER, and Tiny/Link Switch.

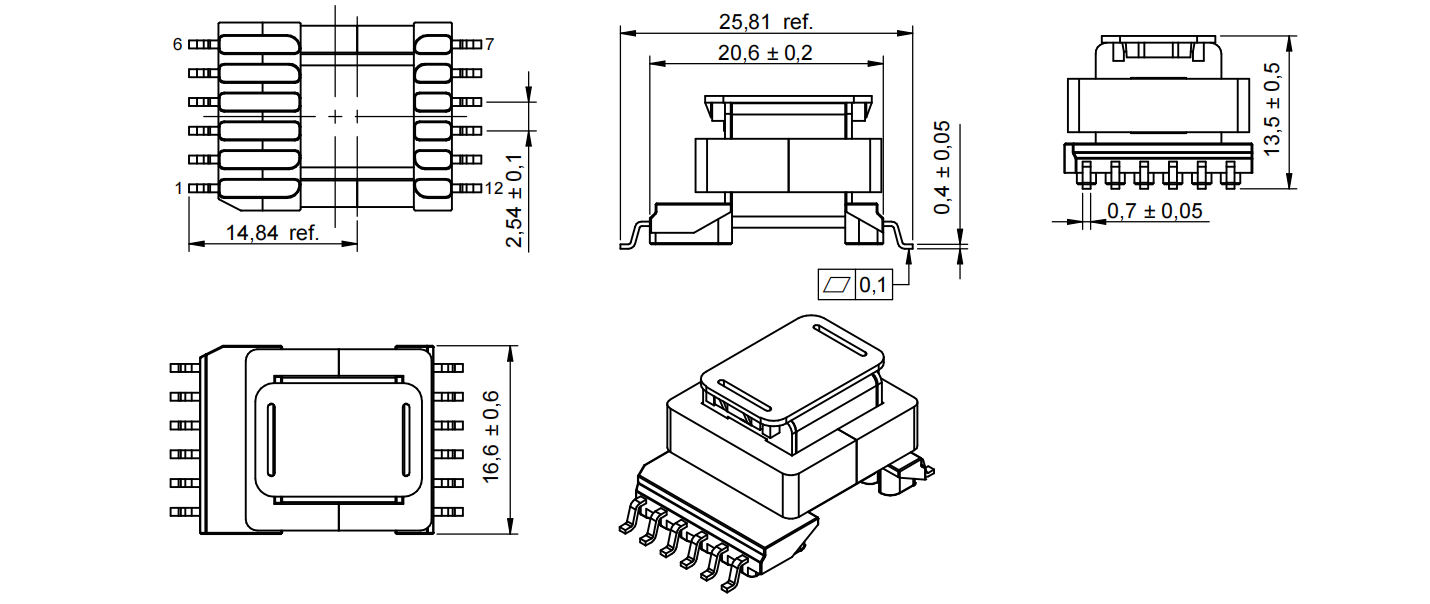

Physical Properties

Technical Specifications

EE16/8/5 Offline Transformers Offline Flyback Transformers

85–265VAC input, compact with low leakage inductance, -40°C~+125°C operating temp, 2–5kVAC isolation, fixed/quasi-resonant modes, reinforced insulation (most models); ideal for industrial control, USB charging, metering, automation, security systems, home appliances, etc.

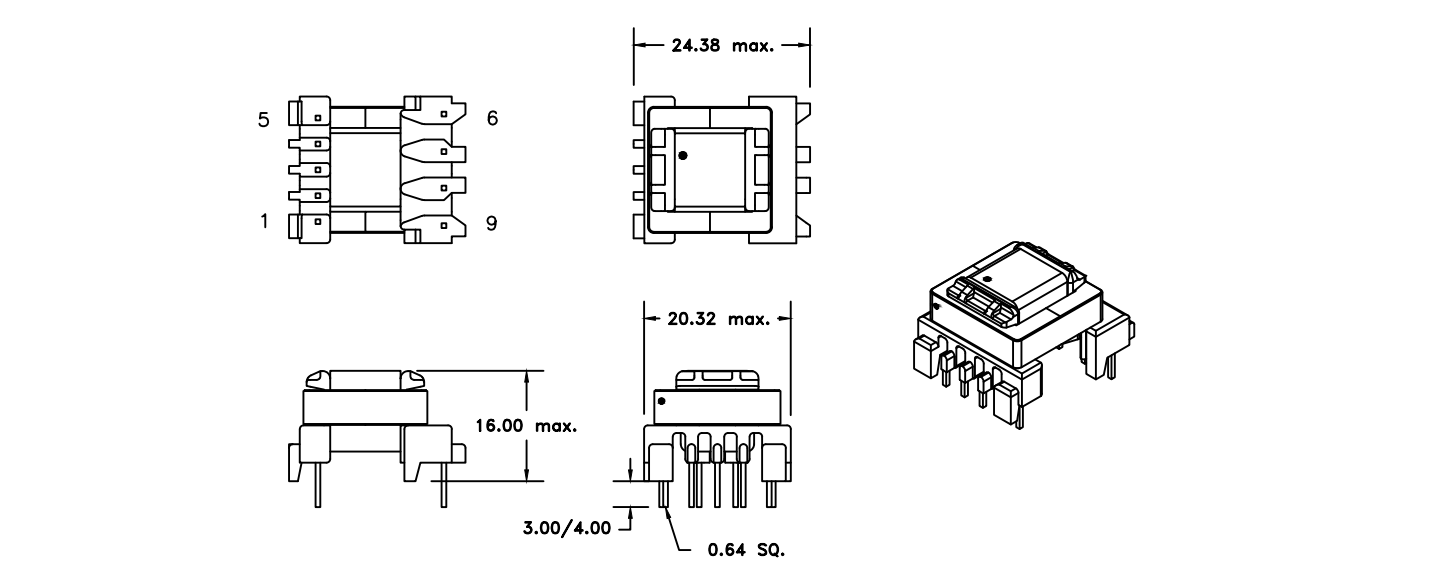

Physical Properties

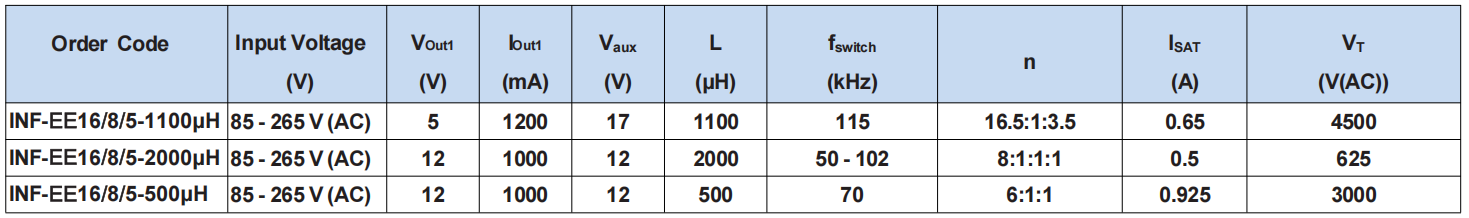

Technical Specifications
