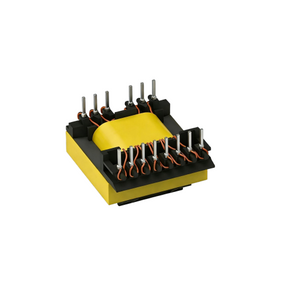

EE25/13/7
INF

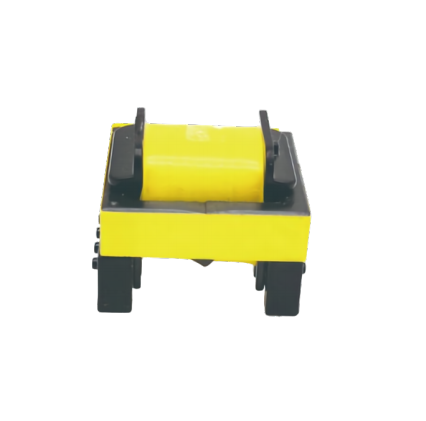

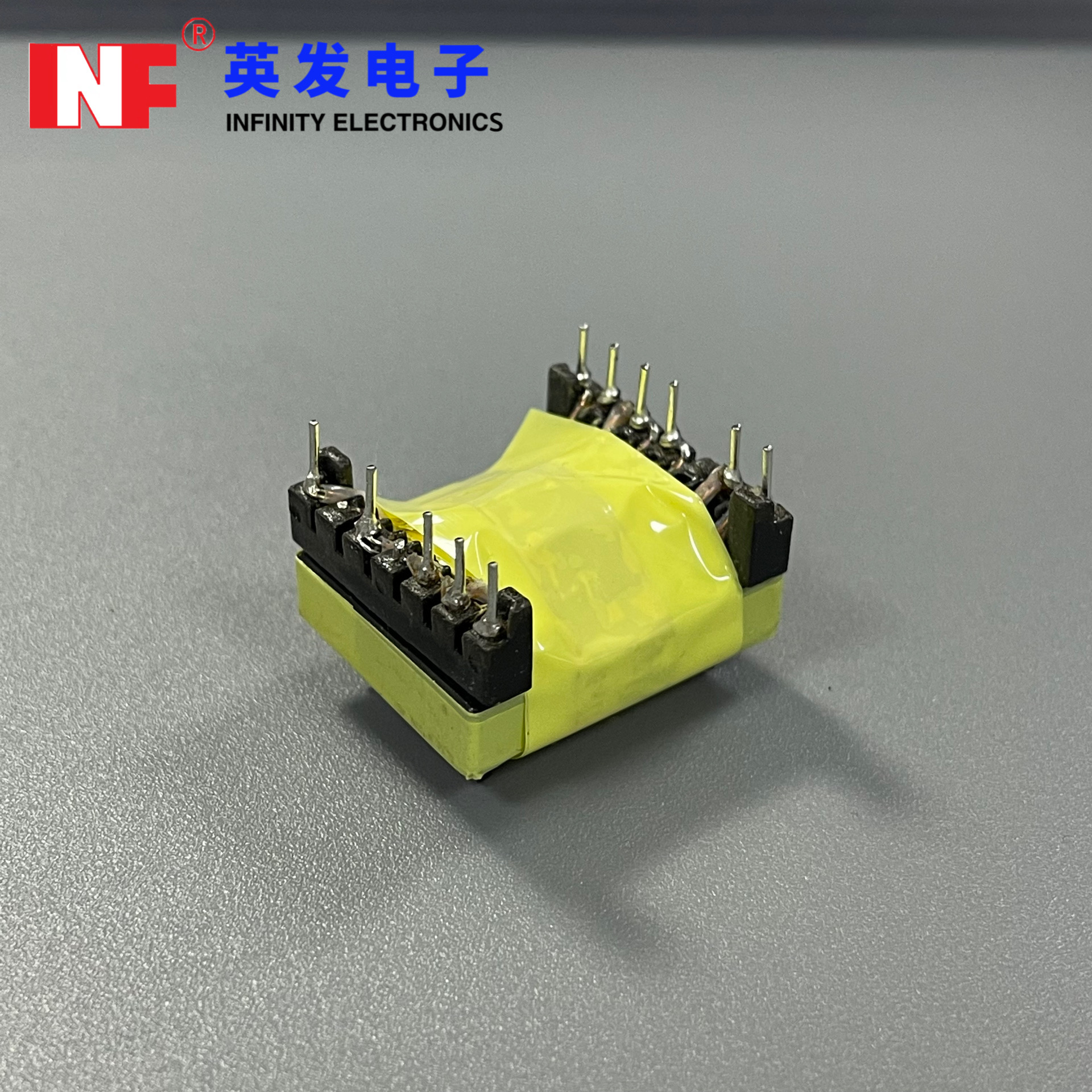

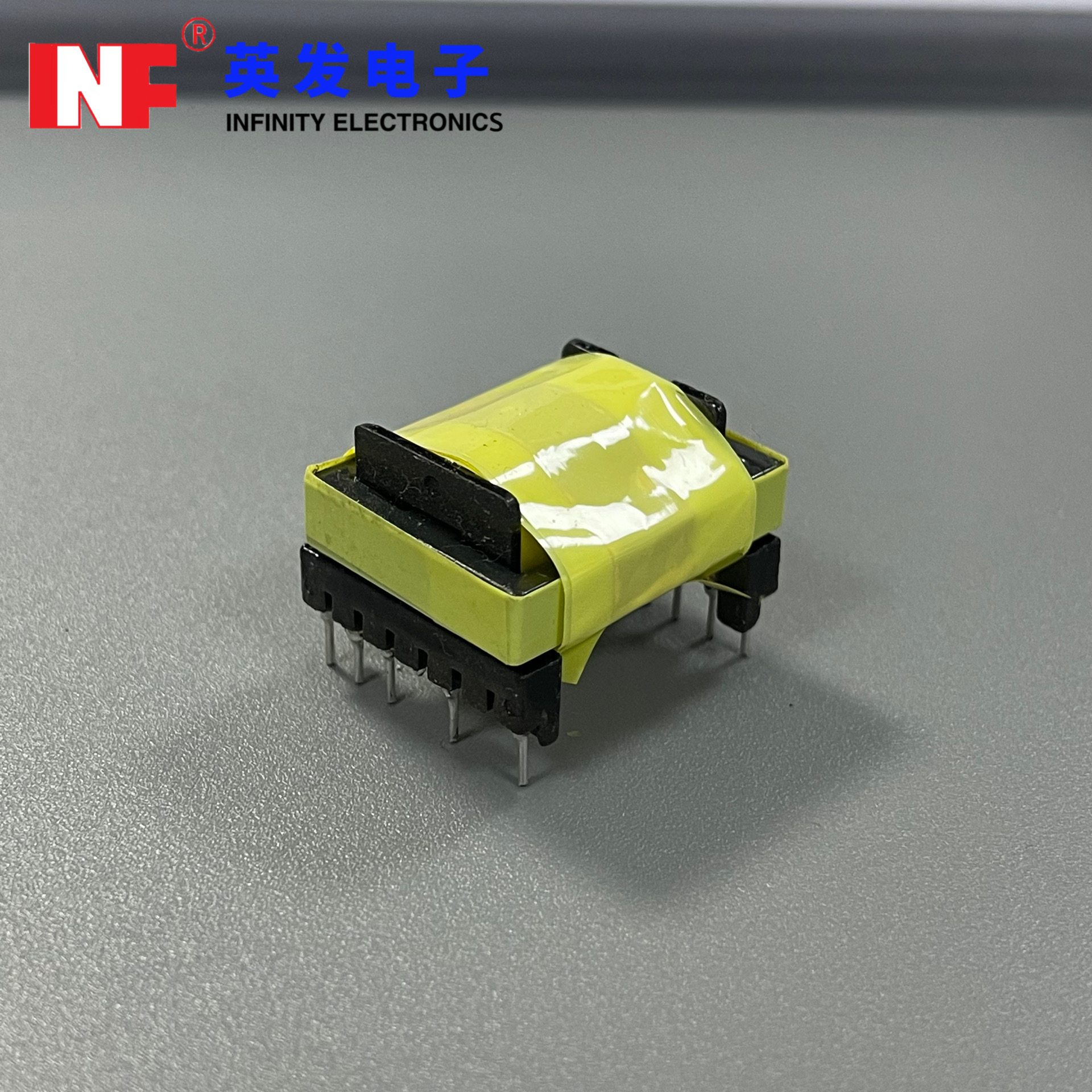

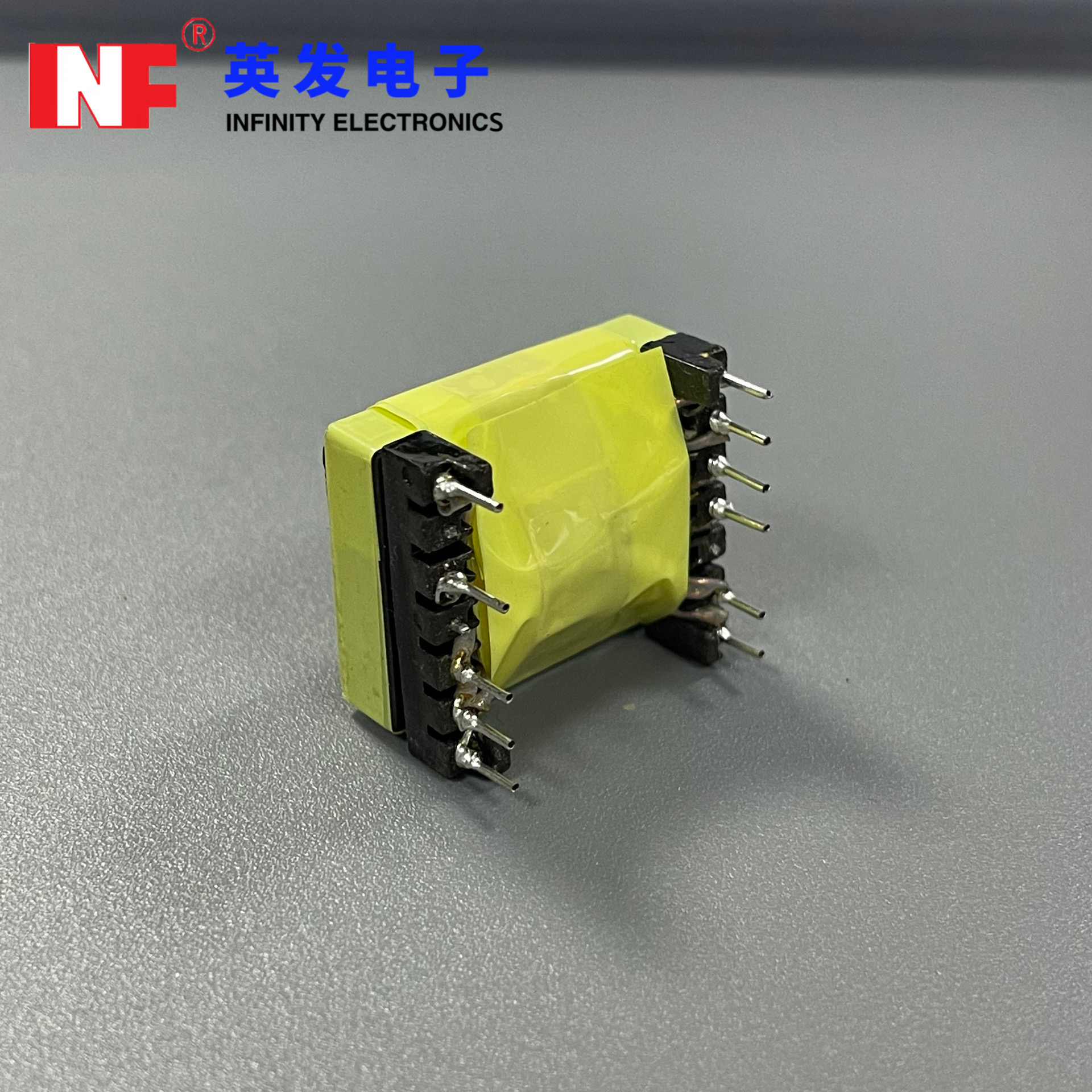

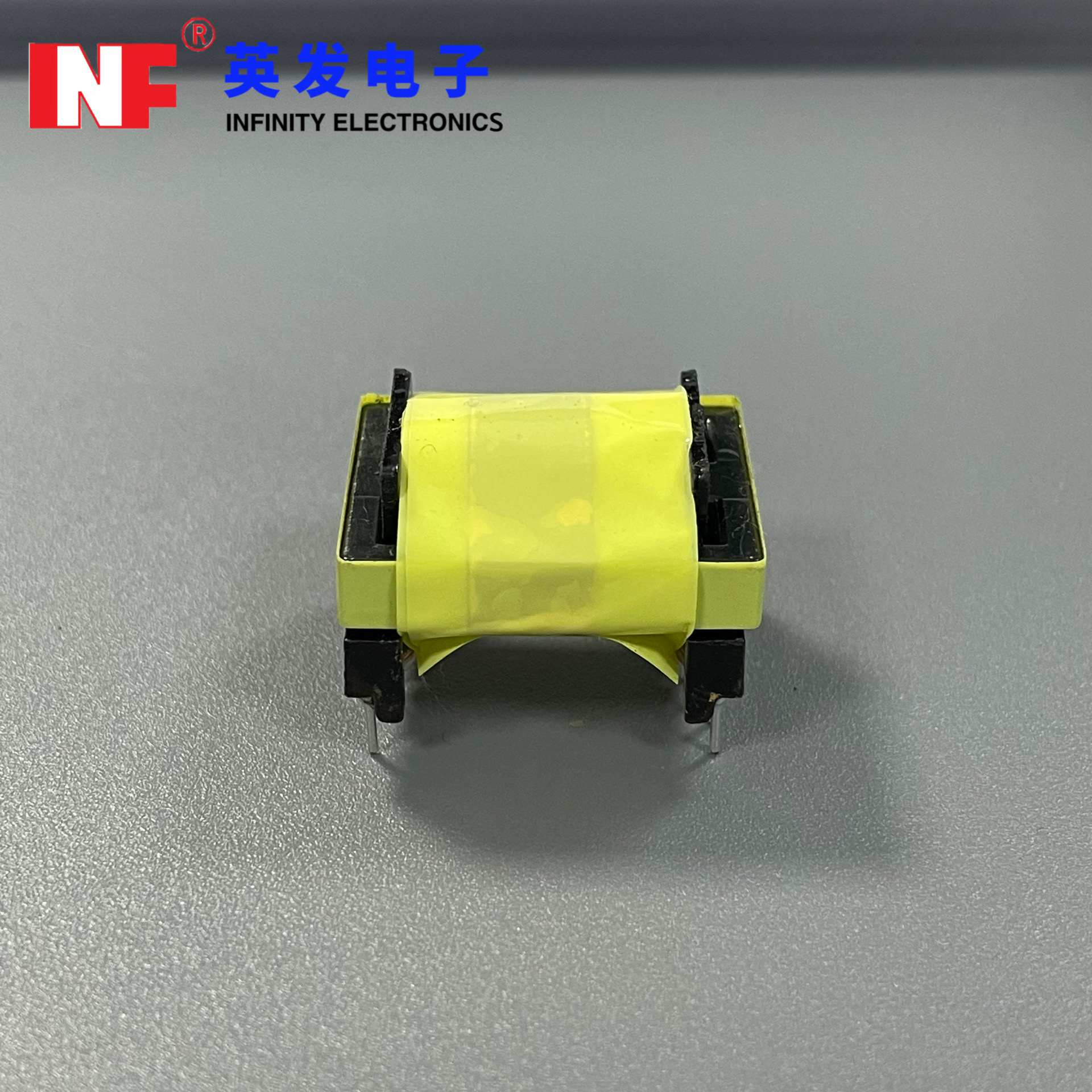

The EE25-13-7 flyback transformer is a compact magnetic component designed for low-power offline power supply applications. Based on a standard EE25 ferrite core structure, it provides efficient energy transfer and reliable electrical isolation in high-frequency switching environments. The compact form factor makes it especially suitable for space-constrained designs such as adapters, control boards, and embedded power modules.
Featuring a standardized bobbin structure with multi-pin configuration (commonly 10 pins), the EE25-13-7 transformer supports flexible multi-winding arrangements for multiple outputs or auxiliary power supply. Optimized winding layout and core gap design help reduce leakage inductance and minimize power loss, contributing to improved efficiency and stable system performance. The insulation structure is designed to meet safety requirements for offline applications.
Compact EE25 core design for space-saving applications
Suitable for high-frequency switching environments
Designed for low-power offline power supplies
Flexible winding configuration for multiple outputs
Reduced leakage inductance and improved efficiency
Reliable insulation for safety compliance
Offline flyback power supplies
Power adapters and chargers
LED driver circuits
Industrial control auxiliary power
Household appliance control boards
Communication and embedded power modules

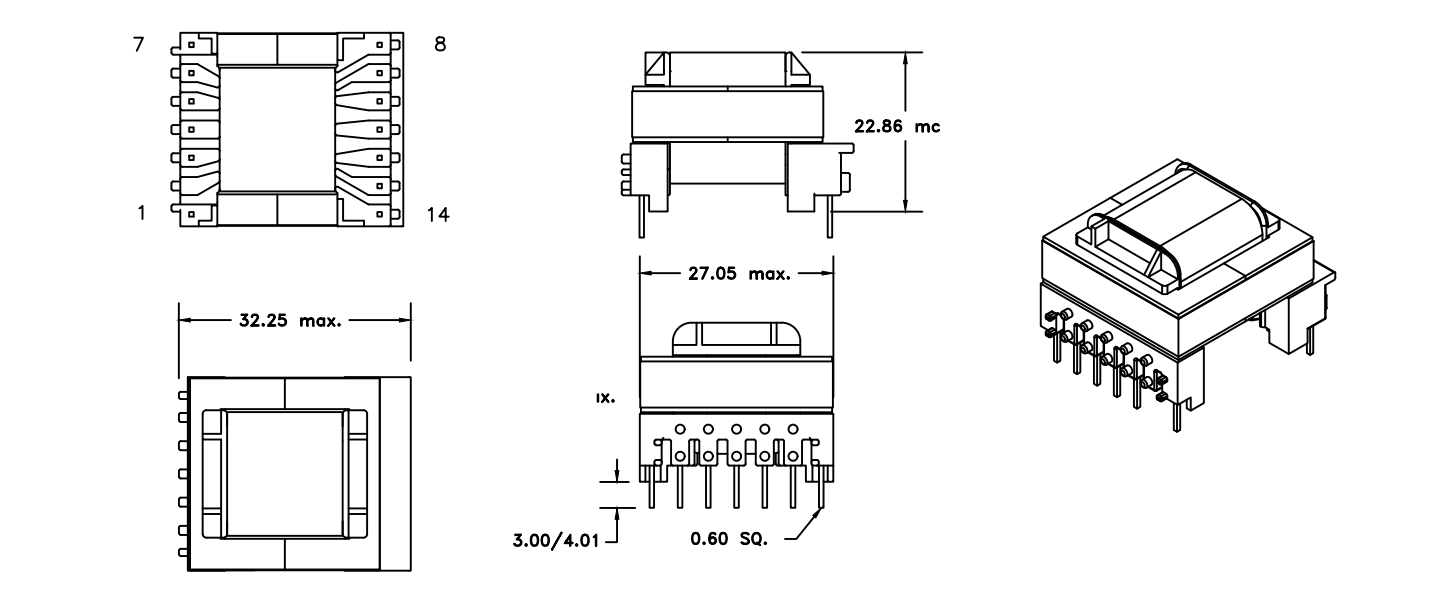

Physical Properties
| Order Code | VIN (V) | Vout1 (V) | lout1 (mA) | Vout2 (V) | lout2 (mA) | Vout3 (V) | lout3 (mA) | Vaux (V) | Vaux2 (V) | L (μH) | fswitch (kHz) | n | lSAT (A) | VT (V(AC)) |
| INF-EE25/13/7-150μH | 43-318V(AC) | 24 | 1000 | 15 | 65 | 15 | 65 | 15 | - | 150 | 75 | 3.75:1.5:1:1:1:1 | 2.78 | 1250 |
| INF-EE25/13/7-1000μH | 141-403V(AC) | 24 | 2100 | - | - | - | - | 24 | - | 1000 | 60 | 8.67:1:1 | 2 | 3000 |
| INF-EE25/13/7-600μH | 141-283V(AC) | 12 | 1800 | 12 | 1800 | - | - | 20 | 16 | 600 | 45 | 12:1:1:1.67:1.33 | 2.3 | 3000 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
