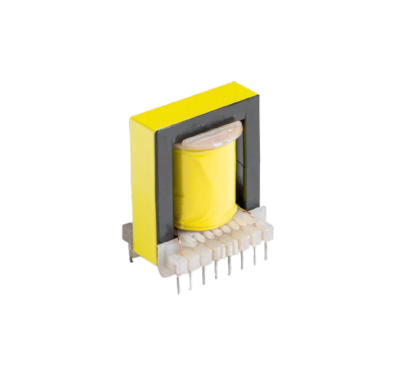

Standardized off-the-shelf magnetics frequently act as the absolute limiting factor in modern, high-density power electronics design. They regularly force electrical engineers into frustrating, sub-optimal thermal or spatial compromises. You simply cannot push modern power topologies to their limits when relying on generalized parts.
The rapid industry adoption of Wide Bandgap (WBG) semiconductors, specifically SiC and GaN, pushes switching frequencies higher than ever before. Because of this, legacy components now struggle severely against excessive core and copper losses. These hidden parasitic losses drastically reduce overall converter efficiency and generate unmanageable heat.
We will thoroughly examine the strict performance, thermal, and commercial thresholds driving modern engineering decisions. You will learn exactly when utilizing Custom Magnetic Components shifts from being an engineering luxury to an absolute system-level necessity. By addressing these bottlenecks head-on, you can unlock unprecedented power density.
System-Level Efficiency: Custom magnetics directly target parasitic losses, reducing Direct Current Resistance (DCR) and Alternating Current Resistance (ACR) to optimize high-frequency power conversion.
Thermal & Spatial Optimization: Tailored geometries (like planar designs) enhance heat dissipation while shrinking the overall PCB footprint.
Justifying the ROI: While custom designs incur upfront Non-Recurring Engineering (NRE) costs, they offset expenses by eliminating the need for secondary cooling systems and reducing long-term failure rates.
Vendor Selection: Successful deployment requires partnering with manufacturers who provide robust finite element analysis (FEA), AI-assisted simulation, and rapid prototyping capabilities.
Engineering teams consistently hit performance walls when forcing standard catalog parts into advanced power topologies. Manufacturers design these off-the-shelf components for the broadest possible market appeal. They prioritize manufacturing volume over specialized performance, which creates severe limitations for high-end applications.
Standard components are generalized for broad applications. They work adequately at lower frequencies. However, at frequencies above 100 kHz, they frequently exhibit unmanaged proximity and skin effects. As alternating current pushes toward the surface of the conductor, the effective cross-sectional area shrinks. This dramatically increases Alternating Current Resistance (ACR). Standard components rarely utilize optimized Litz wire configurations tailored for these specific switching thresholds. Consequently, you experience massive copper losses that bleed away valuable efficiency.
Off-the-shelf inductors and transformers often dictate the thermal ceiling of the entire board. When standard magnetics overheat due to unoptimized core materials, they force engineers to over-spec cooling mechanisms. You might find yourself adding heavy aluminum heatsinks, active airflow fans, or complex heat pipes just to keep a standard transformer alive. These secondary cooling requirements degrade overall power density. They add unnecessary weight and introduce mechanical points of failure into the final product.
Integrating bulky standard magnetics into strict low-profile form factors creates significant packaging challenges. Engineers designing automotive EV chargers or high-density server power supplies often fight for every millimeter of vertical space. Standard bobbins and cores lead to dead space and inefficient PCB layouts. You cannot wrap other sensitive components around a massive, unshielded off-the-shelf inductor without risking electromagnetic interference (EMI). This forces designers to spread components out, ruining form-factor optimization goals.
When you shift away from catalog parts, you gain granular control over every physical and electrical characteristic. You can construct a component that behaves exactly as your circuit simulations demand.
Evaluating and selecting the exact core material determines how efficiently your system will operate under load. Standard parts usually default to basic ferrite grades to keep costs low. Customizing allows you to match the material precisely to the required switching frequency, ripple current, and operating temperature. This minimizes both hysteresis and eddy current losses.
Ferrite: Highly cost-effective for standard high-frequency applications, but custom mixes can be tailored to shift the lowest core loss point to your exact operating temperature (e.g., exactly 100°C).
Powdered Iron: Offers a softer saturation curve. Customizing the distributed gap prevents abrupt inductance drops during heavy transient loads.
Nanocrystalline: Provides incredibly high permeability and high saturation flux density. It is perfect for shrinking common-mode chokes in EMI filters.
Amorphous: Delivers excellent performance for high-power, low-frequency applications, offering robust thermal stability.
Beyond material, customizing core shapes gives you mechanical freedom. Standard shapes like E-cores or RM-cores might not fit your chassis. By customizing core shapes—whether modifying E, PQ, RM, or using proprietary geometries—you balance the required cross-sectional area with specific dimensional constraints. You can flatten the core for low-profile server blades or elongate it to fit alongside liquid cooling pipes.
The way we wind the conductor matters just as much as the core itself. Custom designs allow engineers to deploy advanced winding techniques that drastically reduce parasitic elements.
Deploying custom planar magnetics drastically reduces leakage inductance. Planar designs use stacked PCB traces or stamped copper plates instead of traditional round wire. This approach improves manufacturing repeatability because every PCB trace is identical. It also substantially lowers the physical profile compared to traditional wire-wound methods. Planar transformers interleave primary and secondary windings flawlessly, ensuring tight magnetic coupling.
For applications where wire-wound remains necessary, Litz wire optimization becomes critical. Specifying exact strand counts and gauges mitigates skin effect losses without over-engineering the cost. You can calculate the precise skin depth at your exact switching frequency and instruct the manufacturer to twist the ideal number of micro-strands. This targeted approach prevents the severe overheating seen in solid-wire standard inductors at high frequencies.
Common Winding Mistakes to Avoid:
Ignoring the proximity effect by stacking too many layers in a single winding window.
Over-specifying Litz wire strand counts, which needlessly inflates component costs and reduces the window utilization factor.
Failing to interleave primary and secondary windings in high-current transformers, resulting in massive leakage inductance spikes.
Heat kills power electronics. Customizing your magnetics transforms them from thermal bottlenecks into active participants in your overall thermal management strategy.
You can design custom components with built-in thermal pathways. Instead of relying solely on ambient air cooling, custom designs can incorporate thermal potting compounds. These compounds encapsulate the windings and conduct heat directly to the outer surface. Furthermore, you can design specific mounting frames that bond directly to chassis cold plates. This allows heat to transfer seamlessly from the core directly into your liquid cooling loop or external heatsink.
Standard high-power inductors often fail because the inner windings trap heat, creating a localized thermal runaway. Utilizing customized winding distribution prevents this localized thermal runaway. By intentionally spacing the windings or utilizing specific insulating tapes with higher thermal conductivity, you distribute the heat evenly across the entire component surface. We can also modify the bobbin design to allow airflow channels directly through the center of the windings.
Optimized magnetics yield impressive, measurable improvements. Implementing perfectly tuned Custom Magnetic Components can yield 1-3% total system efficiency gains. While a single percentage point sounds small, it translates to massive reductions in dissipated heat at the kilowatt level. Additionally, these optimizations can reduce volumetric size by up to 30-40%. This extreme space-saving is critical for demanding applications like aerospace modules, drone power supplies, and fast-charging EV infrastructure.
The following chart illustrates the typical thermal and spatial differences when comparing off-the-shelf and bespoke solutions.
Standard vs. Custom Magnetics Comparison
Parameter | Standard Off-the-Shelf Magnetics | Custom Tailored Magnetics |
|---|---|---|
Thermal Pathway | Rely on passive air convection or external forced air. | Direct chassis bonding, custom potting, integrated cold plates. |
Size & Form Factor | Fixed dimensions; often creates PCB dead space. | Optimized to exact chassis constraints; low profile available. |
Efficiency at >100kHz | High ACR losses due to unoptimized wire gauges. | Maximized efficiency via calculated Litz wire or planar traces. |
Leakage Inductance | Highly variable from batch to batch. | Tightly controlled via custom interleaving techniques. |
Engineering teams must justify the shift away from standard catalog items. It requires looking beyond the unit price of a single component to understand the broader financial and operational impacts on the entire project.
Acknowledging the reality of Non-Recurring Engineering (NRE) costs and minimum order quantities (MOQs) is the first step. Custom designs require initial investments in tooling, bobbin molds, and engineering time. However, custom magnetics are justified when system-level savings exceed the component price premium. By deploying a custom transformer, you might eliminate the need for expensive secondary cooling systems like heavy extruded aluminum heatsinks or fans. You can also shrink the final enclosure size, saving on chassis materials and shipping weights. Furthermore, the enhanced thermal stability significantly reduces long-term failure rates and subsequent warranty claims.
Supply chain resilience also improves dramatically. Consolidating multiple standard parts into a single custom magnetic assembly can simplify the Bill of Materials (BOM). Instead of sourcing three separate inductors and a common-mode choke from different vendors, you can design a single integrated magnetic structure. This consolidation reduces assembly time on the manufacturing floor and mitigates the risk of line-down situations caused by a single missing catalog part.
Finally, consider the burden of compliance and reliability. Achieving application-specific certifications often requires significant retrofitting when using standard parts. Custom parts can be designed out-of-the-box to meet rigorous standards. You can specify precise creepage and clearance distances to meet UL/IEC isolation standards for medical equipment. For automotive applications, you can engineer the component to pass harsh AEC-Q200 vibration and thermal shock testing from day one.
Choosing the right manufacturing partner dictates the success of your custom integration. You need a partner who brings deep engineering expertise, not just build-to-print manufacturing.
Prioritize vendors utilizing advanced 3D electromagnetic simulations and finite element analysis (FEA). They must model flux density distribution and identify core saturation points before any physical materials are ordered. The best partners also use AI-based loss modeling to accurately predict core and copper losses under your specific complex waveforms. They should collaborate with you to validate designs computationally before cutting physical cores.
Speed to market is essential. The vendor must demonstrate a clear timeline for moving from theoretical design to functional, testable prototypes. Ask about their local prototyping labs and raw material inventory. A vendor who can turn around a custom planar transformer prototype in two weeks prevents severe project bottlenecks, allowing your engineering team to proceed with critical board-level testing.
Theoretical designs mean nothing without physical validation. Ensure the manufacturer has robust in-house testing capabilities. They need automated High-Pot testing to guarantee dielectric isolation. They should perform partial discharge analysis to ensure long-term reliability in high-voltage designs. Finally, they must execute thermal cycling under full load to prove the component will survive its intended operating environment.
Standard magnetics provide a fast, accessible starting point for low-power applications. However, they rapidly lose their appeal when pushed into extreme performance envelopes. Upgrading components is a strategic engineering decision that impacts the entire product lifecycle.
Custom magnetic components are not universally required for every project. Yet, they serve as the definitive solution when standard parts compromise the efficiency, thermal stability, or physical footprint of a high-performance power converter. By taking control of the core material, shape, and winding geometry, you eliminate parasitic losses at the source.
Engineers should immediately audit their current power topology for hidden thermal bottlenecks. Review your highest failure points and look at the components requiring the most active cooling. Consult with a specialized magnetics manufacturer for a feasibility and simulation review. This initial consultation will clearly determine if a custom approach is technically viable and financially beneficial for your next generation design.
A: Custom components require an upfront investment for tooling and engineering time. This NRE amortization typically becomes highly viable in mid-to-high volume production runs. However, for high-margin, low-volume applications like aerospace, medical devices, or defense systems, the immediate performance and spatial gains easily justify the upfront investment regardless of production volume.
A: You should set realistic expectations based on design complexity. Generally, a reputable manufacturer can deliver testable physical prototypes within 2 to 6 weeks. The exact timeline depends heavily on the availability of specialized raw materials, custom core machining requirements, and the complexity of bespoke bobbin tooling.
A: Yes, they play a crucial role in EMI mitigation. Custom shielding elements, such as copper foil bands or flux bands, can be integrated directly into the component. Additionally, engineers use specific winding techniques to control parasitic capacitance and optimize leakage inductance, effectively resolving specific common-mode or differential-mode noise challenges at the source.
A: You must provide several required baseline specifications to begin. List your specific power topology, input and output voltage ranges, and maximum switching frequency. You also need to define the required inductance, maximum saturation current, thermal limits (ambient and allowable rise), and the strict physical footprint available on your PCB.
