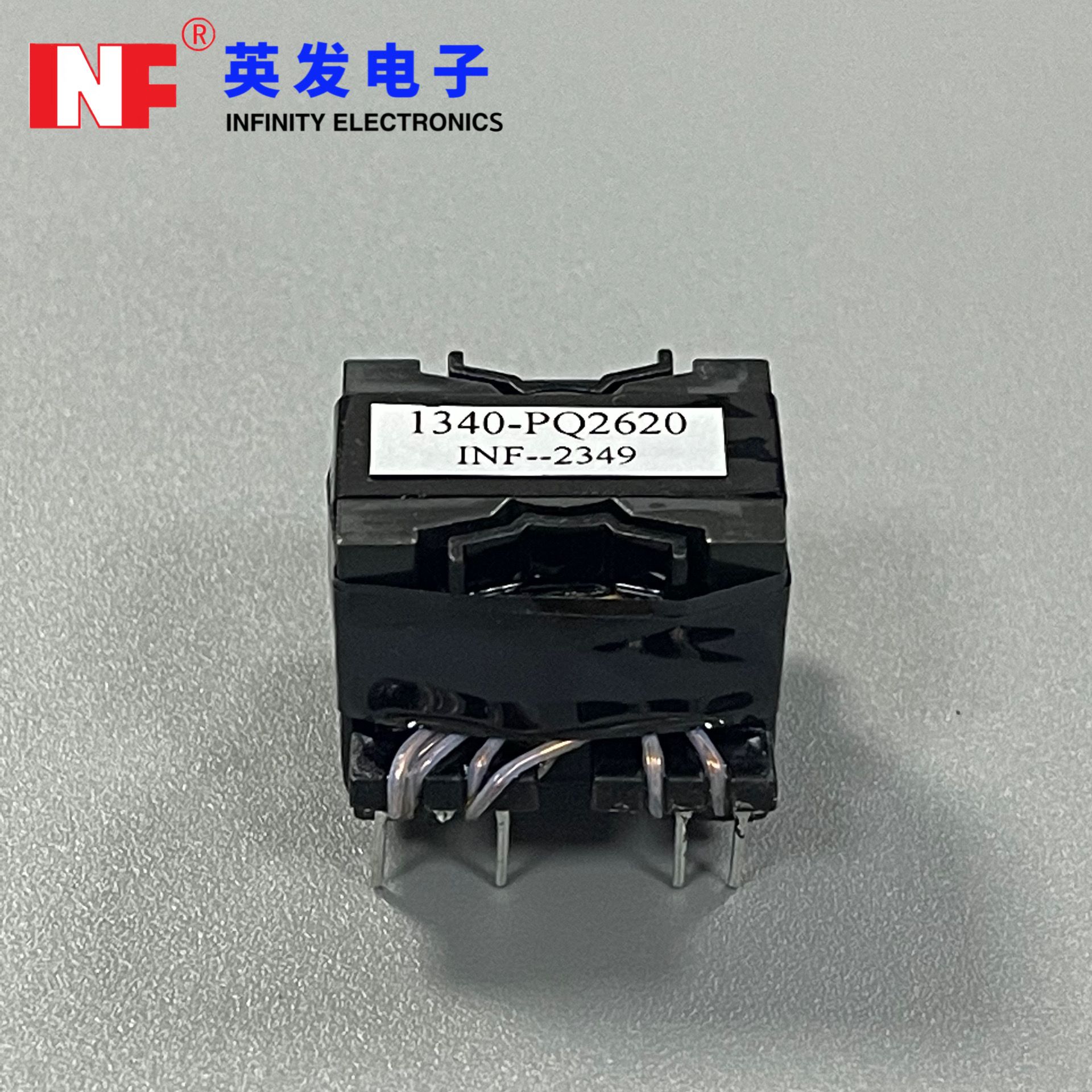

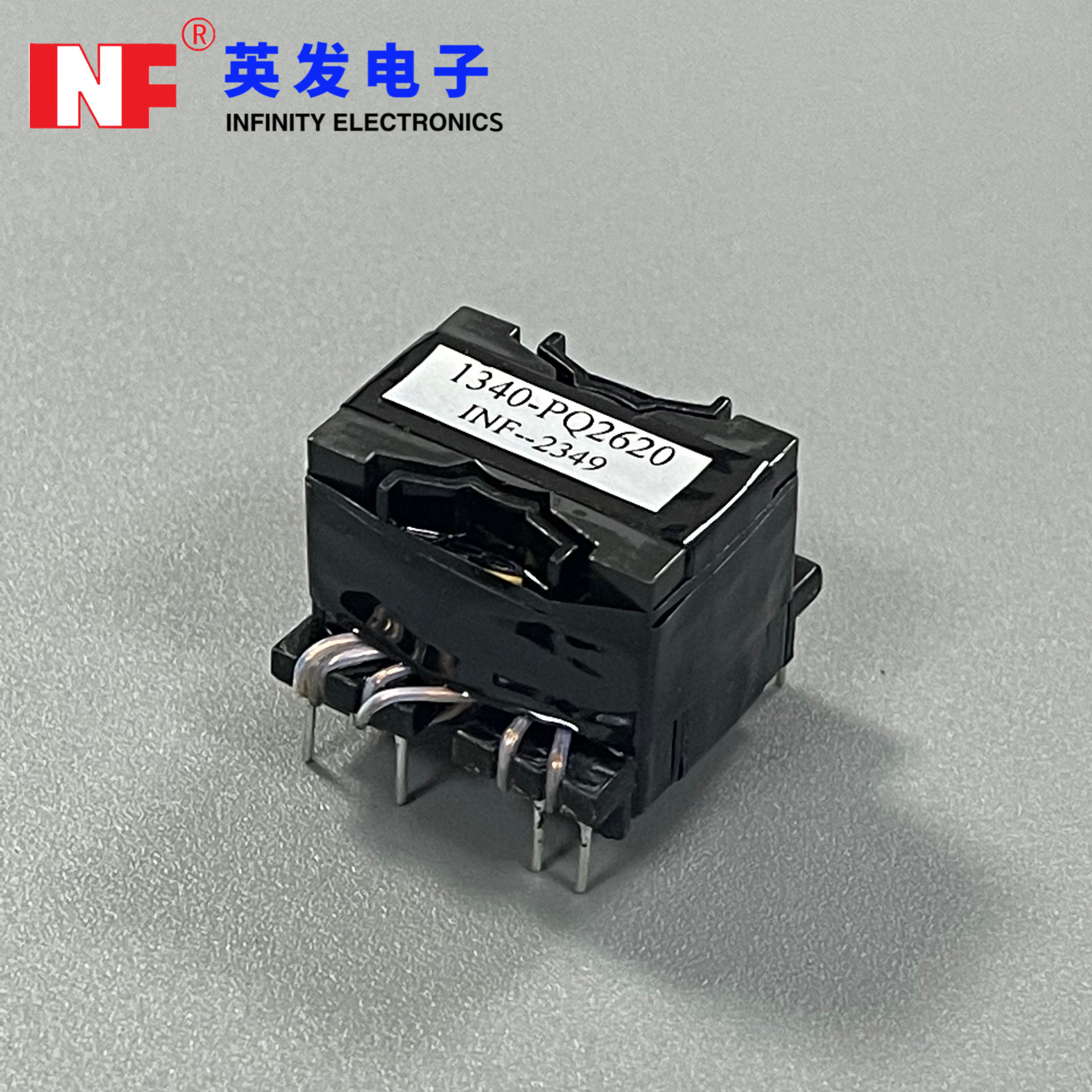

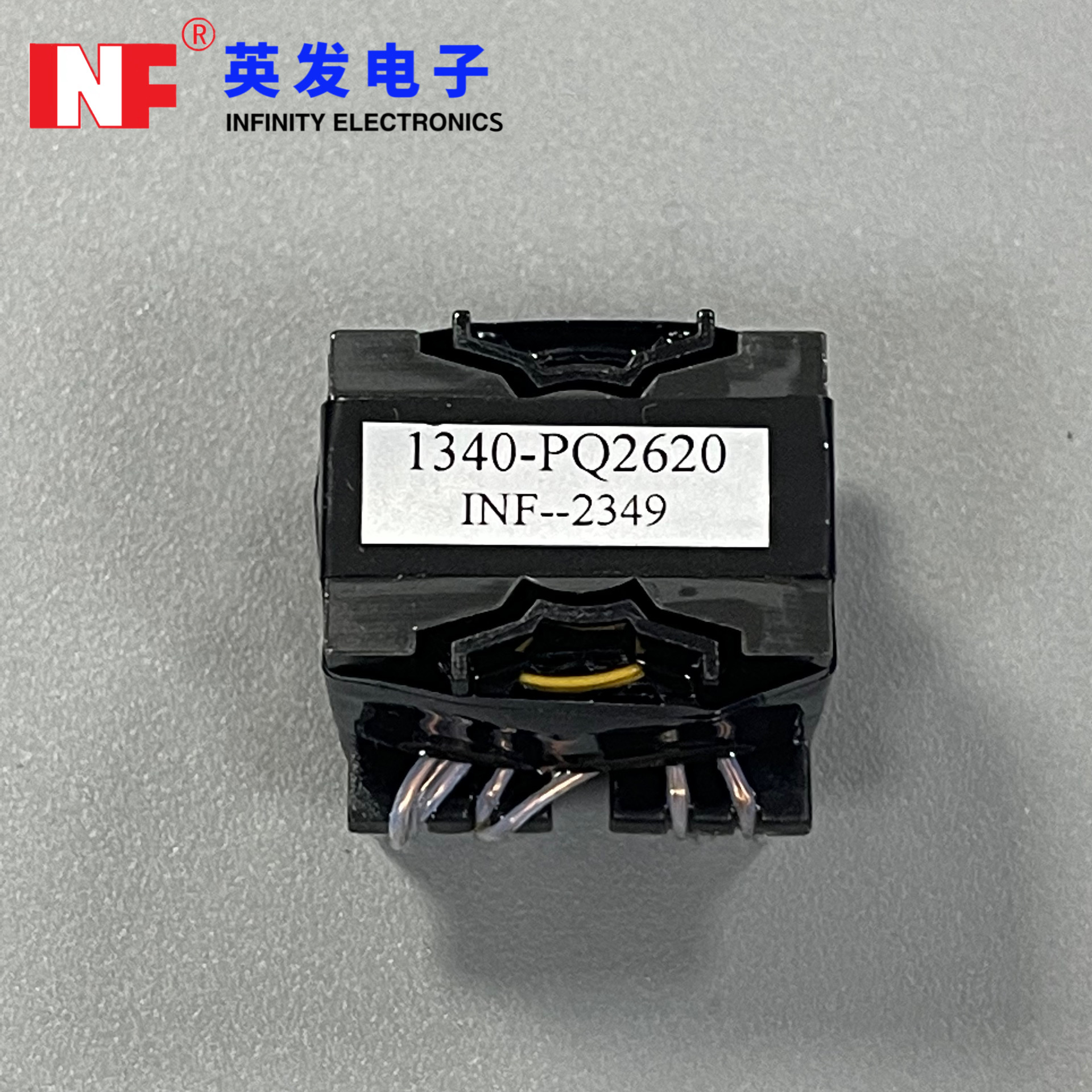

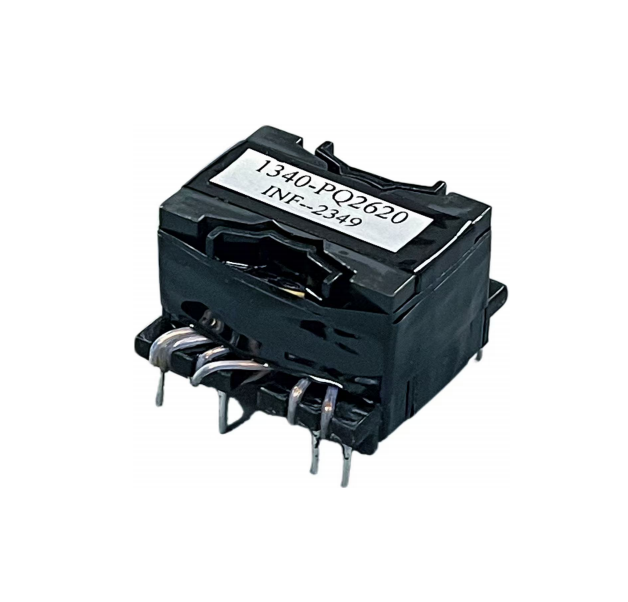

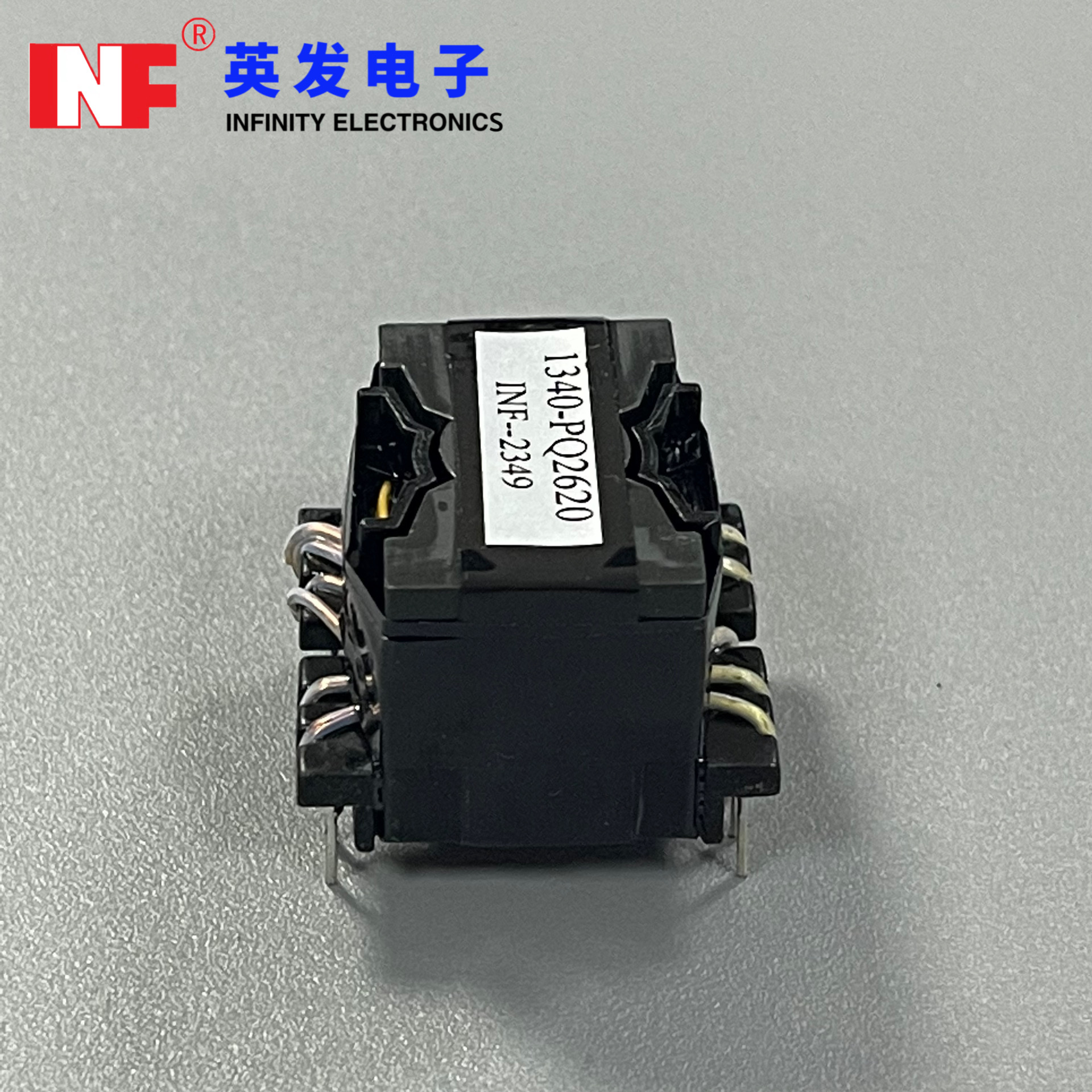

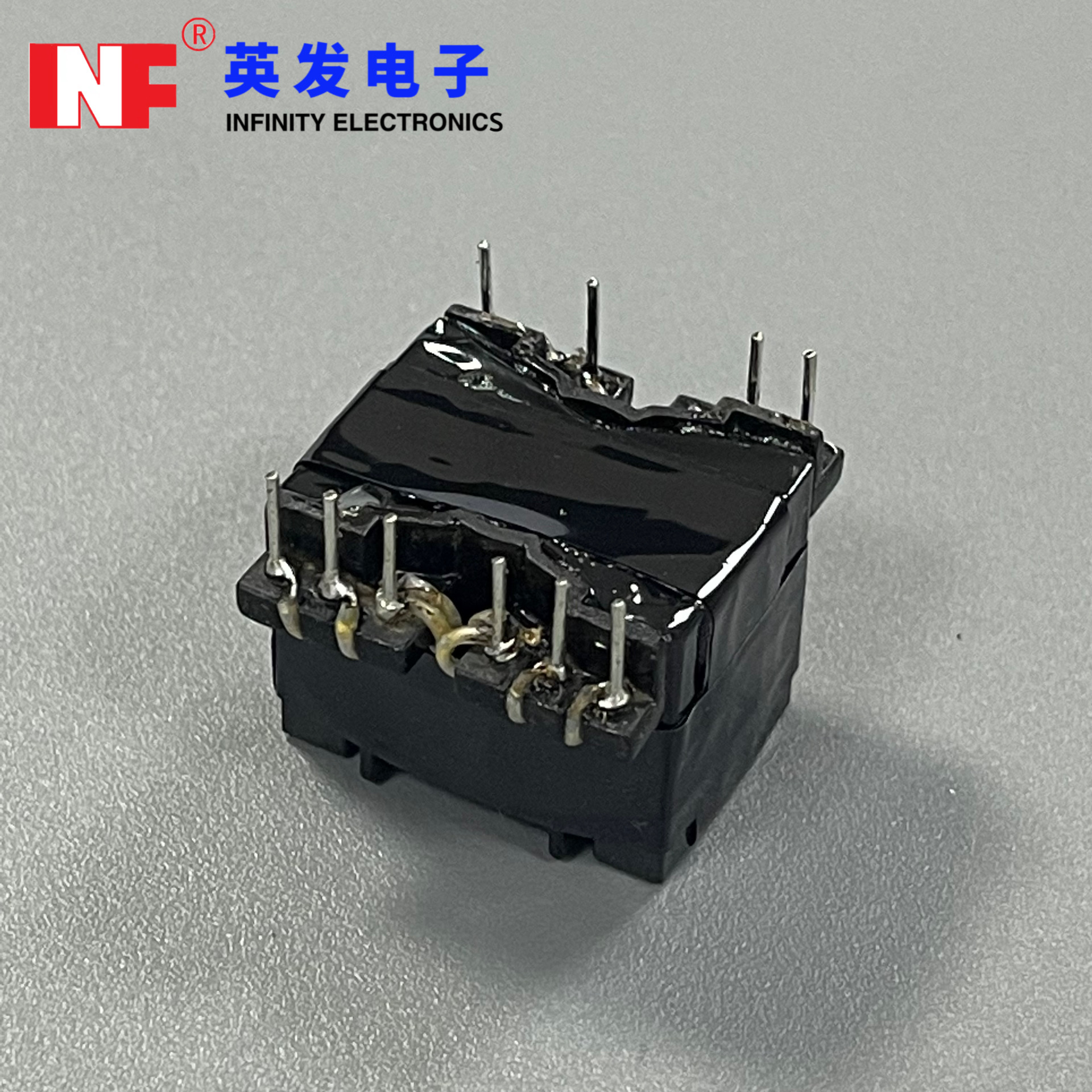

1340-PQ2620(6+6) High-Frequency Transformers

Product Overview

This PQ2620 (6+6) high-frequency transformer is a versatile medium-power magnetic component designed for industrial and consumer power supply applications. It features a symmetrical PQ2620 ferrite core that ensures uniform heat distribution and stable thermal performance.

The transformer supports typical power designs ranging from 40W to 600W, depending on circuit topology and operating conditions. It is available in a 6+6 pin configuration, supporting both vertical and horizontal mounting options for flexible PCB layout.

Built with high-grade MnZn ferrite , it operates reliably within a frequency range of 20kHz to 500kHz. The insulation system can be designed to meet up to 4kV AC isolation requirements, and complies with international standards such as ISO9001 and RoHS.

This transformer is widely used in switch-mode power supplies (SMPS), LED drivers, and industrial control systems where high reliability and stable performance are required.

Core Advantages

• Supports typical power designs from 40W to 600W, adaptable to various medium-power applications


• Available in 6+6 pin configuration, supporting both vertical and horizontal mounting for flexible design


• Symmetrical PQ2620 core design ensures uniform heat distribution and excellent thermal stability


• Designed in compliance with ISO9001 and RoHS standards, suitable for global applications


• Wide operating frequency range of 20kHz–500kHz, compatible with mainstream SMPS topologies

Technical Specifications

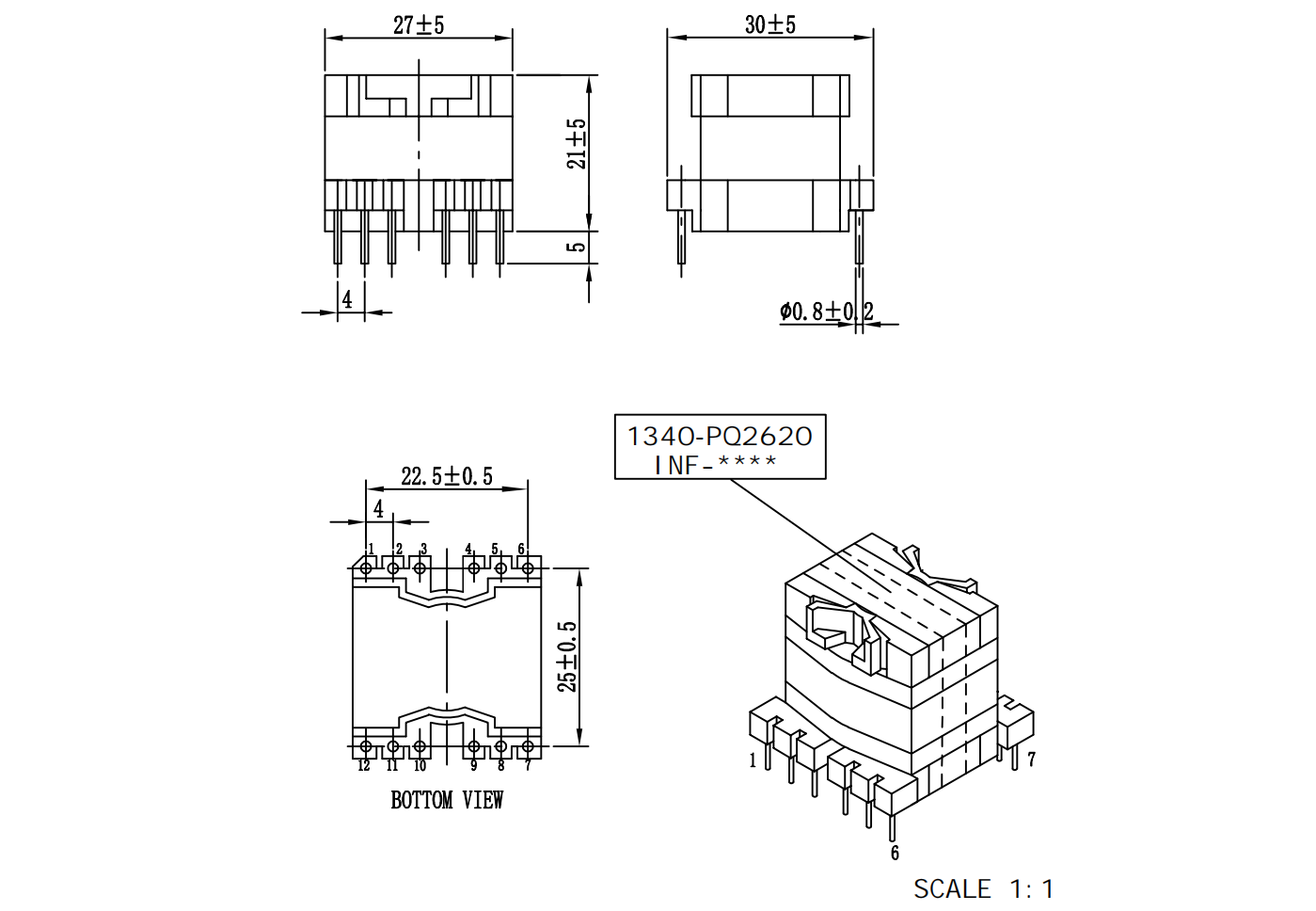

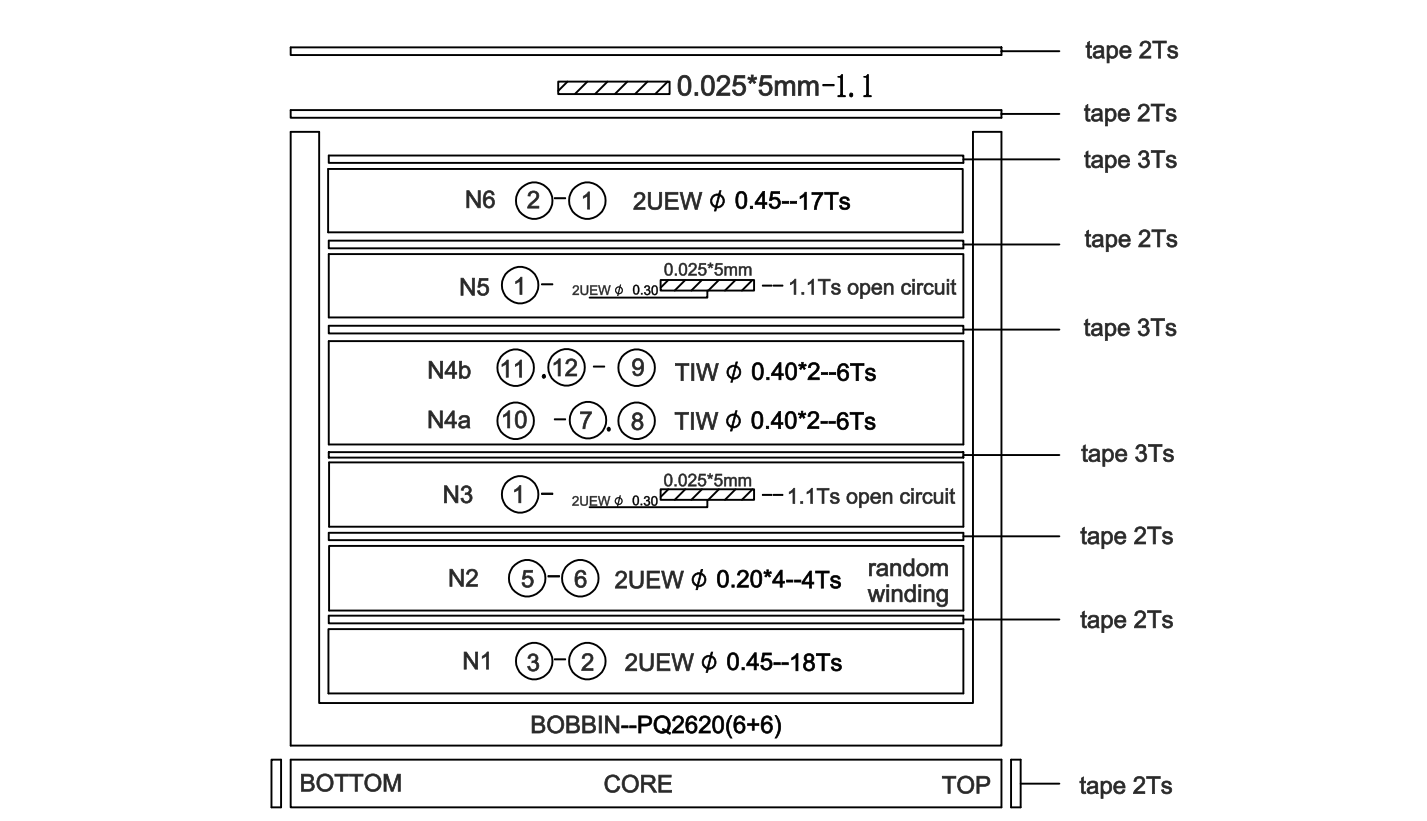

Structural Drawing

Customization & Procurement
