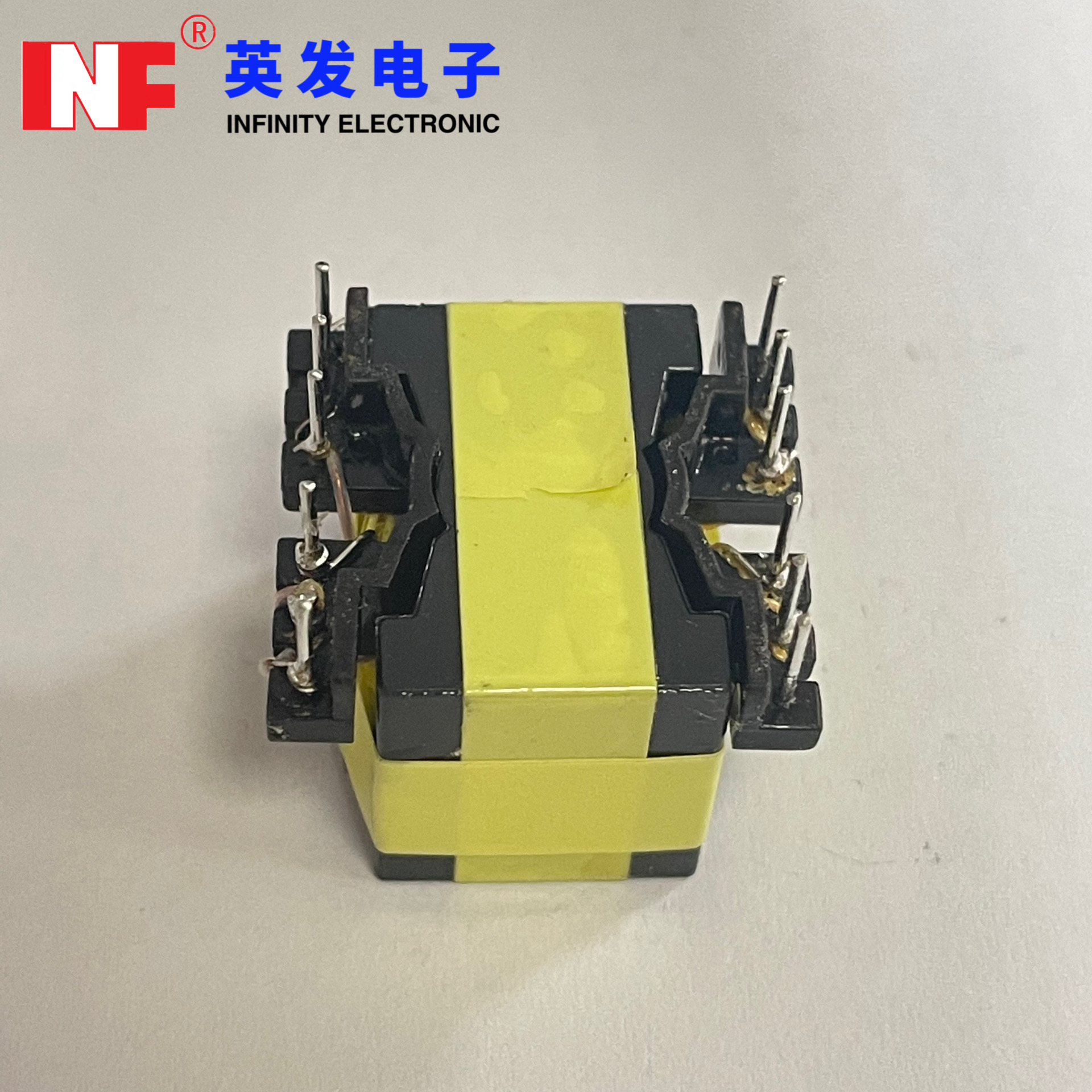

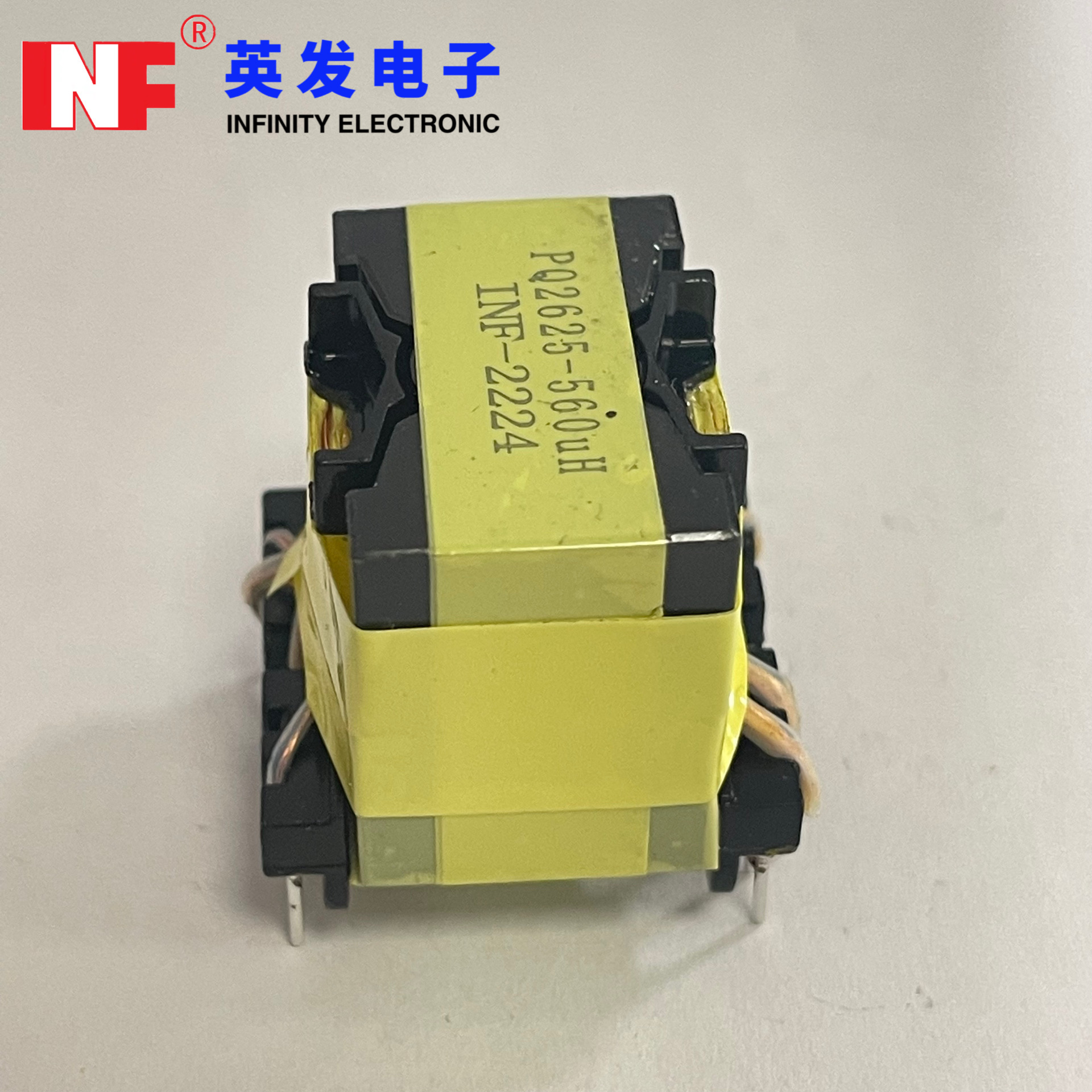

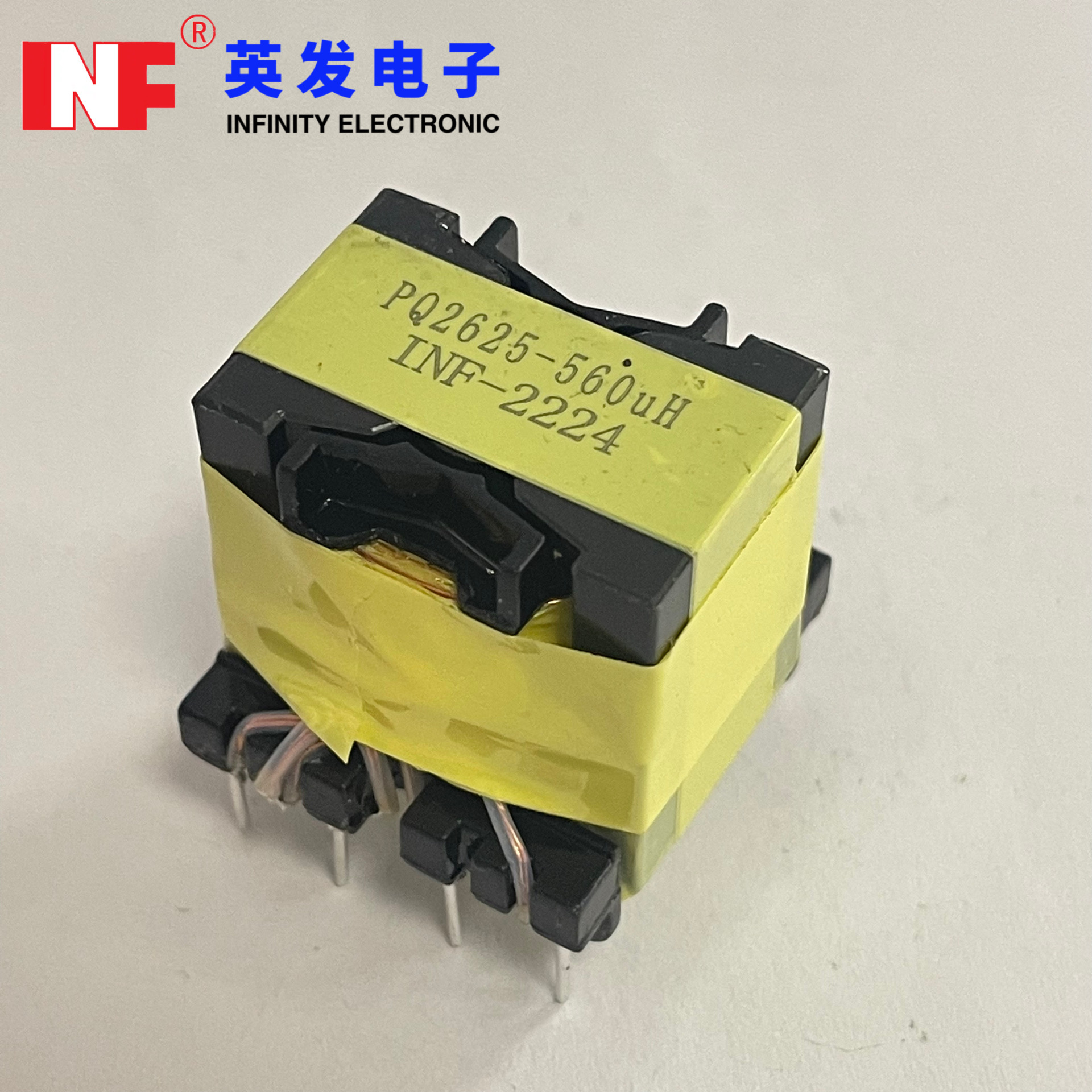

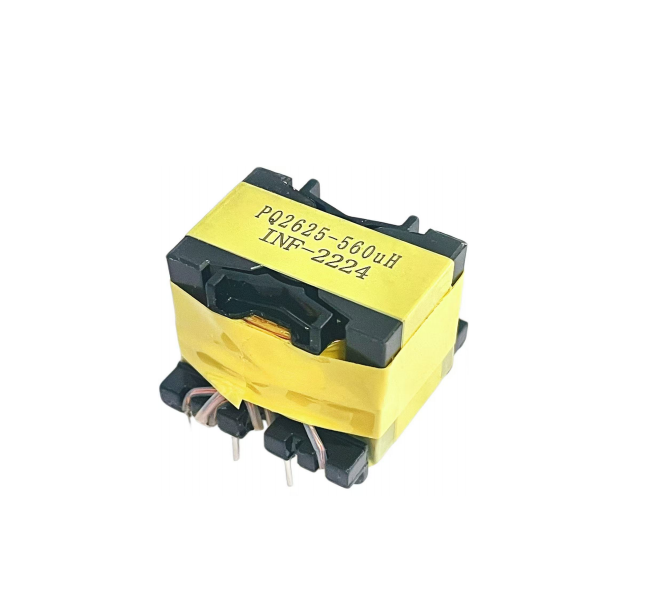

PQ2625(6+6)-570uHAHigh-Frequency Transformers

Product Overview

This PQ2625 (6+6)-570uH high-frequency transformer is a medium-to-high power magnetic component optimized for UPS and industrial power supply applications. It features a PQ2625 ferrite core with enhanced magnetic path and thermal capacity, ensuring stable performance under high-load conditions.

The transformer supports typical power designs around 80W to 200W, depending on circuit topology, thermal conditions, and operating frequency. It operates within a wide frequency range of 20kHz–500kHz, making it suitable for various switch-mode power supply designs.

Built with high-performance Mn-Zn ferrite materials, it delivers low core loss and excellent thermal stability under high-frequency and high-temperature conditions. The transformer is available in a 6+6 pin configuration, providing reliable electrical isolation and flexible PCB integration.

It is widely used in UPS systems, industrial power supplies, and high-reliability power modules requiring high efficiency and long-term stability.

Core Advantages

• Supports typical designs around 80W–200W, adaptable to UPS and industrial power applications


• Optimized for high-load operation with stable inductance and low temperature rise


• Wide operating frequency range of 20kHz–500kHz, compatible with mainstream SMPS topologies


• Enhanced magnetic core capacity compared to PQ2620, suitable for higher power density designs

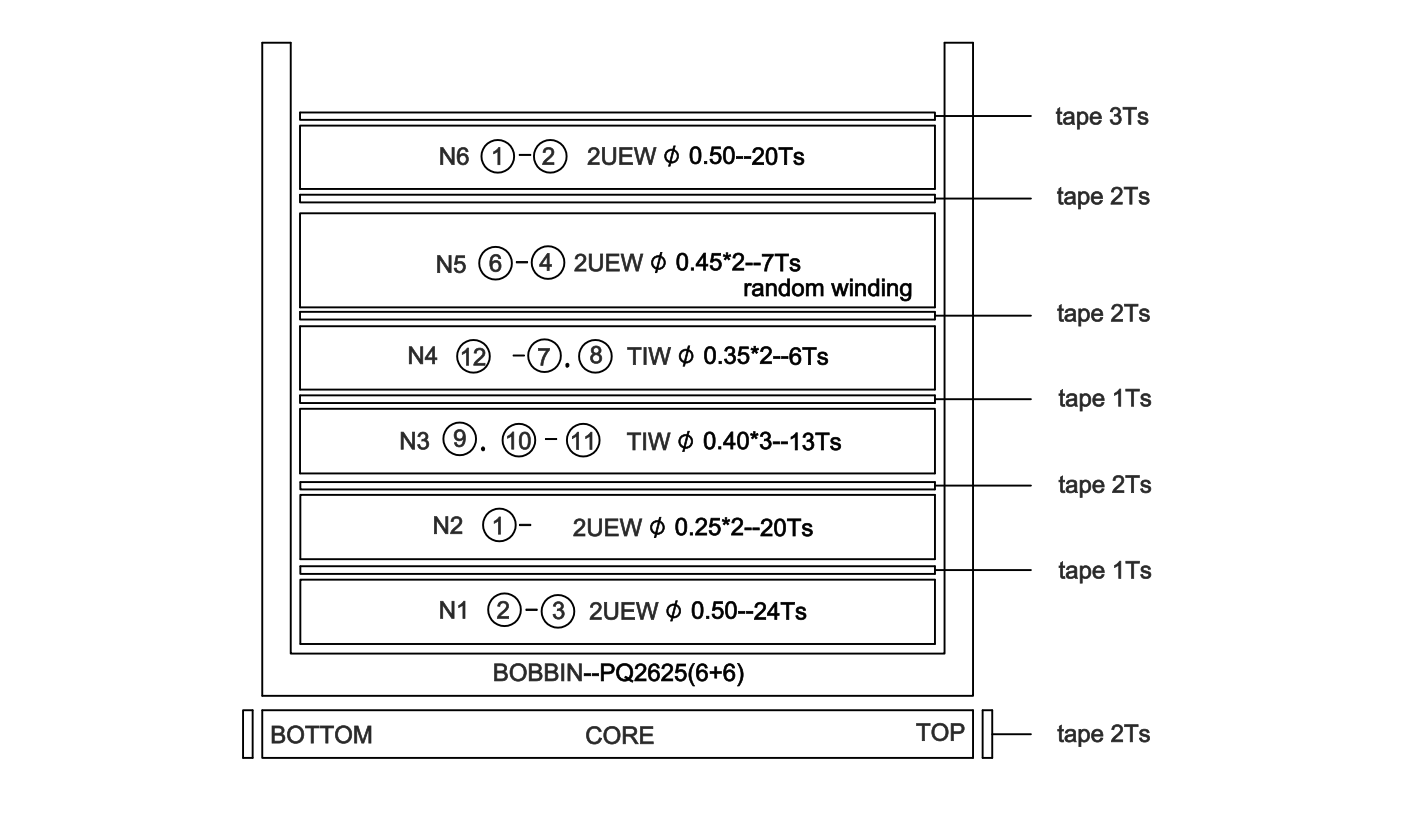

Technical Specifications

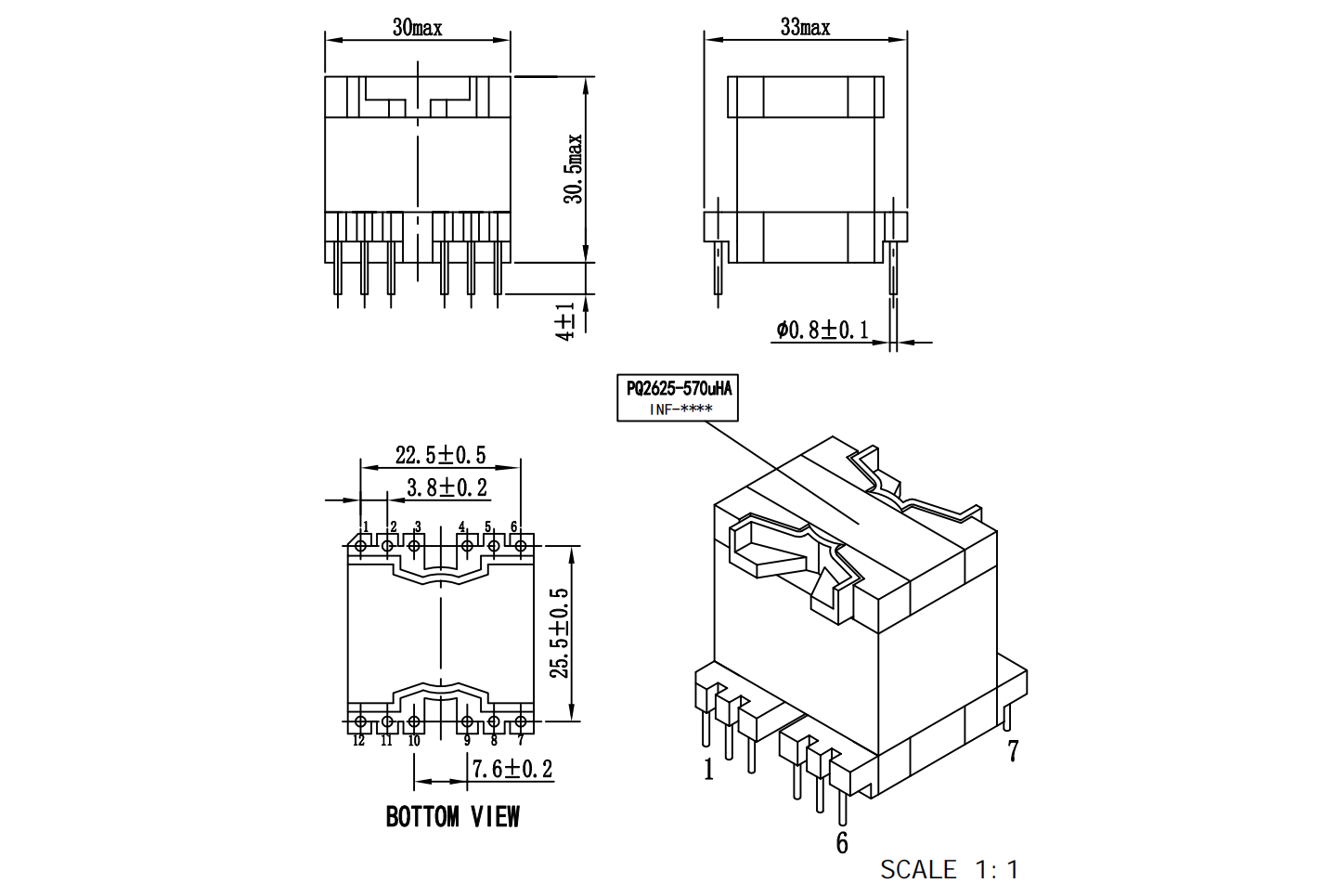

Structural Drawing

Customization & Procurement
