PQ4040 High Power Transformer for Industrial SMPS Inverter UPS and Energy Systems

Product Overview

This PQ4040(6+6)(CJ300-11) high-frequency transformer is a high-power industrial magnetic component designed for wide application scenarios with a power range up to 600W. It adopts a PQ-type ferrite core with square bobbin, offering a compact and rational structure that reduces overall installation dimensions. It features low copper and iron losses, low temperature rise, excellent anti-interference performance, and a wide operating temperature range of -40°C to +125°C. It can be used as main power transformers, drive transformers, smoothing chokes and auxiliary power supplies, widely used in industrial switching power supplies, new energy systems, and high-reliability electronic equipment.

Core Advantages

• Wide power capability up to 600W, suitable for medium to high power applications

• Low copper and iron loss design, minimal temperature rise in full-load long-term operation


• Multi-functional design, can be used as main transformer, drive transformer, smoothing choke, etc.

• Excellent anti-interference performance, helping system designs meet EMC requirements

Typical Applications

• Medium to high power industrial switching power supplies (200W–600W)


• Industrial control power systems and automation equipment power supplies


• High-power inverter and motor drive systems


• UPS power transformers for industrial backup systems


• New energy power conversion systems (charging, storage, DC-DC)

• Energy storage system power modules

• High-power LED industrial lighting drivers


• Telecom and network equipment power modules (medium/high power)


• Instrumentation and precision equipment power supplies


• Factory automation high-power control systems


Technical Specifications

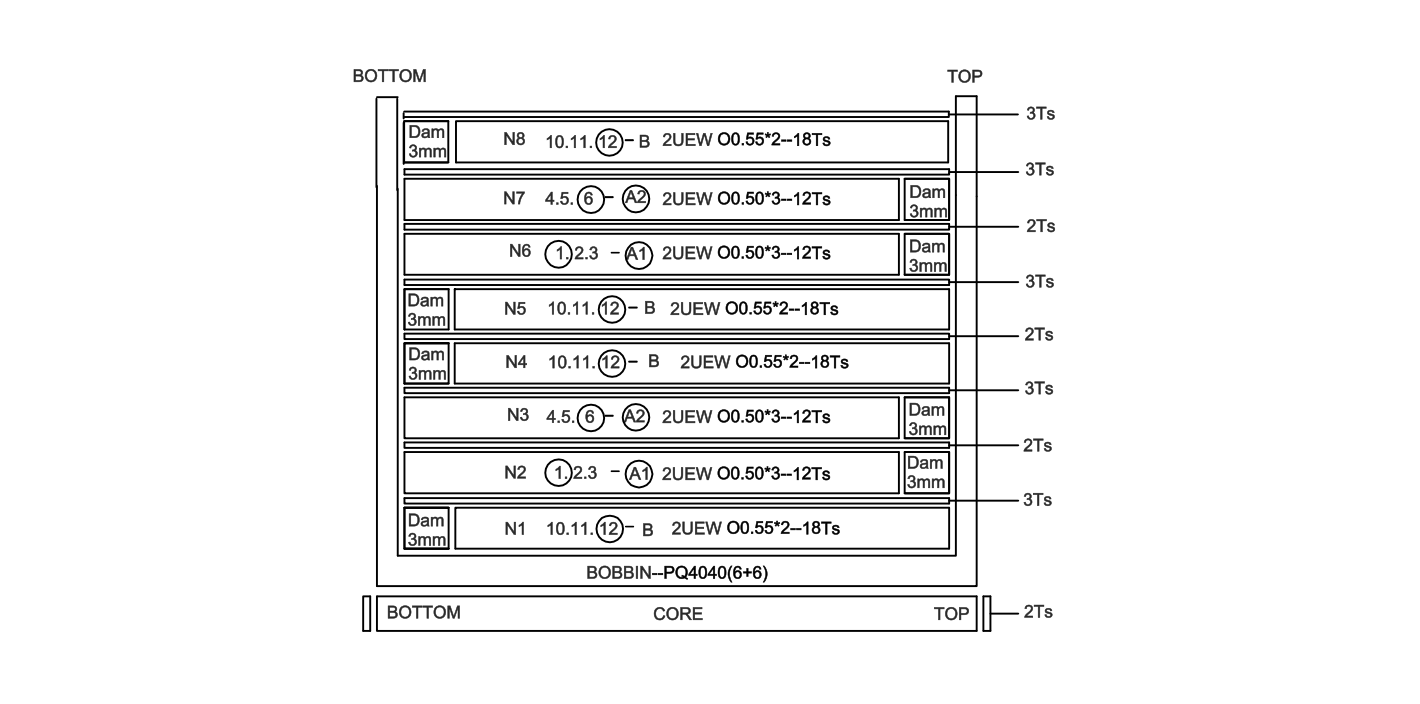

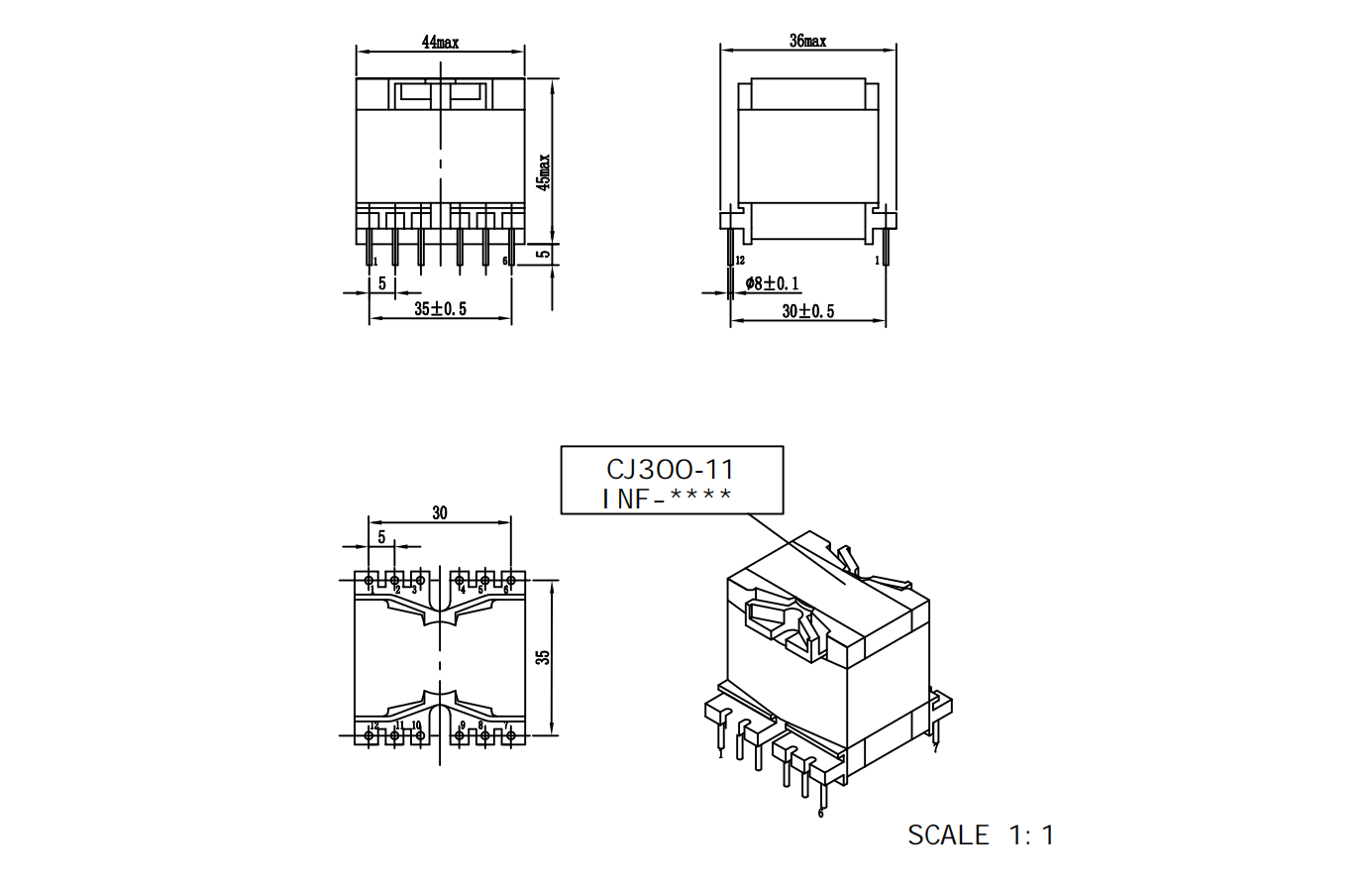

Structural Drawing

Customization & Procurement
