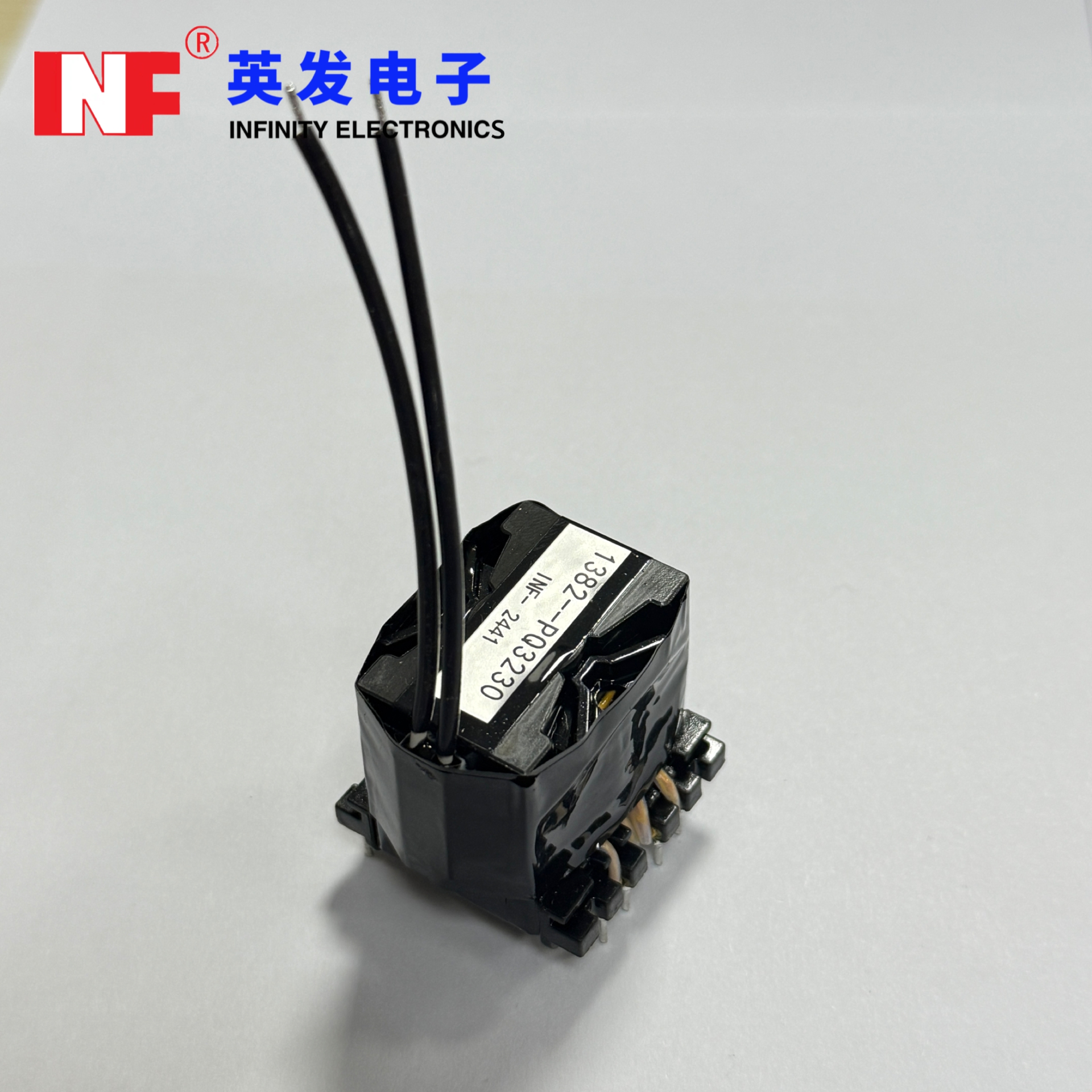

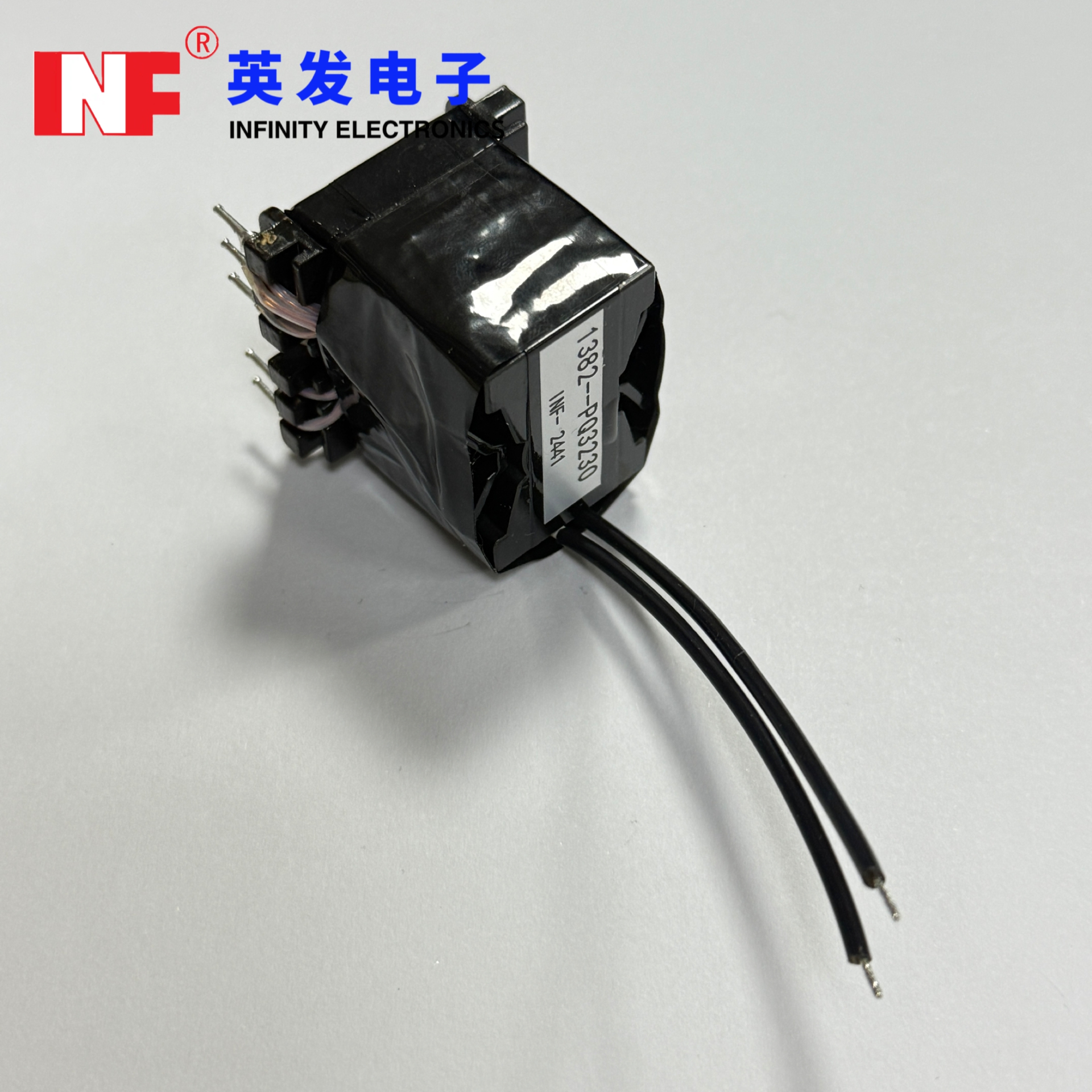

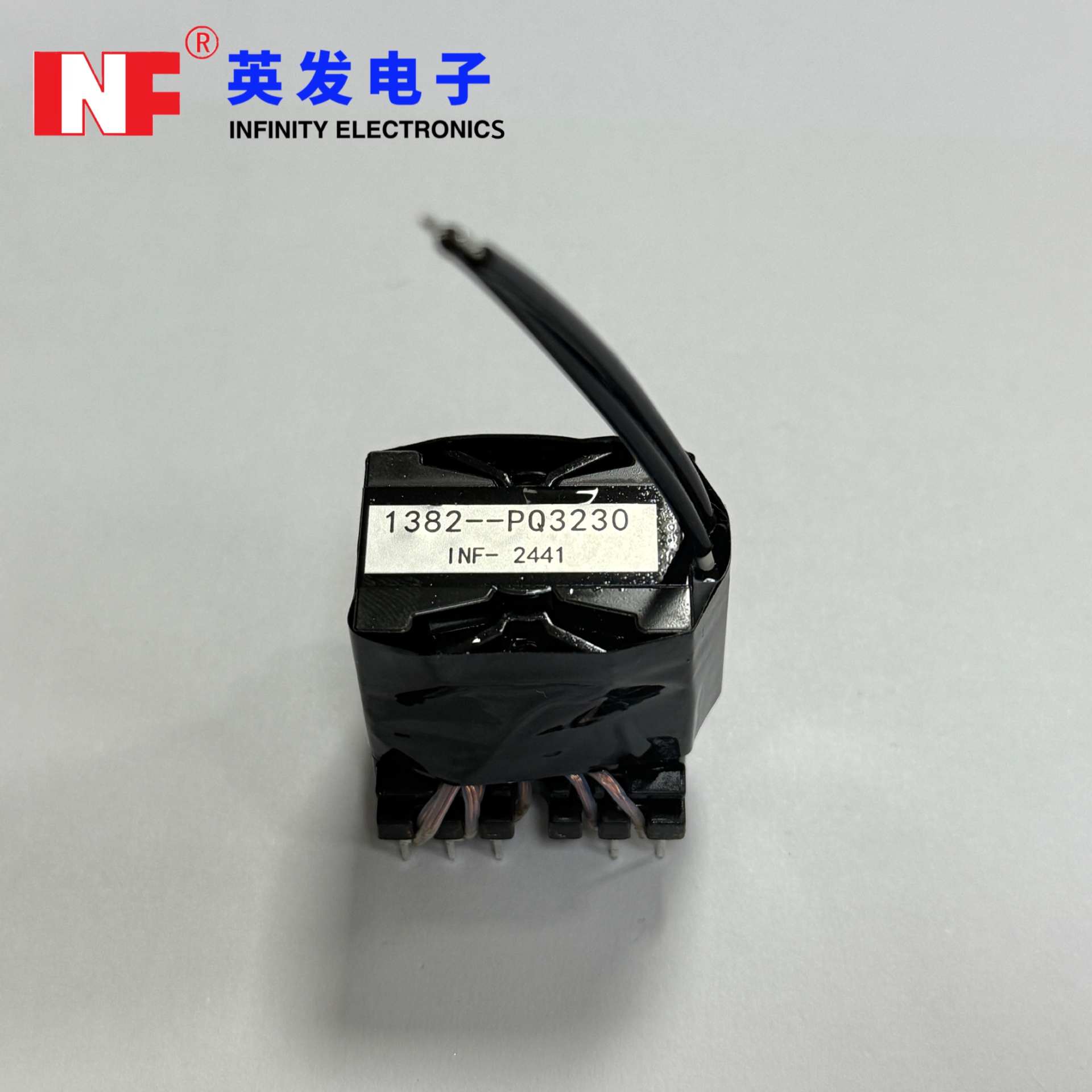

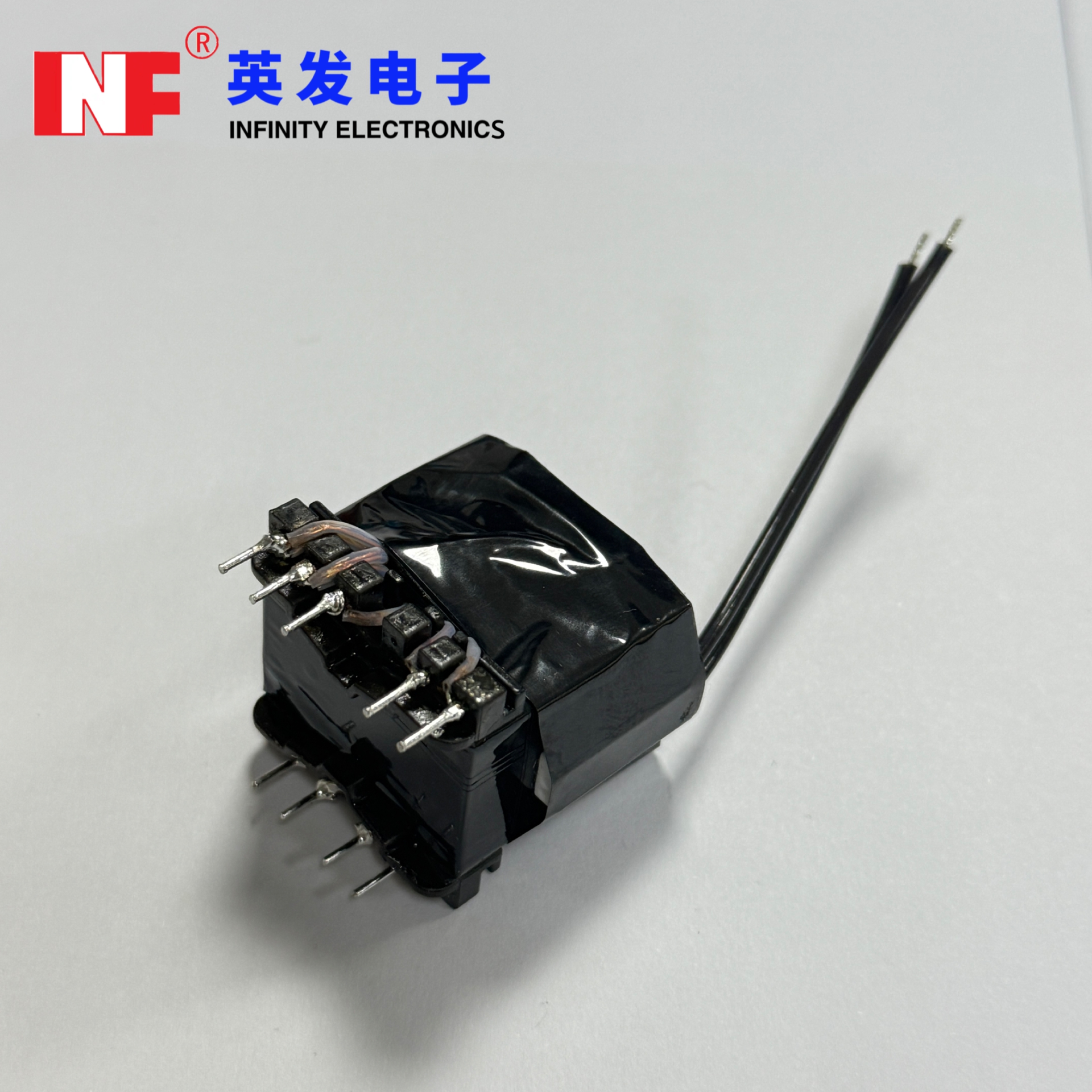

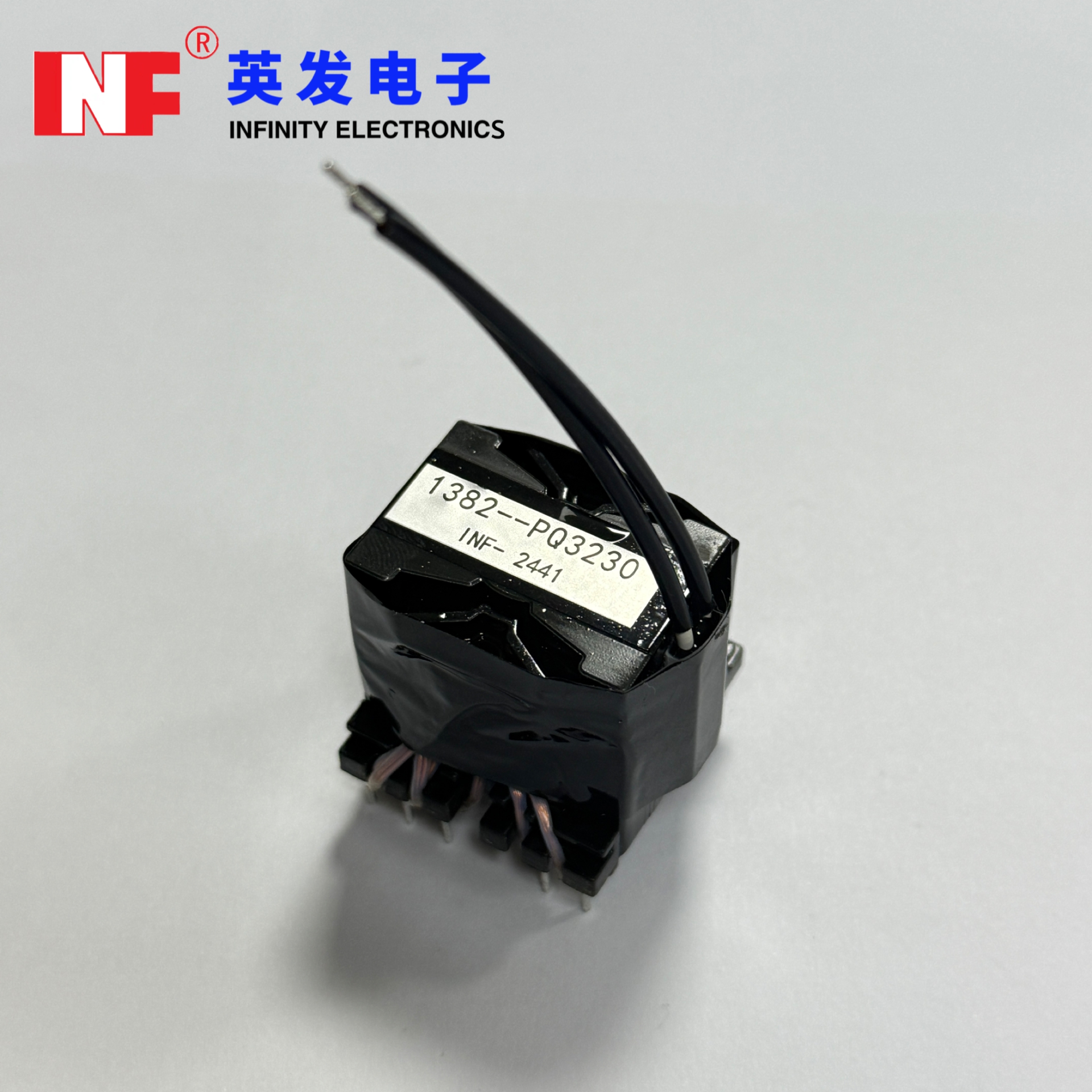

1382-PQ3230(6+6) High-Frequency Transformers

Features：

PQ3230 high-frequency transformers feature a rationally designed core and winding structure, achieving low loss, low temperature rise, and strong anti-interference capability. Covering a power range from 40W to 600W, they help reduce the overall installation size of equipment and are typically equipped with multiple pins for easy winding and connection. Standard models use high-performance MnZn ferrite cores operating in the 20 kHz to 500 kHz band, while some high-efficiency variants may employ amorphous metal cores for further loss reduction. Windings are made from precision copper wire, Litz wire, or aluminum as needed to ensure excellent electrical and thermal performance. This transformer series is suitable for main power conversion, driving, filtering, and auxiliary power supply applications, and is widely used across multiple fields including SMPS, LED drivers, industrial control systems, data centers, solar inverters, electric vehicle charging, as well as networking, communications, and medical equipment.

The PQ3230 is engineered for full-band high efficiency, covering a broad operating range. Its design is optimized for applications in DC-DC converters, power supplies, and energy storage systems, particularly where high-frequency transformers are essential.

Peculiarity:

Bobbin types adopt traditional styles , transformer design parameters are subject to customer requirements or injection specifications, supporting global ODM/OEM cooperation.

Quantity:
Availability:





Inquiry

1382-PQ3230(6+6) High-Frequency Transformers PQ3230 high-frequency transformer PQ3230 switching transformer PQ3230 power transformer PQ3230 ferrite transformer PQ3230 SMPS transformer Custom PQ3230 high-frequency transformer Wholesale PQ3230 switching transformer PQ3230 transformer manufacturer PQ3230 high frequency transformer supplier

Product Description

Download

Parameter	Specification/Range
Inductance	Customizable (typically from 1mH - 10mH)
Operating Frequency	20kHz - 1MHz
Power Capacity	200W - 1.5kW (natural cooling/forced air cooling)
Insulation Withstand Voltage	Primary - Secondary 4kV AC (1 minute)
Temperature Rise Limit	≤40°C (full load, natural cooling)

Product Highlights

Breakthrough Current Density

The PQ3230 utilizes advanced current density technology, maximizing power output while minimizing component size and heat generation. This allows for smaller designs without compromising performance.
This breakthrough current density leads to higher efficiency and better thermal performance in power electronics applications.

High-Efficiency Integrated Magnetic Transformer

As a high-efficiency integrated magnetic transformer, the PQ3230 combines optimal materials and design for reduced energy losses across its full operating range. The result is exceptional high-efficiency performance even under varying load conditions.
This high-efficiency integrated magnetic transformer achieves an improved efficiency of >97%, lowering energy wastage and ensuring reliable performance.

Intelligent Thermal Management

With intelligent thermal management, the PQ3230 is designed to operate at optimal temperatures even in high-power scenarios. The thermal management system automatically adjusts to varying conditions, preventing overheating and improving the transformer’s lifespan.
This thermal management system ensures that the transformer can handle significant thermal loads while maintaining stable power conversion.

Full-Band High Efficiency

The PQ3230 operates over a wide frequency range, ensuring that full-band high efficiency is maintained regardless of the specific power application.
Its ability to maintain high-efficiency performance over a full range of operating frequencies makes it suitable for a wide variety of systems that require reliable, energy-efficient power conversion.

Flexible Customization

The PQ3230 is highly customizable, allowing for various inductance and power capacities to meet specific design requirements.
Full-band high efficiency configurations and current density adjustments are available for tailored solutions in complex power systems.

Typical Application Scenarios

New Energy Systems

DC-AC isolation transformers for photovoltaic inverters and LLC resonant conversion modules for electric vehicle on-board chargers (OBC).
The PQ3230 is ideal for use in high-efficiency integrated magnetic transformers for renewable energy systems that require stable, efficient power conversion.

Industrial Power Supplies

High-voltage power supplies (800V - 1500V DC) for industrial lasers and plasma cutters.
The PQ3230 ensures full-band high efficiency in high-power industrial applications, providing reliable performance in power control systems.

Communications and Data Centers

48V→12V POL power modules for 5G base stations and isolated DC-DC converters for server redundant power supplies.
The PQ3230 provides high-efficiency integrated magnetic transformer solutions, supporting high-frequency power applications in communication infrastructure.

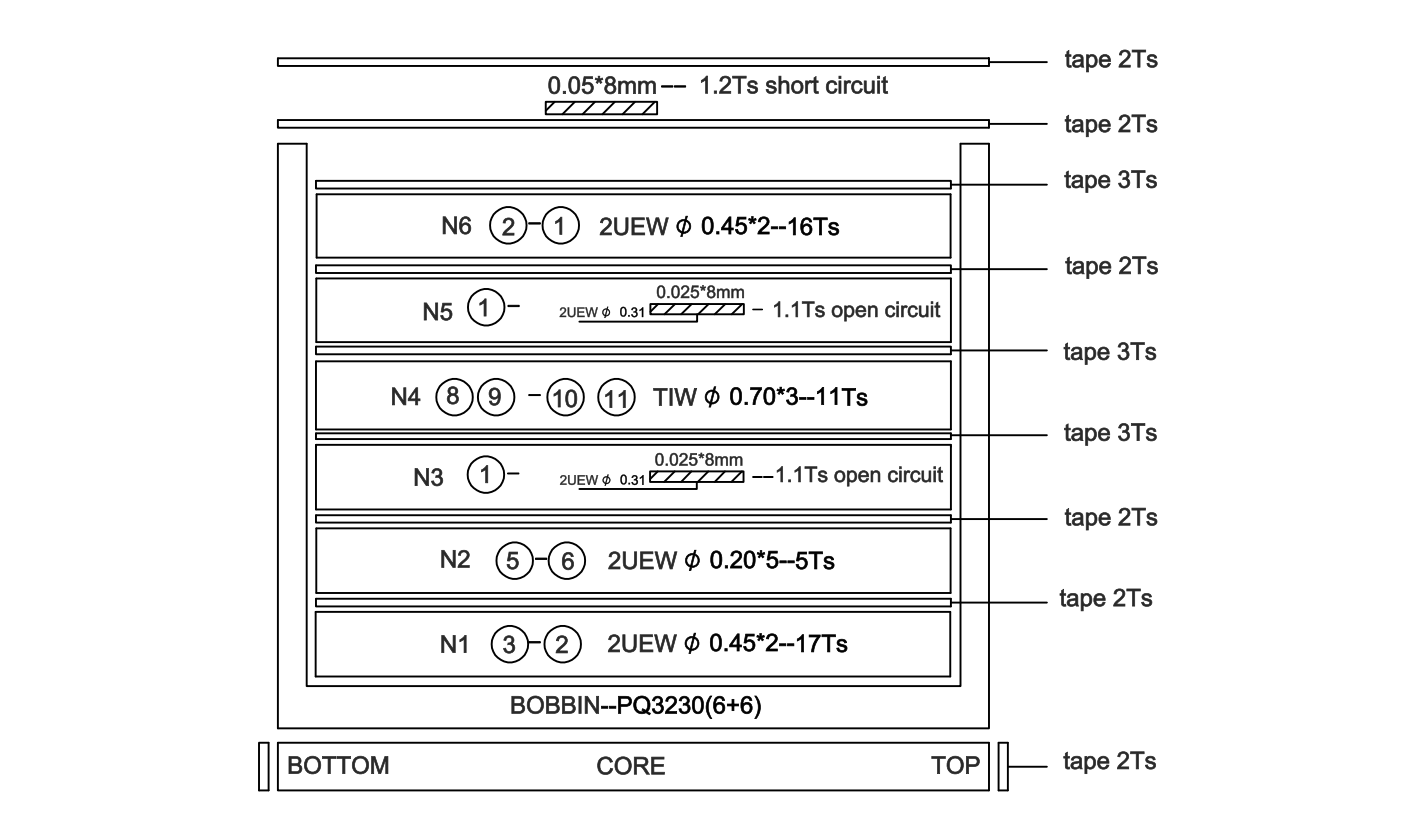

Technical Specifications

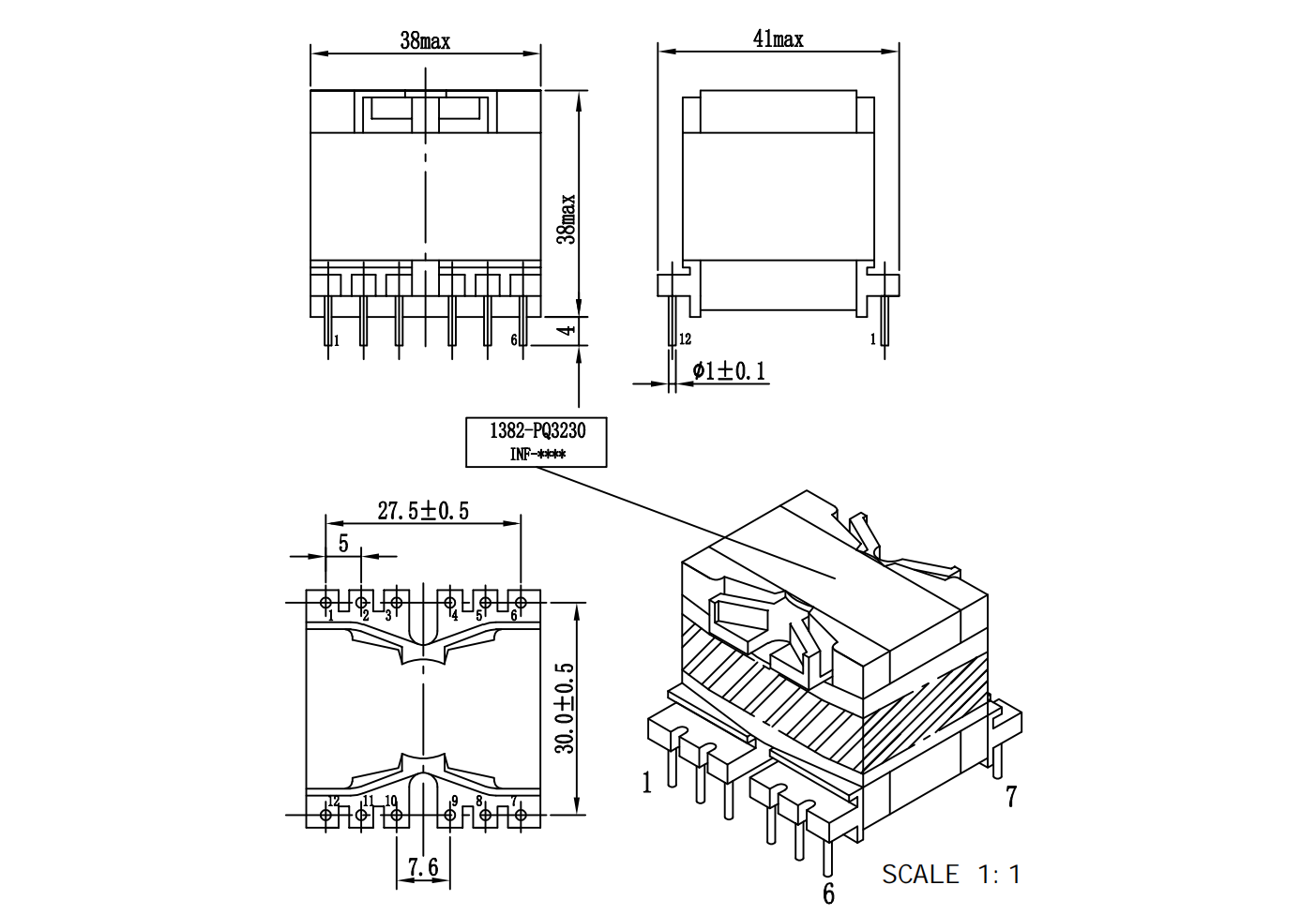

屏幕截图 2025-10-31 131728
