EE13/7/4 Horizontal
INF

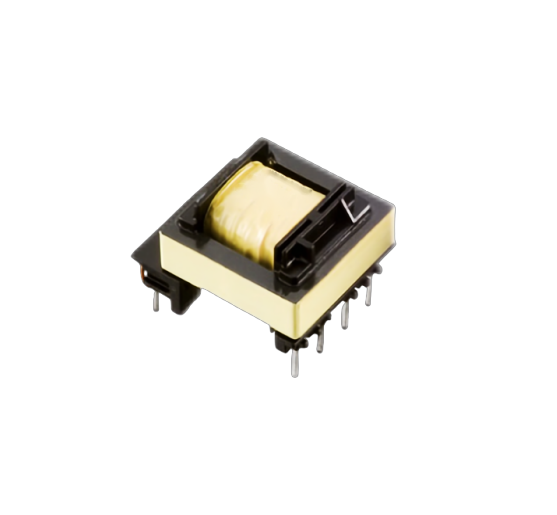

The EE13 horizontal flyback transformer is a compact and efficient magnetic component engineered for offline switch mode power supply (SMPS) applications. Designed with a ferrite EE13 core structure, it enables stable energy transfer under high-frequency switching conditions, making it an ideal solution for low-power AC-DC conversion systems.
Built to operate across a broad temperature range, the EE13 flyback transformer maintains consistent electrical performance even under demanding conditions. It is suitable for both fixed-frequency and quasi-resonant topologies, providing flexibility for various circuit designs. Additionally, multiple output configurations can be customized to meet specific application requirements.
Typical applications include power adapters, battery chargers, LED drivers, smart home devices, and auxiliary power modules in consumer electronics and industrial control systems. Thanks to its small footprint and high reliability, this transformer is widely used in modern compact power solutions.

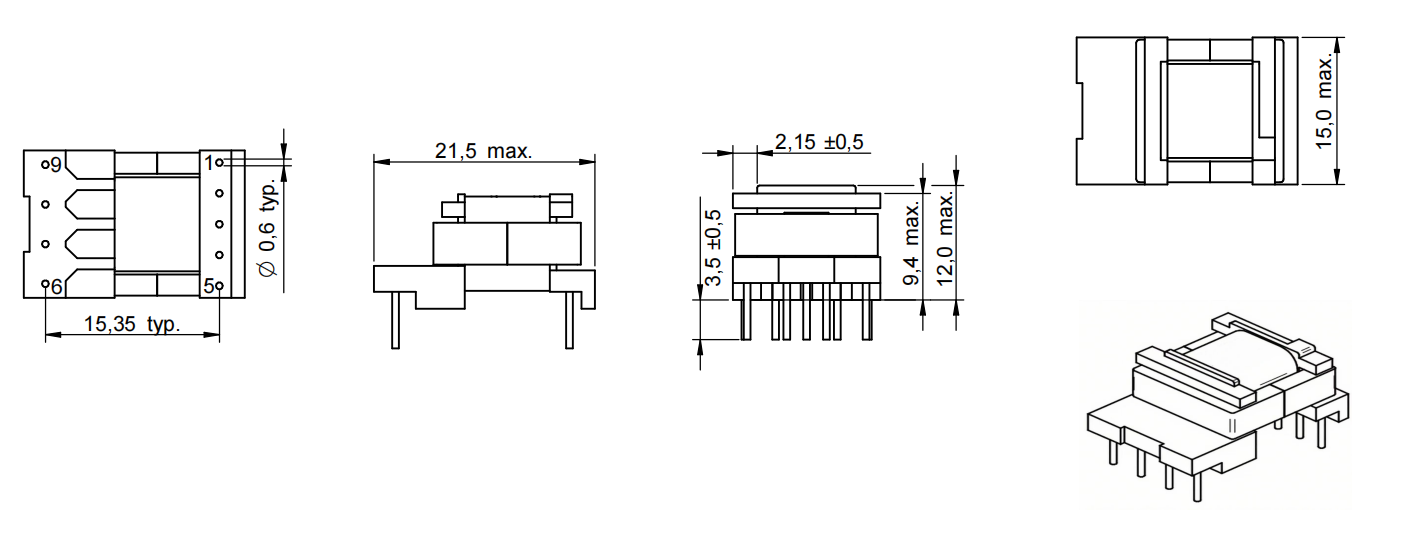

Physical Properties
| Order code | VIN (AC) | Vout (V) | lout (A) | L (mH) | fswitch | n | Lsmin. (μH) | ISAT (A) | RDC1 (Ω) | RDC2 (mΩ) | Ls (μH) |
| INF-EE13-2.8mH 01 | 85-265V | 5 | 0.6 | 2.8 | 132 | 18.9:1 | 180 | 0.2 | 8 | 50 | 180 |
| INF-EE13-2.8mH 02 | 85-265V | 12 | 0.25 | 2.8 | 132 | 8.1:1 | 175 | 0.21 | 8 | 290 | 175 |
| INF-EE13-2.8mH-03 | 85-265V | 24 | 0.125 | 2.8 | 132 | 4:1 | 172 | 0.21 | 8 | 1200 | 172 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
