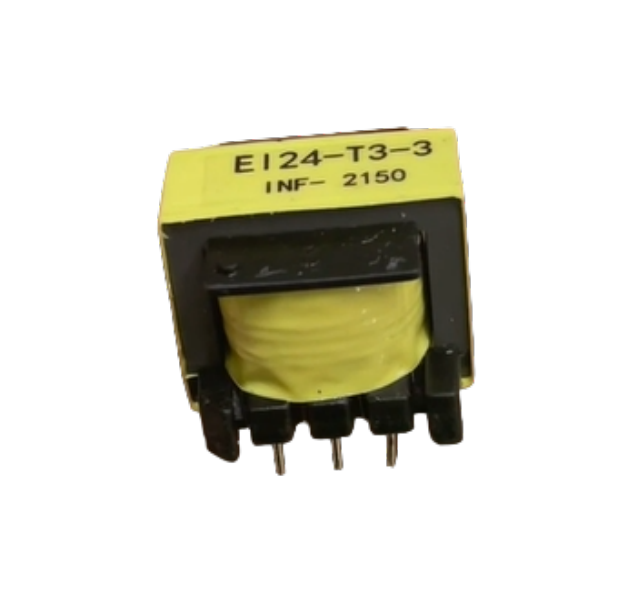

EI24 High Frequency Transformer (3+3 Pin) for Compact Power Supply & SMPS Applications

Product Specifications :
This series of EI-core components offers abundant choices, featuring a broad high-frequency operating range up to 10kHz~1MHz+ (specifically divided into: 10kHz to 50kHz, 50kHz to 100kHz, 100kHz to 500kHz, 500kHz to 1MHz, and exceeding 10MHz). Power coverage is comprehensive, from below 5 watts to 500-1000 watts (including power segments such as 5-10W, 10-20W, 20-50W, 50-100W, 100-200W, 200-500W).
Its core attributes are excellent magnetic circuit performance, minimal magnetic leakage, low operational loss, and strong electromagnetic interference immunity.

Features:
Good magnetic performance, low magnetic leakage,Low energy loss, strong interference immunity

Applications:
It is an integrated magnetic solution that can meet transformer requirements in flyback converters, drive and control circuits, inverters, and switch-mode power supplies, while also serving as a high-current inductor.
It is suitable for various fields including switch-mode power supplies, charging and inverter modules, outdoor/decorative lighting, security alarm products, industrial robots and automation equipment, data servers and communication devices, new energy vehicle electronics, and medical equipment.
