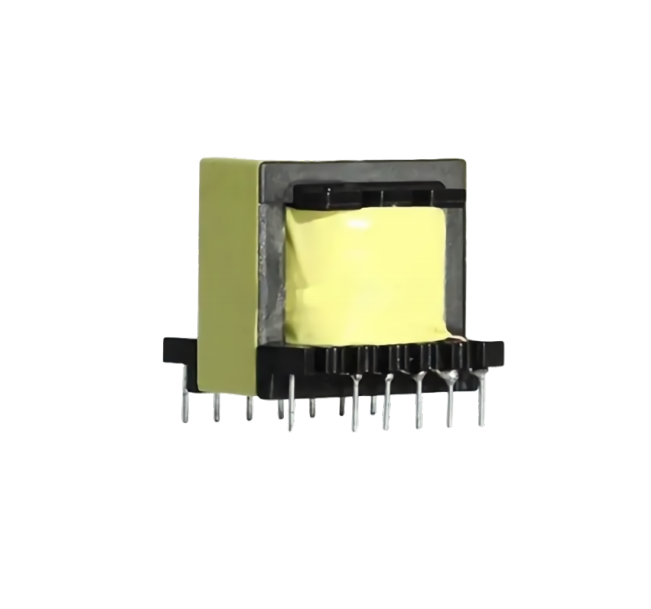

EI33 (6+6) High Frequency Transformer for High Power SMPS, Inverter & Industrial Systems

Rated Power: For high-frequency applications (e.g., 100kHz), the power output typically ranges from 50W to 80W, with specifics subject to circuit topology and magnetic material properties.

Applications

The EI33 high frequency transformer is widely used in:

High-power switching power supplies (SMPS)
Inverter and renewable energy systems
Industrial automation and control systems
Telecom power equipment
Power conversion modules and UPS systems

Quantity:
Availability:





Inquiry

Model:
EI33(6+6)
Brand:
INF

EI33(6+6) High Frequency Transformers Custom EI33 high frequency transformer EI33 transformer EI33 high frequency transformer EI33 ferrite transformer EI33 switching transformer EI33 SMPS transformer EI33 power transformer EI33 transformer manufacturer EI33 transformer supplier

Product Description

Download

Product Overview

The EI33 (6+6) high frequency transformer is developed for power systems that require higher energy throughput and enhanced electrical stability. Featuring a larger ferrite core compared to EI30, it supports improved magnetic capacity and is well-suited for high-power switching applications such as SMPS, inverters, and industrial power modules.

Mechanical Integration & Mounting

The EI33 (6+6) transformer is designed for efficient integration into PCB-based systems:

Standard DIP mounting for secure installation
Consistent pin layout for automated assembly
Compatible with vertical or horizontal configurations

Its mechanical stability ensures consistent performance across production batches.

Typical Applications

Industrial power supplies: Power systems for guide rail power supplies and industrial automation control boards.
Inverter power supplies: High-voltage boost stages in applications such as vehicle inverters and UPS uninterruptible power supplies.
High-power home appliances: Main control board power supply for induction cookers and high-power rice cookers.
Inverter welding machines: Used as auxiliary power transformers to provide stable power for the control circuits of welding equipment.

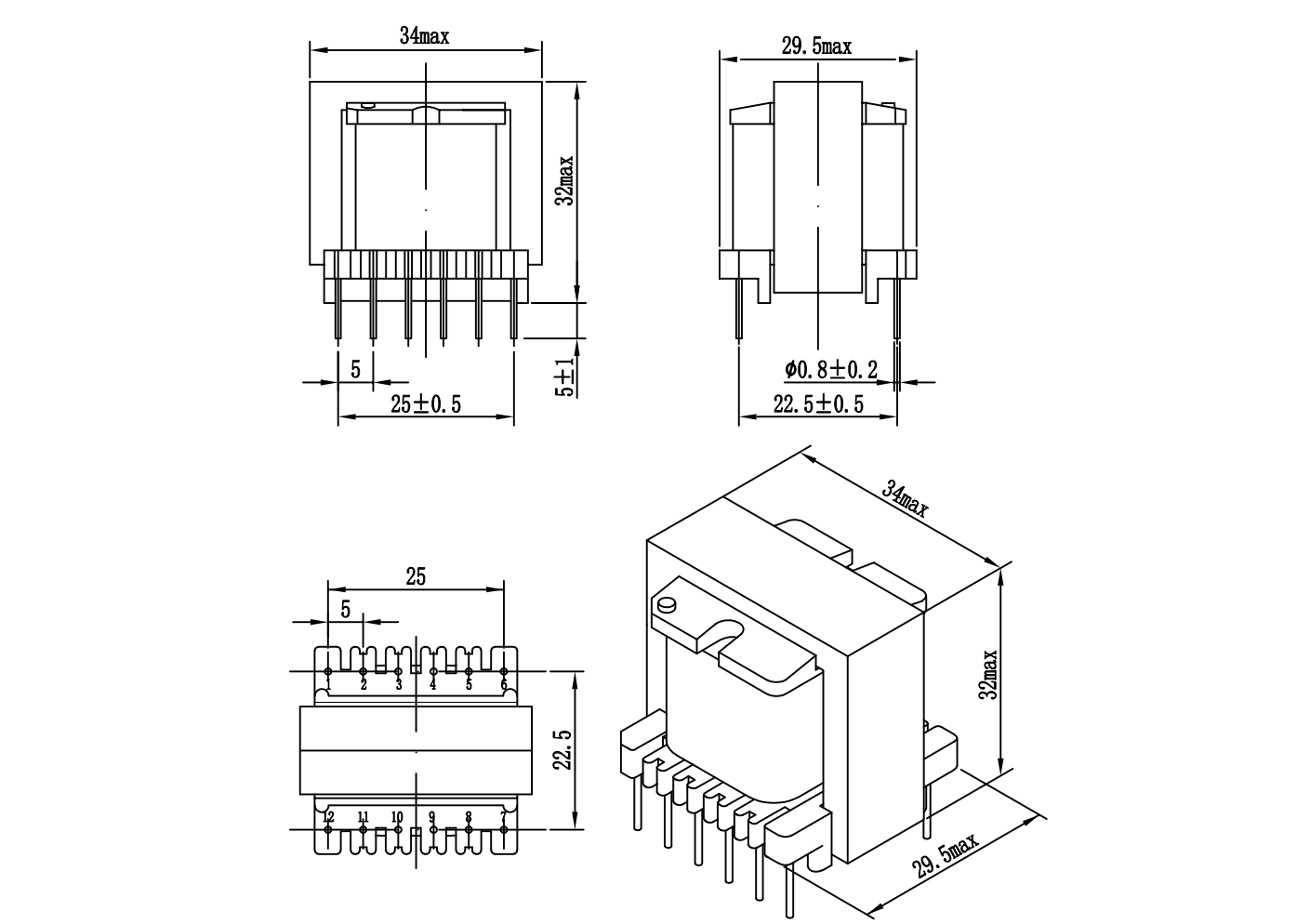

Technical Specifications 屏幕截图 2025-10-31 141740

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
