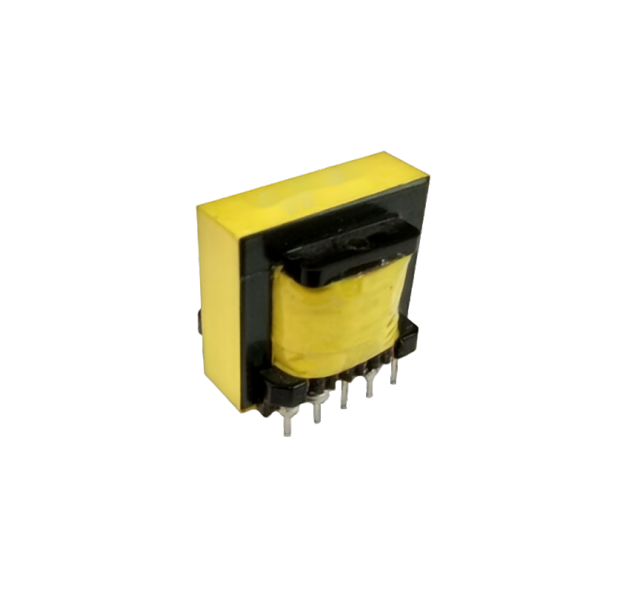

EI30 High Frequency Transformer for SMPS & Power Conversion

Product Introduction

The EI30 (5+5) high frequency transformer is engineered for compact power conversion systems requiring stable performance under high switching frequencies. Designed with a ferrite EI core, it delivers efficient energy transfer, electrical isolation, and adaptability across a wide range of power topologies. It is widely used in switching power supplies, DC-DC converters, and embedded power modules.

Performance Advantages

• High-frequency operation capability: Typically operates in tens to hundreds of kHz, enabling reduced transformer size and improved power density

• Low core and copper losses: Carefully selected ferrite materials minimize energy dissipation

• Excellent thermal behavior: Maintains stable output under continuous load conditions

• Strong EMI suppression: Structural design helps reduce electromagnetic interference

Manufacturing & Reliability

• Precision winding techniques ensure consistent electrical performance

• Insulation systems comply with international safety standards (UL, CE, RoHS)

• 100% testing including hipot, inductance, and turns ratio verification

• High mechanical strength for long-term durability

Application Scenarios

This transformer is suitable for a wide variety of power electronics systems, including:

• Switching Mode Power Supplies (SMPS)

• Flyback and forward converters

• Industrial automation equipment

• LED drivers and adapters

• Telecom and networking devices

• Consumer electronics power modules

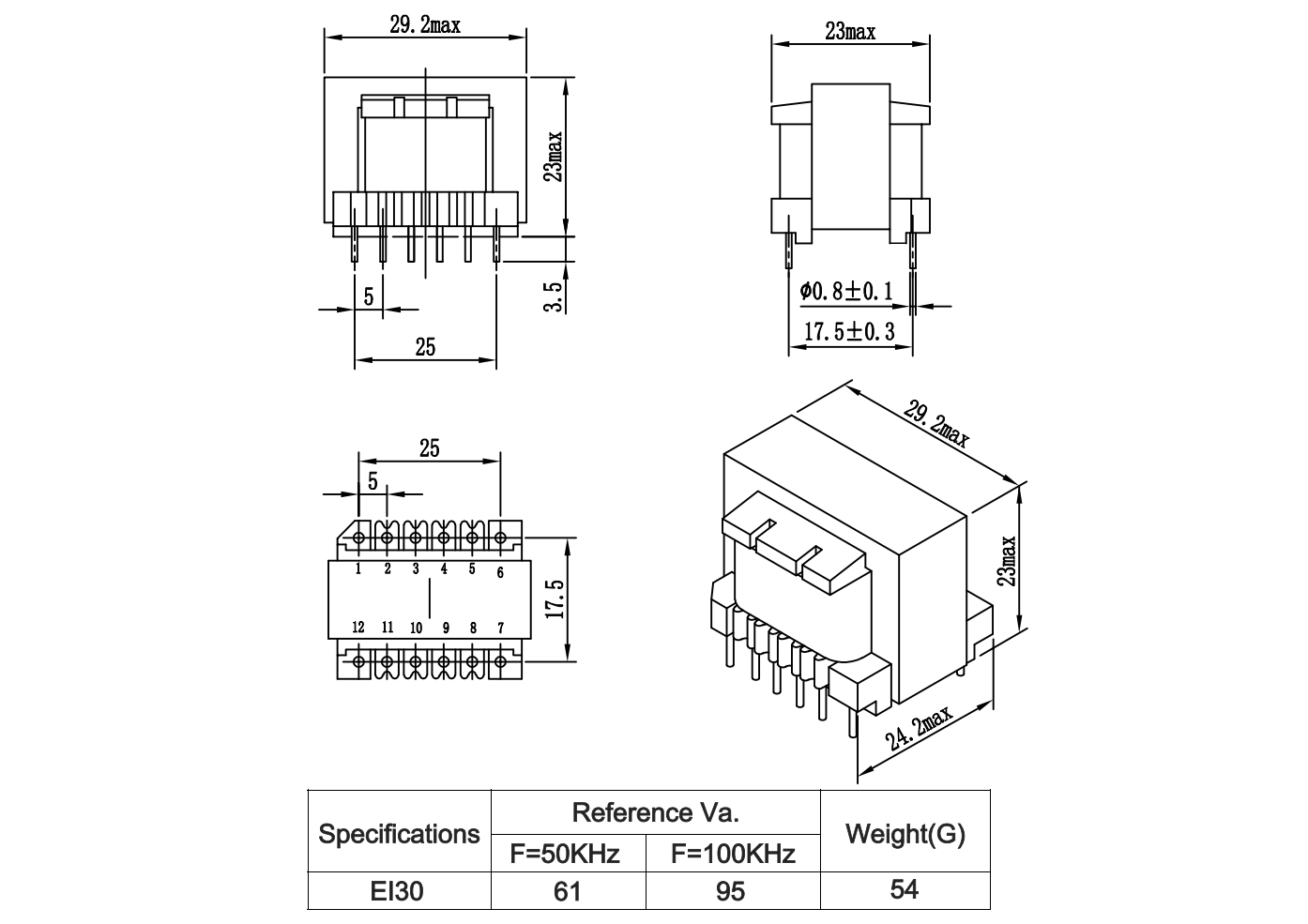

Technical Specifications

Customization & Procurement
