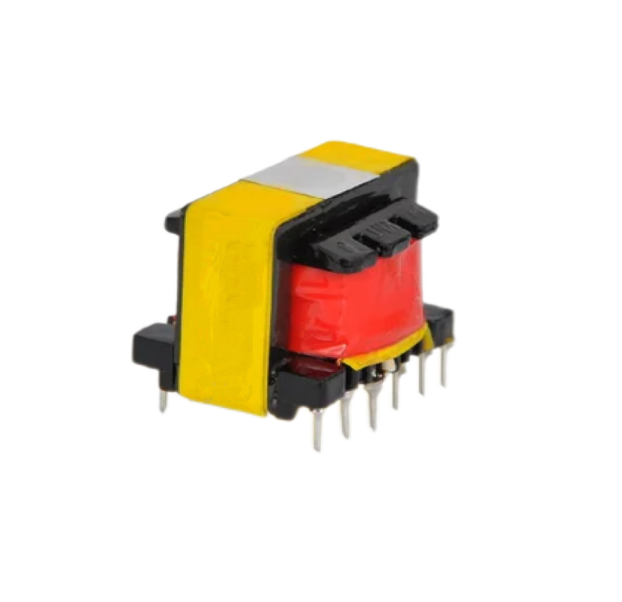

EI28 High Frequency Transformer (6+6 Pin) for Multi-Winding SMPS & Power Electronics

Product Orientation

The EI28 6+6 pin high-frequency transformer is developed for power systems requiring multiple winding configurations and enhanced circuit flexibility. Compared to standard 5+5 designs, the extended pin layout enables more complex electrical architectures and improved signal separation.

It is particularly suitable for switching power applications where multiple outputs or auxiliary circuits are needed.

Core Structure & Magnetic Path Optimization

The EI28 transformer uses a ferrite EI core structure that ensures efficient magnetic flux transfer:

• Central limb design enhances magnetic coupling

• Reduced leakage inductance with proper winding arrangement

• Stable magnetic performance under dynamic load

The EI core structure provides a continuous magnetic path, improving energy transfer efficiency between windings.

Power Capability & Frequency Adaptation

With its larger core size and optimized design, the EI28 transformer supports higher power levels and high-frequency switching:

• Suitable for medium-to-high power applications

• Operates efficiently in high-frequency switching environments

• Supports stable voltage transformation and isolation

Typical EI28 transformers can operate in high-frequency ranges used in SMPS, often up to hundreds of kHz depending on design.

Application Scenarios

The EI28 6+6 pin transformer is widely used in applications requiring multi-output and complex circuit design:

• Switching power supplies (SMPS)

• DC-DC and AC-DC converters

• Industrial control and automation systems

• Power modules and UPS systems

• Consumer electronics and communication devices

• Its extended pin configuration makes it ideal for advanced power architectures.

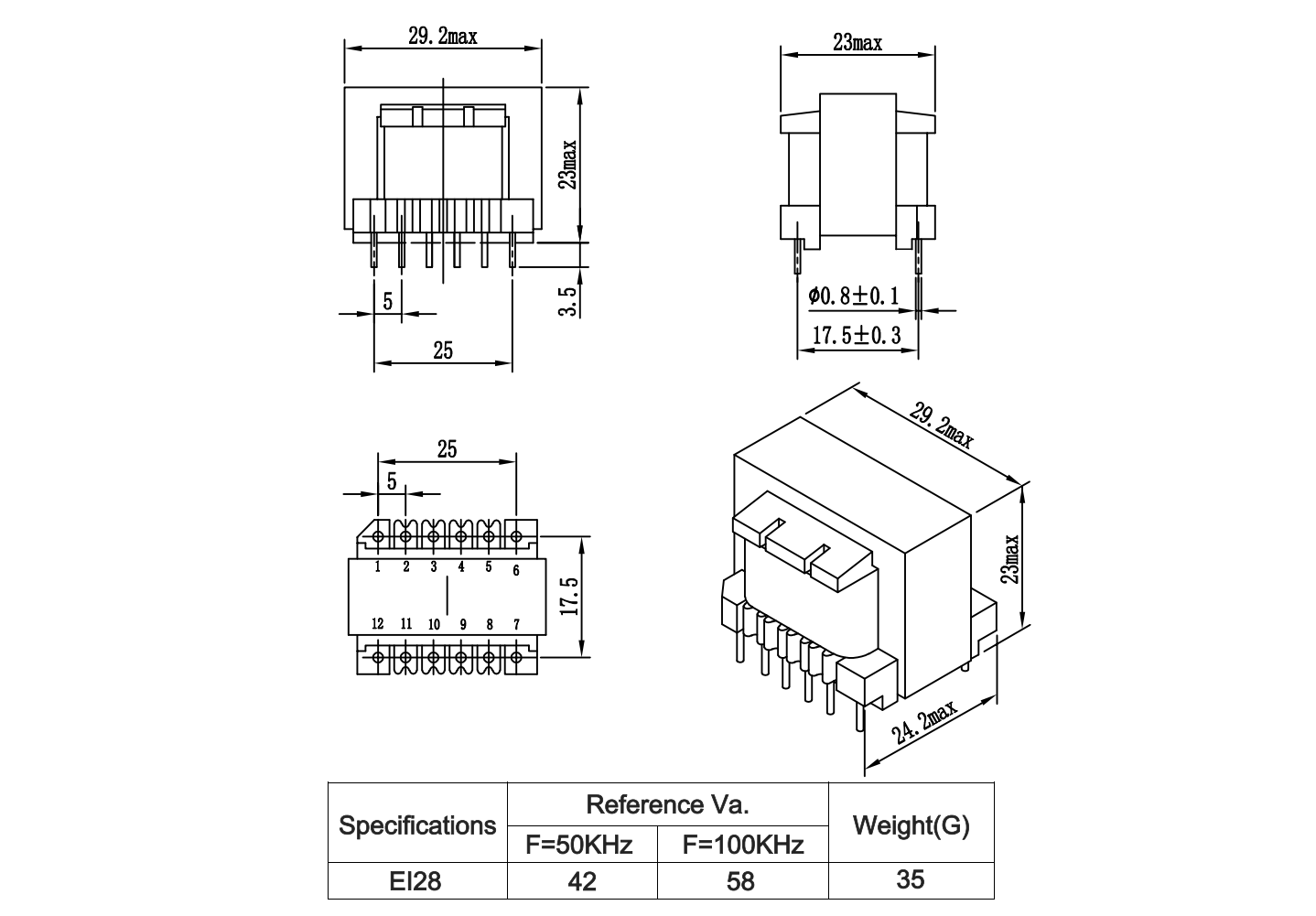

Technical Specifications

Customization & Procurement
