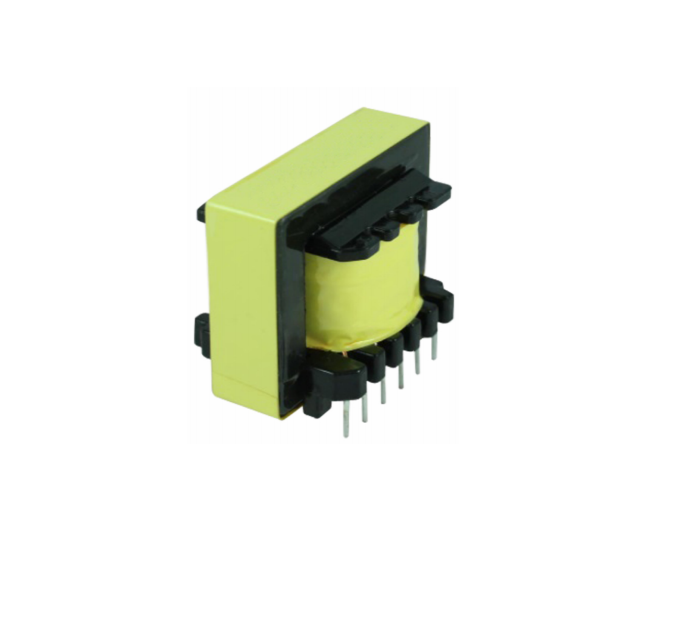

EI40 (6+6) High Frequency Transformer for High Power SMPS, Inverter & UPS Systems

Performance Specifications
Output Power: Under standard high-frequency scenarios (e.g., 100kHz), the output power generally sits between 150W and 500W. With specialized thermal solutions (such as forced air cooling) and targeted circuit topologies (like push-pull configurations), the maximum power can extend from 400W to 800W.
Operating Frequency: It is extensively integrated into high-frequency circuits spanning 20kHz to 500kHz.
Efficiency: A well-optimized design typically delivers an efficiency level exceeding 95%.

Quantity:
Availability:





Inquiry Add to Basket

Model:
EI40（6+6）
Brand:
INF

EI40(6+6) High Frequency Transformers Custom EI40 high frequency transformer EI40 transformer EI40 high frequency transformer EI40 ferrite transformer EI40 switching transformer EI40 SMPS transformer EI40 power transformer EI40 transformer manufacturer EI40 transformer supplier

Product Description

Download

Thermal Management & Durability

With its larger structure and optimized material selection, the EI40 transformer offers enhanced thermal performance:

Improved heat dissipation capability
Stable temperature rise under continuous operation
High-temperature insulation materials ensure long-term reliability

Thermal stability is essential for high-power transformers, especially in continuous industrial operation.

Application Fields

The EI40 high frequency transformer is widely used in high-power systems, including:

Inverter systems (e.g., DC-AC conversion)
Uninterruptible Power Supplies (UPS)
Industrial automation and control equipment
Renewable energy systems (solar, energy storage)
High-power SMPS and power modules

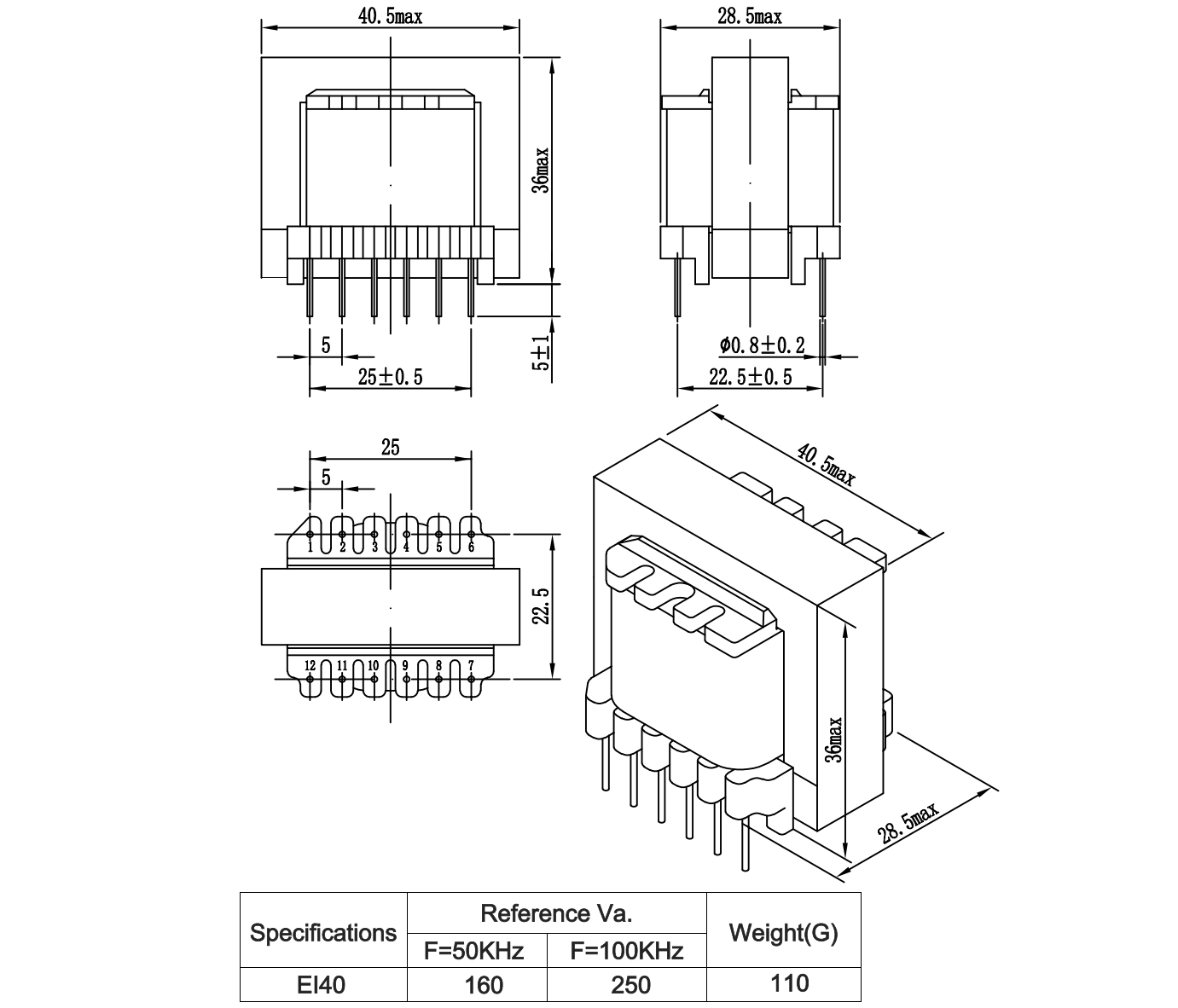

Technical Specifications

屏幕截图 2025-10-31 142148

Customization & Procurement

Main Category	Subcategory	Details
MOQ	Prototyping & Small-batch	10 piece minimum order
	Sample Service	Free proofing & custom service, 5 free samples (shipping at buyer’s cost)
	Bulk Order	5,000 pieces and above with bulk pricing
Lead Time	All Standard Components	Shipped within 5–7 working days
	Custom Inductance / Pin Design (Sample)	Sample order confirmed within 5–7 working days
	Custom Inductance / Pin Design (Mass Order)	Shipped within 15–30 working days
Payment Terms	Main Payment Term	T/T in advance, L/C at sight
	Procurement Standard	Complies with global enterprise procurement standard for passive components
	Quality Deposit	No quality security deposit required
	Accepted Terms	FOB Shanghai / Nanjing / Hong Kong, T/T Advance
Quality Assurance	Manufacturing Defects	Free replacement for issues caused by manufacturing defects
Quality Assurance	Inspection Report	Batch inspection reports available as certification upon customer request
Packaging Specifications	Updated Packaging (2026)	Blister tray packaging; Sealed Tape & Reel for SMD products
Packaging Specifications	Optional Packaging	Vacuum sealed packaging for customers with strict moisture-proof requirements
