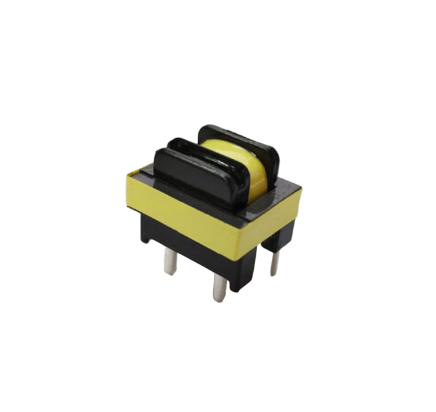

A Line Frequency Current Sense Transformer provides precise and reliable current measurement in AC circuits operating at standard line frequencies. These transformers are essential for current monitoring, metering, and protection systems, ensuring accurate feedback for control and safety functions. Inftechs (Nanjing Infinity Technology Co., Ltd.), a trusted manufacturer of magnetic components, offers high-quality, customizable solutions designed to meet diverse industrial and electronic requirements.
Inftechs’ Line Frequency Current Sense Transformers are engineered for exceptional accuracy and stability. They feature minimal phase shift, low insertion loss, and consistent performance under varying load conditions. Compact and durable designs make them suitable for both board-level and panel-mounted installations.
As a professional magnetic component manufacturer, we combine advanced R&D capabilities with strict quality control to deliver transformers that meet international standards. Key advantages include:
Inftechs provides multiple configurations to meet different electrical and mechanical needs:
| Type | Design Features | Typical Applications |
|---|---|---|
| Surface-Mount (SMD) | Compact, compatible with automated assembly | PCB-based control and measurement systems |
| Through-Hole | High mechanical strength, easy integration | Industrial monitoring and power control |
| Toroidal | Excellent magnetic coupling and low noise | Precision current measurement and isolation |
Custom configurations are available for specific current ranges, frequency responses, or mechanical dimensions. Our engineers can design transformers optimized for unique current sensing conditions.
Line Frequency Current Sense Transformers are widely used for accurate current monitoring and protection in industrial and commercial systems. Common applications include:
Their precision and reliability make them essential for load monitoring, AC measurement, and protection circuits. These transformers also integrate seamlessly with Inftechs’ other magnetic components, such as gate drive transformers and power inductors, to form complete magnetic assemblies.
When choosing a Line Frequency Current Sense Transformer, engineers should evaluate current range, accuracy, frequency response, and mounting type. The following table summarizes key selection factors:
| Parameter | Description |
|---|---|
| Turns Ratio | Defines the relationship between primary and secondary current for accurate scaling. |
| Phase Shift | Should be minimal to ensure precise measurement and synchronization. |
| Insertion Loss | Low loss ensures stable signal transmission and efficiency. |
| Frequency Range | Optimized for 50/60 Hz line frequency applications. |
For specialized applications, Inftechs’ engineering team provides consultation and design support to help customers select or customize the most suitable model.
Inftechs maintains strict quality control throughout the production process. All Line Frequency Current Sense Transformers are manufactured under ISO9001-certified systems and comply with UL, CE, and RoHS standards. Our rigorous quality framework ensures consistent performance and reliability.
Customization services include design, prototyping, and testing to meet specific electrical and mechanical requirements. With strong R&D capabilities and a dedicated engineering team, we offer flexible OEM/ODM services and technical assistance from concept to production.
In addition to Line Frequency Current Sense Transformers, Inftechs manufactures a wide range of magnetic products, including AC transformers, gate drive transformers, and power inductors. These components can be integrated into compact magnetic assemblies, allowing customers to source all key magnetic solutions from one reliable supplier.
Q1: What is a Line Frequency Current Sense Transformer?
A: It is a transformer designed to measure AC current accurately at line frequency, commonly used in power monitoring and control systems.
Q2: How do I choose the right transformer for my application?
A: Consider factors such as current range, frequency, accuracy, and mounting type. Our engineers can assist with selection and customization.
Q3: Does Inftechs provide custom-designed transformers?
A: Yes, we offer custom magnetic solutions tailored to specific electrical and mechanical requirements.
Q4: Which industries use these transformers?
A: They are widely used in industrial automation, power electronics, energy monitoring, and medical equipment.
Q5: Are Inftechs transformers compliant with international standards?
A: Yes, all products meet ISO9001, UL, CE, and RoHS standards for quality and safety.
For high-precision and customizable Line Frequency Current Sense Transformers, contact Inftechs today. As a professional transformer manufacturer, we provide comprehensive support and tailored solutions to meet your current sensing and power monitoring needs.
