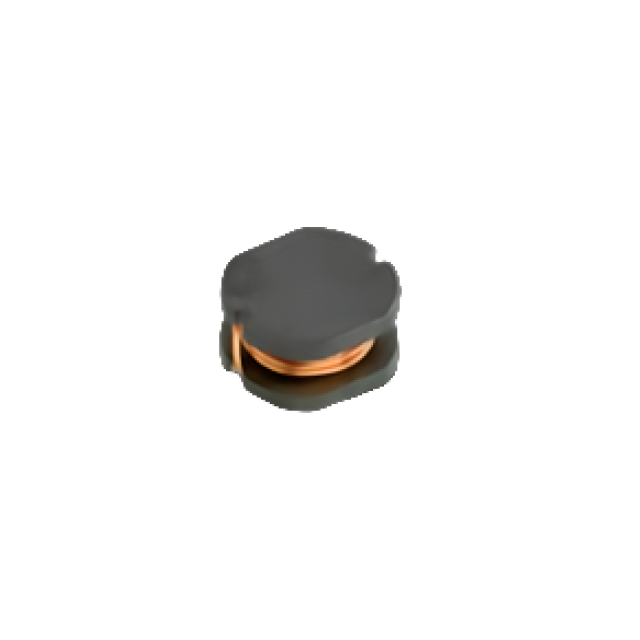

SMT Power Inductor components store energy, filter ripple, and stabilize current in switching supplies. As a Chinese B2B manufacturer founded in 2003, we design and produce SMD power inductors and related magnetic parts for high-reliability markets. Our portfolio combines compact footprints with high current handling, low DCR, and stable inductance over temperature. Choose from proven series or request a custom build matched to your electrical targets and PCB footprint.
Selecting the right SMT Power Inductor depends on frequency, ripple target, thermal limits, EMI budget, and height. The quick guide below maps common constructions to strengths and use cases.
| Type | EMI | Current/DCR | Typical Uses |
|---|---|---|---|
| Shielded wire-wound | Low radiated noise | Balanced Isat/Irms | Industrial, telecom, computing DC-DC |
| Molded composite | Very good containment | Low DCR, high current | POL rails, motor drives, new energy |
| Semi-shielded | Moderate | Cost-performance | Consumer, IoT, light industrial |
| Flat-wire high current | Low with shielding | Very low DCR | Servers, telecom, automotive power |
Ferrite-core, wire-wound designs deliver low radiated noise and predictable behavior. They suit DC-DC converters in industrial controls, telecom, and computing where EMI margins are tight.
Composite encapsulation lowers DCR and improves thermal paths. These parts excel on high-current rails in POL converters, motor drives, and new energy systems.
These inductors support voltage regulation in industrial automation, telecom and 5G, servers and storage, automotive electronics, medical devices, and security systems. Typical roles include VRM/POL stages, BMS, inverters, chargers, and motor control. Our engineers align selections with regulatory expectations by model.
Evaluate these parameters during design and verification.
| Parameter | Why it matters | Practical note |
|---|---|---|
| Inductance (µH) | Ripple and transient response | Match controller targets and tolerance |
| Isat | Saturation headroom | Allow margin for peaks and temperature |
| Irms | Thermal rise | Confirm at airflow and copper area |
| DCR | I²R losses | Use molded or flat-wire for high currents |
| SRF / Q | High-frequency behavior | Favor higher SRF/Q for fast switching |
| Package height | Fit and cooling | Balance z-height with thermal needs |
When a catalog part does not fit, we co-engineer custom SMT Power Inductors. We optimize materials, shielding, winding style, and pad layout to hit L, Isat, Irms, DCR, SRF, and height targets. Rapid prototypes and free samples help de-risk validation before mass production.
We run end-to-end processes covering R&D, precision winding or molding, assembly, and inspection with lifecycle quality control. Documentation support is available by model, including ISO9001, UL, CE, and RoHS. Application engineering assists with thermal, EMI, and layout reviews.
Request a quote and free samples for your SMT Power Inductor design. Share inductance and tolerance, Isat/Irms, DCR, SRF, switching frequency, size/height, environment, and volumes. Partner with a dedicated SMT Power Inductor manufacturer for tailored performance, reliable quality, and responsive support.
