PFC chokes shape input current, cut harmonics, and raise power factor in modern AC/DC front ends. As a custom magnetic component manufacturer, we design and build high-efficiency inductors for boost, interleaved, and totem-pole stages. Our ISO9001 system supports projects with UL, CE, and RoHS documentation, plus OEM/ODM services, free samples, and lifecycle technical support.
PFC Chokes Options and Designs
We provide toroidal and bobbin-wound constructions using ferrite or tape-wound cores. Mounting options include THT, baseplate, and chassis brackets, with varnish, impregnation, or potting to increase mechanical stability and reduce noise. Round copper or litz wire is selected to balance DCR with AC resistance at the chosen switching frequency. Gap placement and insulation systems are tailored to meet efficiency, thermal, and safety targets.
Toroidal PFC Chokes
Toroids offer low stray fields, compact footprints, and inherently good EMI behavior. They suit compact supplies and interleaved stages where current sharing and low radiated noise matter.

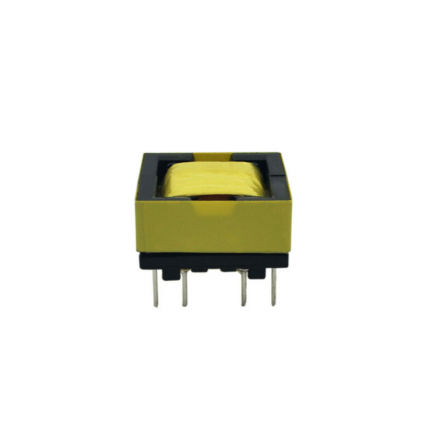

EE/ETD/PQ PFC Chokes
Framed cores simplify air-gapping, provide predictable inductance, and scale well for higher power. These designs pair well with CCM operation and controlled thermal paths.
Technical Advantages
High-performance ferrite and precise gap control keep inductance stable over load and temperature. Automated winding delivers consistent inductance and low DCR. Thermal design—optimized copper fill, litz selection, and impregnation—limits temperature rise and audible noise. Rigorous QA and documentation streamline certification and long-term reliability.
Applications of Power Factor Correction Chokes
Typical uses include server PSUs, telecom rectifiers, data centers, EV and industrial chargers, UPS, renewable front ends, and automation drives. Designs support wide input ranges and topologies such as interleaved and totem-pole with GaN/SiC, enabling higher frequency with minimized loss.
Selecting PFC Chokes
| Factor | Define | Why |
| Electrical | Inductance, ripple, Isat, DCR, temp rise | Sets current shaping, efficiency, and margins |
| Topology & frequency | CCM/CRM, interleaved, totem-pole; kHz | Drives core, gap, and wire strategy |
| Safety/EMC | Creepage/clearance, insulation, shielding | Supports UL/CE/RoHS and EMI goals |
Share preliminary specs to receive fast feasibility feedback and optimization suggestions.
FAQs on PFC Chokes
What distinguishes a PFC choke from a standard inductor?
It is optimized for stable inductance under DC bias, low core loss at target frequency, and low DCR to shape mains input current efficiently.
When should I use a toroid versus an EE/ETD/PQ core?
Choose a toroid for low stray fields and compact layouts; select EE/ETD/PQ for predictable gapping, scalability, and manufacturability in CCM designs.
Are these suitable for totem-pole designs with GaN/SiC?
Yes. Material selection and litz strategies limit AC resistance and core loss at higher switching frequencies.
Request a Quote or Free Samples for PFC Chokes
Send power level, topology, switching frequency, inductance, Isat, DCR limit, size constraints, thermal goals, and compliance needs. Our engineers will recommend a right-sized design and provide quick-turn samples.
Partner with a China-based PFC chokes manufacturer focused on custom engineering, OEM/ODM support, and global-standard compliance. Contact us to co-develop a solution that meets your efficiency, size, and cost targets.
