EE16/7/4
INF
Ultra-compact EE16 core for space-critical designs
Suitable for high-frequency switching applications
Designed for low-power offline flyback converters
Flexible multi-winding configuration
Low leakage inductance and reduced EMI
Reliable isolation for safety compliance
Offline flyback power supplies
AC/DC adapters and chargers
LED driver circuits
Smart home and IoT devices
Industrial control auxiliary power
Consumer electronics power modules

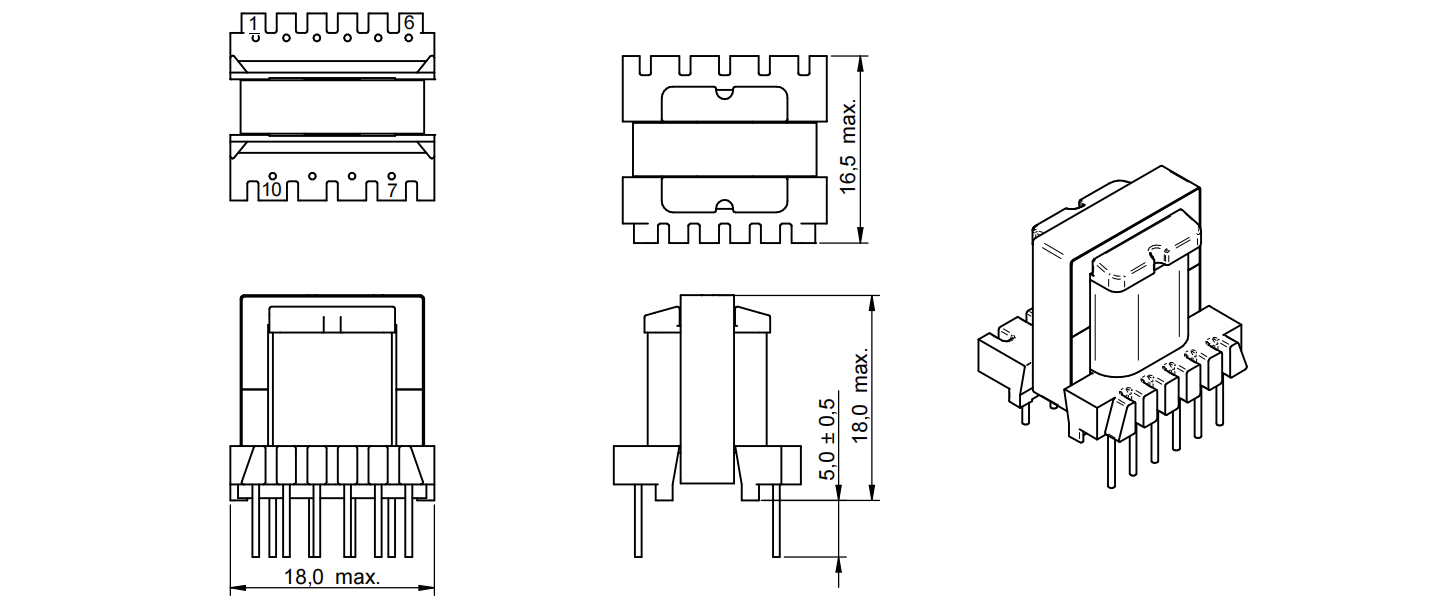

Physical Properties
| Order Code | Vout1 (V) | lout1 (A) | Vout2 (V) | lout2 (A) | Inductance (mH) | Switching Frequency | Tums Ratio | Leakage Inductance[min.] (μH) | lSAT(A) | RDC1 (Ω) | RDC2 (Ω) | RDC3 (mΩ) | LS (μH) |
| INF-EE16/7/4-175μH | 5 | 0.9 | 5 | 0.9 | 0.9 | 132 | 19:1:1 | 175 | 0.85 | 4.3 | 0.026 | 26 | 175 |
| INF-EE16/7/4-145μH | 12 | 0.35 | 12 | 0.35 | 0.9 | 132 | 9.5:1:1 | 145 | 0.8 | 4.3 | 0.075 | 85 | 145 |
| INF-EE16/7/4-145μH | 24 | 0.4 | - | - | 0.9 | 132 | 4.4:1 | 145 | 0.8 | 4.3 | 0.21 | - | 145 |
Technical Specifications
| Main Category | Subcategory | Details |
| MOQ | Prototyping & Small-batch | 10 piece minimum order |
| Sample Service | Free proofing & custom service, 5 free samples (shipping at buyer’s cost) | |
| Bulk Order | 5,000 pieces and above with bulk pricing | |
| Lead Time | All Standard Components | Shipped within 5–7 working days |
| Custom Inductance / Pin Design (Sample) | Sample order confirmed within 5–7 working days | |
| Custom Inductance / Pin Design (Mass Order) | Shipped within 15–30 working days | |
| Payment Terms | Main Payment Term | T/T in advance, L/C at sight |
| Procurement Standard | Complies with global enterprise procurement standard for passive components | |
| Quality Deposit | No quality security deposit required | |
| Accepted Terms | FOB Shanghai / Nanjing / Hong Kong, T/T Advance | |
| Quality Assurance | Manufacturing Defects | Free replacement for issues caused by manufacturing defects |
| Inspection Report | Batch inspection reports available as certification upon customer request | |
| Packaging Specifications | Updated Packaging (2026) | Blister tray packaging; Sealed Tape & Reel for SMD products |
| Optional Packaging | Vacuum sealed packaging for customers with strict moisture-proof requirements |
