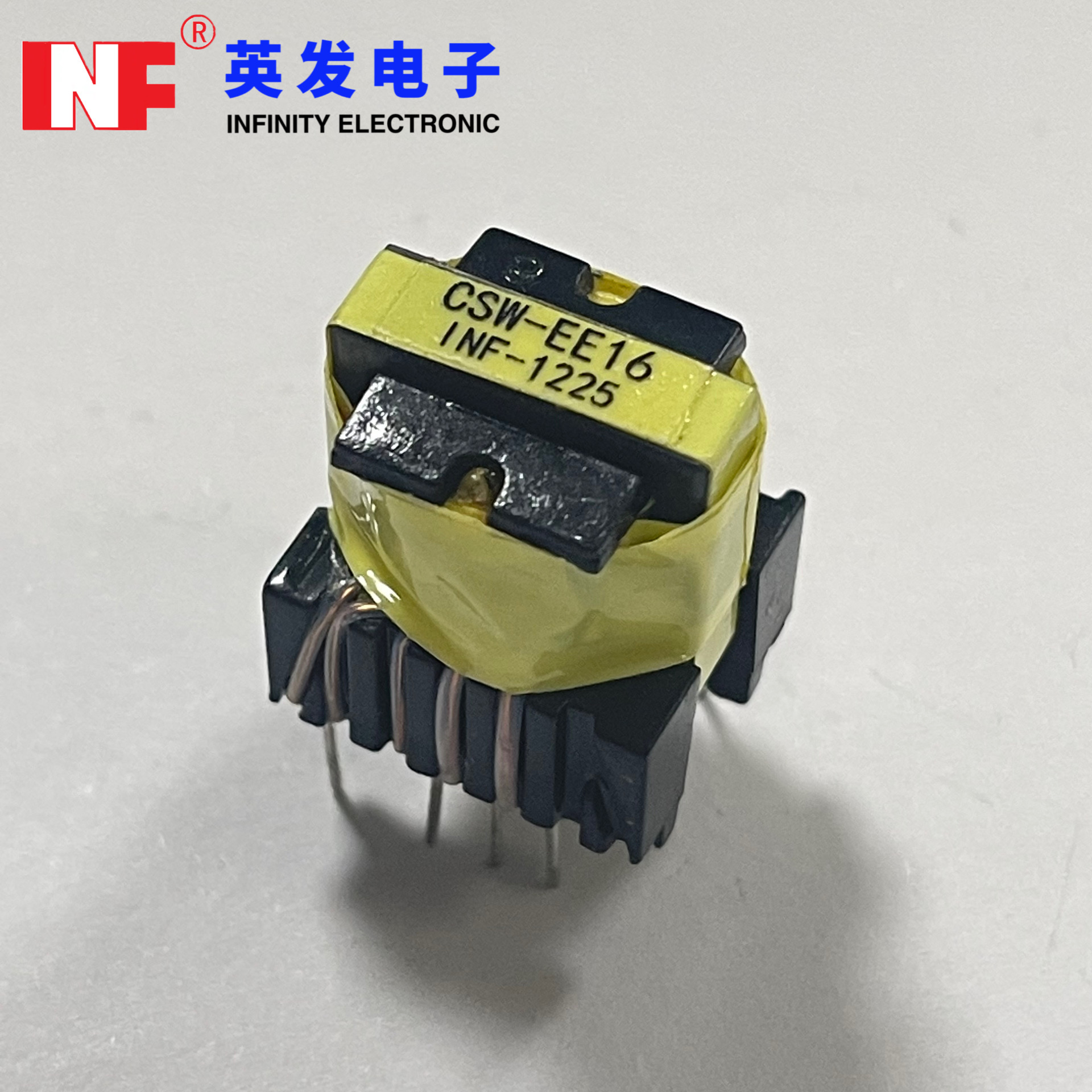

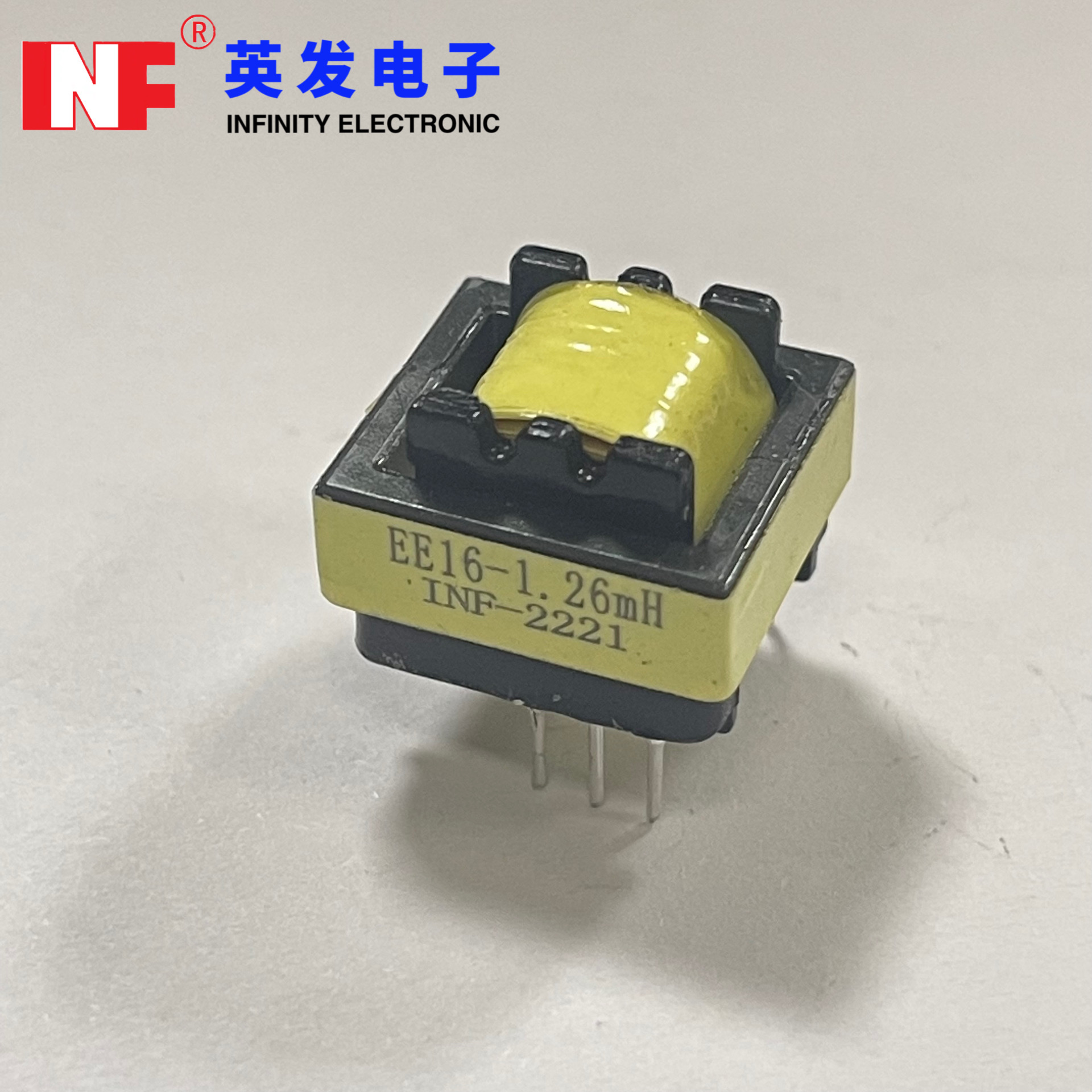

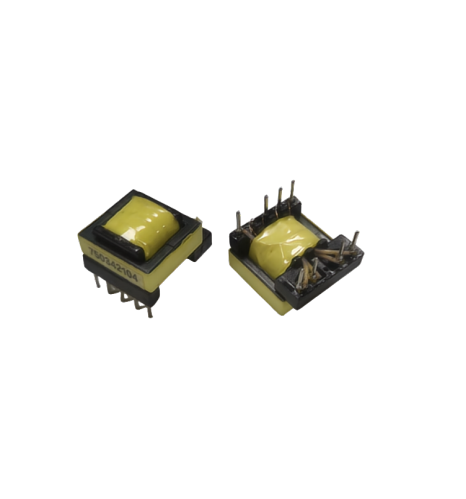

EE16/7/5
INF
Material Quality:

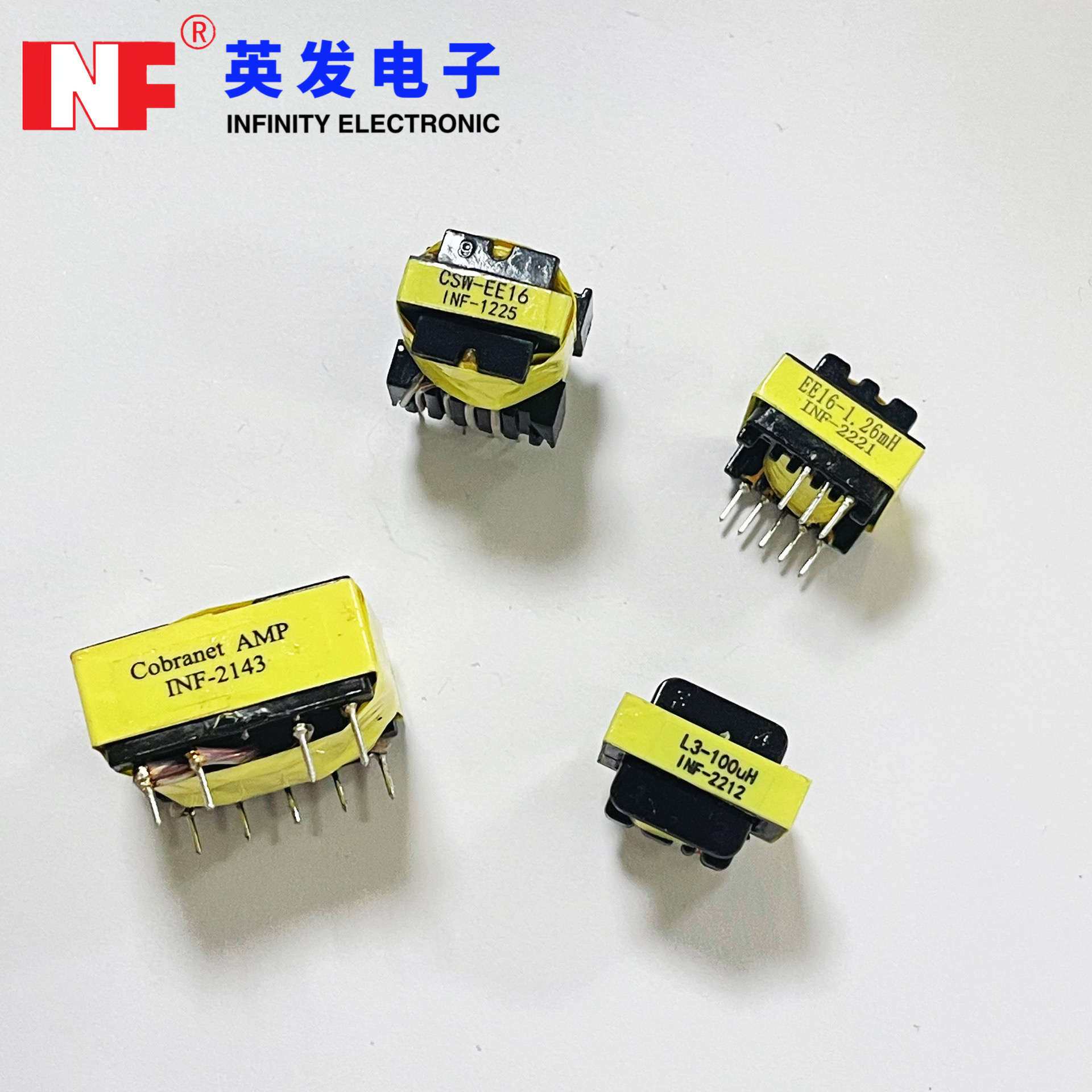

Infinity's EE16 high-frequency transformers are made from high-quality raw materials. We have established long-term relationships with top raw material suppliers in China to ensure stable supply and reliable quality assurance. We strictly monitor the procurement and inspection of raw materials to ensure that every batch meets our quality standards.
Manufacturing Process:
Infinity has an experienced production team skilled in various manufacturing processes and equipment operations to ensure smooth production of our products. We manufacture strictly according to international quality standards and have passed many quality system certifications, such as ISO9001.
Fast Delivery Capability:
Infinity has a complete supply chain system and an efficient production management system, which allows us to quickly respond to customer demands and shorten delivery times. We are able to meet the urgent needs of most customers and offer various flexible delivery methods, including express delivery, air transport, sea transport, etc., to meet the transportation needs of different customers.

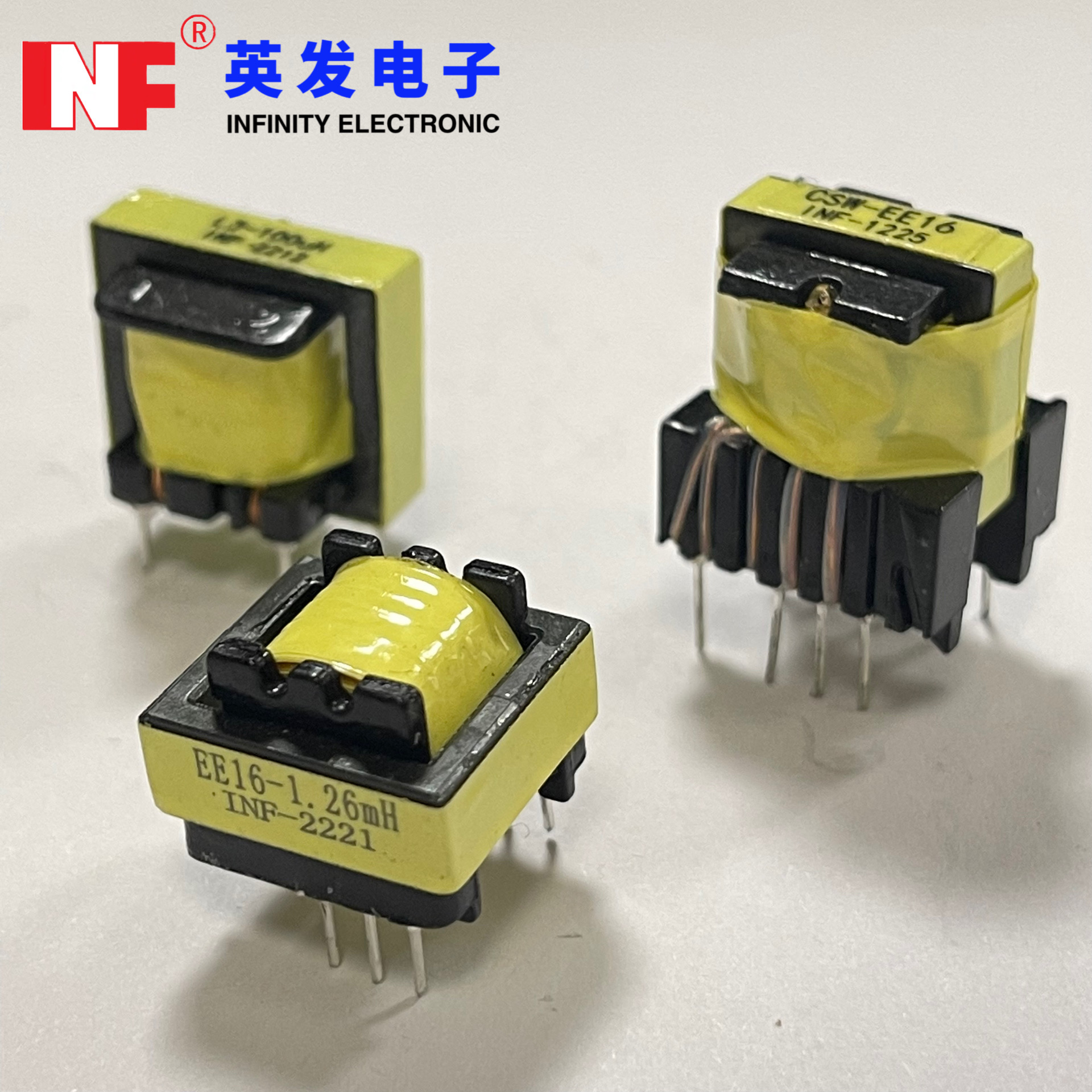

EE16/7/5 Offline Transformers Offline Flyback Transformers
Flyback topology, low leakage inductance, 4500VAC isolation, -40℃~+125℃ operation, reinforced insulation; suitable for offline/high DC input isolated applications, 12V/24V/48V offline bus converters, as well as industrial, medical, auxiliary power supplies, home appliances and consumer electronics.
Physical Properties

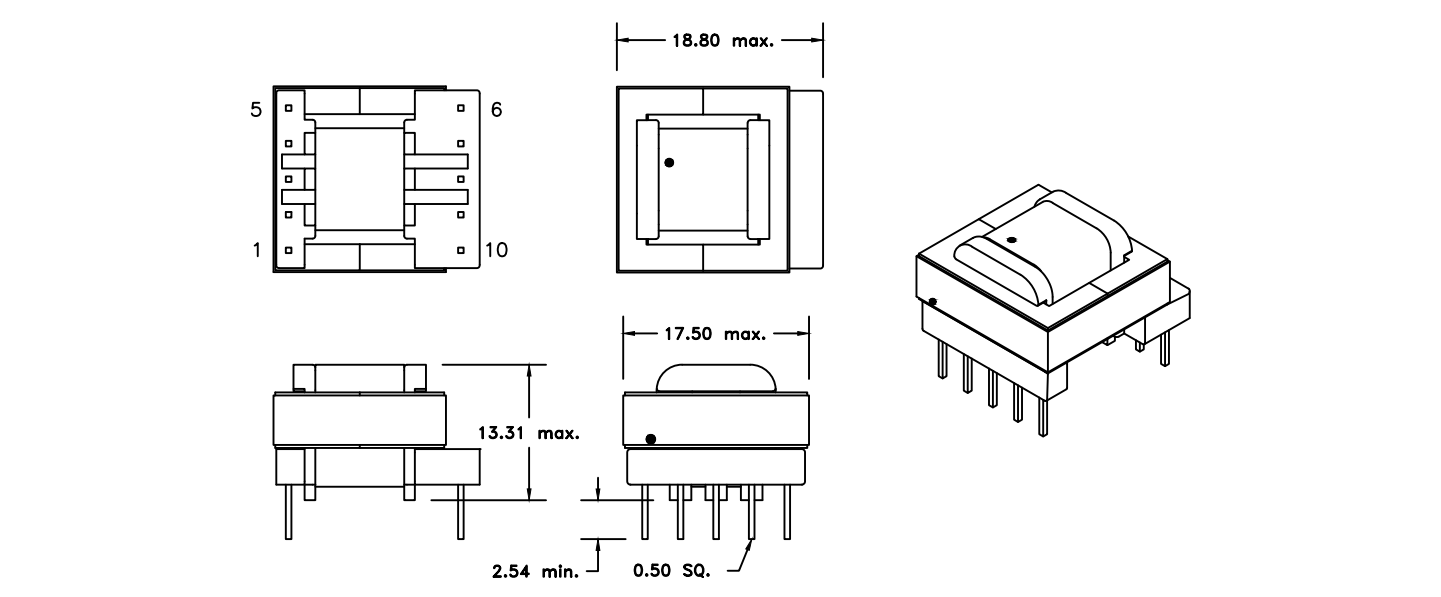

| Ordor Code | Input Voltage (V) | Vout1 (V) | lout1 (A) | Vaux (V) | RDC1 (Ω) | RDC2 (Ω) | RDC3 (Ω) | RDC4 (Ω) | fswitch (kHz) | L (μH) | n | lSAT (A) | VT (V(AC) |
| INF-EE16/7/5-600μH | 85-265V(AC) | 28 | 0.5 | 20 | 2.4 | 0.241 | 1.55 | 1.55 | 100 | 600 | 4:10.71 | 1.75 | 4500 |
| INF-EE16/7/5-600μH | 90-265V(AC) | 14 | 1 | 18 | 1.85 | 0.06 | 1.35 | - | 100 | 600 | 8:1:1.29 | 1.75 | 4500 |
Technical Specifications

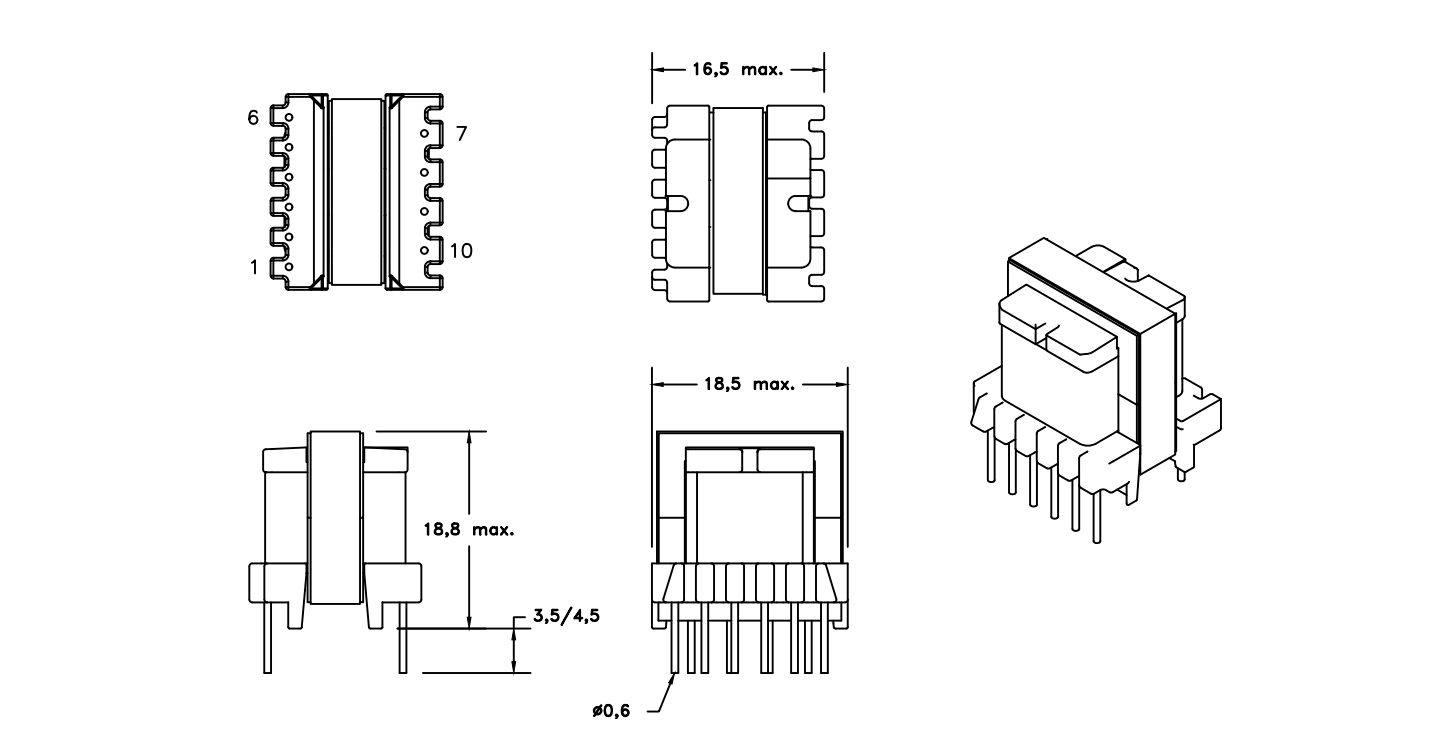

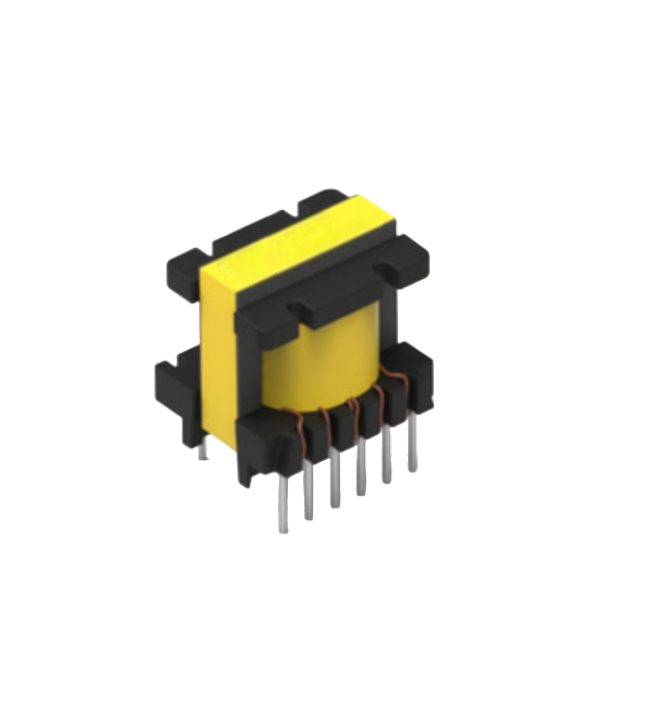

EE16/7/5 Offline Transformers Offline Flyback Transformers
This product features a universal offline input voltage of 85–265VAC, an output power range of 2W to 35W, an operating temperature of -40°C to +125°C, and an insulation test voltage up to 4500VAC. It is mainly used in offline switch-mode power supplies (SMPS) and auxiliary power supplies.

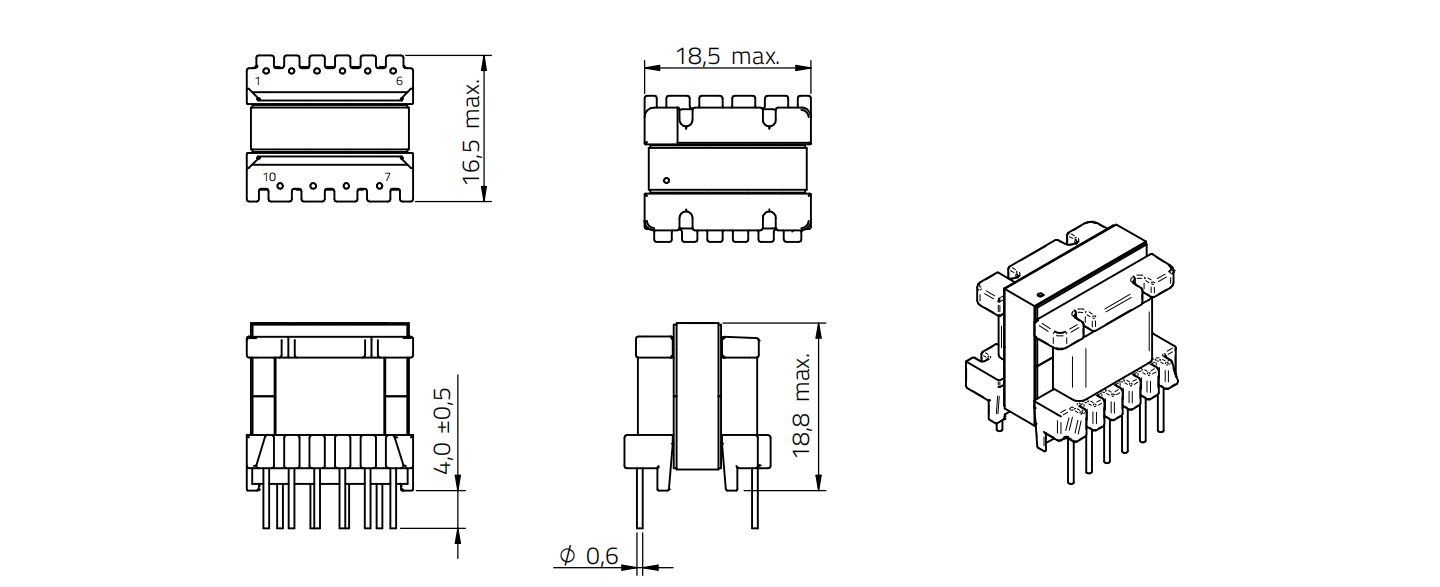

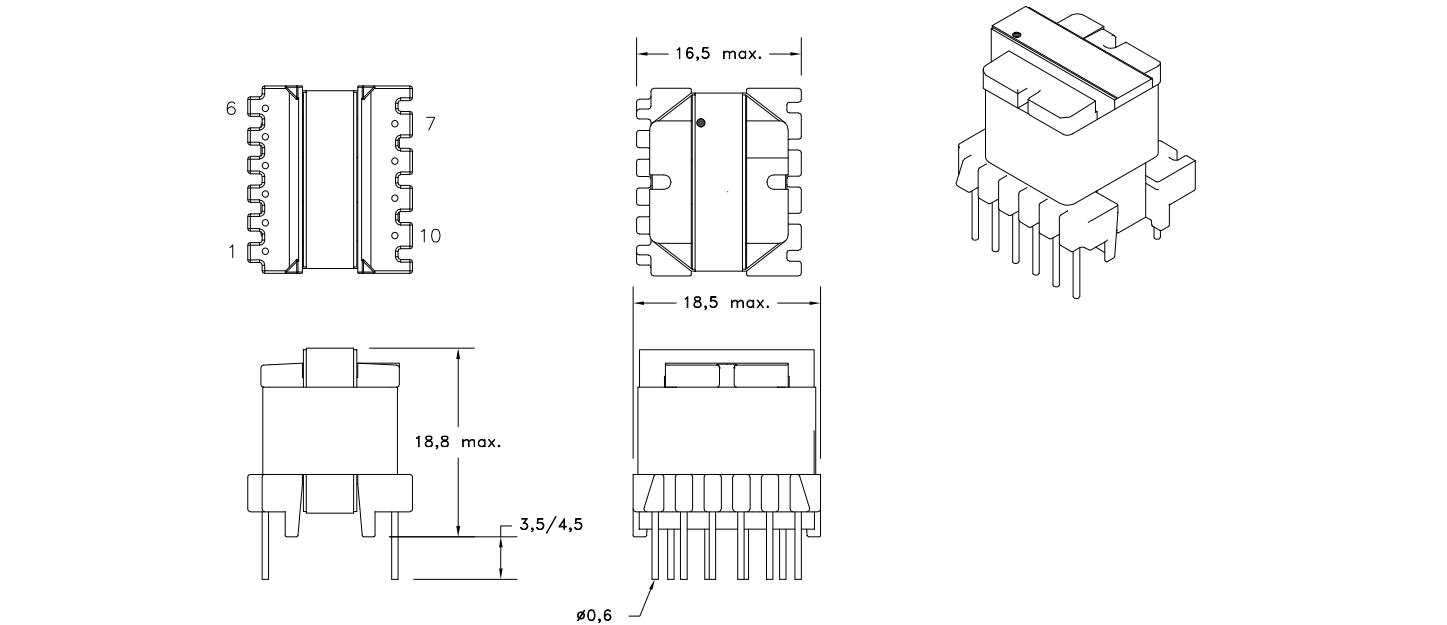

Physical Properties

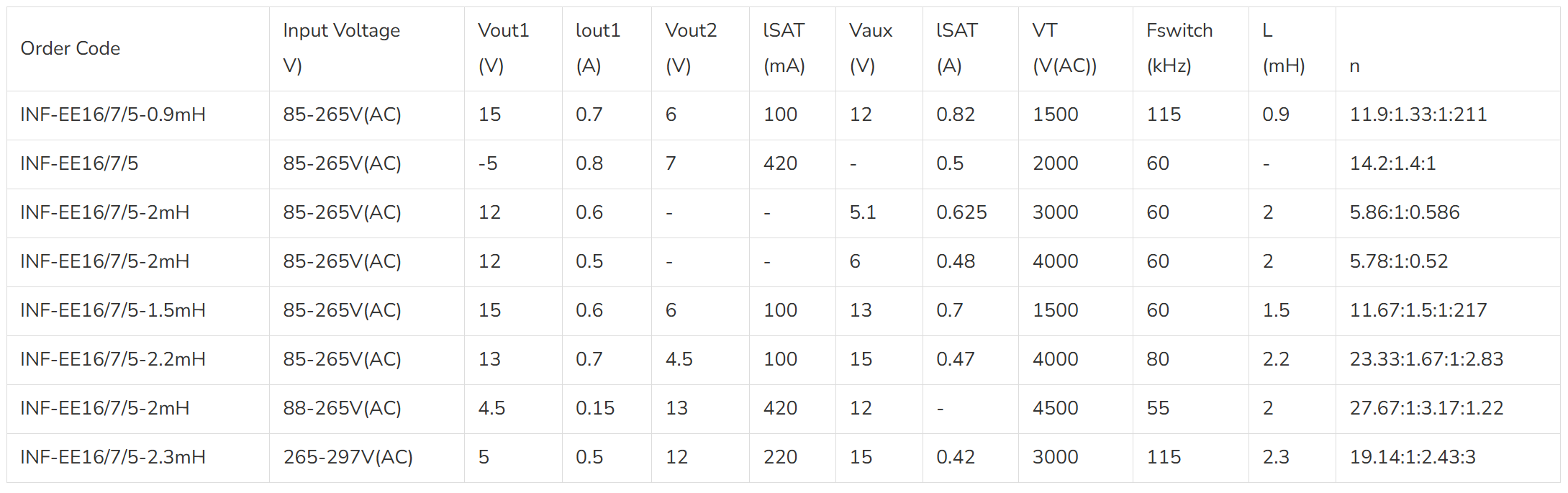

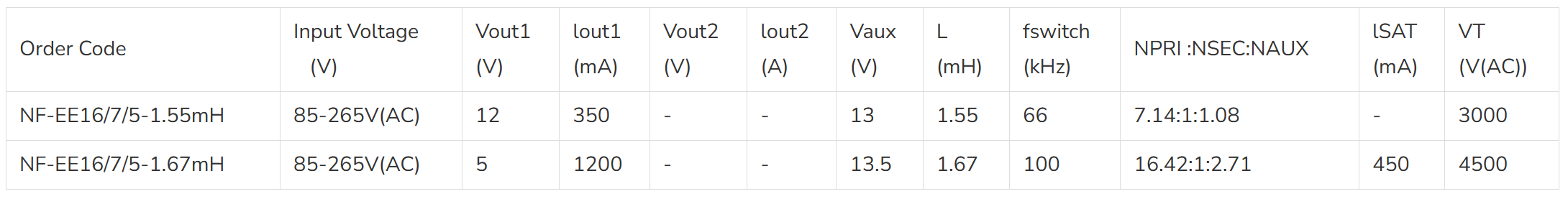

Technical Specifications
EE16/7/5 Offline Flyback Transformers
With 85–265VAC (120–375VDC) input, -40°C to +125°C temp range, 2kVA–5kVA isolation, multiple outputs, and fixed/quasi-resonant operation (most with reinforced insulation), this product is ideal for offline SMPS, auxiliary power, home appliances, and consumer electronics.

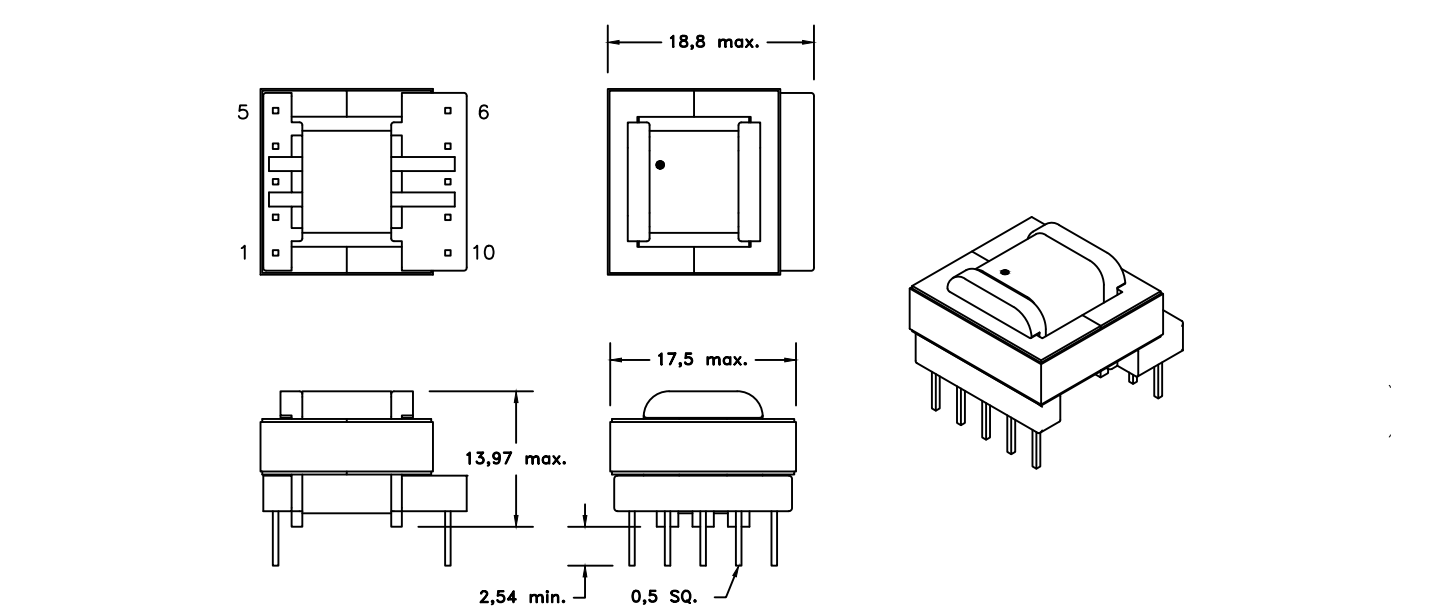

Physical Properties

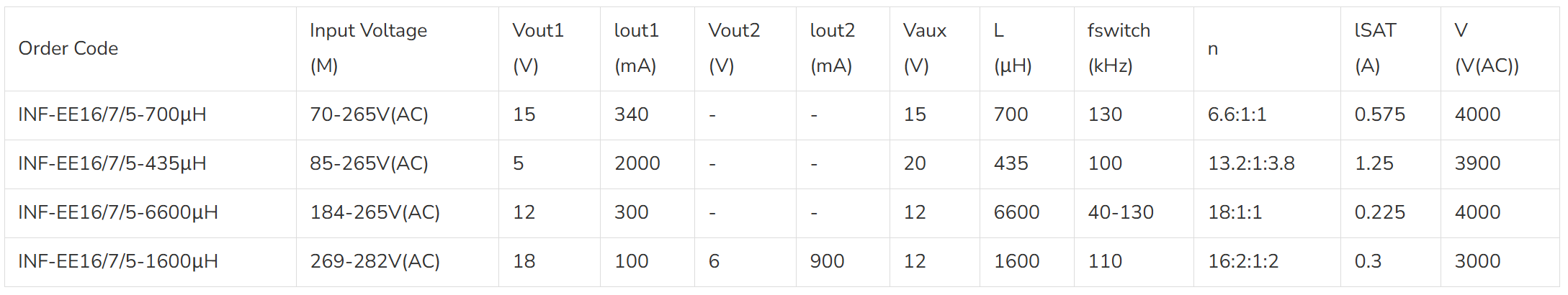

Technical Specifications
EE16/7/5 Offline Transformers Offline Flyback Transformers
Nominal input: 85–265VAC (120–375VDC); Operating temp: -40°C to +125°C; Isolation: 2kVA–5kVA; Multiple outputs, fixed/quasi-resonant mode, reinforced insulation (most). Mainly used in offline SMPS, auxiliary power, home appliances, consumer electronics.
Physical Properties
Technical Specifications
EE16/7/5 Offline Transformers
This product features low leakage inductance, multiple package sizes, wide-range input voltages and various output voltage options, with an isolation voltage up to 3000VAC. It is lead-free and RoHS compliant, operating within a temperature range of -40°C to 125°C. Main applications include industrial and medical power supplies, auxiliary power supplies, home automation, and isolated DC/DC power supplies.
Physical Properties

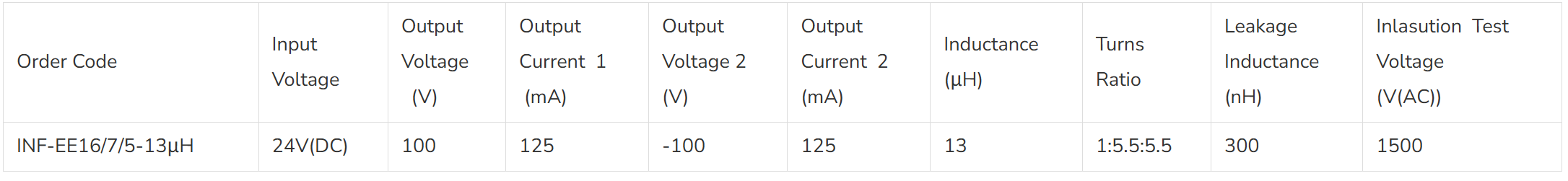

Technical Specifications
