Characteristics:
· Simplified design-in integration
· Fewer external components needed
· Reduced PCB board space
· Low overall system cost
· Eliminates the need for optocouplers
· Stable voltage control with long-lasting reliability
· No aging-induced performance drift
· Shared external components for different output voltage ratings
· Straightforward customization of power supplies through a standard circuit, with only transformer and two feedback loop
Options:
· Design-friendly with minimal external components, space-saving and cost-effective
· Eliminates optocoupler need, ensures long-term reliable voltage control without aging
· Ideal for isolated power setups, sensor connections, telecom converters and PoE systems
Common Applications:
· Isolated power supply design
· Sensor interface circuits
· Isolated telecommunications converters
· Power over Ethernet (PoE)
FAQ：
Q：After sample testing, if parameter adjustments are needed (such as modifying inductance value or optimizing temperature resistance), do I need to reapply?
A：There is no need to go through the entire reapplication process. You only need to inform us of the specific parameters that need adjustment after testing. Our engineers will quickly optimize based on the original plan (e.g., replacing the core material or adjusting the coil wire diameter). The delivery cycle of the adjusted samples can be shortened to 5-7 working days, and we also provide free samples and supporting performance test reports.

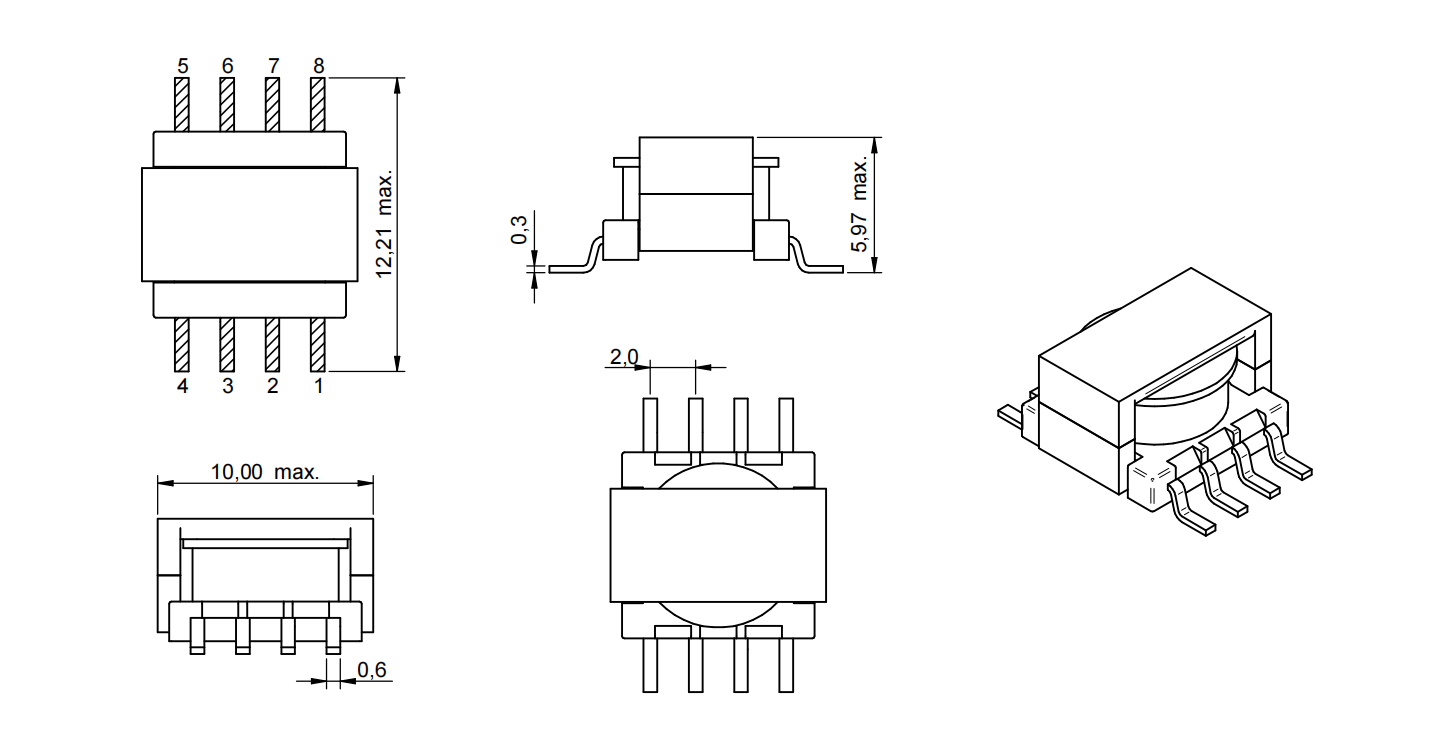

Technical Specifications
