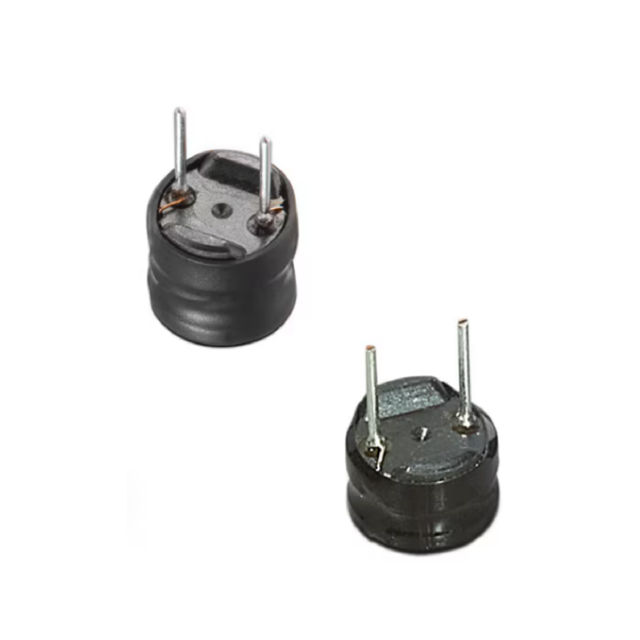

Radial Leaded Wire Wound Inductor Signal Filtering

Product Overview

Our radial leaded wire wound inductor is a high-performance passive component engineered for professional signal filtering applications, serving industrial electronics manufacturers, circuit design enterprises and electronic component distributors with reliable electromagnetic interference (EMI) suppression and signal optimization solutions. This wire wound inductor for radial lead features a precision-wound copper coil structure combined with a high-quality ferrite core, delivering stable inductance performance, low DC resistance and excellent anti-saturation characteristics. It is RoHS compliant and designed for through-hole mounting, perfectly adapting to the high-density circuit design requirements of industrial-grade electronic equipment, and becoming a core component for improving the signal-to-noise ratio of electronic systems and ensuring stable circuit operation. The radial lead signal filtering inductor covers an inductance range of 1.0uH to 10000uH, meeting the diversified filtering needs of different frequency bands and current levels in industrial applications.

Product Core Design & Performance

Core Structural Design

The product adopts a closed magnetic circuit wire wound structure with a high-purity iron silicon aluminum core, which reduces magnetic leakage loss to less than 0.5% and effectively shield external electromagnetic interference, ensuring no mutual interference with surrounding sensitive components in the circuit. The radial lead is pre-tinned and has a standard pitch design, which is compatible with automatic insertion and welding processes, improving the production efficiency of enterprise customers. The inductor shell uses UL94 V-0 non-flammable insulation material, which enhances the safety and heat resistance of the component.

Key Performance Advantages

Low loss & high efficiency: The high-density winding technology makes the winding filling coefficient reach more than 80%, reducing copper loss by 20%~30% compared with traditional inductors, and the iron loss is significantly reduced under high-frequency working conditions;

Stable inductance performance: The inductance tolerance is controlled within ±5%~±10%, and the long-term drift is less than ±2%, ensuring stable signal filtering effect under different temperature and current conditions;

Strong anti-saturation capacity: It can bear high DC current, and the rated current density is up to 8.0A/mm², which is not easy to saturate under heavy load and maintains stable inductance value;

Excellent heat dissipation: The annular structural design increases the heat dissipation area by about 40%, the working temperature range is -55℃ to 125℃, and the performance is stable without parameter drift in high-temperature industrial environments.

Technical Specifications

Application Scenarios

Our radial leaded wire wound inductor for signal filtering is widely used in various industrial electronic systems and professional electronic equipment, including:

• Power electronics: Switching power supplies, DC/DC converters, power supply filters and voltage regulators of industrial equipment;

• Communication equipment: Base station signal processing modules, communication terminal filtering circuits and RF signal transmitters;

• Industrial automation: Servo drive systems, PLC control circuits and industrial robot electronic control modules;

• Medical electronics: ECG monitors, medical detection equipment and high-precision medical instrument signal circuits;

• Consumer electronics: High-end audio equipment, computer power supplies and household appliance frequency conversion control circuits.

Brand & Service Advantages

Professional R&D and production: We have a dedicated electronic component R&D team, focusing on the optimization design of wire wound inductors, and can provide customized products according to the specific frequency and current requirements of enterprise customers;

Strict quality control: All products undergo full-automatic precision testing before leaving the factory, realizing zero-defect delivery, and providing product quality inspection reports and technical parameters test data;

Flexible supply chain: Support bulk order delivery and small batch customized production, with short lead time, to meet the production scheduling needs of industrial manufacturers;

One-stop technical support: Provide professional circuit matching suggestions, product application guidance and after-sales technical service, and set up a special customer service team to respond to technical problems in 24 hours;

Cost performance advantage: Based on large-scale production, we provide high-quality industrial-grade inductors at competitive prices, reducing the procurement cost of enterprise customers.

FAQ

What is the measurement standard of the inductance value of this radial leaded wire wound inductor?

The inductance value is tested and calibrated by a professional LCR instrument at a standard frequency of 1KHz, and the test data is traceable to the national metrology standard to ensure accuracy.

Can the product be customized according to the special lead pitch and inductance tolerance requirements?

Yes, we support customized services for enterprise customers, including lead pitch, inductance tolerance (minimum ±2%), DC resistance and other parameters, and provide sample proofing.

What is the service life of this signal filtering inductor under industrial continuous working conditions?

Under the rated working conditions, the product's design service life is more than 10 years, and the performance attenuation is less than 5% during the service life, which is suitable for long-term continuous operation of industrial equipment.
