1111 Radial Leaded Wire Wound Inductor Shielded Power Inductors


Characteristics:
  • Radial through-hole inductor
  • High saturation core material
  • High current capacity
  • Custom design on request

Options:
  • Radial through-hole type, high saturation core material, high current capacity
  • Custom design available on request
  • For signal filtering, small/medium voltage switches/switching power supplies
  • Ideal for power supply filters & EMI filters

Common Applications:
  • Signal filtering
  • Switches, switching power supply for small and medium voltage
  • Power supply filter
  • EMI filter
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
1111 Radial Leaded Wire Wound Inductor Shielded Power Inductors
Product Description
Download

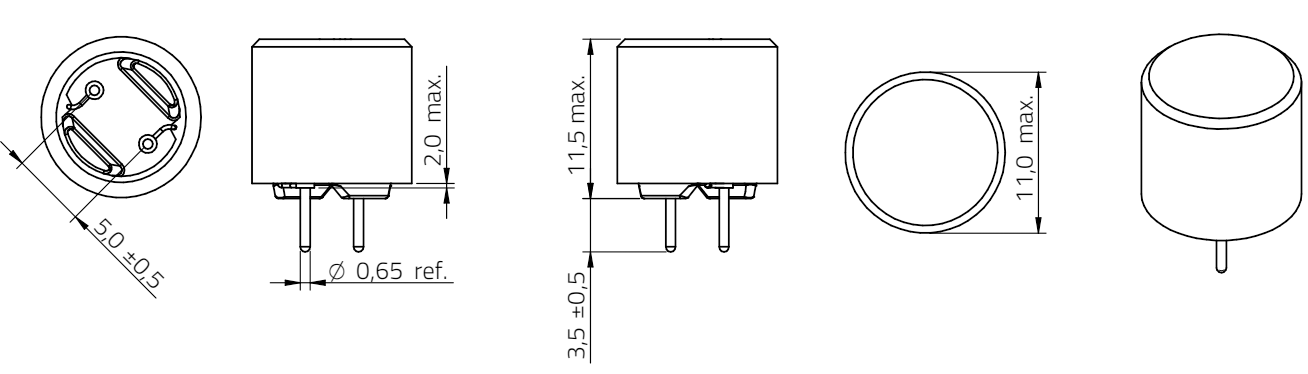

Physical Propertie

Order Code

L

(μH)

lR

(A)

lSAT

(A)

RDC max.

(mΩ)

fres

(MHz)

INF-1111-1μH

1

10.5

22

8

155

INF-1111-2.7μH

2.7

8.2

13

11

88

INF-1111-3.9μH

3.9

7.7

11

13

75

INF-1111-4.7μH

4.7

7.1

9.9

15

62

INF-1111-6.8μH

6.8

6

8

19

53

INF-1111-10μH

10

5

6.6

26

46

INF-1111-22μH

22

3.8

4.4

40

16

INF-1111-33μH

33

3

3.6

65

9.7

INF-1111-47μH

47

2.3

3

100

6.4

INF-1111-100μH

100

1.4

2.1

240

4

INF-1111-150μH

150

1.2

1.7

340

3.3

INF-1111-220μH

220

1

1.4

510

2.6

INF-1111-330μH

330

0.8

1.1

810

2.1

INF-1111-470μH

470

0.68

0.98

1200

1.6

INF-1111-1000μH

1000

0.46

0.68

2500

1.1

INF-1111-2200μH

2200

0.31

0.46

5700

0.74

INF-1111-3300μH

3300

0.25

0.38

8600

0.62

INF-1111-4700μH

4700

0.21

0.32

12000

0.49

INF-1111-6800μH

6800

0.18

0.27

14500

0.41


Technical Specifications
