DR Radial Leaded Wire Wound Inductor 1016 Filter Choke

DR 1018 Radial Leaded Wire Wound Inductor Filter Choke

DR 1018 Radial Leaded Wire Wound Inductor Filter Choke is a high-power magnetic filtering device with radial through-hole packaging, constructed with high saturation core material. Combining miniaturized structure and high current-carrying capacity, it supports a maximum operating current of up to 9.0A. Developed for medium-low voltage switching power supplies, signal filtering and EMI interference suppression scenarios, this device supports custom specification adjustment, adaptable to high-density integrated electronic circuits, providing efficient filtering protection for equipment power and signal circuits.

Quantity:
Availability:





Inquiry

Model:
DR1018
Brand:
INF

DR Radial Leaded Wire Wound Inductor 1018 Filter Choke DR 1018 Filter Choke radial leaded wire wound inductor high saturation core inductor 9.0A max current component signal filtering inductor EMI suppression choke medium-low voltage power supply filter through-hole mounting inductor custom-spec inductor

Product Description

Download

As a high-power radial lead wirewound inductor, the DR 1018 Filter Choke uses high-saturation magnetic core material and precision layered winding, effectively preventing performance degradation from core saturation and ensuring stable filtering under high-current operation. Its radial through-hole package fits traditional PCB insertion processes, and the compact size enables flexible integration into dense circuit layouts, balancing mounting convenience and space utilization.

With a 250VAC rated voltage, 2000VAC dielectric withstand voltage and ≥100MΩ insulation resistance, it provides reliable electrical isolation. Operating at -20℃ to 105℃ with a maximum temperature rise ≤45℃ and 9.0A maximum current capacity, it supports long-term work in complex environments and meets the needs of medium-low voltage switches and high-power switching power supplies. Widely applied in power filter circuits, EMI suppression and signal purification, it efficiently eliminates clutter and blocks electromagnetic interference for stable equipment operation.

As a high-performance passive magnetic filter, the DR 1018 features high current-carrying capacity, compact size and stable filtering, with customizable specifications for diverse circuit requirements. It is a core component for medium-low voltage high-power electronics and high-density filter modules, ideal for industrial and civil electronic applications.

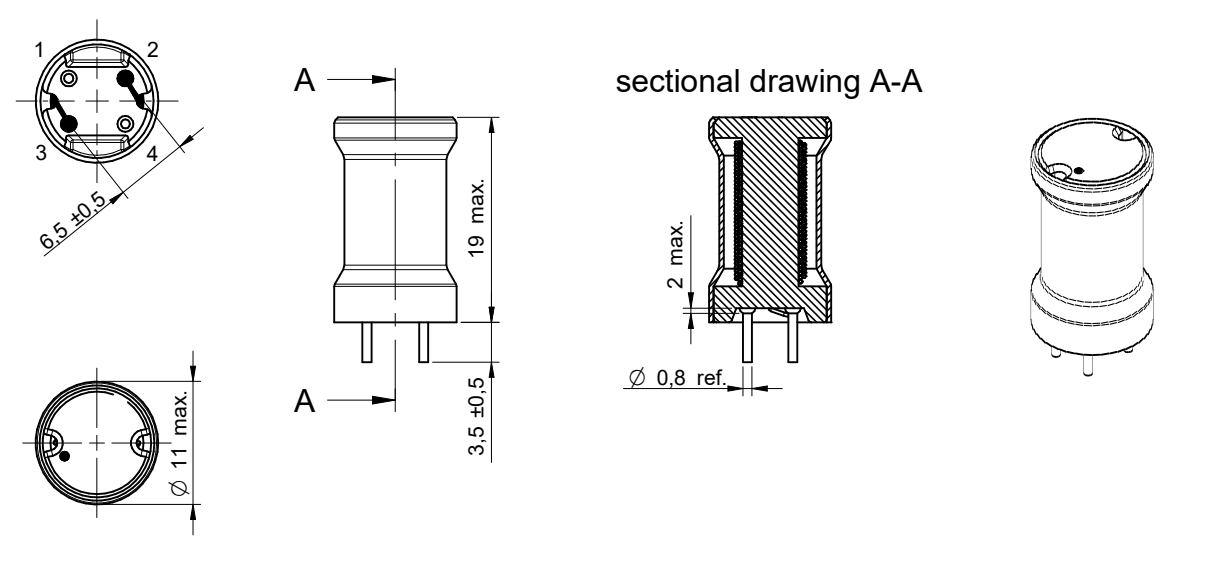

Physical Propertie

Order Code	L (μH)	lR (A)	lSAT,10% (A)	RDC max. (Ω)	fres (MHz)
INF-1018-100μH	100	2.6	3.1	0.09	3.6
INF-1018-220μH	220	1.75	2.1	0.2	2.4
INF-1018-330μH	330	1.4	1.75	0.29	1.9
INF-1018-470μH	470	1.2	1.5	0.41	1.6
INF-1018-680μH	680	1	1.2	0.59	1.3
INF-1018-1000μH	1000	0.8	1	0.86	1.1
INF-1018-2200μH	2200	0.54	0.7	1.9	0.72
INF-1018-3300μH	3300	0.43	0.55	2.8	0.58
INF-1018-4700μH	4700	0.36	0.47	4	0.48
INF-1018-6800μH	6800	0.3	0.39	5.75	0.4
INF-1018-10000μH	10000	0.25	0.32	8.5	0.32
