| Item | Specification |

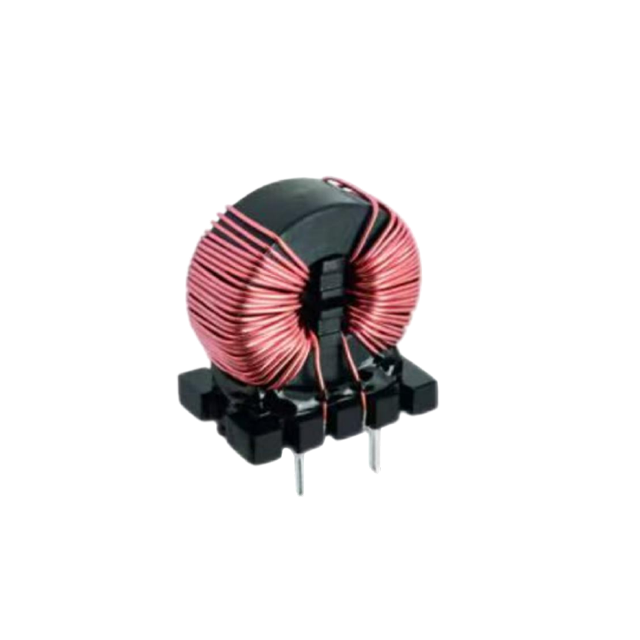

| Core Material | Nanocrystalline, high magnetic permeability |
| Insulation Structure | Plastic housing + winding spacer, enhanced isolation |
| Inductance Stability | Stable high inductance up to 150 °C |
| Rated Current | High current carrying capacity |
| Frequency Range | 1 kHz – 300 MHz |
| Operating Temperature | -55 °C to +125 °C |
| Flammability Class | UL 94 V-0 |
| Climatic Category | 55/125/21 |
| Typical Function | Wide-band noise suppression, RFI reduction, common-mode filtering |

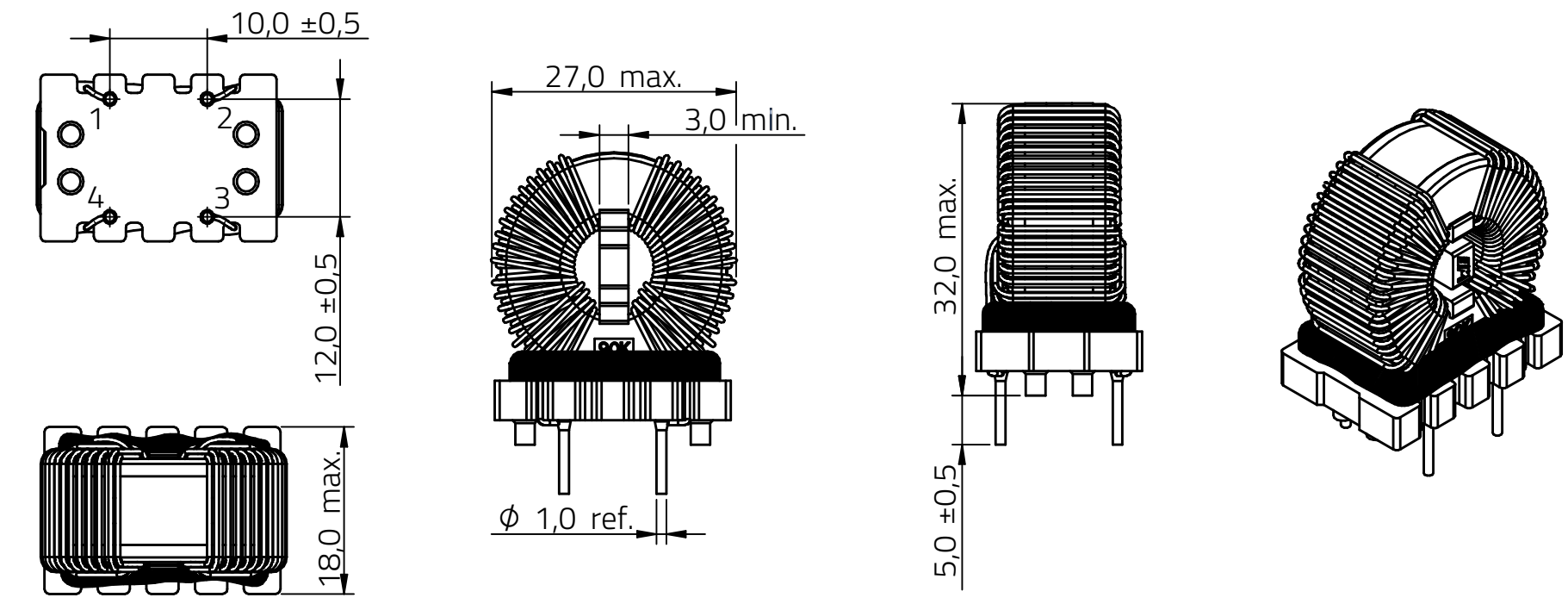

Physical Propertie
Order Code | lR (A) | L (mH) | RDC max. (mΩ) | VR (V(AC)) | VT (V(AC)) |
INF-Type L-82mH | 2.5 | 82 | 170 | 300 | 2100 |
INF-Type L-35mH | 3.5 | 35 | 80 | 300 | 2100 |
INF-Type L-15mH | 5 | 15 | 40 | 300 | 2100 |
INF-Type L-7mH | 7 | 7 | 22 | 300 | 2100 |
INF-Type L-4mH | 11 | 4 | 8.8 | 300 | 2100 |
INF-Type L-2mH | 15 | 2 | 5 | 300 | 2100 |
INF-Type L-1.5mH | 18 | 1.5 | 3.2 | 300 | 2100 |
INF-Type L-1mH | 20 | 1 | 2.4 | 300 | 2100 |
Technical Specifications
