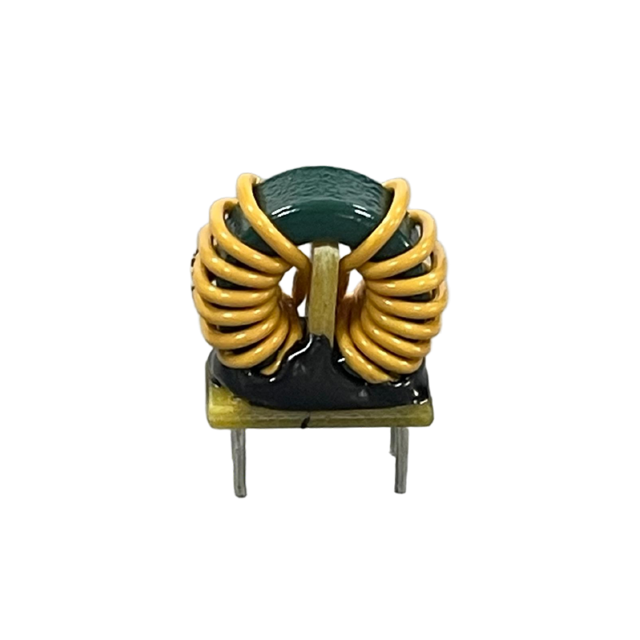

This series of filtering components utilizes nanocrystalline core with ultra-high magnetic permeability to ensure excellent filtering performance and electrical stability. Enhanced insulation is realized through professional housing and winding isolation design, while stable inductance characteristics can be maintained in high-temperature environments. It supports high rated current input, covers a wide operating frequency band, and realizes efficient full-range noise and interference suppression. With a compact outline, wide working temperature range, UL 94 V-0 flame retardant level and professional climatic grade, it fully meets the application requirements of various high-standard power electronic equipment and provides stable and reliable filtering protection.
We accept FOB Shanghai / Nanjing / Hong Kong and T/T in advance.
Physical Propertie
Order Code | lR (A) | L (mH) | RDC max. (mΩ) | VR (V(AC)) | VT (V(AC)) |
INF-Type S-80mH | 0.6 | 80 | 1000 | 300 | 2100 |
INF-Type S-30mH | 1.2 | 30 | 280 | 300 | 2100 |
INF-Type S-10mH | 2 | 10 | 85 | 300 | 2100 |
INF-Type S-5mH | 3 | 5 | 40 | 300 | 2100 |
INF-Type S-3mH | 4.5 | 3 | 22 | 300 | 2100 |
INF-Type S-2.5mH | 5 | 2.5 | 15 | 300 | 2100 |
INF-Type S-1.5mH | 6 | 1.5 | 8 | 300 | 2100 |
INF-Type S-1mH | 7 | 1 | 6 | 300 | 2100 |
Technical Specifications
