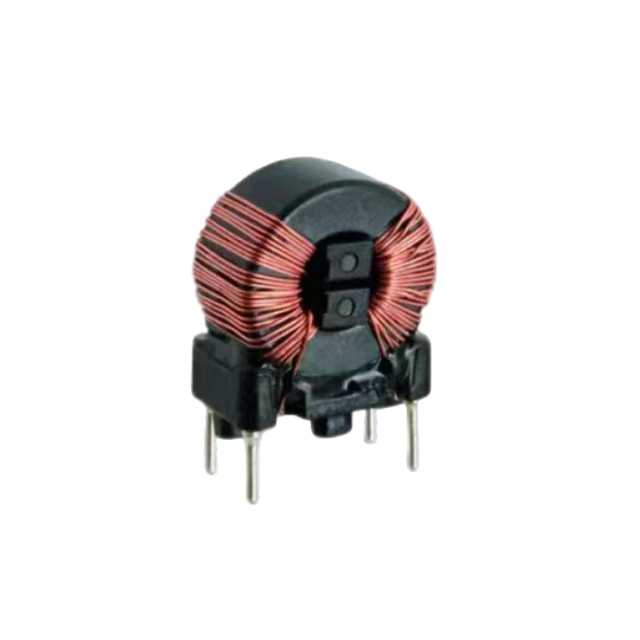

Type XL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

Type XL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

Characteristics

This series features a very high permeability nanocrystalline core, with enhanced insulation achieved through a plastic housing and winding spacer. It delivers high and stable inductance up to 150 °C, along with high rated current capability and excellent broadband noise suppression, all in a compact design.

The component operates over a frequency range of 1 kHz to 300 MHz and a temperature range of –55 °C to +125 °C. It carries a UL 94 V-0 flammability rating and meets climatic category 55/125/21.

Quantity:
Availability:





Inquiry

Type XL Common Mode Power Line Choke Nanocrystalline Common Mode Chokes Common Mode Power Line Choke EMI suppression choke Nanocrystalline Common Mode Choke common mode choke nanocrystalline EMI choke nanocrystalline EMI filter choke

Product Description

Download

Common Applications:

· For power electronics, power line filters , motor radio interference & common mode noise suppression

Payment & Trade Terms

Payment terms: T/T within 60 days after invoice issuance upon receipt of goods, in line with standard enterprise procurement practices for global passive electronic components, with no quality deposit required.
Trade terms: FOB Shanghai / Nanjing / Hong Kong, T/T Advance accepted.

FAQ：

Q：In global ODM/OEM cooperation, if patents or technical confidentiality are involved, how do you ensure protection?
A：We will sign an exclusive Non-Disclosure Agreement (NDA) with cooperative customers, clarifying the scope and duration of confidentiality for technical materials and design plans (minimum 5 years). In the production process, we use independent production lines to handle ODM/OEM orders and are equipped with exclusive storage areas to avoid information overlap. At the same time, we can cooperate with customers to complete joint patent applications or technical authorization procedures to ensure that customers' core technical rights and interests are not harmed.

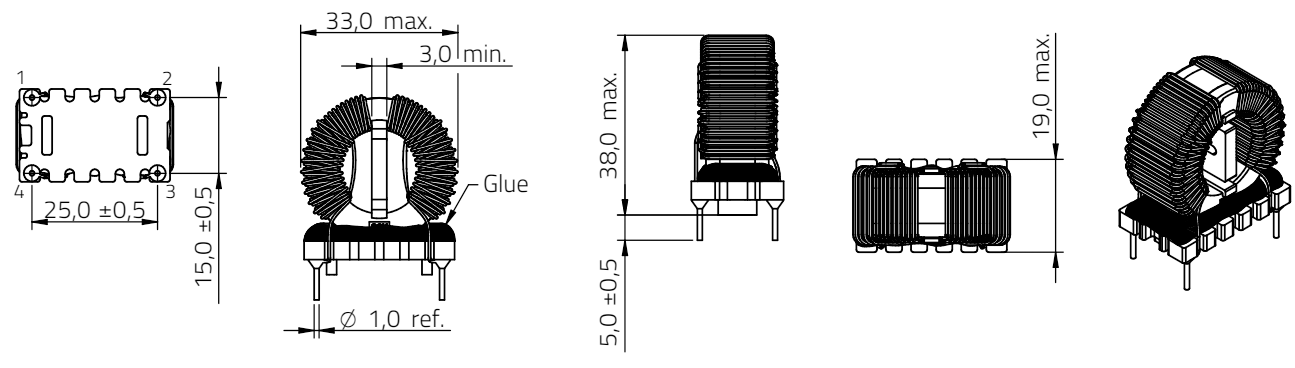

Physical Propertie
