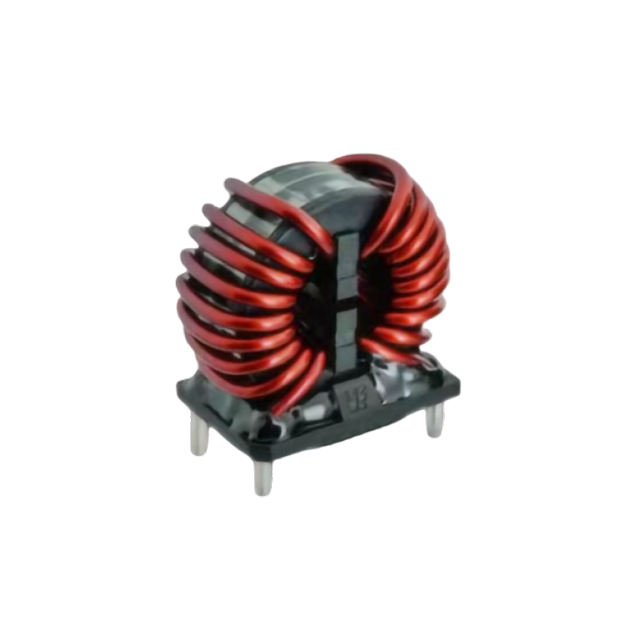

Type XS Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

Type XS Common Mode Power Line Choke Nanocrystalline Common Mode Chokes

This filtering component is specially engineered to suppress conducted interference and common-mode noise in power electronic systems. It effectively reduces radio frequency interference in motor drive systems, optimizes input and output filtering for power lines, and improves the stability and anti-interference performance of the entire circuit. It is widely applied in industrial equipment, power supply systems, automotive electronics, and other scenarios requiring high reliability and strong noise suppression capability.

Quantity:
Availability:





Inquiry

Type XS Common Mode Power Line Choke Nanocrystalline Common Mode Chokes Nanocrystalline Common Mode Choke nanocrystalline EMI filter choke nanocrystalline EMI choke

Product Description

Download

Technical Highlights

Adopts nanocrystalline core for ultra-high magnetic permeability and low loss characteristics
Optimized insulation structure delivers enhanced isolation and high dielectric strength
Maintains stable inductance characteristics under high temperature up to 150 °C
Supports high rated current with excellent thermal stability and overload adaptability
Provides effective full-band interference suppression from 1 kHz to 300 MHz
Compact structure for easy integration in space-limited circuit designs
Wide operating temperature range for harsh industrial and automotive environments
Meets UL 94 V-0 flammability standard and 55/125/21 climatic classification

Minimum Order Quantity (MOQ) & Packaging

Prototype / Evaluation Orders: Available from 1 piece. Free sampling and customization services are offered, with up to 5 free samples (shipping cost not included).
Bulk Orders: Discounted pricing applies for orders of 5,000 pieces or more.

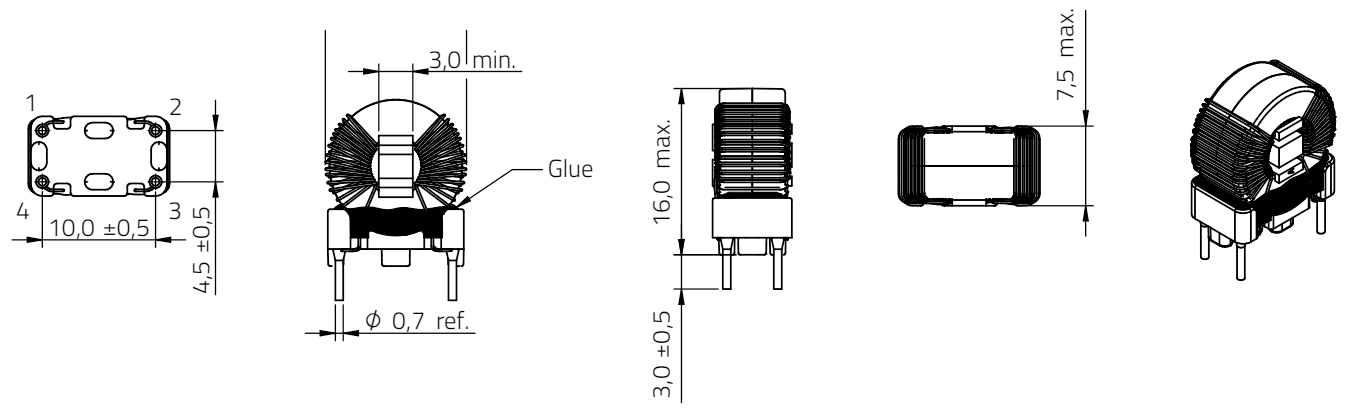

Physical Propertie

Order Code	lR (A)	L (mH)	RDC max. (mΩ)	VR (V(AC))	VT (V(AC))
INF-Type XS-11mH	0.9	11	430	300	2100
INF-Type XS-8mH	1	8	330	300	2100
INF-Type XS-5mH	1.3	5	200	300	2100
INF-Type XS-1.6mH	2	1.6	90	300	2100
INF-Type XS-1mH	2.5	1	55	300	2100
INF-Type XS-0.5mH	3.5	0.5	33	300	2100
INF-Type XS-0.4mH	4.5	0.4	22	300	2100
