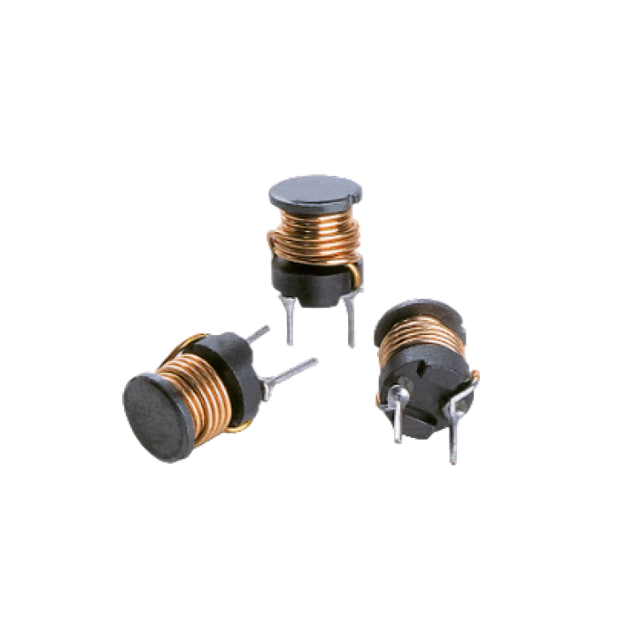

DR Radial Leaded Wire Wound Inductor 6065 Filter Choke

DR Radial Leaded Wire Wound Inductor 6065 Filter Choke

With custom design services available, this filter choke can be tailored to meet specific performance requirements, offering flexibility for diverse electronic system designs. Its compact form factor ensures seamless integration into space-constrained PCB layouts, while its robust construction delivers consistent filtering performance across demanding operating conditions.

Quantity:
Availability:





Inquiry

DR Radial Leaded Wire Wound Inductor 6065 Filter Choke DR 6065 filter choke DR 6065 radial inductor radial leaded wire wound inductor

Product Description

Download

Characteristics:

· Radial through-hole inductor: compact size, high-saturation core material, 8.5 A max current

· Custom design service available

Common Applications:

· Filter solutions: signal filtering, power supply filters, EMI filters
· Compatible with switches & switching power supplies (low-to-medium voltage)

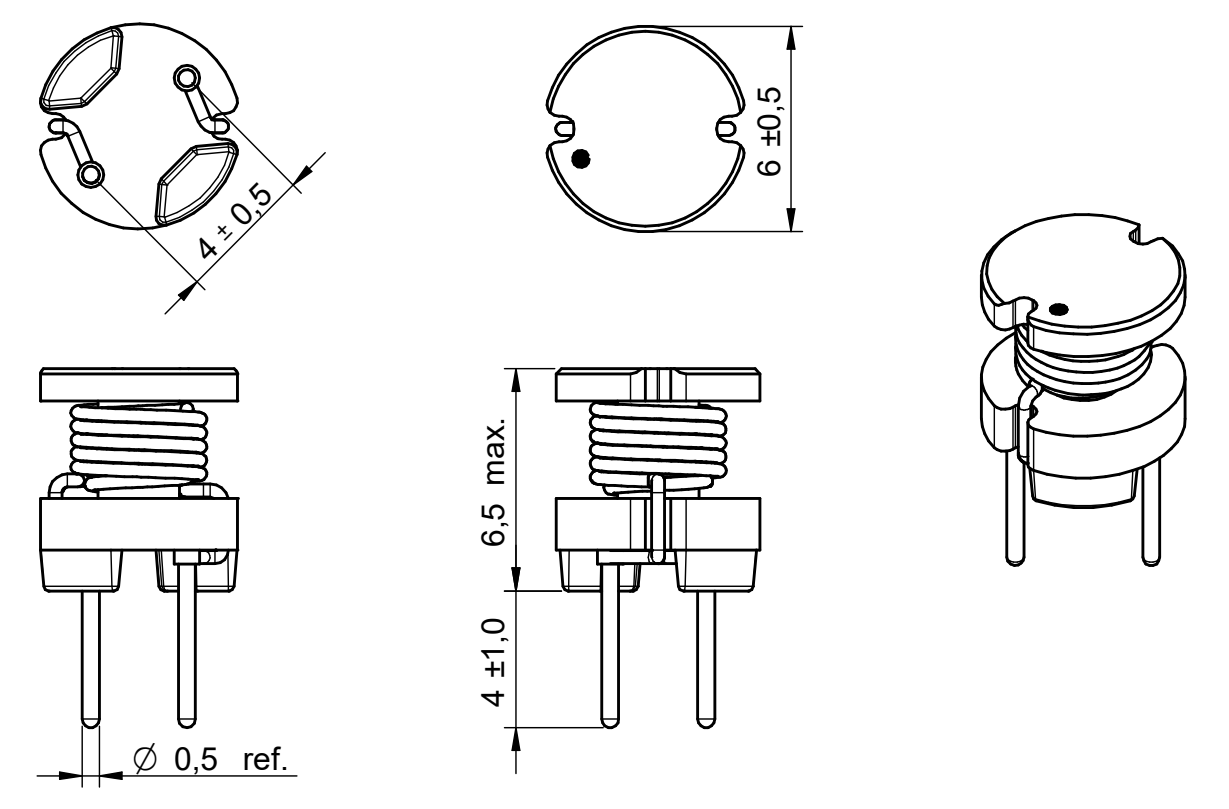

Physical Propertie

Order Code	L (μH)	lR (A)	lSAT,10% (A)	RDC max. (Ω)	fres (MHz)
INF-6065-6.8μH	6.8	2.2	3.1	0.035	40
INF-6065-10μH	10	1.85	2.5	0.05	28
INF-6065-47μH	47	1.45	1.1	0.16	10.2
INF-6065-68μH	68	1.4	1	0.28	9.4
INF-6065-220μH	220	0.6	0.55	0.8	5.5
