DR Radial Leaded Wire Wound Inductor 8012 Filter Choke

DR Radial Leaded Wire Wound Inductor 8012 Filter Choke

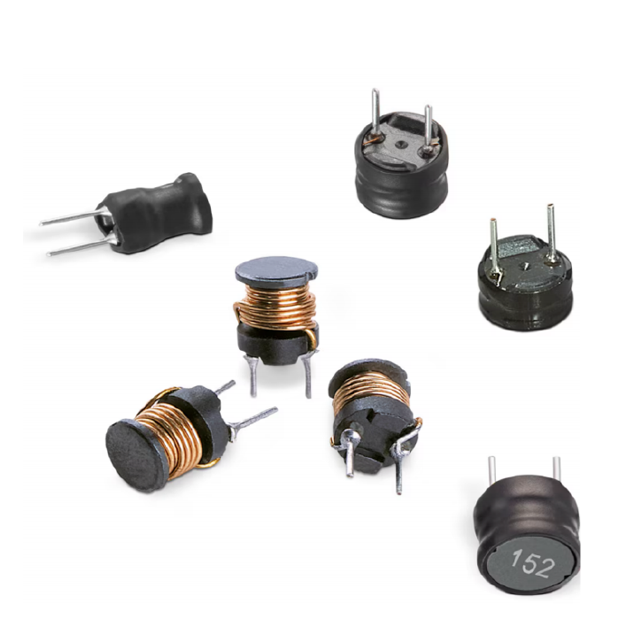

DR8012 radial inductor features high-saturation core, compact size and high current rating, providing stable filtering performance for signal conditioning, switching power supplies and EMI suppression circuits.

Quantity:
Availability:





Inquiry

Product Description

Download

Product Strengths

Adopts high-saturation magnetic core material to maintain excellent inductance stability under heavy load
Radial leaded through-hole design delivers firm assembly strength and superior solderability
Compact and miniaturized appearance effectively optimizes PCB layout space and improves integration
Wide rated current range up to 8.5A, suitable for continuous operation in medium load circuits
Excellent low-distortion characteristics, effectively purifying signal and power transmission quality
Flexible custom design service to meet diverse electrical parameters and structural needs

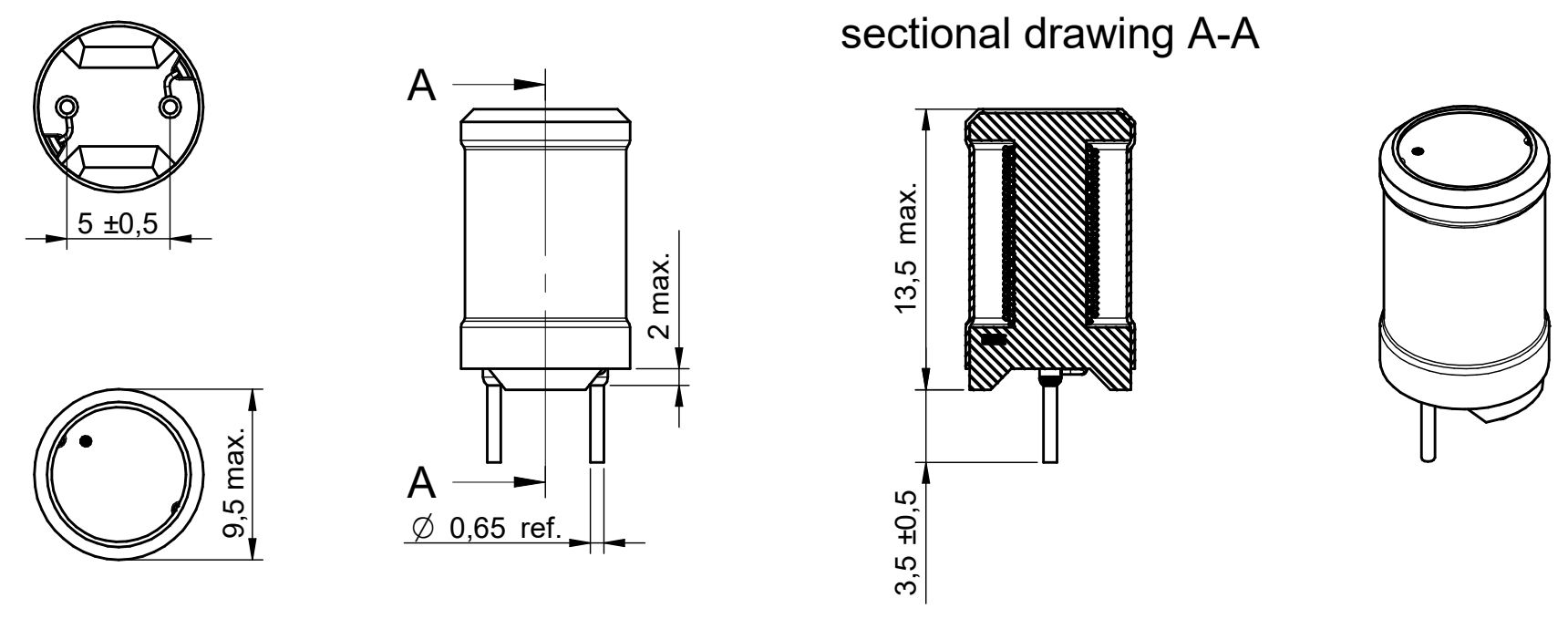

Physical Propertie

Order Code	L (μH)	lR (A)	lSAT,10% (A)	RDC max. (Ω)	fres (MHz)
INF-8012-10μH	10	4.7	5.4	0.02	20
INF-8012-100μH	100	1.8	1.5	0.16	4.8
INF-8012-220μH	220	1.2	1.2	0.29	3.4
INF-8012-330μH	330	1.1	1	0.47	2.6
INF-8012-390μH	390	1	0.91	0.52	2.4
INF-8012-560μH	560	0.81	0.75	0.85	1.9
INF-8012-820μH	820	0.7	0.6	1.2	1.5
INF-8012-1000μH	1000	0.6	0.55	1.55	1.4
INF-8012-1500μH	1500	0.5	0.43	2.1	1.37
INF-8012-2200μH	2200	0.4	0.4	2.9	0.95
INF-8012-3900μH	3900	0.28	0.28	4.8	0.78
INF-8012-4700μH	4700	0.23	0.26	7	0.65
INF-8012-10000μH	10000	0.18	0.18	16.6	0.45
INF-8012-68000μH	68000	0.05	0.07	106	0.16
