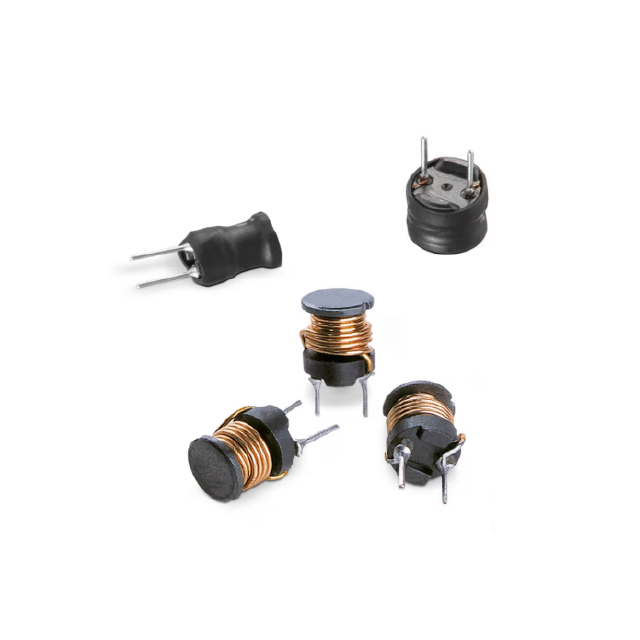

| Model | DR 5075 Unshielded Radial Leaded Wire Wound Inductor |
| Structure | Radial through-hole type |
| Core Material | High-saturation magnetic core |
| Form Factor | Compact, space-saving design |
| Max. Current Rating | Up to 8.5 A |
| Customization | Custom designs & specifications supported |
| Typical Application | Signal filtering, power supply filters, EMI filters, low-to-medium voltage switching power supplies |
Despite its non-shielded structure, this inductor achieves an optimized balance between size and electrical performance with its compact mechanical profile, supporting a rated current of up to 8.5A to satisfy the operation demands of medium and low-power systems. It offers flexible customization for inductance value, pin length and electrical parameters, making it highly adaptable to diversified circuit design requirements.

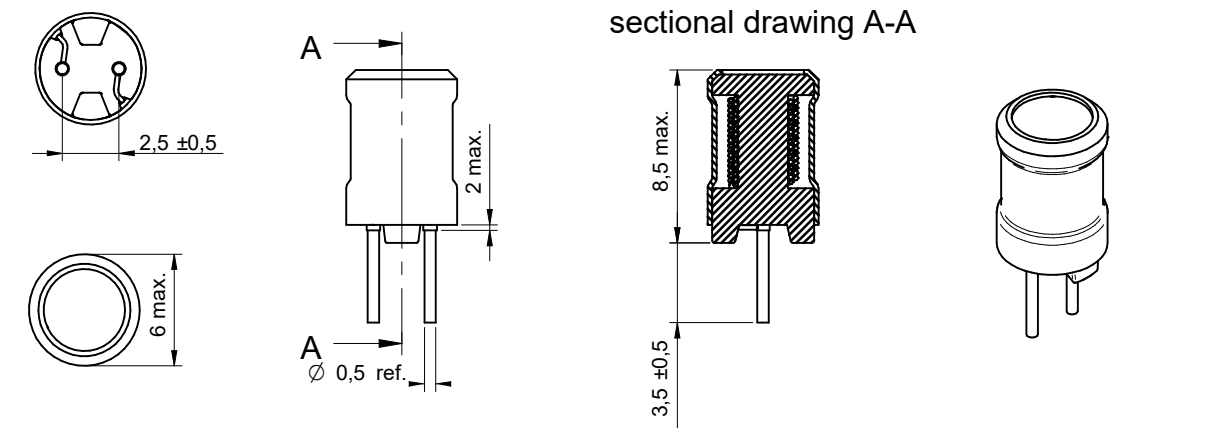

Physical Propertie
Order Code | L (μH) | lR (A) | lSAT,10% (A) | RDC max. (Ω) | fres (MHz) |
INF-5075-1μH | 1 | 8.5 | 8.5 | 0.015 | 140 |
INF-5075-2.2μH | 2.2 | 6.3 | 5.7 | 0.02 | 65 |
INF-5075-3.3μH | 3.3 | 4.7 | 4.6 | 0.025 | 48 |
INF-5075-4.7μH | 4.7 | 4.2 | 3.7 | 0.03 | 40 |
INF-5075-6.8μH | 6.8 | 3.3 | 3 | 0.034 | 32 |
INF-5075-10μH | 10 | 2.5 | 2.6 | 0.08 | 28 |
INF-5075-22μH | 22 | 1.8 | 1.7 | 0.13 | 15 |
INF-5075-33μH | 33 | 1.4 | 1.4 | 0.22 | 14 |
INF-5075-47μH | 47 | 1.18 | 1.2 | 0.34 | 10.6 |
INF-5075-68μH | 68 | 0.8 | 1 | 0.4 | 7.5 |
INF-5075-82μH | 82 | 0.8 | 0.9 | 0.47 | 7.2 |
INF-5075-100μH | 100 | 0.8 | 0.8 | 0.65 | 7.1 |
INF-5075-220μH | 220 | 0.5 | 0.57 | 1.2 | 4.8 |
INF-5075-470μH | 470 | 0.35 | 0.4 | 2.4 | 3.4 |
INF-5075-680μH | 680 | 0.25 | 0.3 | 3.7 | 2.4 |
INF-5075-1000μH | 1000 | 0.25 | 0.27 | 6 | 2.3 |
INF-5075-1500μH | 1500 | 0.19 | 0.22 | 8 | 1.8 |
INF-5075-2200μH | 2200 | 0.16 | 0.18 | 15 | 1.2 |
