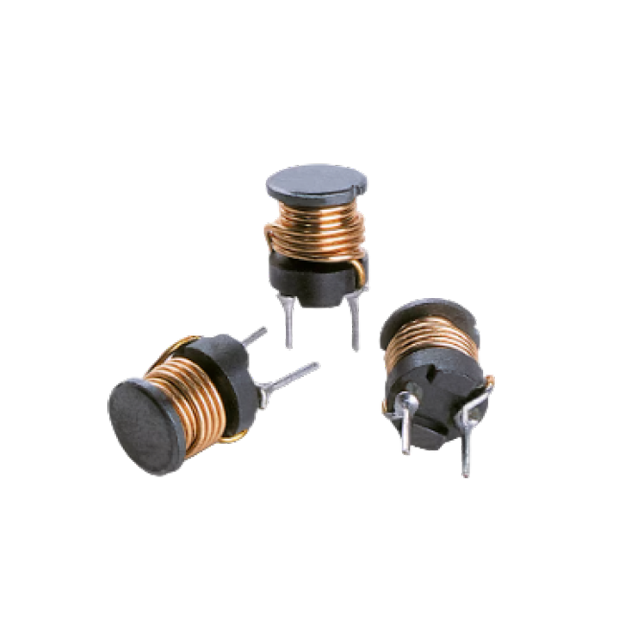

DR Radial Leaded Wire Wound Inductor 8012B Filter Choke

The DR 8012B radial leaded wire wound inductor is a professional filtering choke designed for stable operation in compact power supply circuits. Adopting a standard radial through-hole structure, it enables convenient and reliable PCB assembly while maintaining excellent mechanical stability.
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
DR Radial Leaded Wire Wound Inductor 8012B Filter Choke
Product Description
Download

Standard radial through-hole structure for easy PCB mounting and stable assembly

Excellent filtering performance for signal purification, power supply smoothing and EMI suppression

Wide adaptability to small and medium-power switching power supply and filter circuits


Common Applications:

· Signal filtering
· Switches & switching power supplies for low-to-medium voltage applications
· Power supply filters
· EMI filters

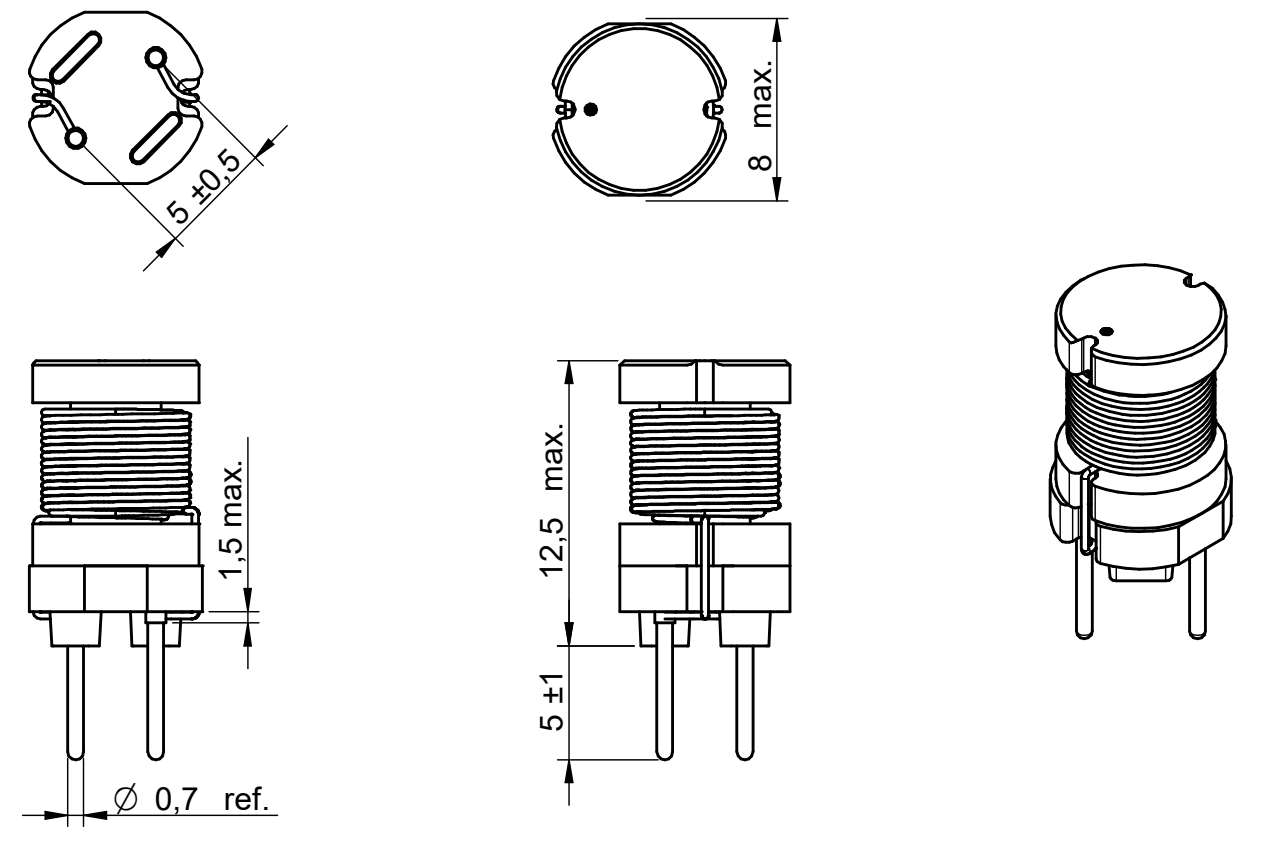

Physical Propertie

Order Code

L

(μH)

lR

(A)

lSAT,10%

(A)

RDC max.

(Ω)

fres

(MHz)

INF-8012B-100μH

100

1.5

2.1

0.3

5.1

INF-8012B-220μH

220

0.96

1.4

0.55

3.5

INF-8012B-330μH

330

0.74

1

1.2

2.8

INF-8012B-470μH

470

0.58

0.98

1.5

2.3

INF-8012B-1000μH

1000

0.42

0.69

2.5

1.6

Technical Specifications
